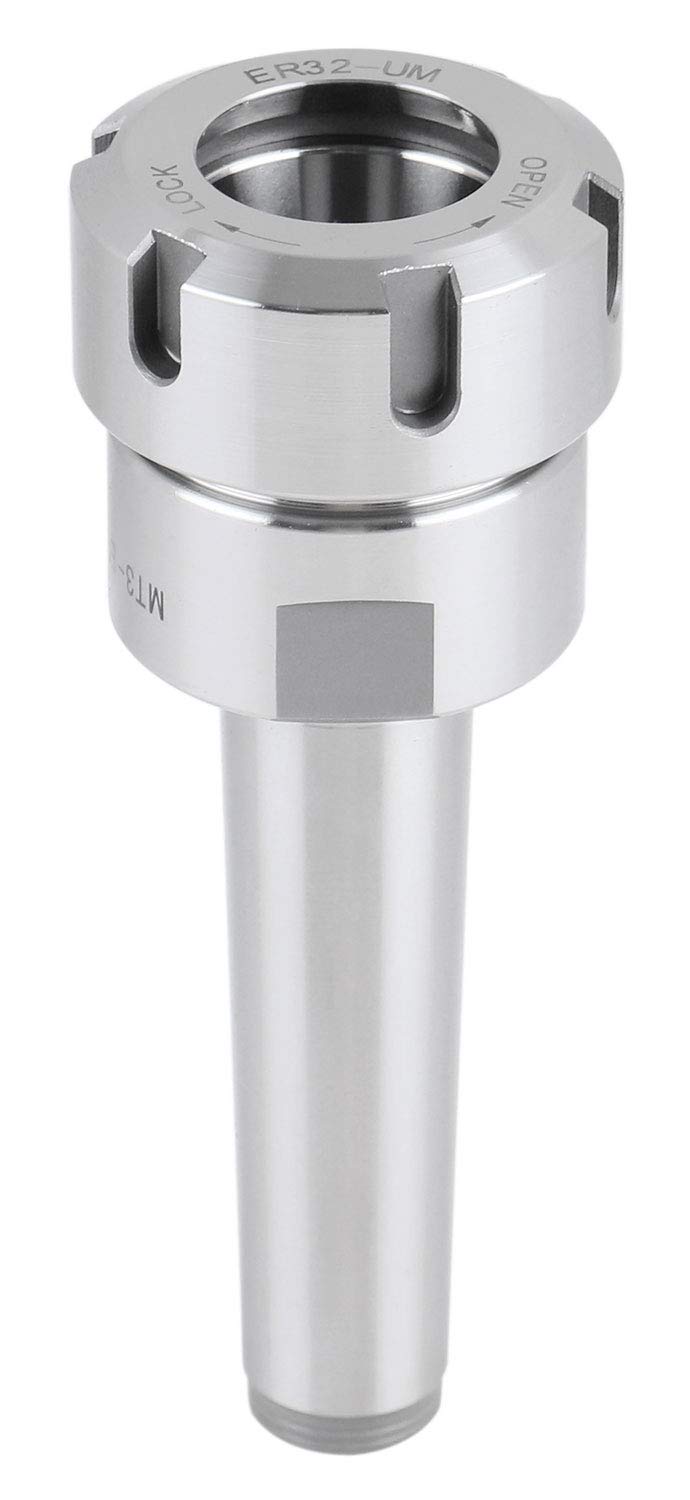

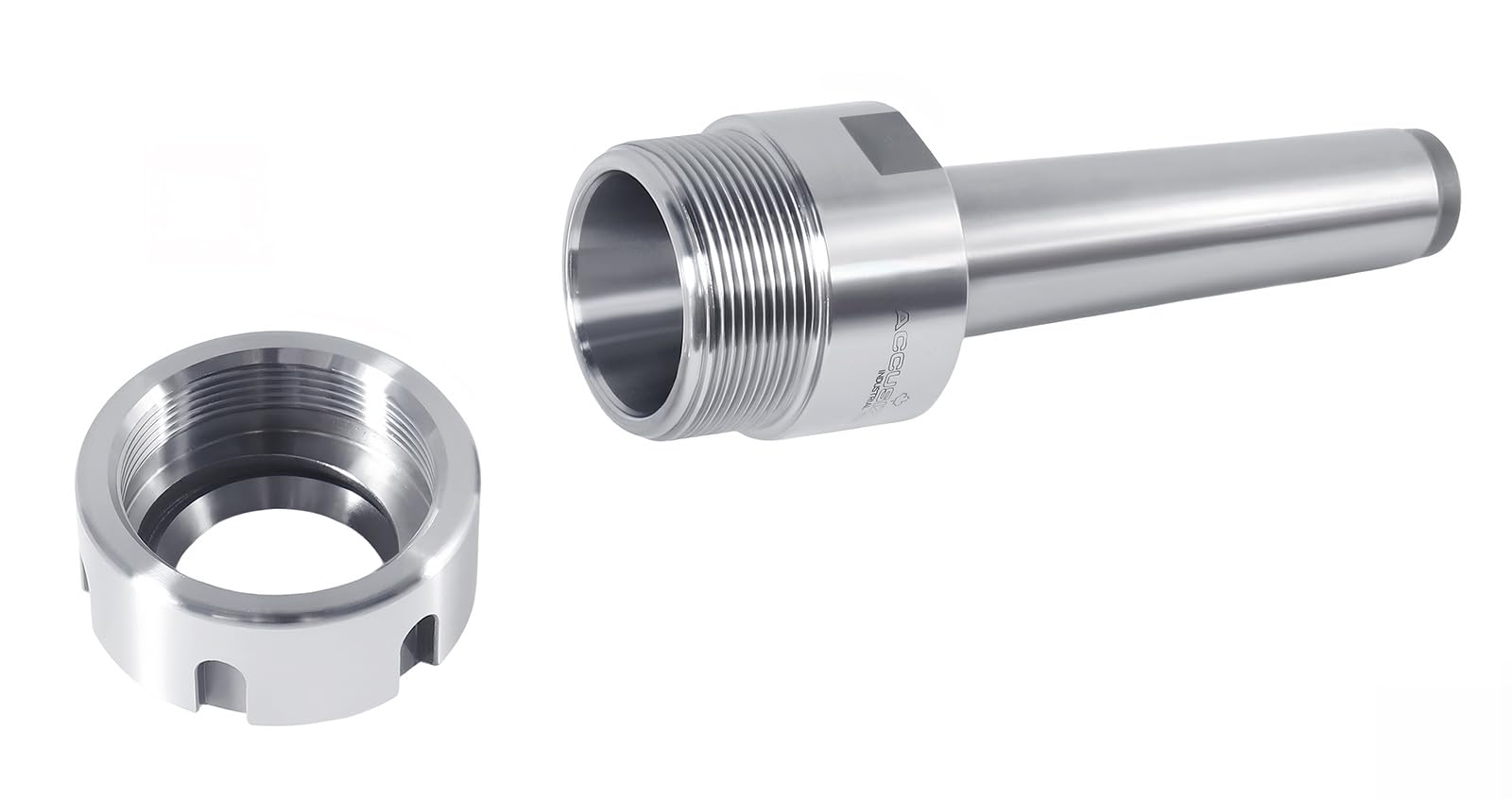

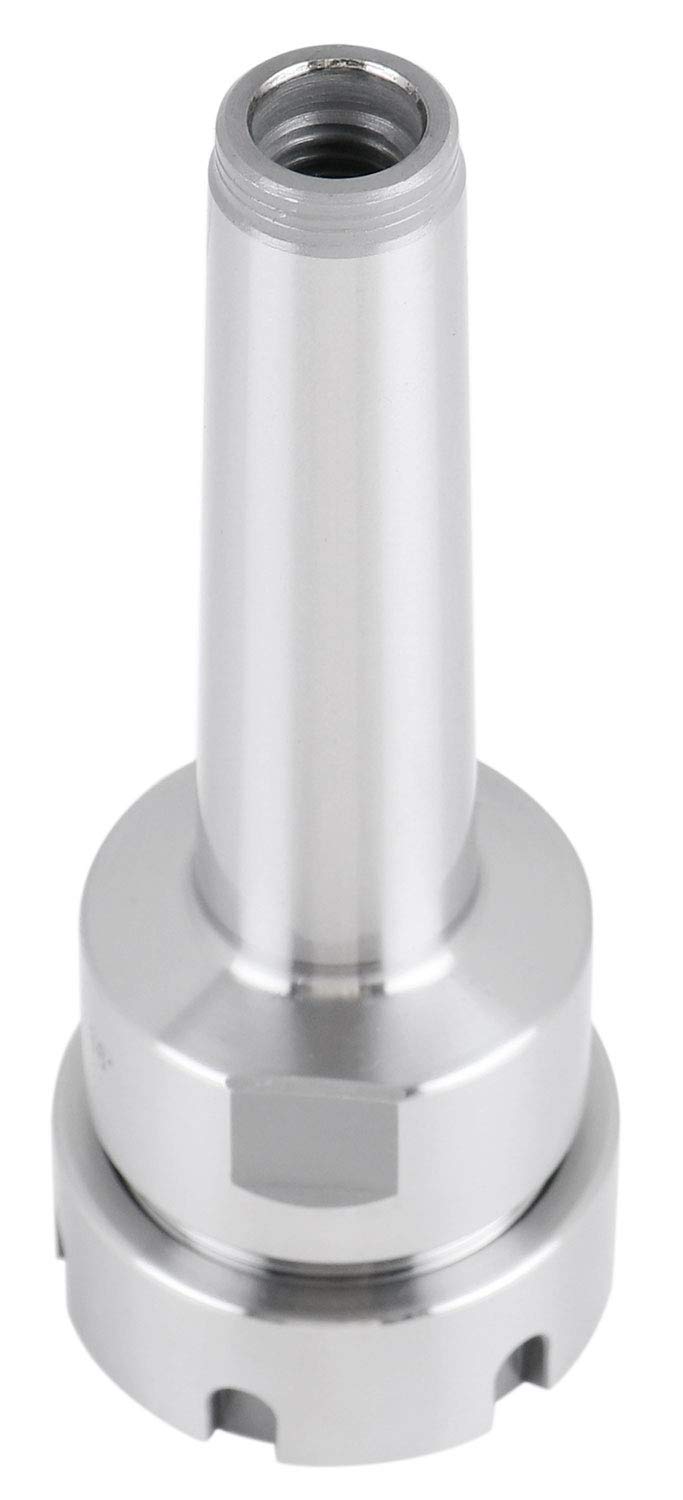

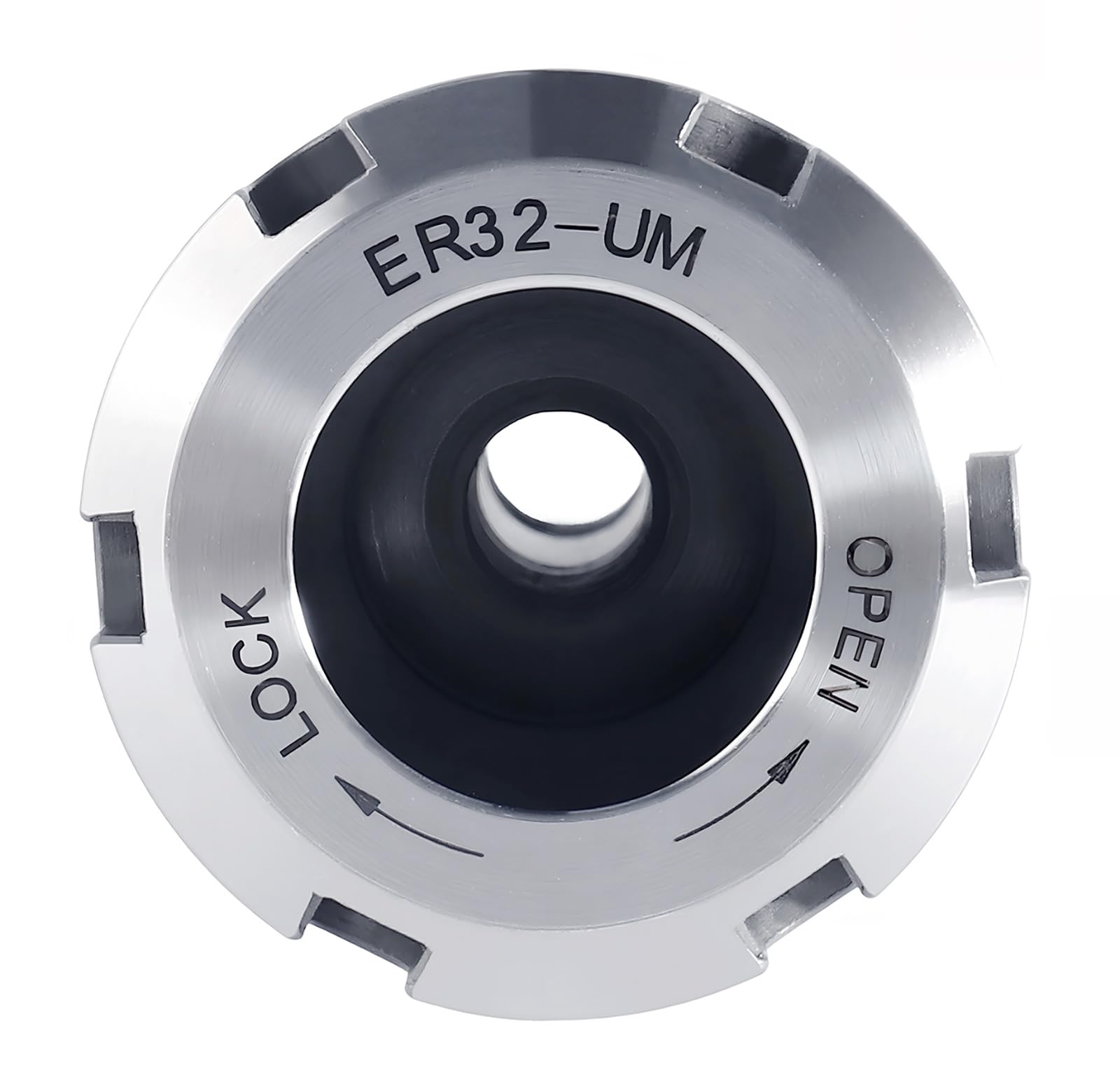

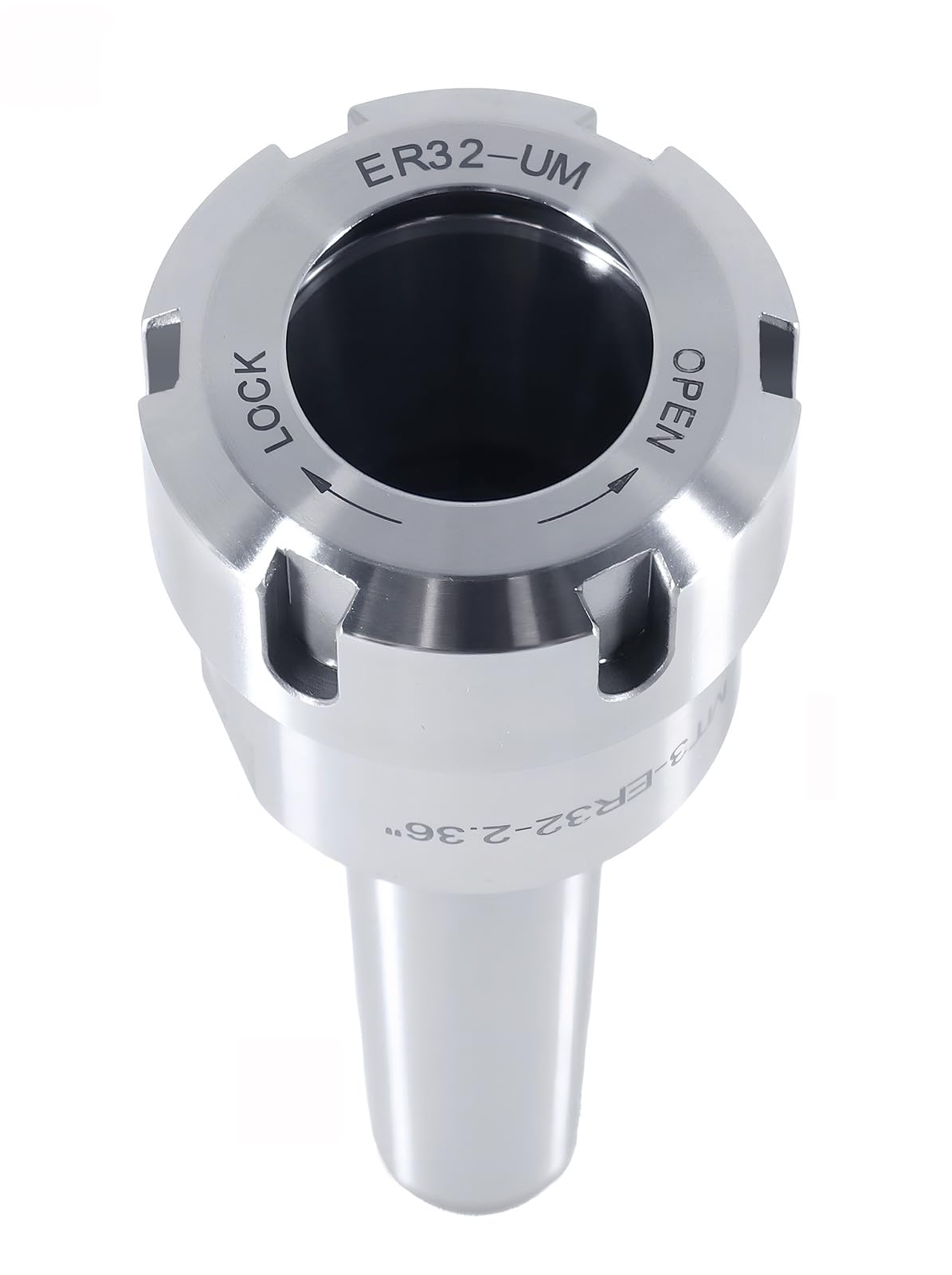

Accusize Industrial Tools Morse Taper MT3 Shank ER32 Collet Chuck, Max 8000 Rpm, 1/2"-13 Drawbar End, Max TIR 0.0002'' O.D to I.D. 0223-0236

• Made of high grade tool steel, Max RPM: 8000rpm. ER Style, ER-32. Max TIR 0.0002" O.D. to I.D
• Hardened and precision ground. Max TIR 0.0002" O.D to I.D
• When testing, whether the user's machine tool spindle has errors on the accuracy also has a great impact. So you need to ensure that the accuracy of the spindle of the user's test machine must be high. In addition, please make sure that the accuracy of the ER collet must be high, many ER collets are marked as 0.0005", many of them cannot reach it.
• Shank: MT3; Type: ER32; Gage Length: 2.36"; Collet Nut Diameter: 1.97"; Drawbar End: 1/2"-13
• If the accuracy of the collet in the hands of the customer is low, the accuracy of our toolholder is no longer high enough to detect the accuracy.
• MT3 Shank Compatibility: Ideal for manual milling machines with Morse Taper 3 spindles, ensuring a secure and precise fit.
• ER32 Collet Series: Accommodates a wide range of collet sizes from 0.08" to 0.787", offering versatility in tool holding for diverse machining needs.
• High-Grade Tool Steel Construction: Hardened and precision ground body enhances tool life and maintains performance under rigorous use.
• Superior Precision: Boasts a maximum Total Indicator Runout (TIR) of 0.0002" O.D to I.D, enabling exceptionally accurate machining.
• Designed for High-Speed Operations: Efficiently supports up to 8000 RPM, suitable for a variety of milling speeds and applications.

The Accusize Industrial Tools Morse Taper MT3 Shank ER32 Collet Chuck represents an essential tooling component for precision milling, engineered to meet the demands of professional machinists. With its Morse Taper 3 (MT3) shank, this collet chuck offers a secure and stable connection to manual milling machine spindles, facilitating precise and vibration-free machining. This collet chuck is compatible with the ER32 collet series, allowing machinists to use a broad range of collet sizes from 0.08" to 0.787". This versatility makes it a valuable asset for shops working on varied projects, from small detailed parts to larger components. Constructed from premium, hardened tool steel with a precision ground body, it is designed for durability and long-term use, reducing the need for frequent replacements and ensuring consistent performance. Accuracy is a hallmark of this collet chuck, featuring a maximum Total Indicator Runout (TIR) of 0.0002" from the outside diameter to the inside diameter. This precision ensures that tools are held securely with minimal runout, critical for achieving fine finishes and precise dimensions on workpieces. Capable of handling speeds up to 8000 RPM, this collet chuck is adaptable to both high-speed and precision-focused milling operations, making it a versatile choice for various applications. The slotted collet nut design, with a diameter of 1.97 inches and a gauge length of 2.36 inches, ensures easy tool changes and adjustments. A 1/2"-13 drawbar end further secures the collet chuck in place, minimizing setup time and enhancing overall machining efficiency.
