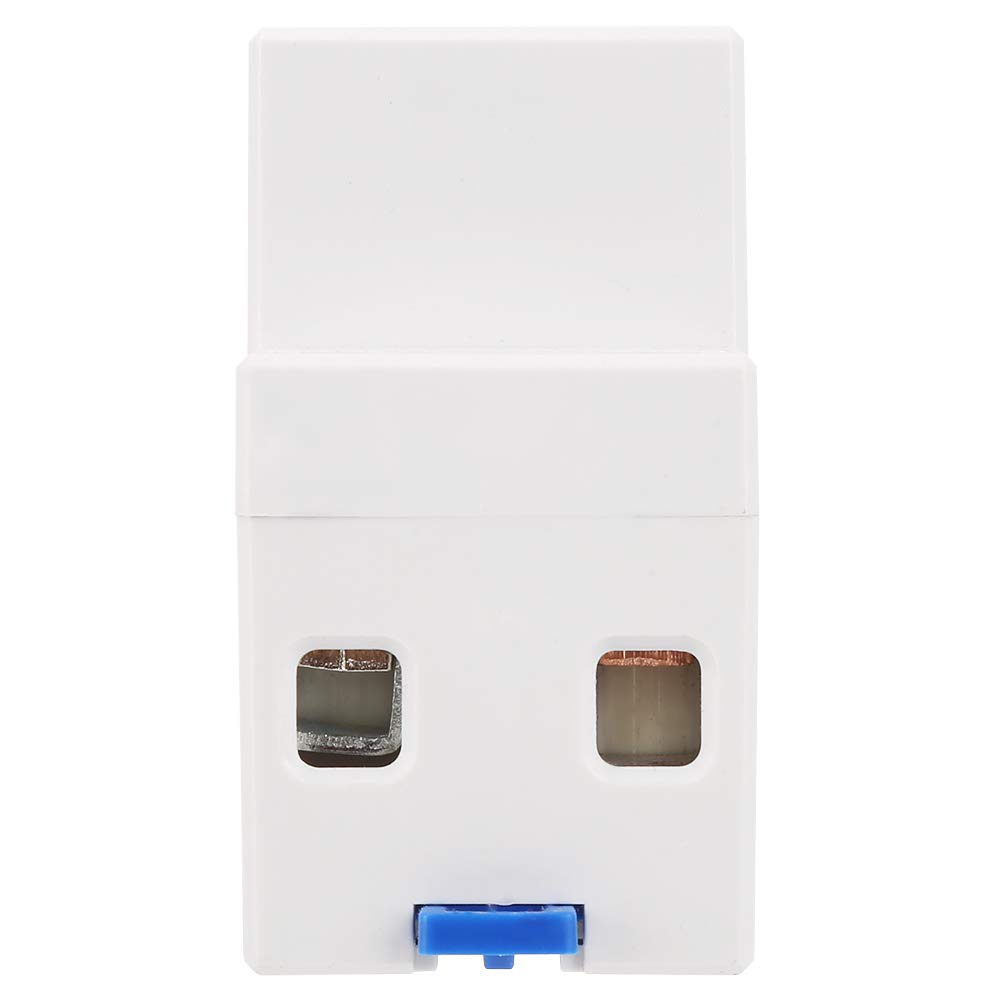

AC230V Digital DIN-Rail Electric Meter, 5-80A DDM15SC LCD Display Single Phase Electronic Energy KWh Meter

• 【REALIABLE ELECTRIC METER】: This DIN-Rail Electric Meter uses 35mm standard DIN rail installation, complying with standard DIN EN50022, which is 100% brand new and has high quality assurance.
• 【SINGLE POLE ELECTRIC METER】: This DIN-Rail Meter has single pole width, complying with standard DIN43880, and you don’t have to worry about the working performance of this Energy KWh Meter.
• 【DIGITS DISPLAY KWH METER】: The Electric Meter has standard configuration 5+1 digits display (99999.1kWh) by step motor type impulse register, which can make the result more intuitive and clearly.
• 【LCD DISPLAY ENERGY METER】: This Electric Energy Meter can measure positive active energy in electric energy measurement, which can be clearly displayed by LCD backlight screen, in this case, the LCD screen can ensure this Meter longer service life.
• 【MULTIPLE DISPLAY METER】: The Electric Meter can display electricity, voltage, current, frequency and power, thus you can get these data whatever you want, and help you know correct circuit condition of your home or industry.

Features: 1. 35mm DIN Rail mounting meets the standards of DIN EN50022. 2. 17.5mm pole width meets the standards of DIN43880. 3. LCD digital display, no reset button, to avoid human manipulation with the data. 4. It displays electricity, voltage, current, frequency and power. 5. Red LED energy pulse signal. 6. Embedded end cover, ensuring power supply safety. 7. With the features of good reliability, small size, light weight, beautiful appearance and easy installation. 8. Adopt microelectronics and digital processing technology to measure electric energy, accurate and reliable. 9. Large scale integrated circuits and precision SMT technology, with good electromagnetic interference resistance and stable performance. Specification: Material: Plastic Model: DDM15SC Accuracy: First Grade Reference Voltage: 220V/230V 50/60Hz Reference Current (Max. Current): 5(80)A Insulating Property: 1min 4KV Alternating Voltage, 1.2/50us 6KV Waveform Impulse Voltage Display: LCD Digital Display Installation: 35mm DIN Rail Wiring Method: Up-out and down-in/up-in and down-out Pole Width: 17.5mm/0.7in Functions: Display electricity, voltage, current, frequency, power factors Package Size: Approx. 8.6 * 7.5 * 4.5cm/3.4 * 3 * 1.8in Weight: Approx. 125gPackage list: 1 * Energy Meter
