AC Triac DMX Dimmer Two Channel Output 2 Channel Dimmer Triac Dimmable and Mosfet Dimmable Input Voltage 100-240VAC Output Voltage 2 x 100-240VAC

• AC Triac DMX512 dimmer,100-240VAC two channel output.
• With standard DMX512 compliant interface, DMX address can be set easily and shown on the digital numeric display.
• It can also work as stand-alone 2 channel dimmer, each channel adjust brightness independently, and save up to 8 groups brightness.

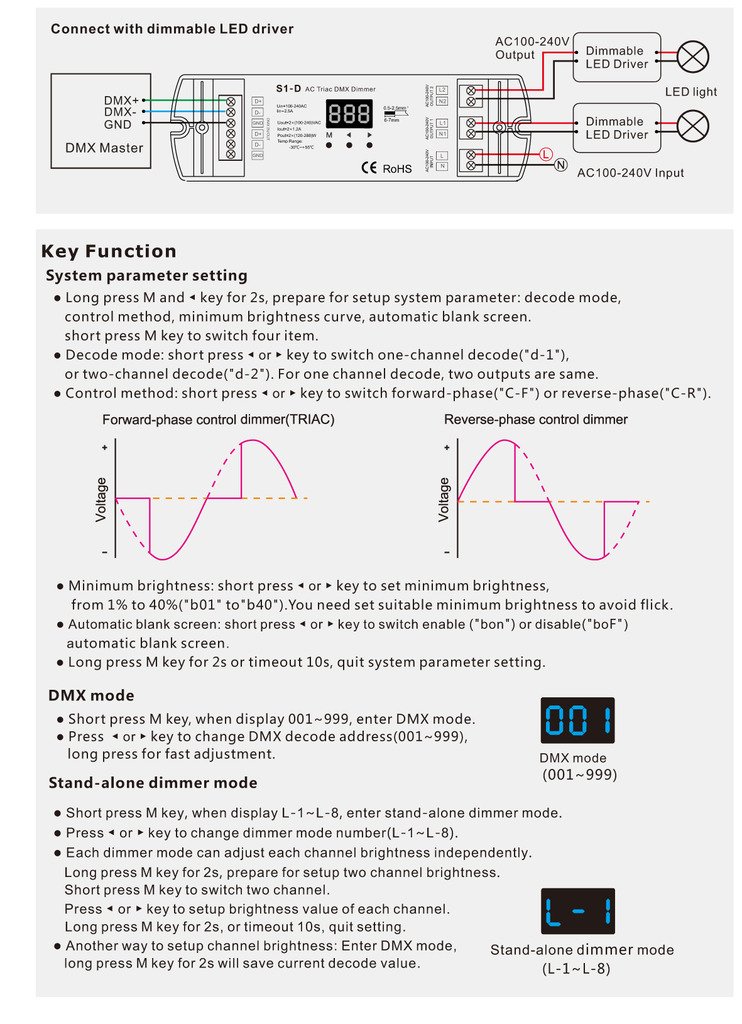

• Triac dimmable and Mosfet dimmable.Leading edge dimming or trailing edge dimming set by key.
• To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights.Minimum brightness set by key.

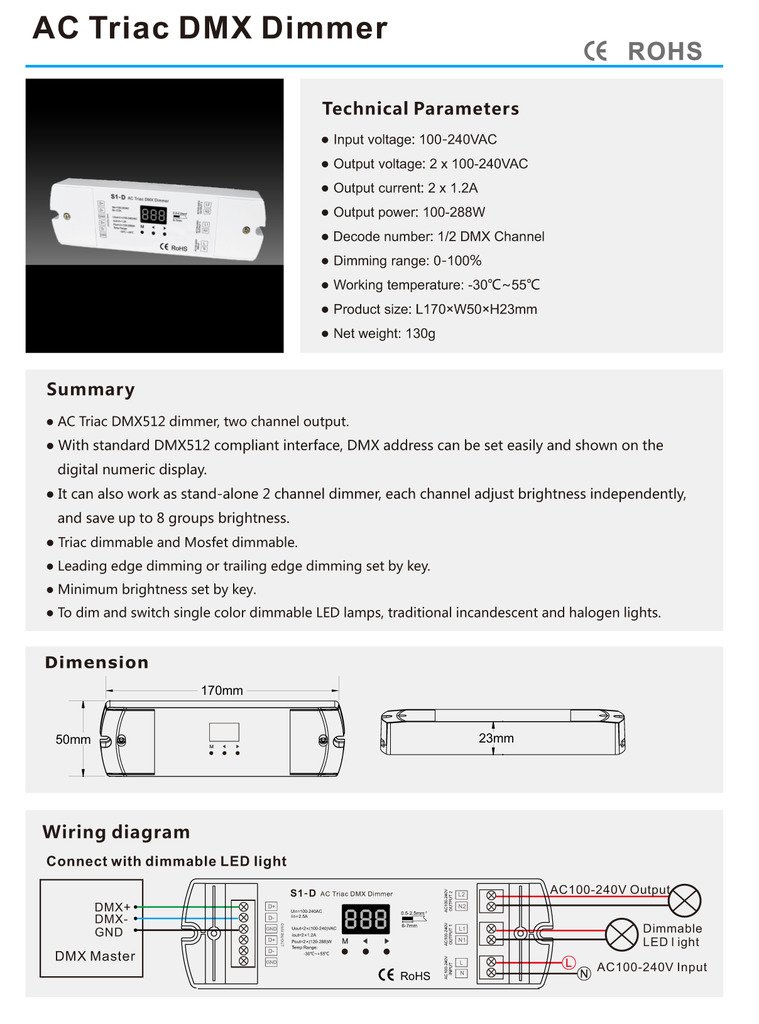

Technical parameters Input voltage: 100-240VAC Output voltage: 2 x 100-240VAC Output current: 2 x 1.2A Output power: 100-288W Decode number: 1/2 DMX Channel Dimming range: 0-100% Working temperature: -30¡æ~55¡æ Dimension: L170¡ÁW50¡ÁH23mm Weight: 130g Summary AC Triac DMX512 dimmer, two channel output. With standard DMX512 compliant interface, DMX address can be set easily and shown on the digital numeric display. It can also work as stand-alone 2 channel dimmer, each channel adjust brightness independently, and save up to 8 groups brightness. Triac dimmable and Mosfet dimmable. Leading edge dimming or trailing edge dimming set by key. Minimum brightness set by key. To dim and switch single color dimmable LED lamps,traditional incandescent and halogen lights.
