Off Delay Time Relay, AC 220V GRT8-B1DIN Rail Type Delay Timer Switch, Mini Power Off Delay Timer Relay with LED Indicators, for Home Industry

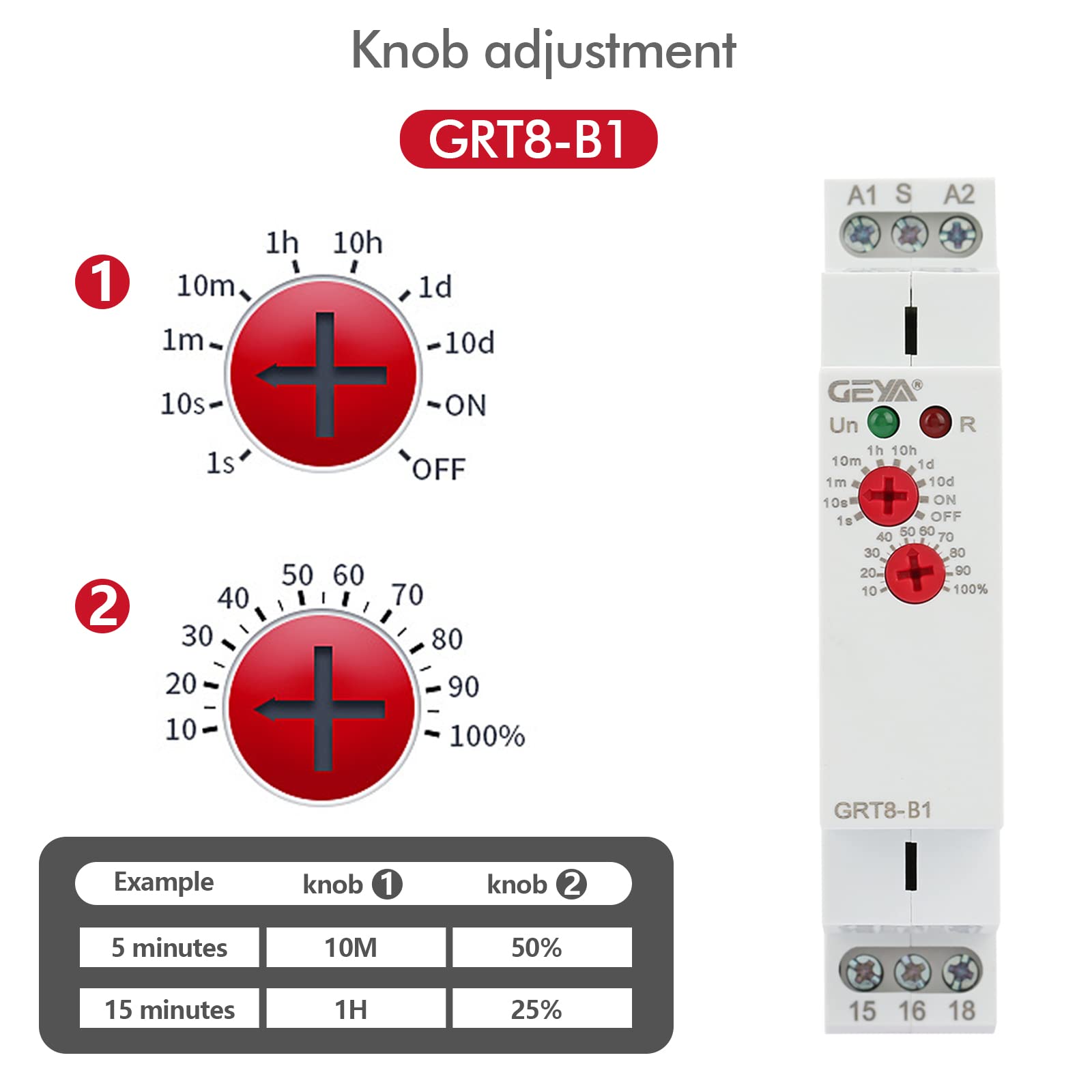

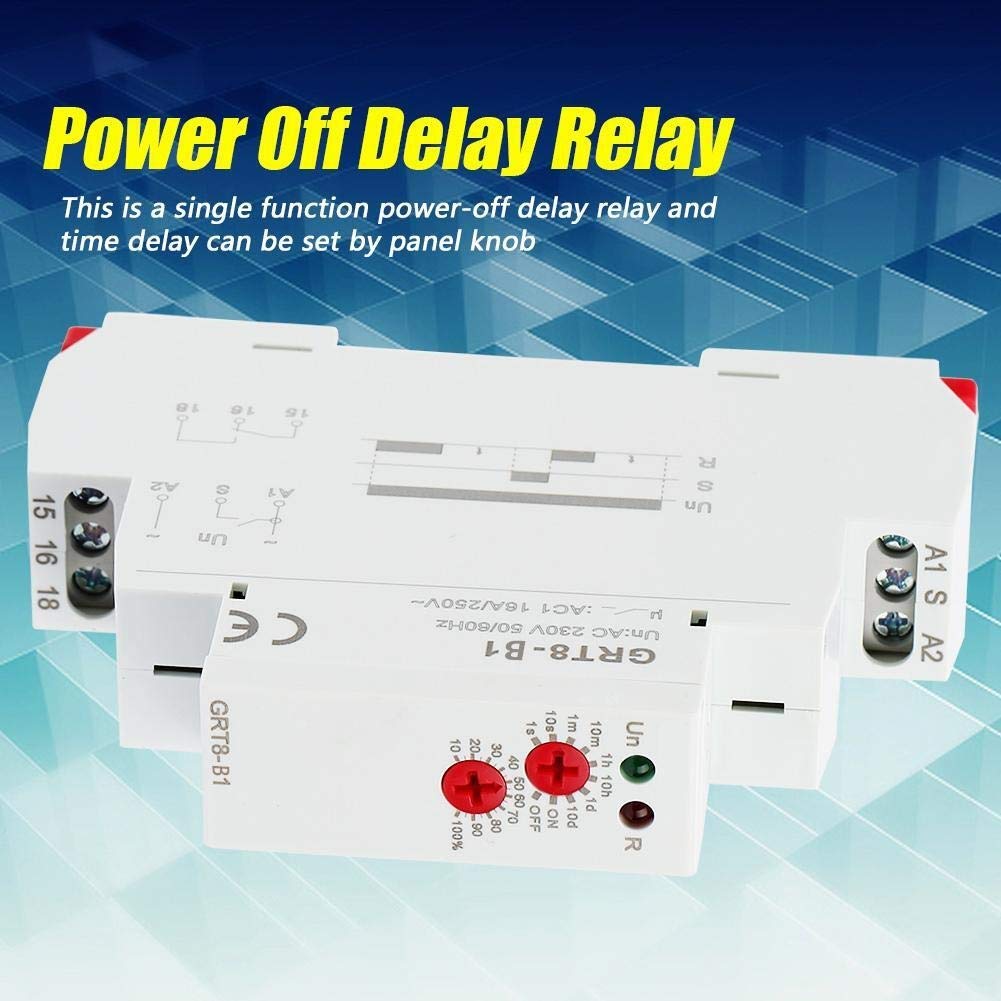

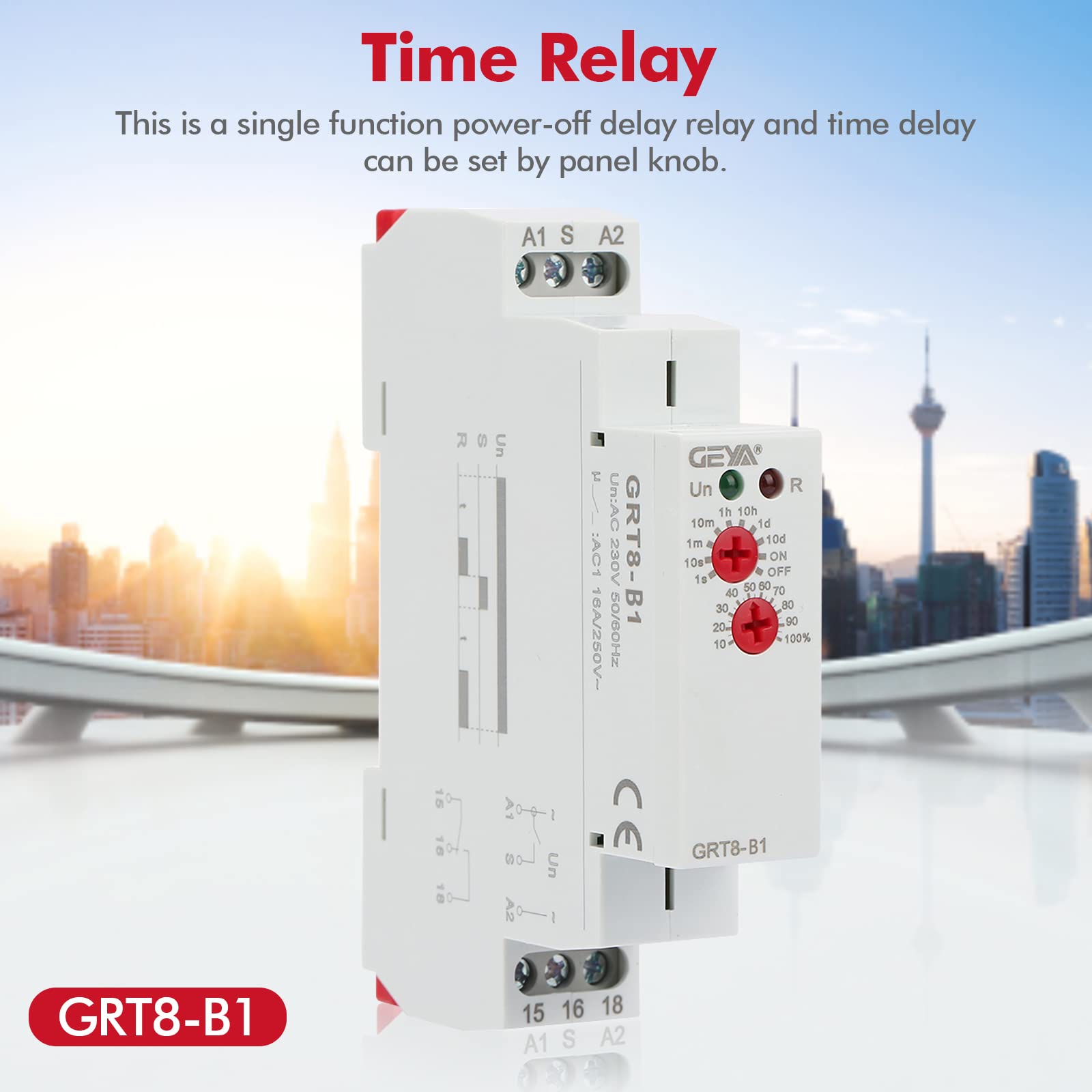

• 【Off Delay Time Relay Delay】The Furnace Relays is a single-function off-delay relay. The time delay can be adjusted with the control panel knob.
• 【High Quality Material】Timer Relay has stable performance, long service life. Made of flame retardant material, this time delay relay is strong and durable. After the combustion test, there is no particle drop and the afterflame is quickly extinguished, so you can use it with confidence.

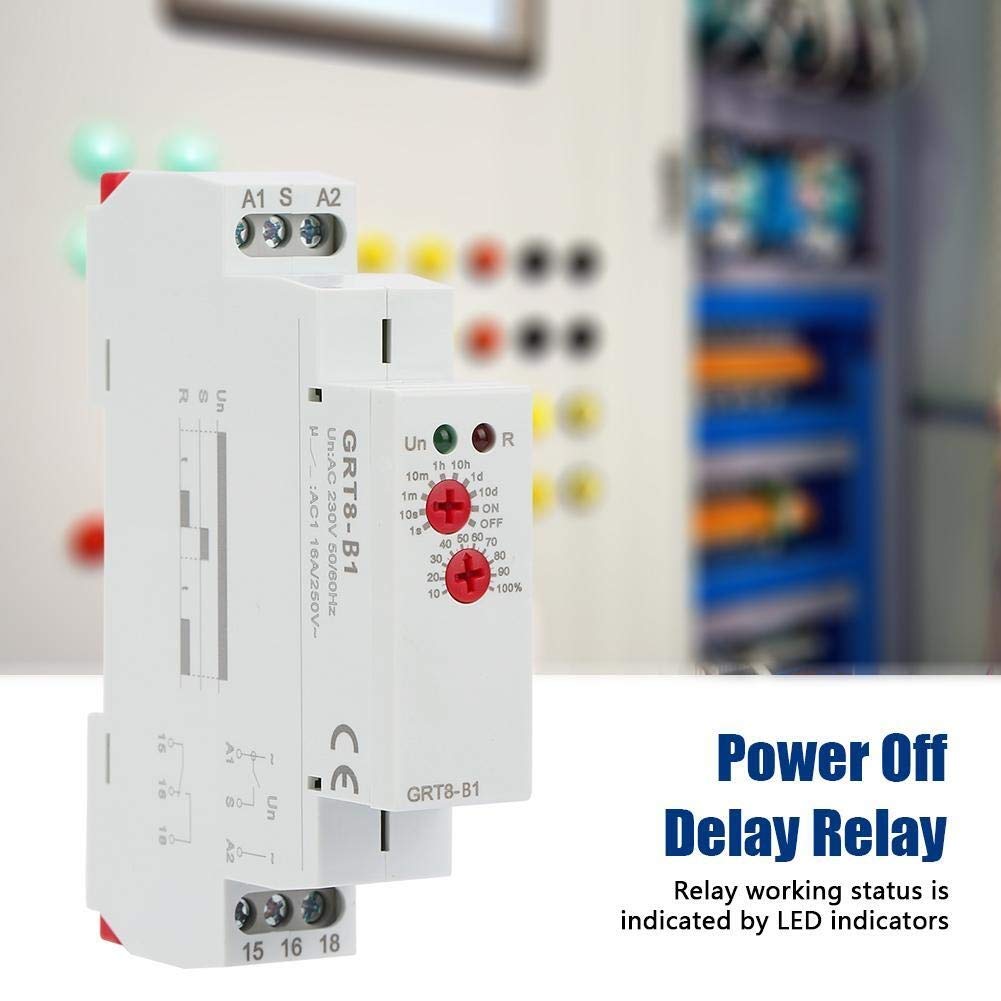

• 【LED Display】Off Delay Time Relay Super wide time delay range from 0.1s - 10 days. The relay status is indicated by LED indicators. The power supply is normal. After power on: The green light is on, the red light is flashing, and the red light is always dark after the delay time.
• 【Multiple Function】AC Relay is a single-function timer, and its delay setting can be set directly by the panel button, which is convenient and intuitive, and the operation is simple and not complicated.

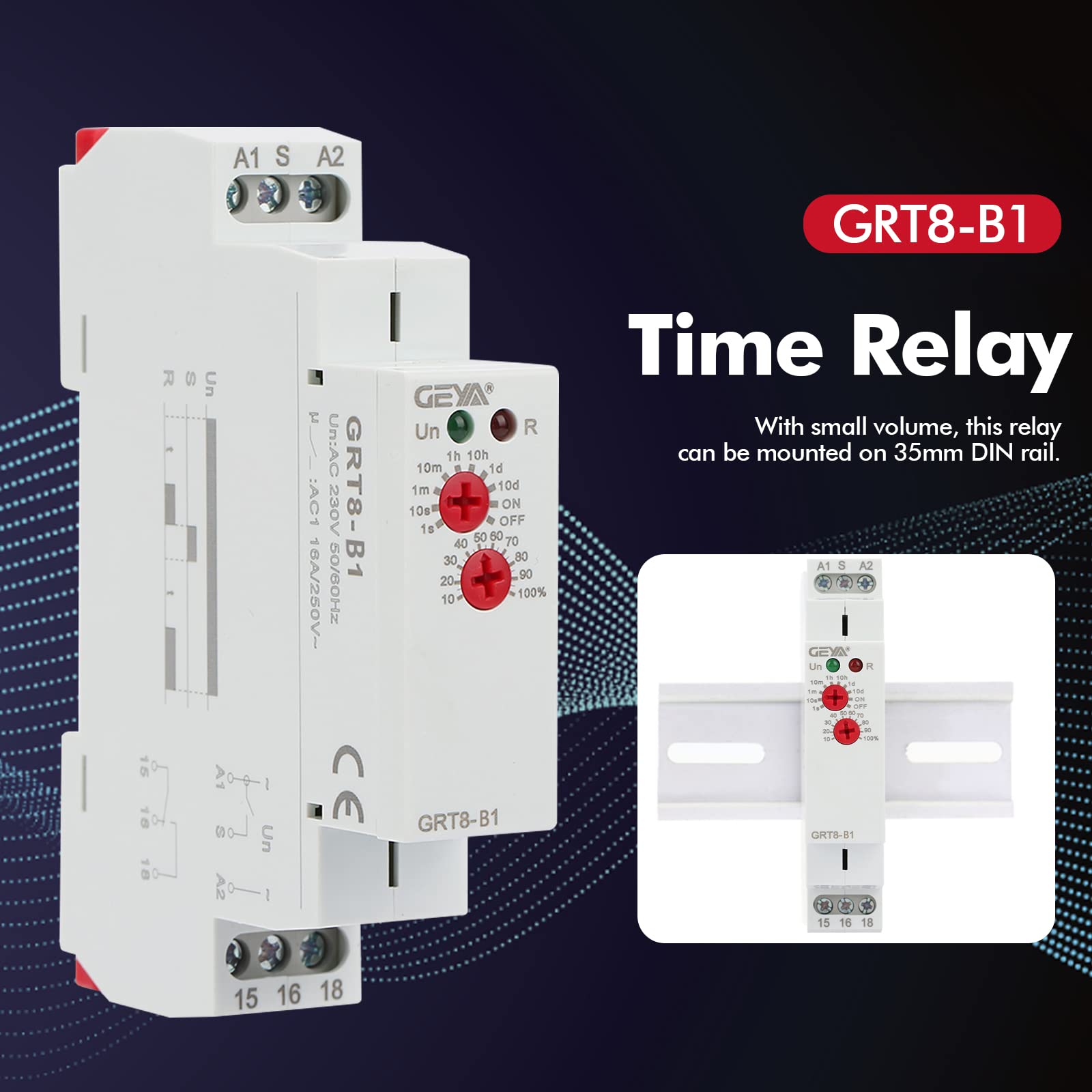

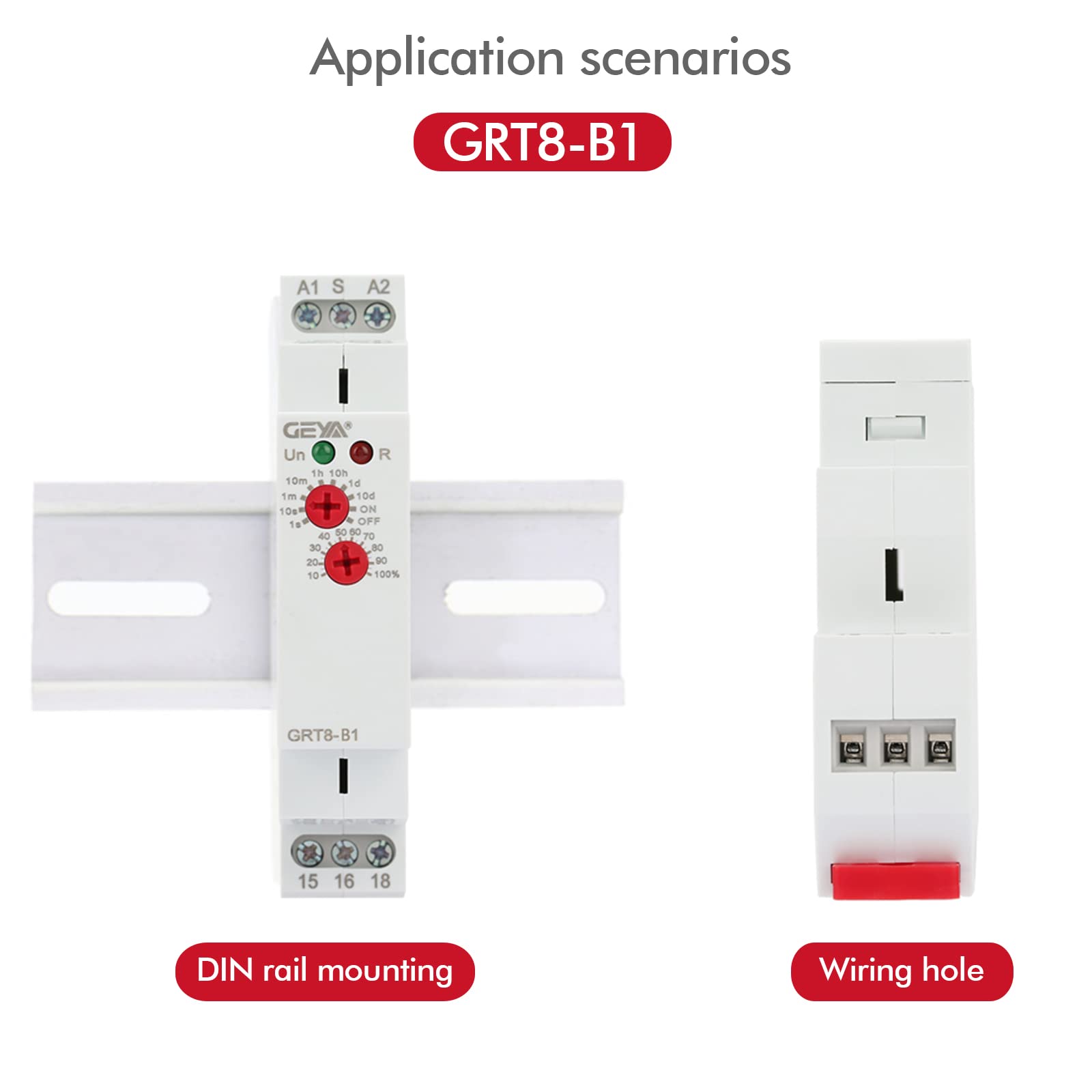

• 【Wide Application】Delay Relay With small volume, this relay can be mounted on 35mm DIN rail. Suitable for applications where function and timing requirements are known. Timer, can be used for pump run-on time after switching off the heating, switching the fans.

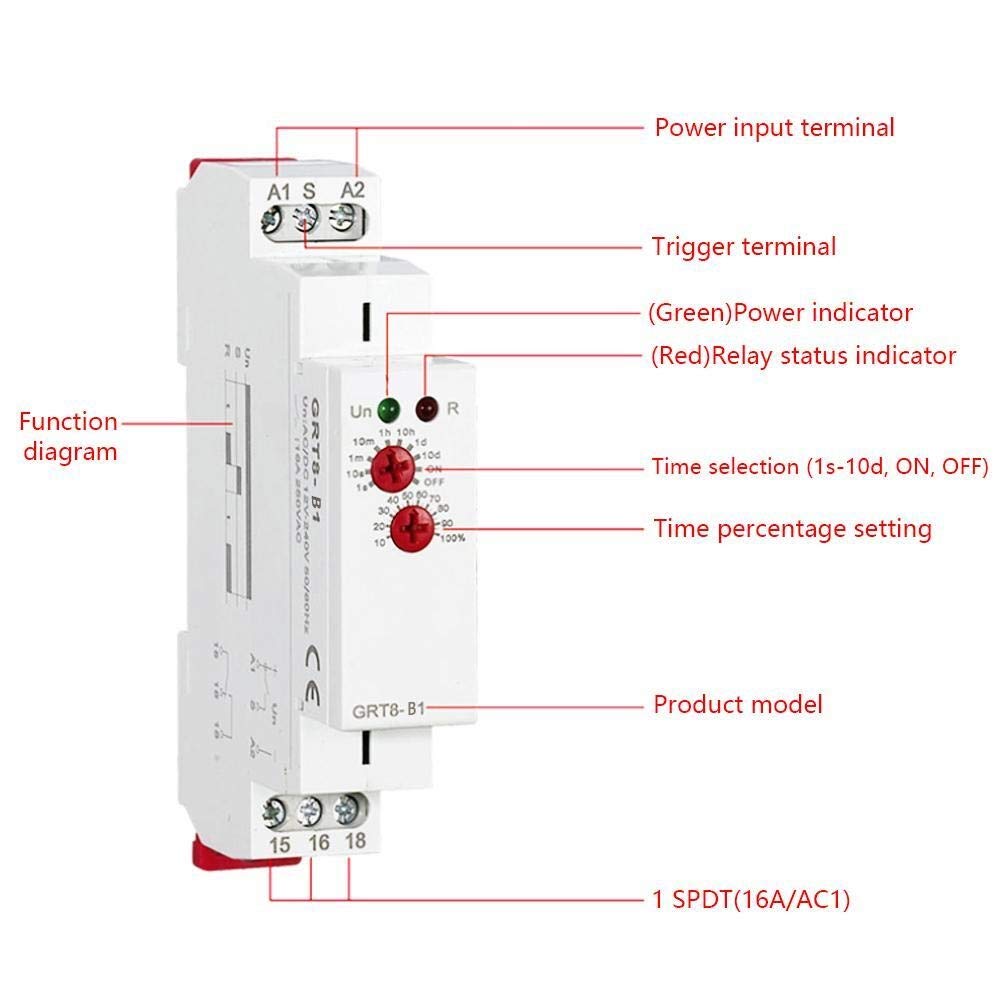

Features: 1. This is a single function power-off delay relay and time delay can be set by panel knob. 2. Super wide time delay range of 0.1s - 10days,stable performance, long service life. 3. Relay working status is indicated by LED indicators. 4. With small volume, this relay can be mounted on 35mm DIN rail. 5.Quality assurance, perfect after-sales system, worry-free shopping,if you have any questions, please contact us in time, reply within 24 hours. Specification: Function: Delay OFF Rated power supply voltage: AC 220V (50-60Hz) Power terminal: A1-A2 Power consumption: AC max.6VA/1.3W Setting method: knob Power indicator: Green LED Delay range: 0.1s-10 days, normally open, normally closed Setting accuracy: 10% Output contact: 1 x SPDT, 250VAC/24VDC Minimum switching power: 500mW Output relay indication: Red LED Mechanical life: 1x107 Reset time: Max 200ms Working temperature: -20℃~55℃ Mounting method: 35mm DIN rail Mounting altitude: ≤2000m Weight: Approx. 74g/2.6oz Package List: 1 * Off Delay Time Relay Note: 1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item. 2. Please allow slight error due to manual measurement. Thanks for your understanding.
