AC Digital Ampere Meter Voltmeter, 0~20A 60~500V LCD Multi Function Active Power Frequency Electrical Energy Guage,6 in 1 4Digits Power Monitor Panel

• Electrical parameters measurement: AC voltage, current, active power, frequency, power factor, electrical energy;six in one.
• Power zero-clearing mode: key zero-clearing, automatic zero-clearing.

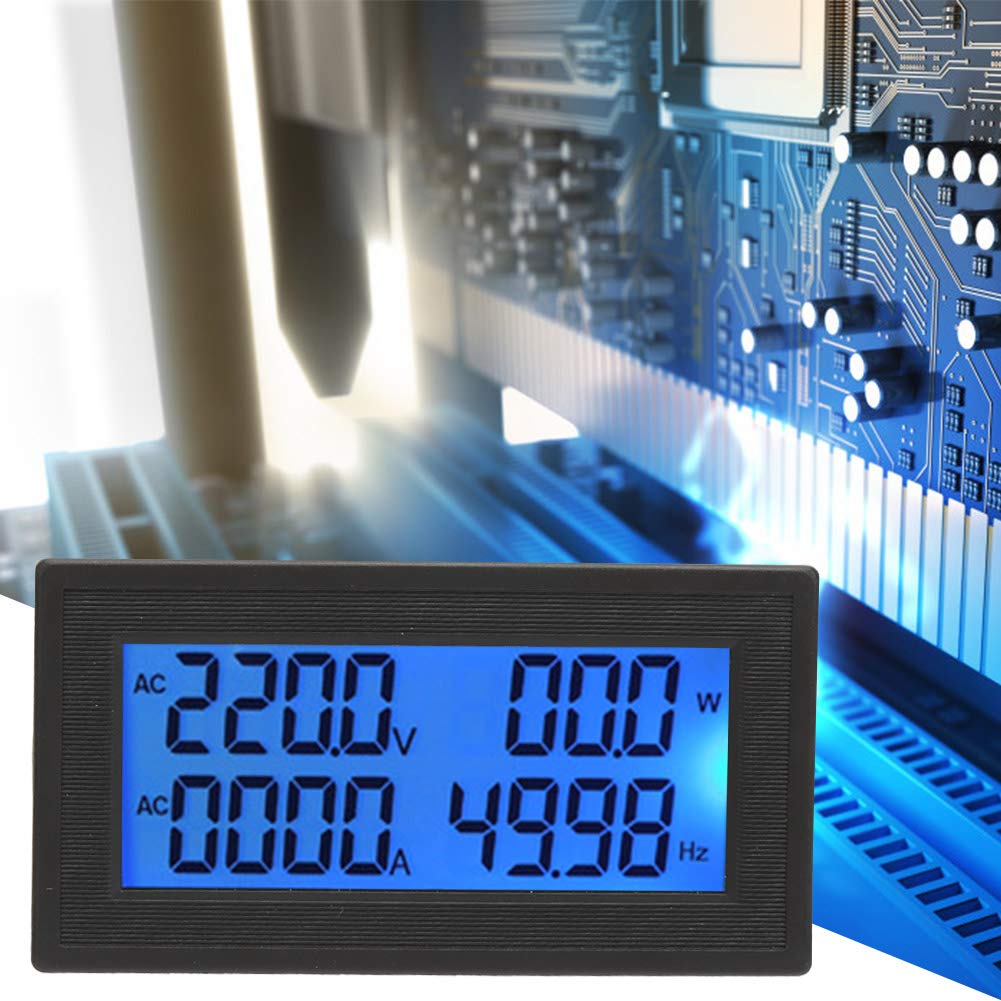

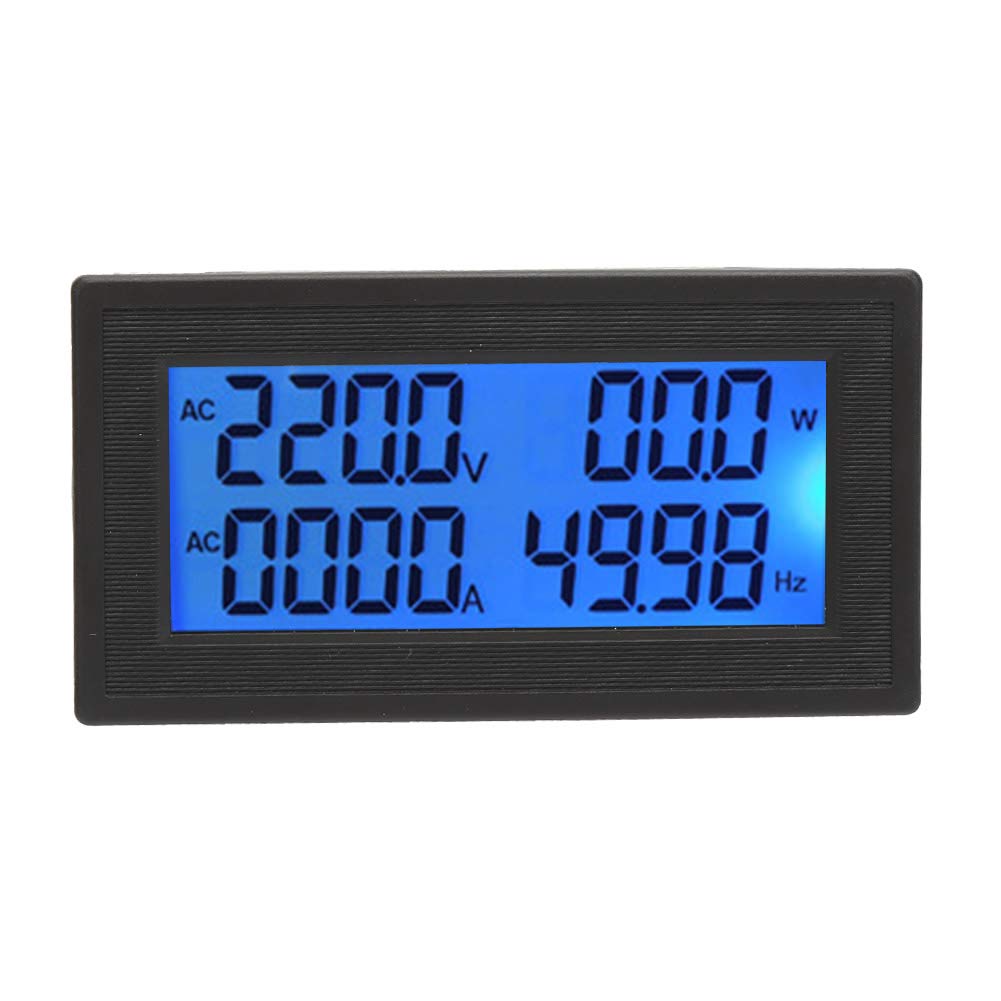

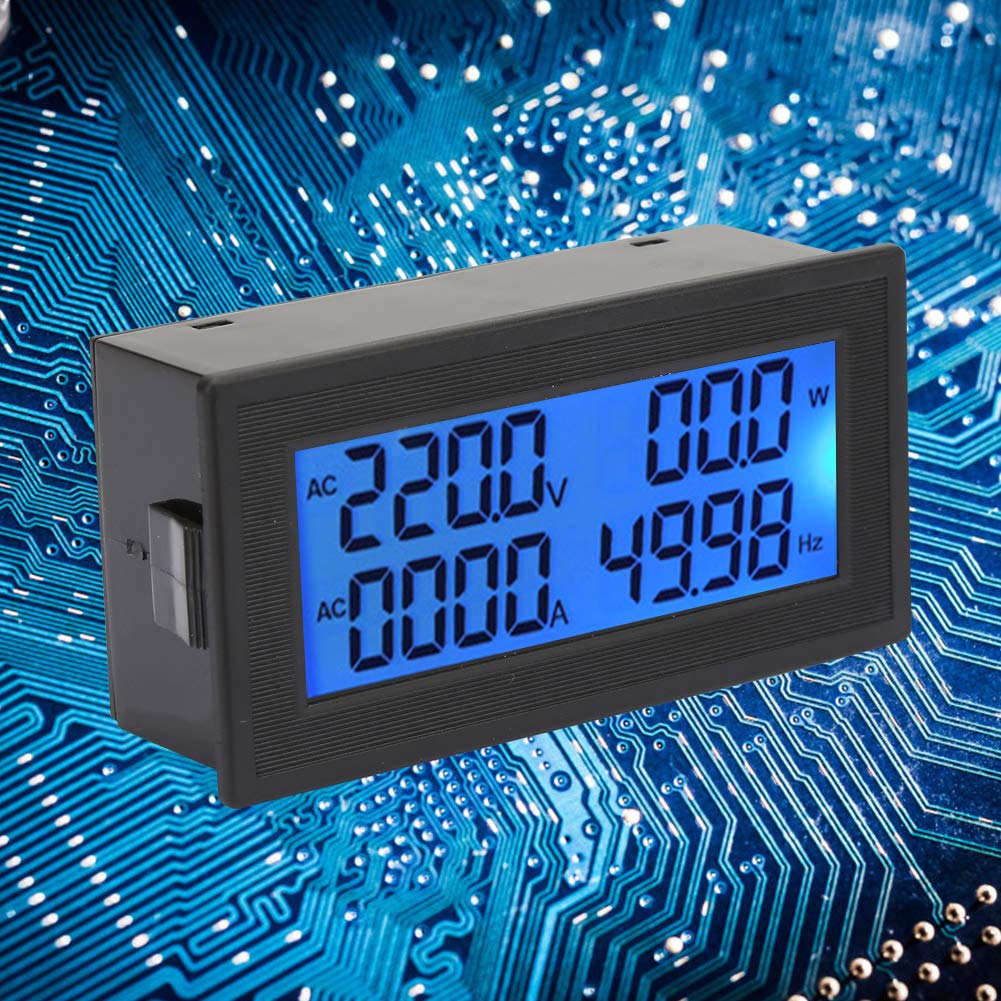

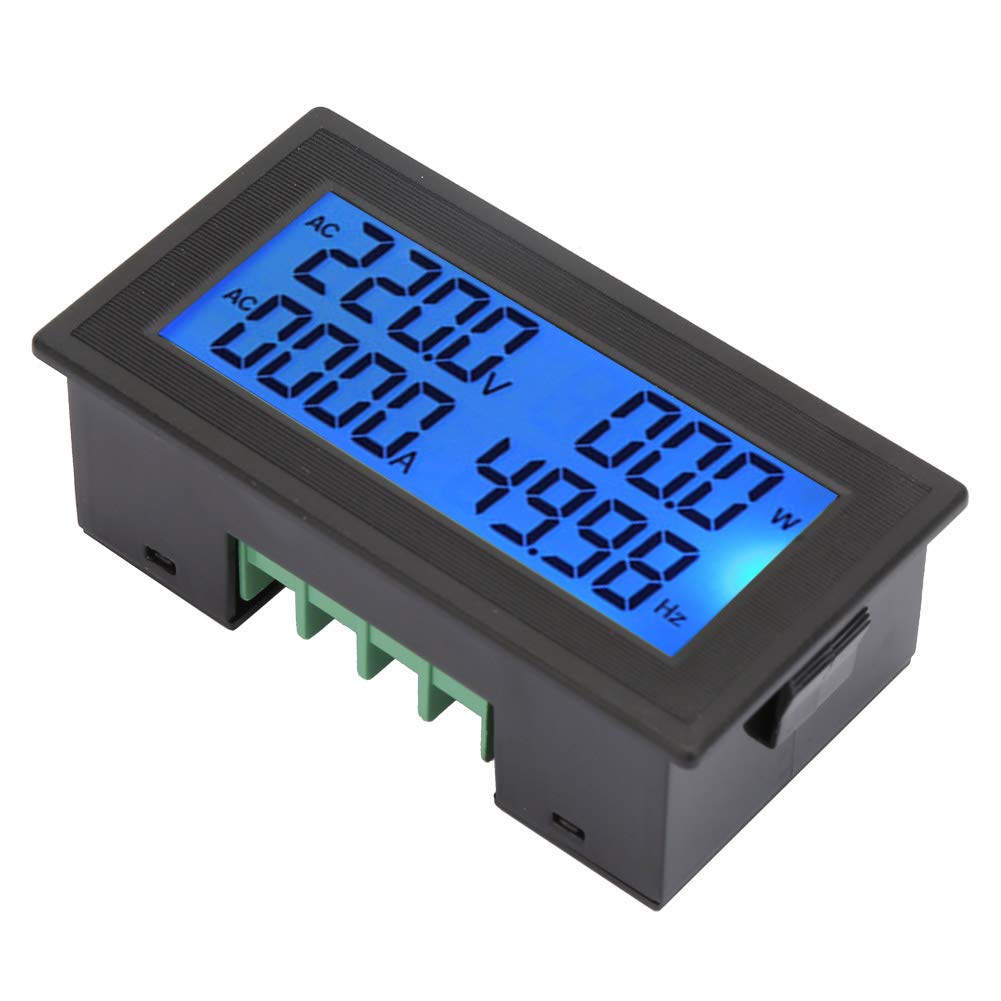

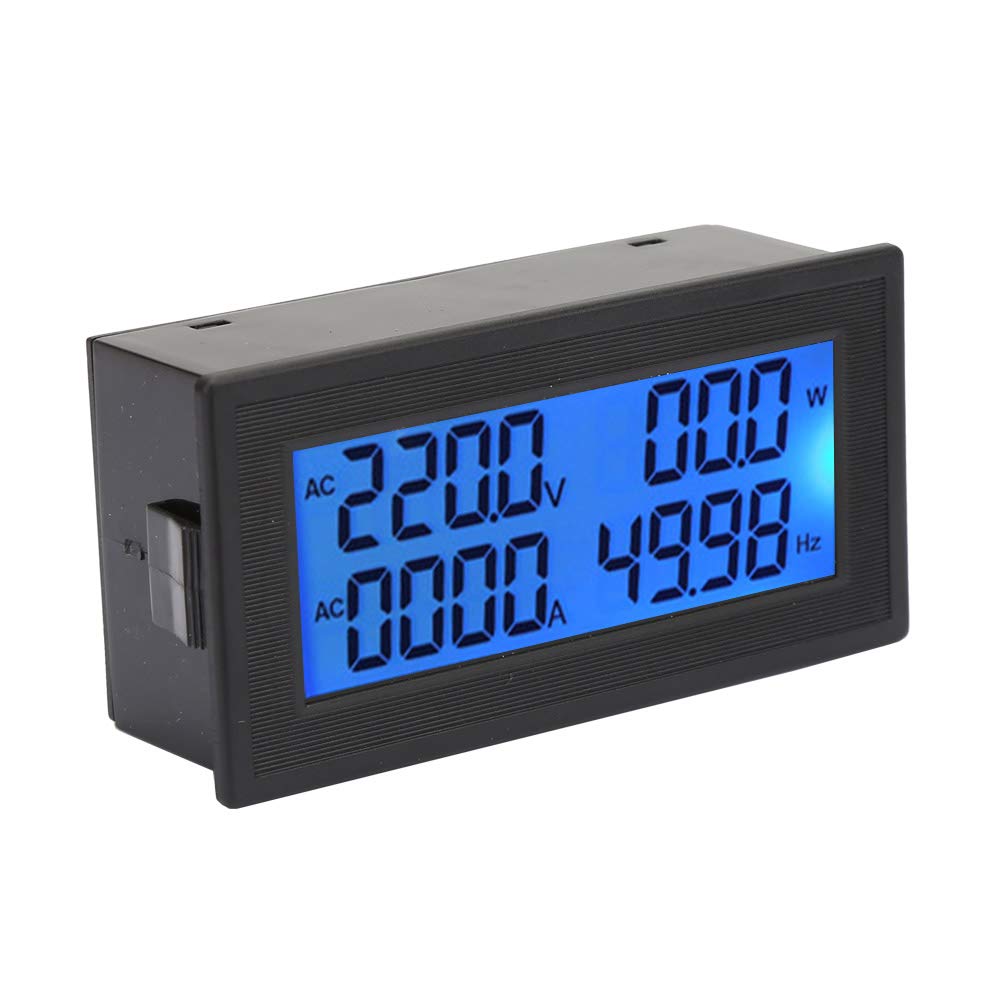

• Display type: LCD display, blue back;One screen multi-display,
• Blue backlight brightness adjustable: high light, low light, not bright.
• The built-in button of the watch head can calibrate the voltage, current error and other options by itself.

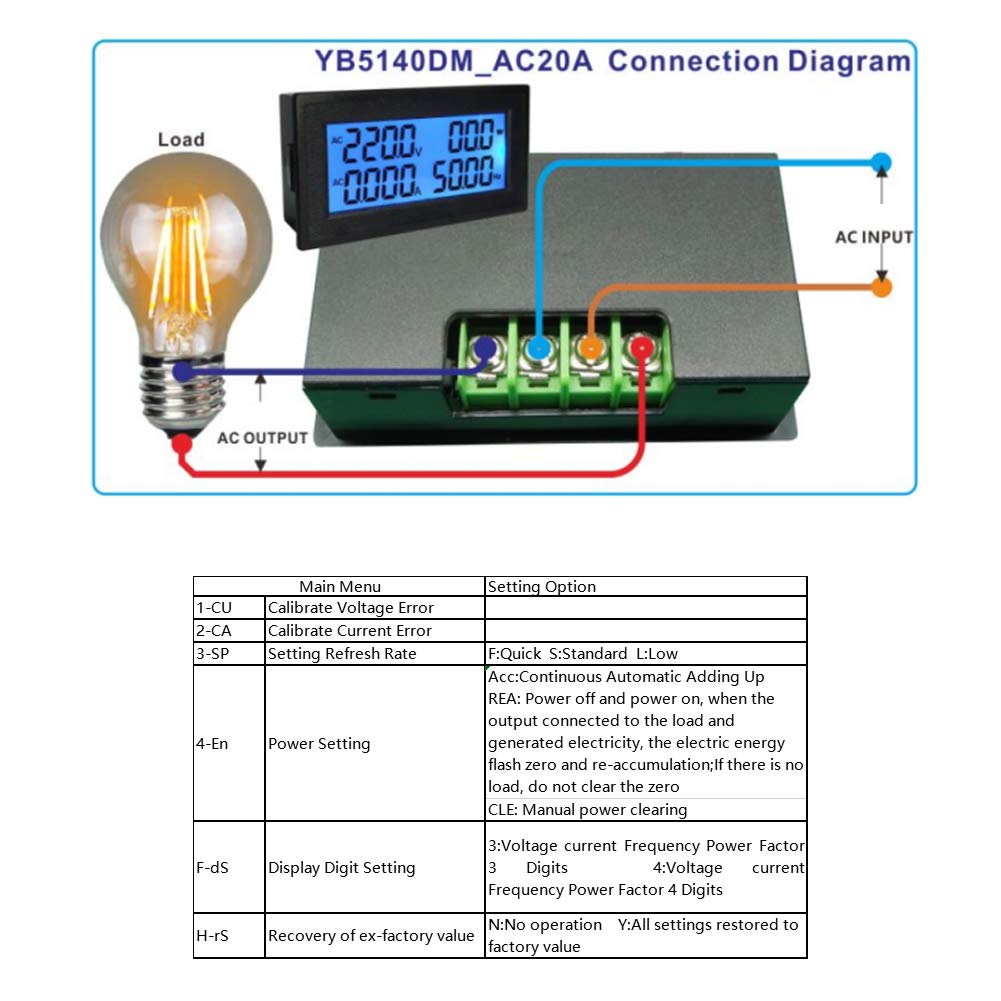

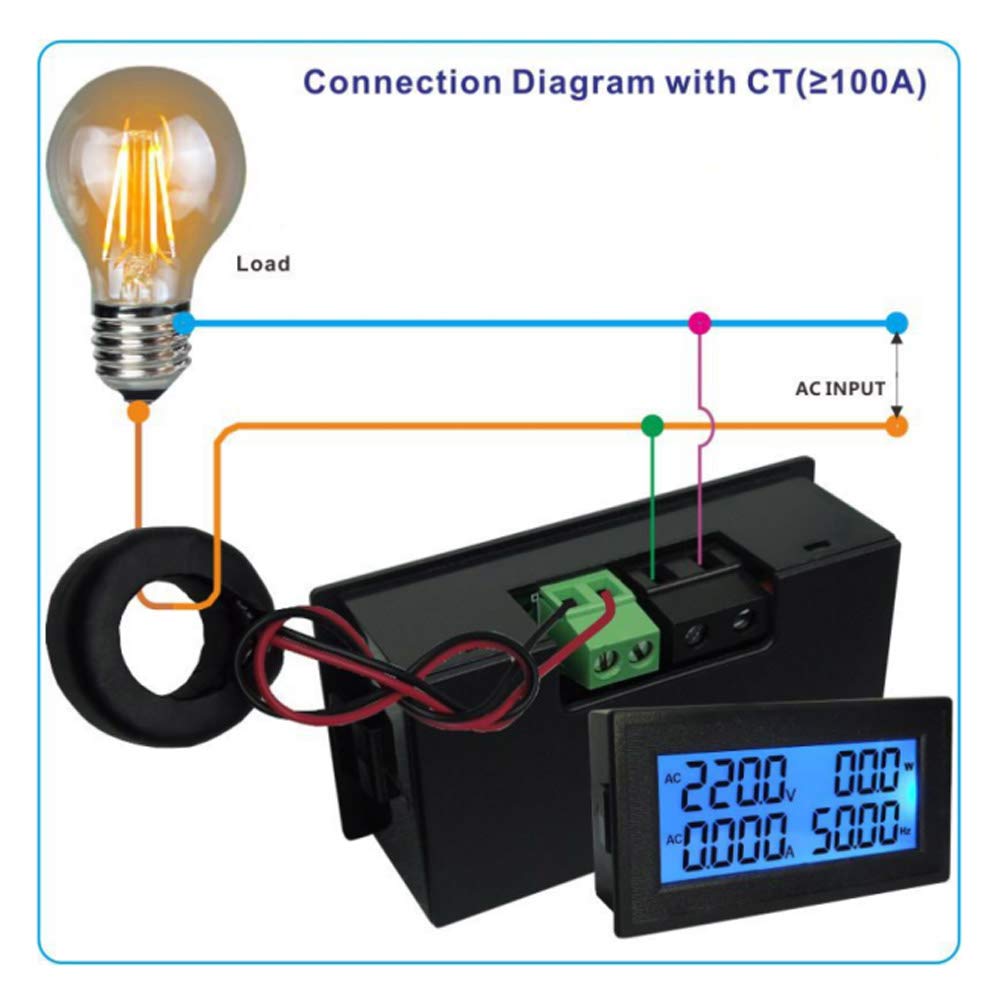

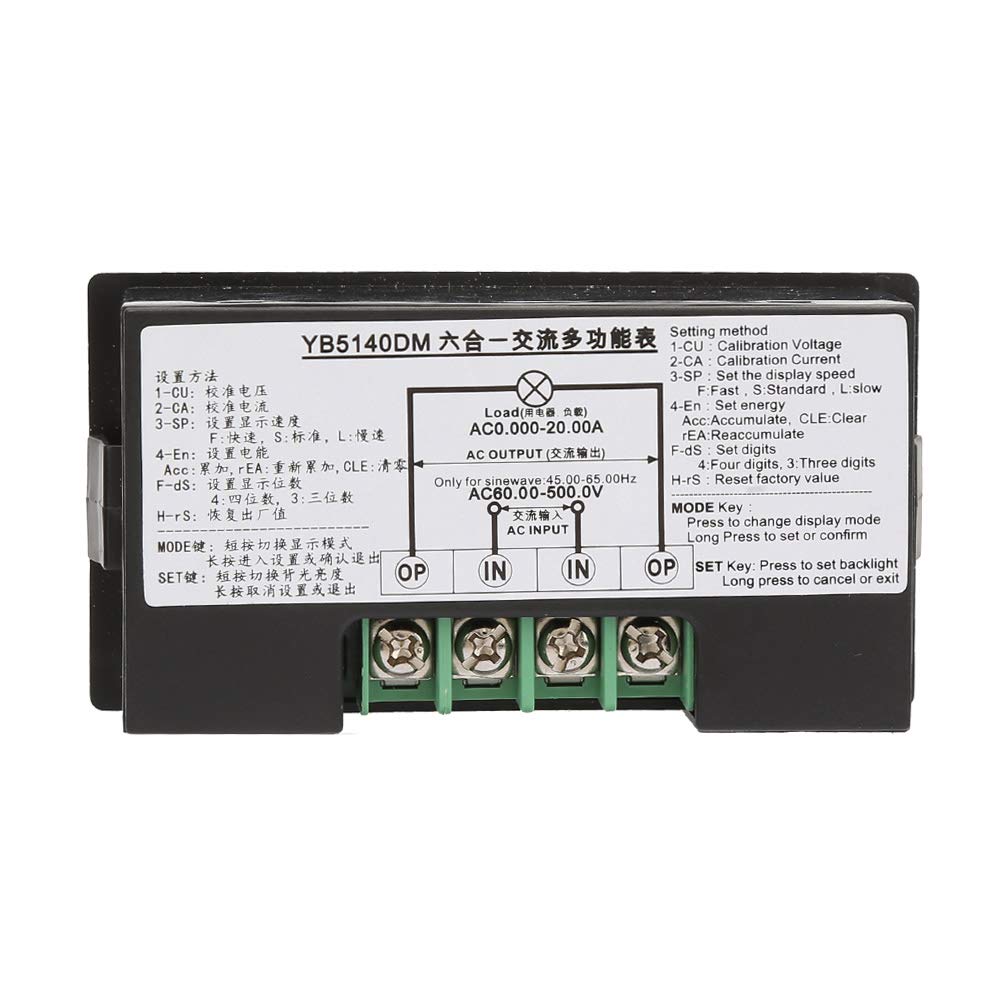

Features: Display value update speed optional: fast, standard, slow, suitable for different working environment. Display accuracy can be set:3-bit,4-bit;Applicable to different requirements, power-down data storage function. The AC voltage, current, power and electric energy are all designed by automatic of decimal point. Instrument with a back cover, more safe to use, more convenient, more secure. Simple connection of instrument: no need to connect the power supply.Current testing requires no additional purchase of transformer or shunt. Specification: Wroking Temperature:-10~50℃ Working Humidity:10~80% Working Air Pressure:80~106kPa No Direct Sunlight Package List: 1*Multi-funtion Meter Note: 1.As different computers display colors differently, the color of the actual item may vary slightly from the images. 2.The middle two terminals are the input and the left and right terminals are the output. 3.Do not use when there is high frequency voltage. Main Menu Setting Option 1-CU :Calibrate Voltage Error 2-CA :Calibrate Current Error 3-SP :Setting Refresh Rate F:Quick S:Standard L:Low 4-En Power Setting Acc:Continous Automatic Adding Up REA: Power off and power on, when the output connected to the load and generated electricity, the electric energy flash zero and re-accumulation;If there is no load, do not clear the zero CLE: Manual power clearing F-dS:Display Digit Setting 3:Voltage Current Frequency Power Factor 3 Digits 4:Voltage Current Frequency Power Factor 4 Digits
