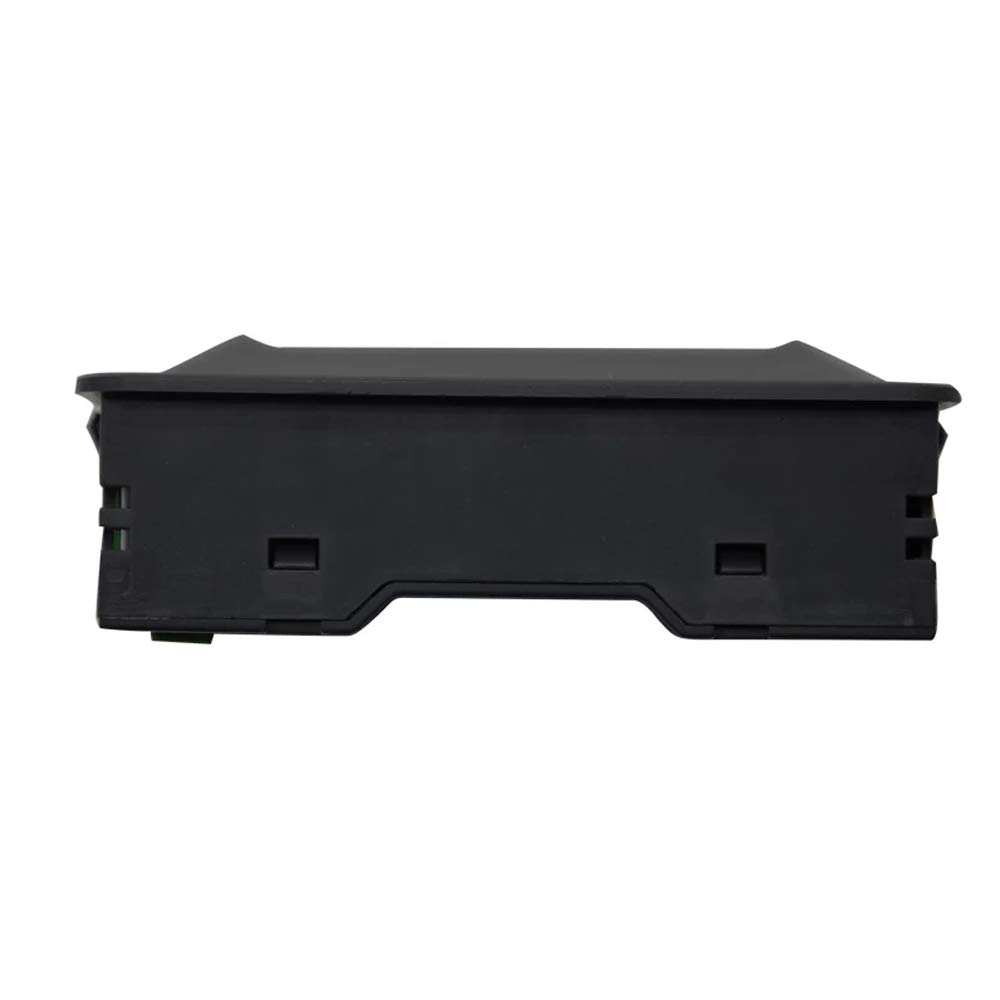

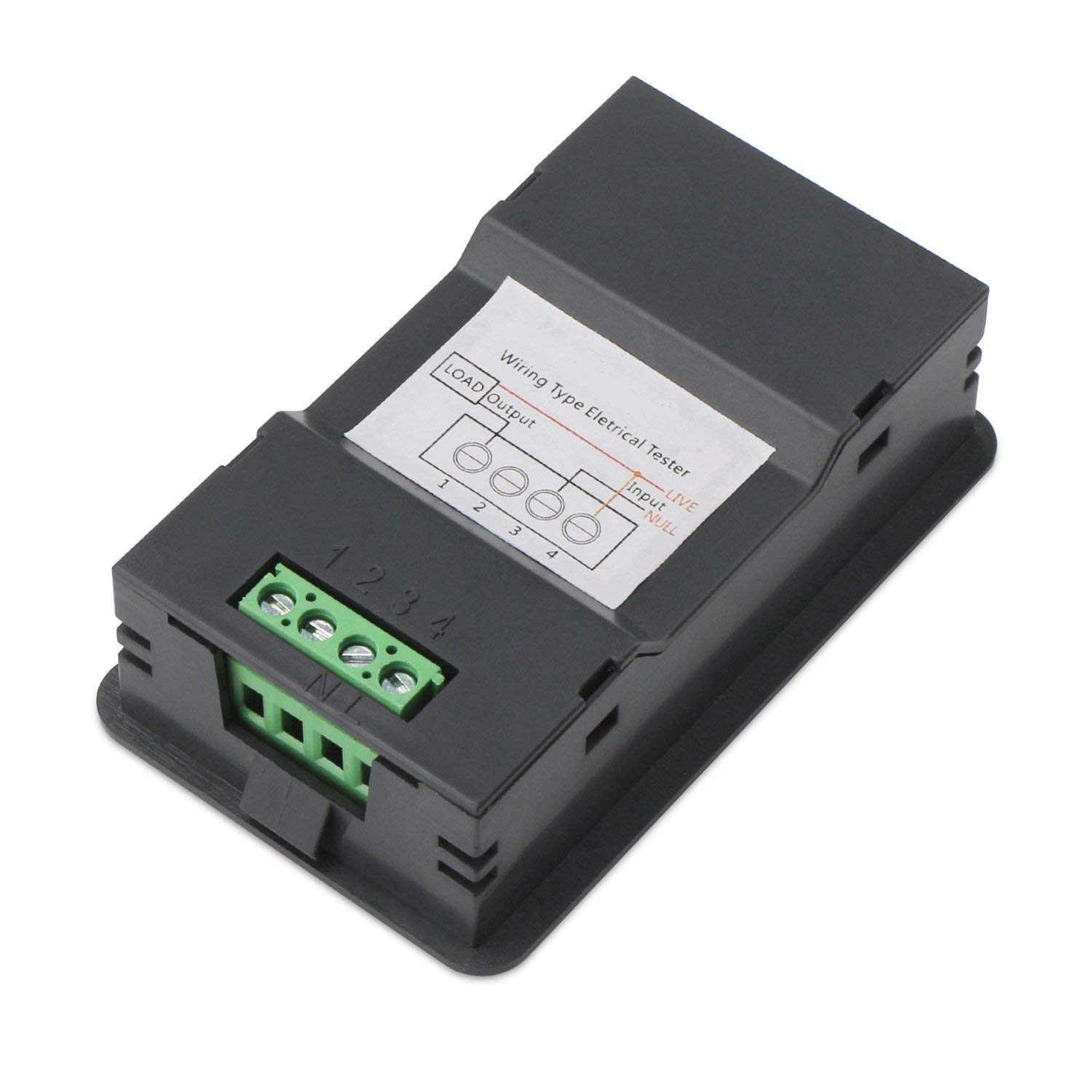

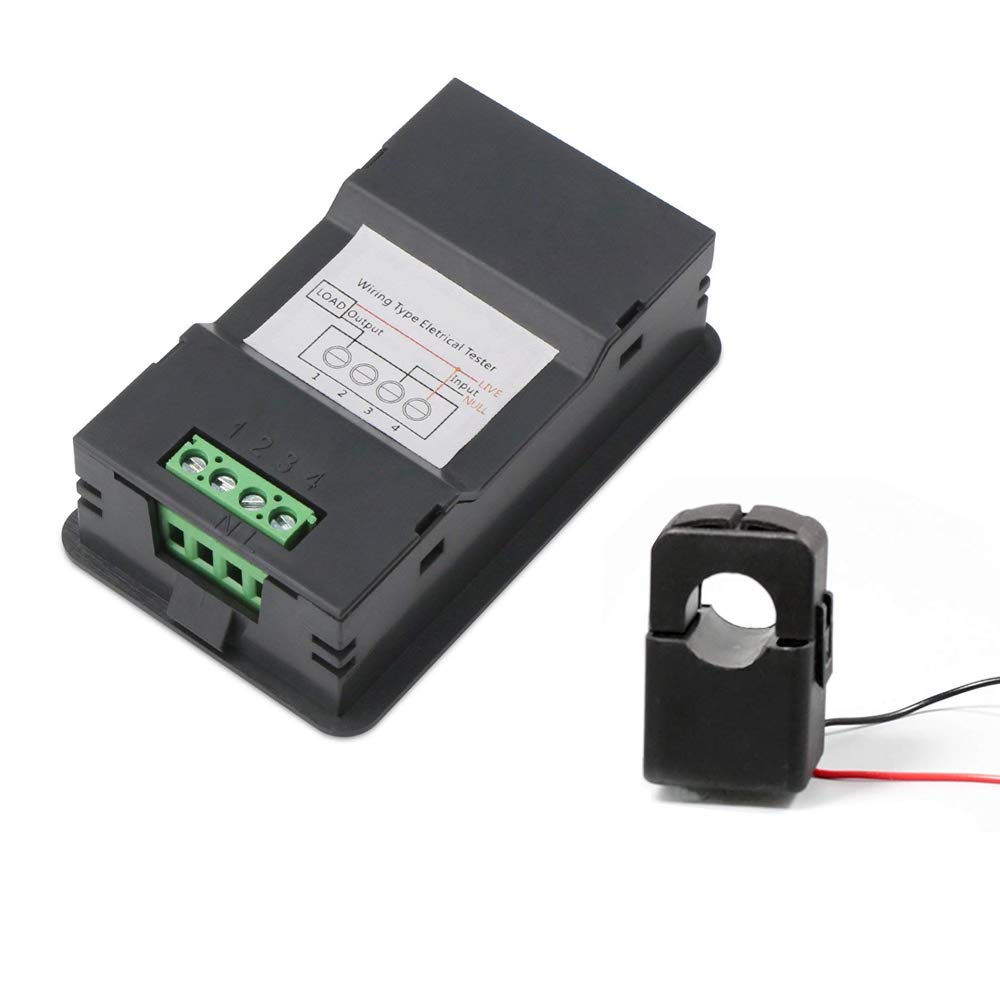

AC 6in1 Multifuction Voltmeter Ammeter Combo Meter 110~250V Voltage Amp 100A Power Watt Energy with Split Core Current Sensor

• The meter can only measure the active power(real power). It doesn't show Apparent power. If you measure power from a DC-AC inverter please make sure it's PURE SINE WAVE. Otherwise the meter can be burnt or melted
• The blue backlight can be turned on/off manually. The CT can be either on Live line or Neutral Line.
• Voltage test range: One-Phase 80~260V AC Power, 50/60HZ; Current test range: 0~100A;

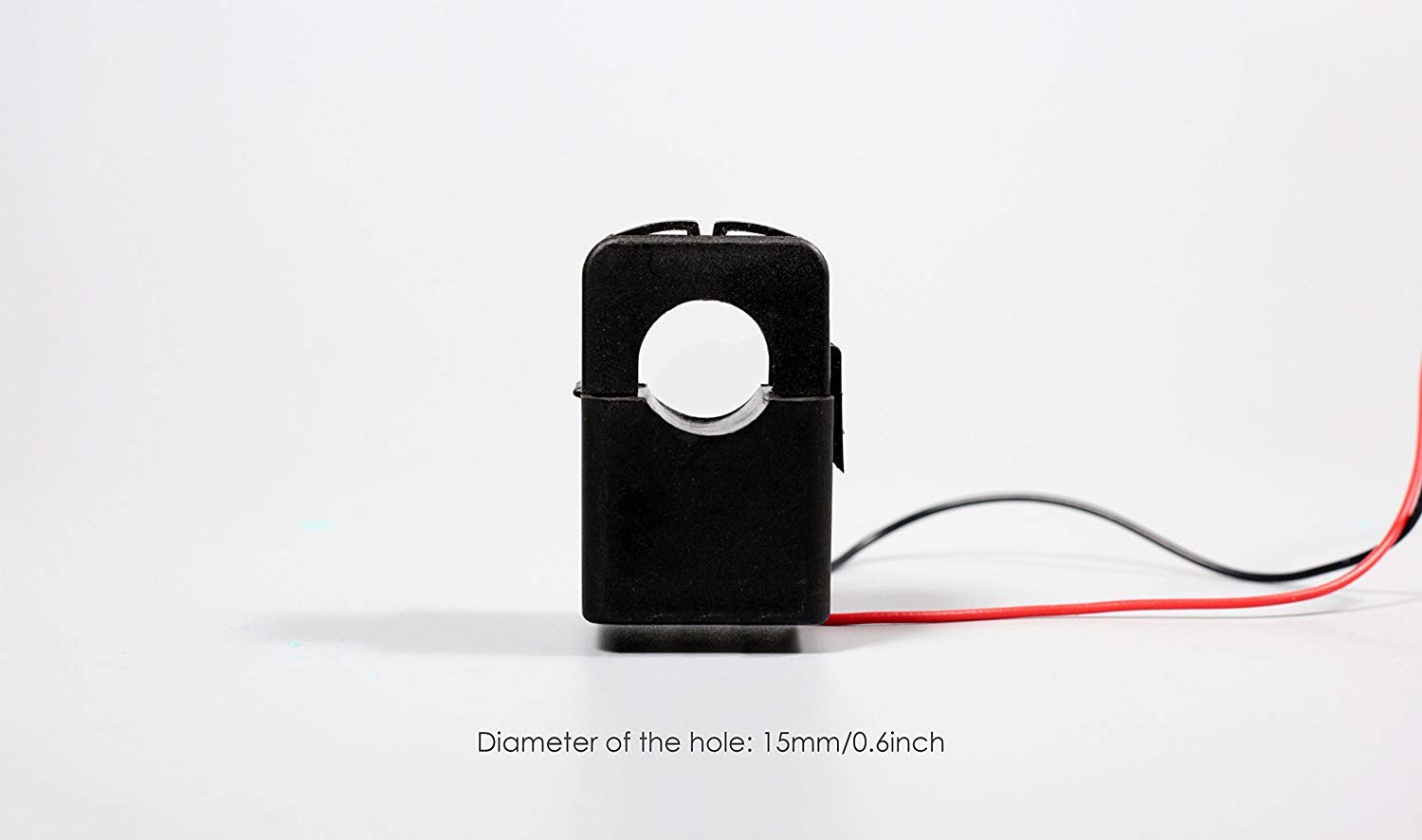

• Store energy data when power off(can be reset). w/ Open-close structure Current Transformer. Inner diameter of the CT: 15mm/0.6''
• Large-screen LCD (display voltage, current, active power, energy at the same time).

Key Feature This combo meter is designed to monitor AC power, it combines many functions in one. Voltage 110~250Vac Current 0.01-100A Energy 5-digits, 0.01~99999KWH Compatible frequency 50/60HZ Come with split-core current transformer (diameter 15mm), it is very easy to install. Backlight control, short press to turn on/off backlight Clear energy reading, press and hold down the key to clear the reading of kWh. Technical Specification Power Supply:110~250Vac (self-powered) Voltage Range:110V~250V Current Range:0.01~100A Resolution:1V, 0.01A, 0.01W, 0.01kWh Display Type:LCD with Blue backlight Dimensions:84mm*46mm*28mm Packing including: 1x 80 ~ 260V AC 100A Power Multimeter w/ Open-close structure Current Transformer
