Digital Temperature Controller, Alarm Function, K-Type Thermocouple, 25A Solid State Relay, PID Thermostat for Industrial Use, Laboratory Applications, Kitchen Automation

• 【Excellent Performance】: This temperature controller is adopted of industrial-grade professional self-tuning PID technology, compared with the traditional PID control, it has a rapid temperature control, fast response, small overshoot and high precision.
• 【Scope of Application】 : This digital LED PID temperature controller kit has high practicality, which can be widely applied to electric power, chemical industry, injection molding, food, incubator, oven and many other equipment.
• 【Premium Quality】 : This digital LED PID temperature controller's probe used stainless steel material shell and resin sealing treatment, which is waterproof and anti- rust. It is not easily damaged, has quality and long service life.

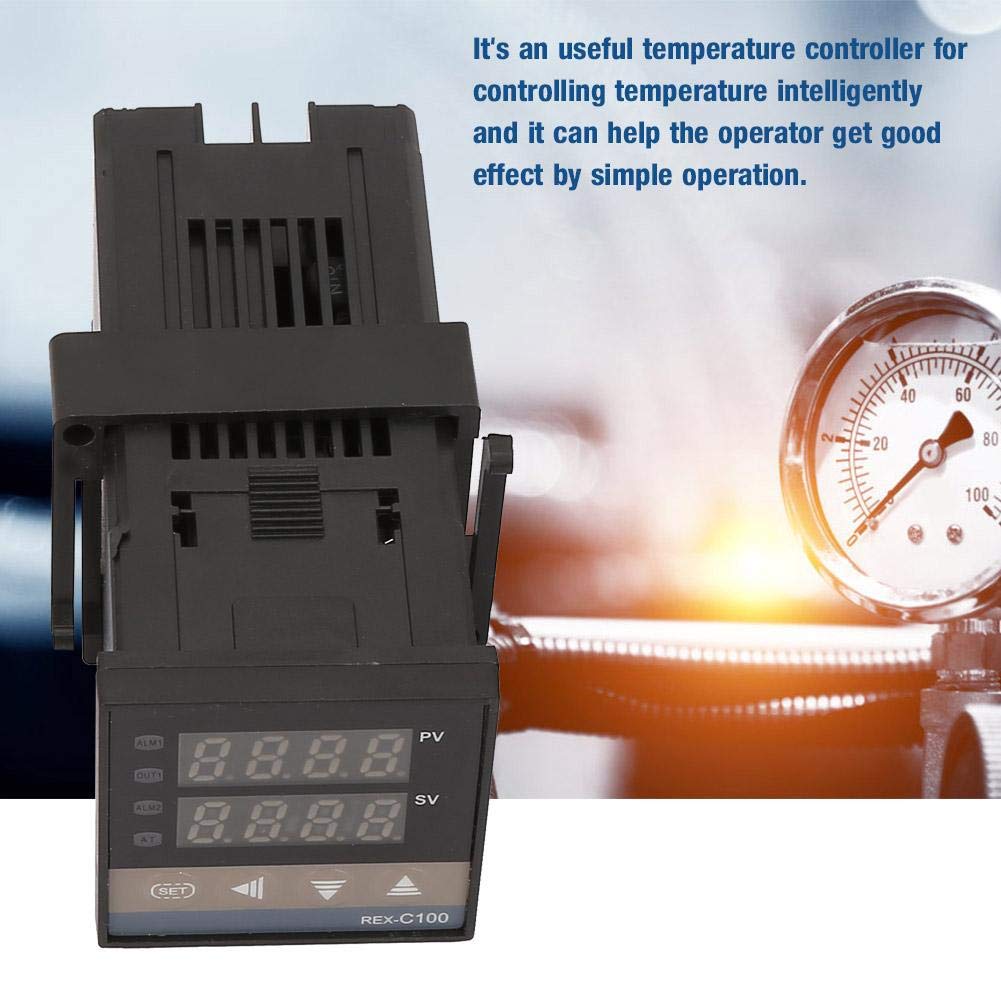

• 【Exquisite Workmanship】: This multi-functional controller adopts excellent manufacturing process with special microprocessor switching power supply and SMT, which is an useful temperature controller for controlling temperature intelligently, and can help the operator get good effect by simple
• 【Service Guarantee】: All products sold by our brand, we will give the strict assurance of the quality. If you have any quality question about our product, please feel to contact us.

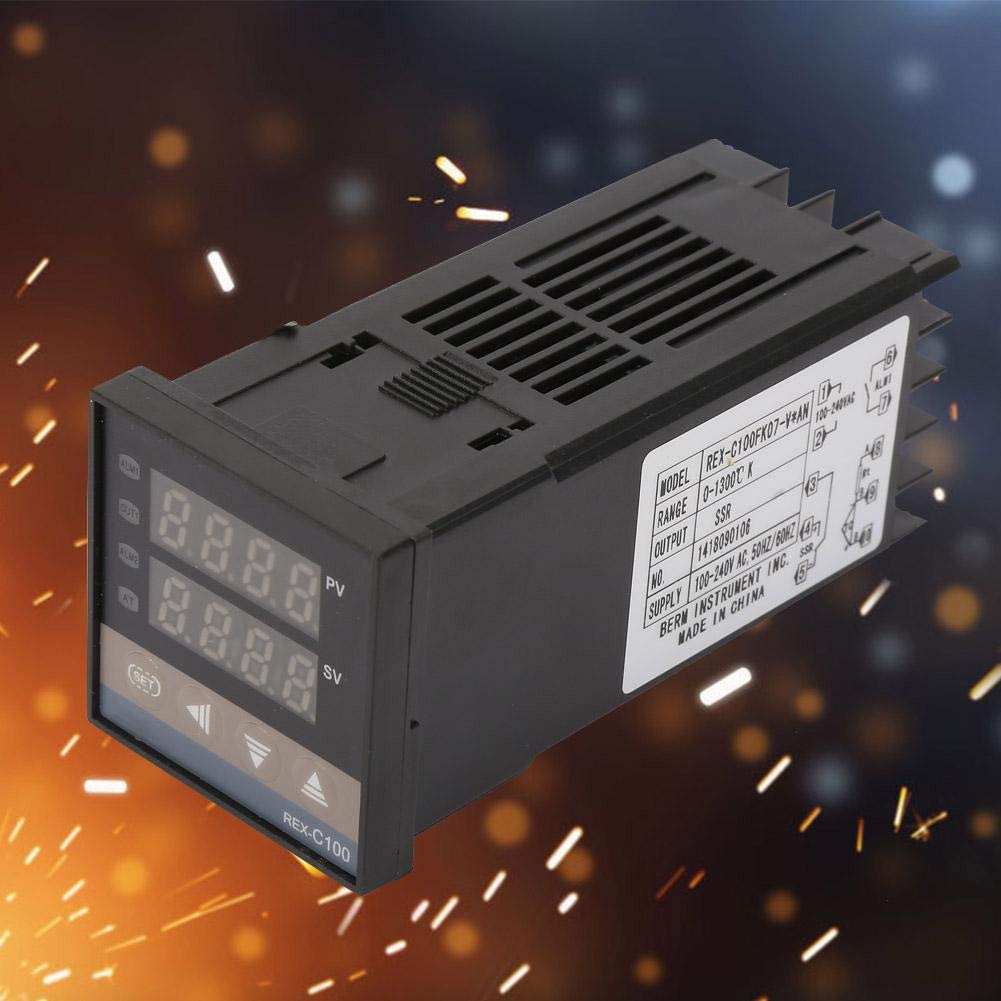

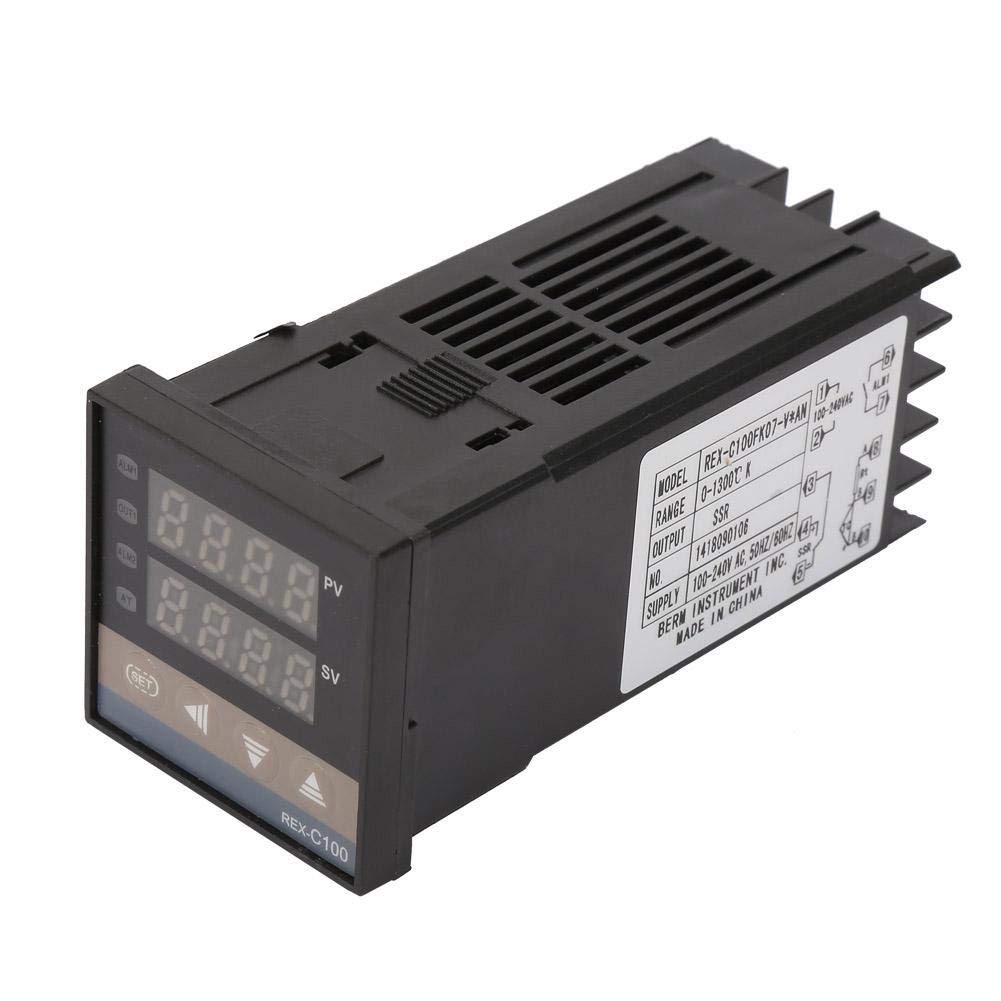

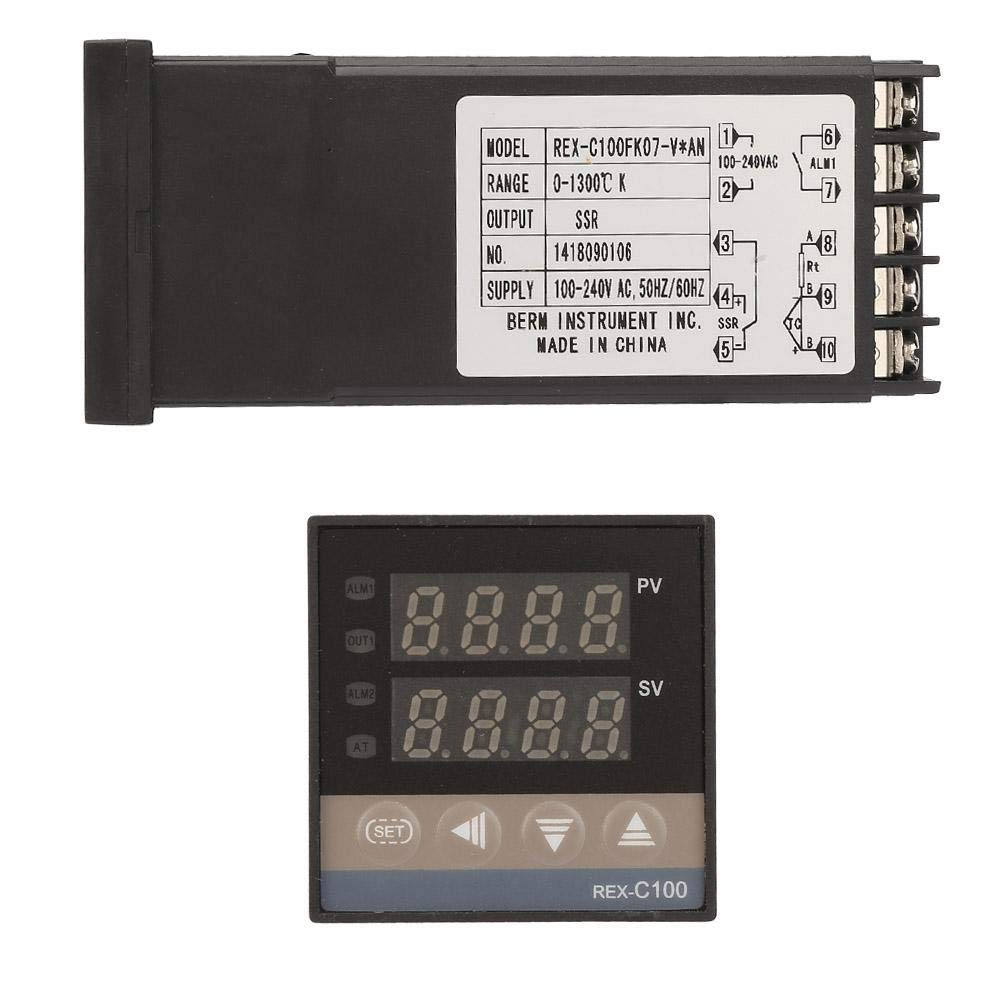

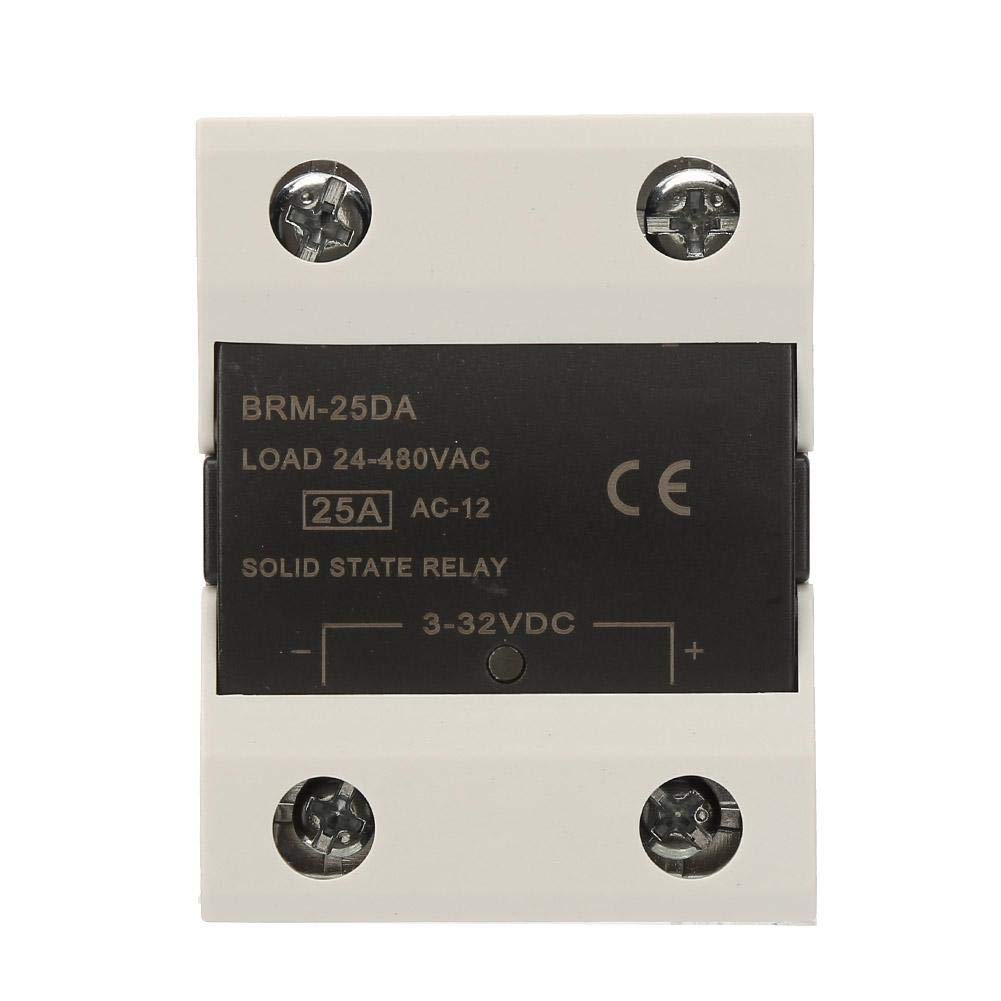

Specification: Temperature Controller Model:REX-C100FK07-V*AN Measuring Accuracy:±0.5%FS Cold-end Compensation Tolerance:±2℃(can be modified by software in 0~50℃) Resolution: 14 bit Sampling Cycle: 0.5 Sec Power: AC 110V-240V 50/60HZ Process value: (PV), set value:(SV) Output, alarm and self-setting indication: LED PIN control: including ON/OFF, step PID and continuous PID Relay Output: Contact capacity 250V AC 3A (resistive load) Alarm Function Output: 2 ways Proportional Band (P): 0~full range (ON/OFF control when set to 0) Detecting Temperature Range: 0℃~1300℃ Insulation Resistance: >50M ohm (500V DC) Insulation Resistance: 1500V AC/min Insulation Resistance: Power Consumption <10 VA Service Environment: 0℃~50℃ Non-corrosive gas environment :30 ~ 85% RH Size: 48*48*110mm / 1.89*1.89*4.33" Max.40A SSR Output Voltage Range: Standard Type Output Current: 40A Input Voltage: DC 3V-32V Output Voltage: 24V-380V AC K thermocouple probe cable Length: 1 m Diameter of sensor: 4.5mm Temperature range: 0 ~ 400℃ Internal insulation: glass fiber External shielding: insulation shielding Maximum 25A SSR (solid state relay) Output voltage range: standard Output current: 25A Input voltage: DC 3-32v Output voltage: 24-380v AC Weight: 264 g / 9.3 oz(approx.) Package list: 1 x REX-C100 PID temperature controller 1 x K thermocouple/temperature sensor 1 x Max 25A SSR (solid state relay) Note: The maximum detection temperature of the attached temperature sensor probe is 400℃. If the customer wants to measure the temperature of 0-1300℃, they need to purchase a temperature sensor of 0-1300℃ separately.
