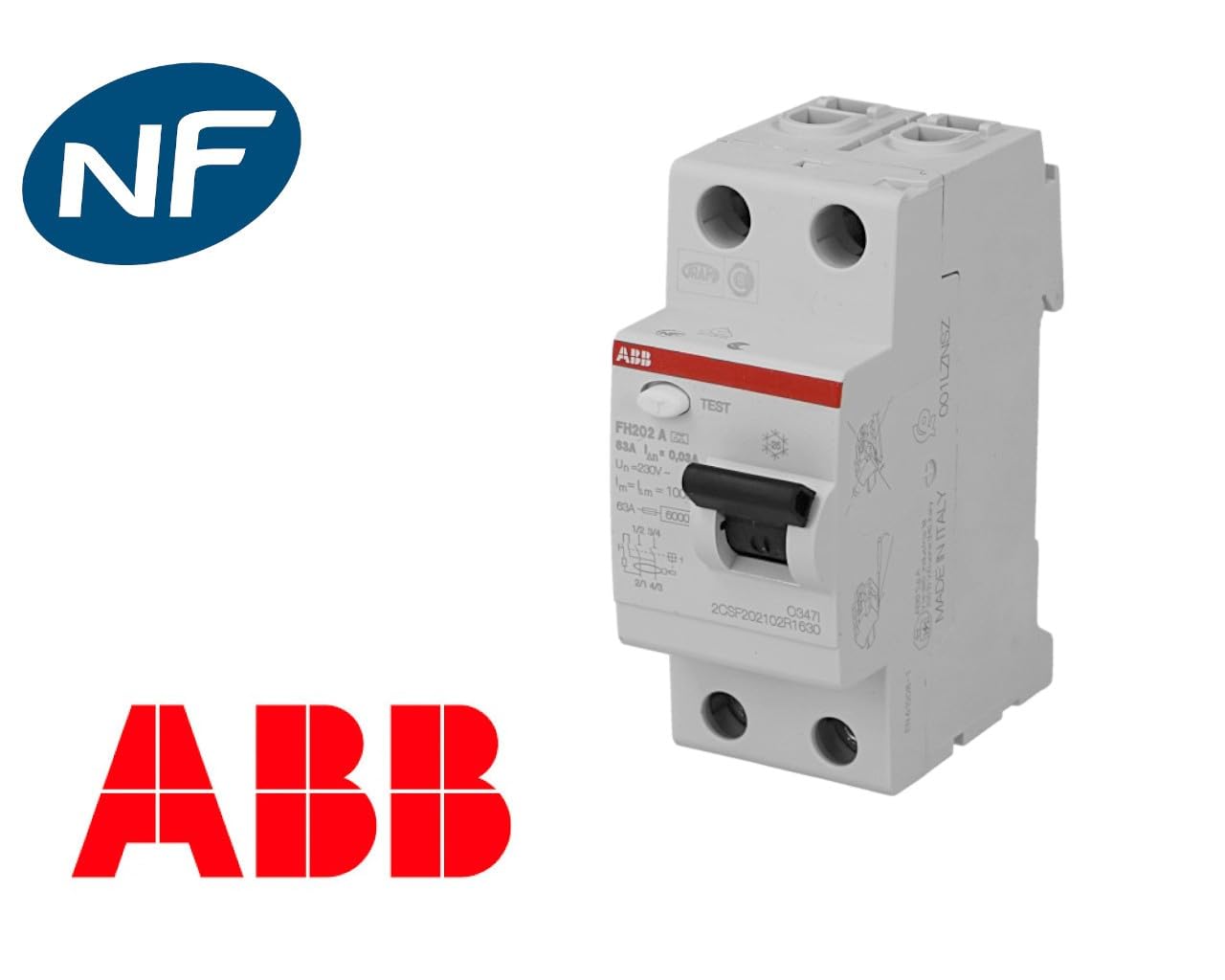

ABB 443051 GSB Differential to Screw Terminals Offset Type AC

• Terminals offset differential circuit breaker; Type X 40 Amp
• Width: 35 mm (2 modules)
• 40 Amp – 30 milliampères- type AC
• Operating Frequency 50/60 Hertz
• Quick-release system
• interruption power: 1000-10000 amps

Differential (instantaneous) switch with offset terminals - AC type 30 milliamps; 40 amps; AC type Operating voltage: 230 volts Width: 35 mm (2 modules) Frequency of use 50/60 Hertz Nominal operating voltages: 230/400 V AC Protects people from ground fault currents (with 30mA sensitivity) They are mandatory in all facilities Cut-off power: 1000 -10000 Amps (with associated 100 amp fuse) Reference standard: NF EN 61008 Quick connection; quick connect upstream terminals Offset terminals for easy connection with circuit breakers Test terminals for presence voltage on the front Integrated label holder AC type: protection against the effects of continuous and alternating type ground fault currents Specific for specialized circuits (e.g. : hob, stove, washing machine)
