AAOTOKK HDMI Screw Terminal Block Adapter Gold Plated HDMI Male to 20 Pin/Way Female Solderless Terminal Breakout Board Connector Signal Module with case (2Pcak/Male)

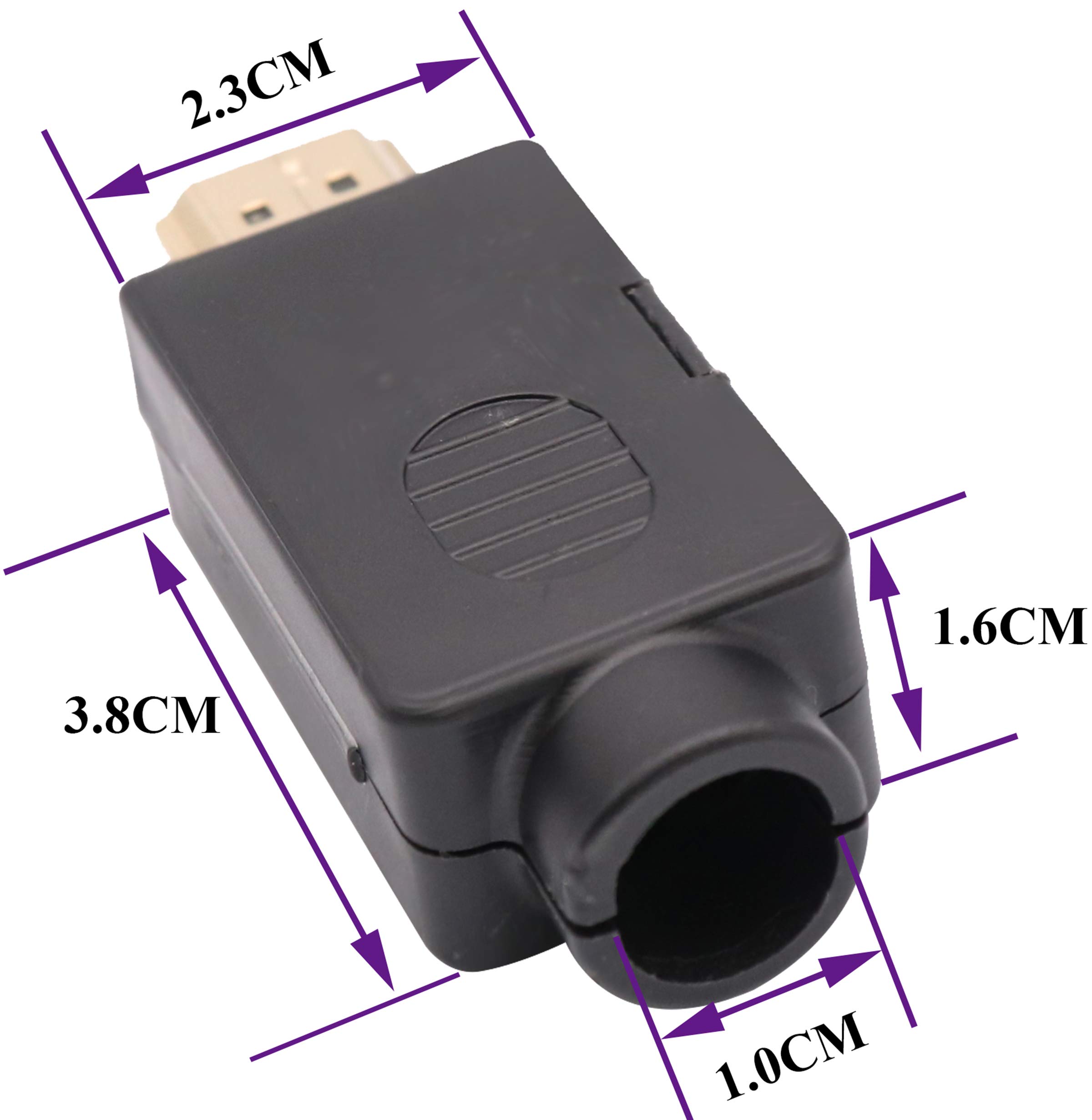

• Quantity:(2-Pack) Size:Length, width, height(4.6*2.2*1.6cm) Material: plastic. Color:(Black)

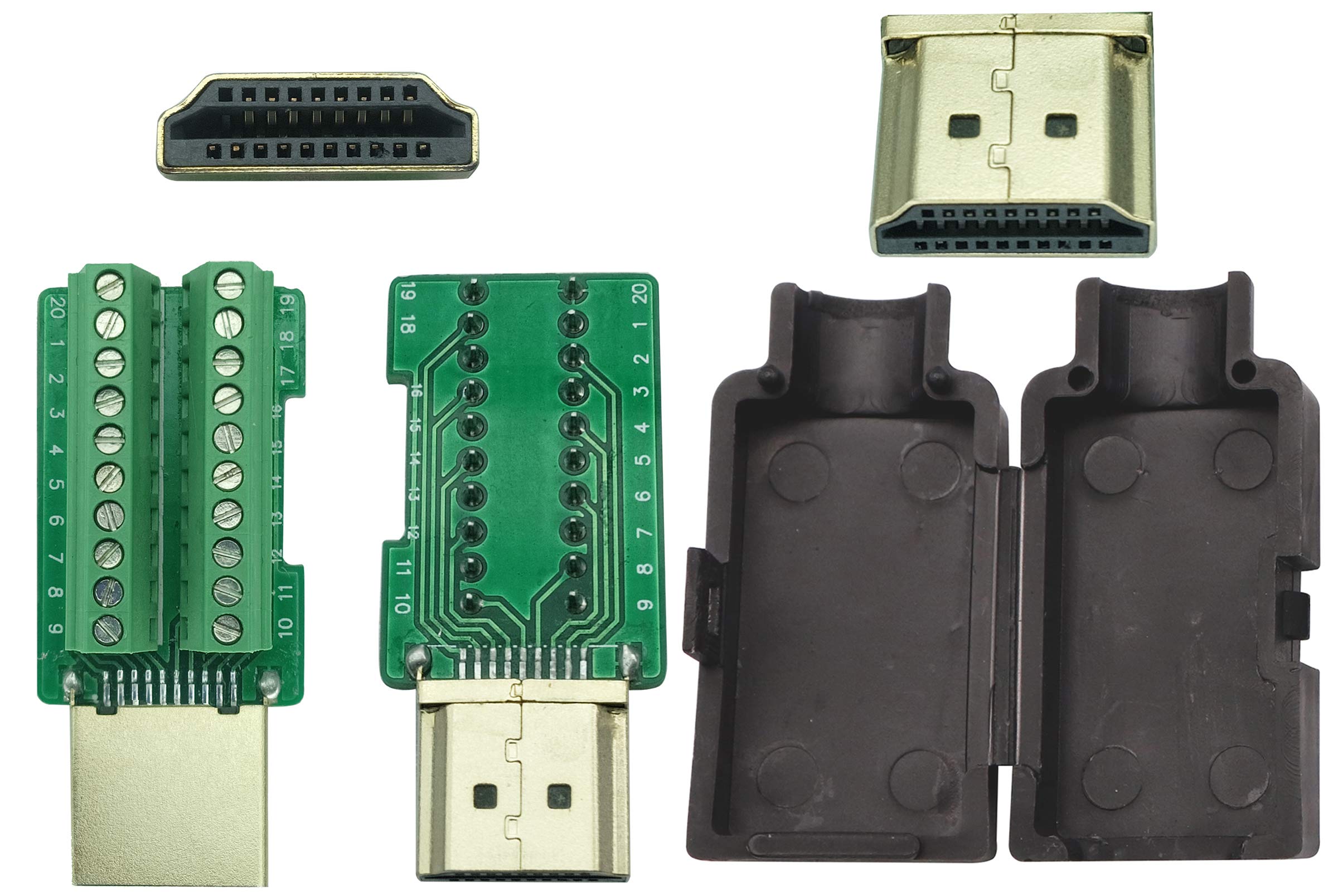

• Connectors 1 : HDMI male jack .Connectors 2 : 20 Pin/Way female screw terminal block jack.
• HDMI Adapter Fully assembled, it suitable for HDMI panels on home improvement projects, buried in the wall,compatible with HDMI 2.0, 19+1 core (5P+4C+ADB)；1.4 and 1.3.Can extend the length of the HDMI cable, Connecting single wires with open cable heads to your HDMI jack.
• Wire range: AWG20～26, Pin: 20way/pin, Compact design and reliable connection for the female HDMI to secrew terminal adapter cable (Notice：Please use the multimeter test to connect this HDMI solderless soldering head,Most HDMI have varying wiring plans. Due to the different manufacturers, the wiring plans is different, so you need to ask the seller of this line. If only one end needs to be changed, please apply the same wiring structure that was in use. While wire colors from different sources ma

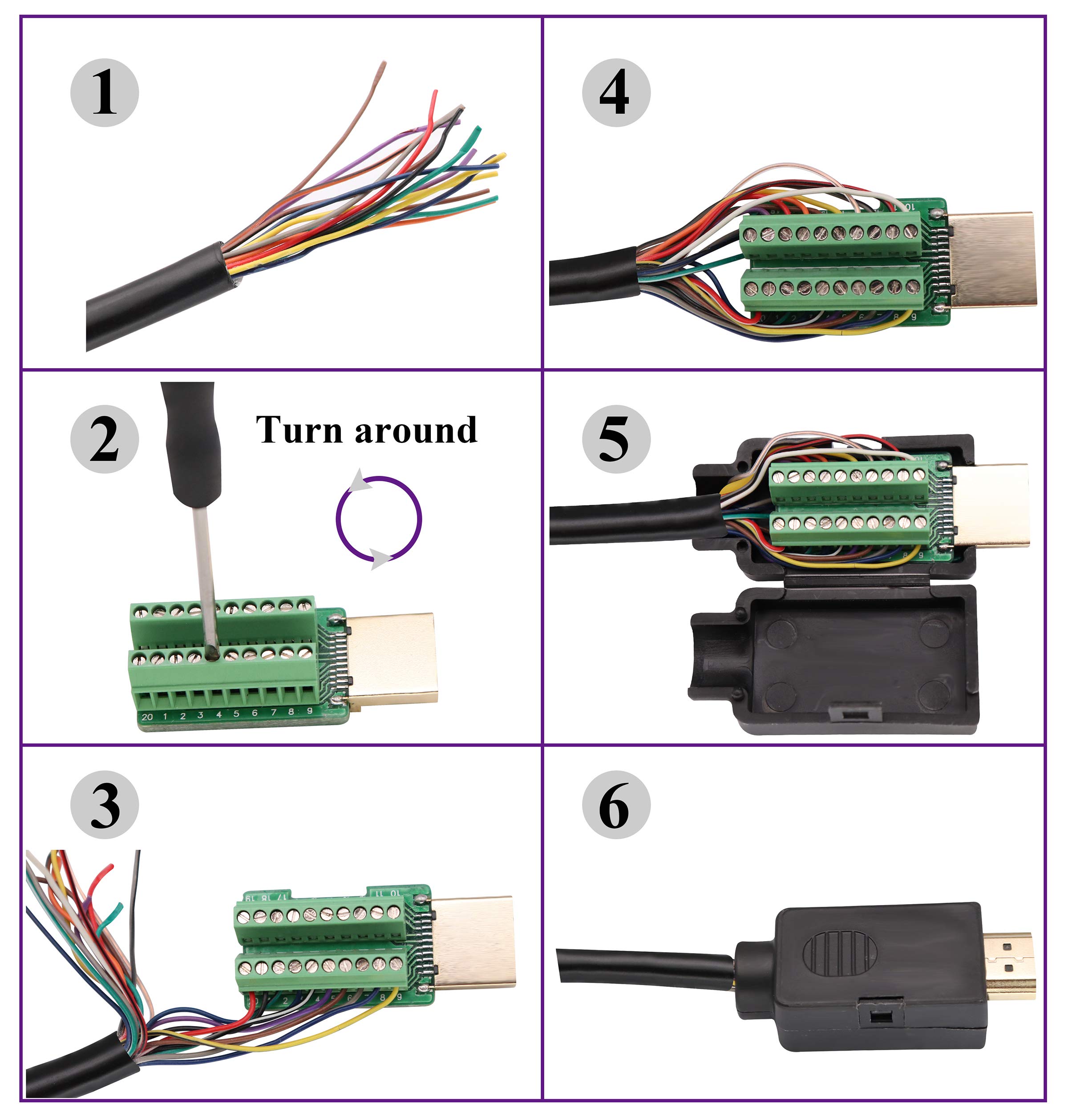

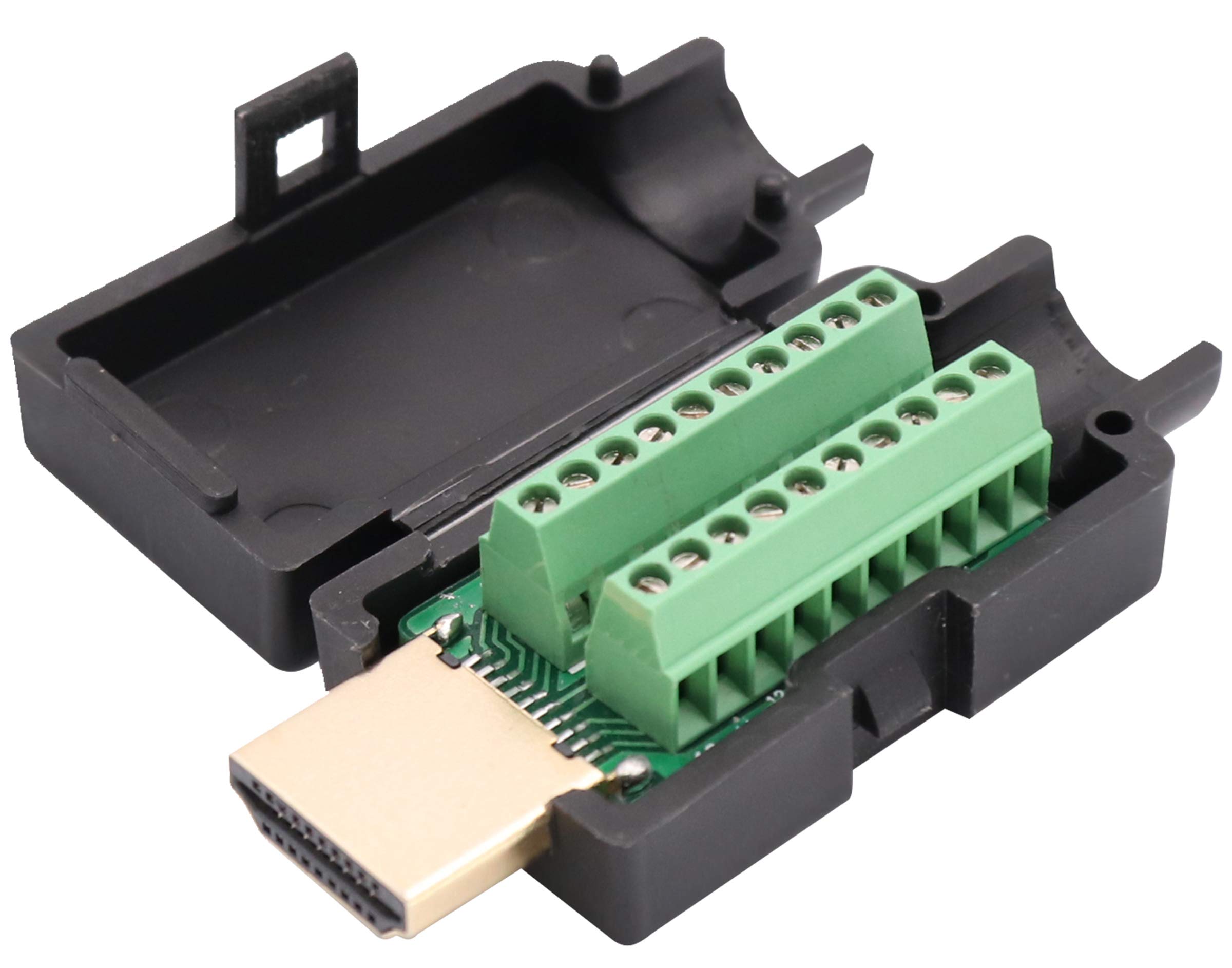

• Screw/solderless type,No soldering required, easy to use,Requires only a screwdriver and a wire stripper to terminate HDMI cables,Saves time and hassle for installers.The housing is designed with a folding buckle for easy assembly and disassembly without tools.

Quantity:(2-Pack) Size:Length, width, height(4.6*2.2*1.6cm) Material: plastic. Color:(Black) Connectors 1 : HDMI male jack . Connectors 2 : 20 Pin/Way female screw terminal block jack. Wire range: AWG20～26, Pin: 20way/pin, HDMI Adapter Fully assembled, compatible with HDMI 2.0, 19 1 core (5P 4C ADB)；1.4 and 1.3. Can extend the length of the HDMI cable, Connecting single wires with open cable heads to your HDMI jack. The connection method requires professional knowledge, and beginners should be careful to purchase. Notice：Please use the multimeter test to connect this HDMI solderless soldering head, Most HDMI have varying wiring plans. Due to the different manufacturers, the wiring plans is different, so you need to ask the seller of this line. If only one end needs to be changed, please apply the same wiring structure that was in use. While wire colors from different sources may vary, just remember to match both ends with the correct wiring structure
