LKV373 100M HDMI Extender Receiver(No Transmitter)over Ethernet Network Routers/Switchers LAN RJ45 CAT5 CAT6-Single Source from 1080P Full HD STB,DVD,PS3 - w/DLP,LCD,LED ,Supports TCP/IP by Ethernet

• LKV373 HDMI Receiver for Extender(without Transmitter)Over Ethernet 100M LAN RJ45 CAT5 CAT6 for 1080P Full HD DVD PS3
• Supported HDMI format: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
• Supports TCP/IP, extends HDMI signal unlimitedly over router or hub/switch.
• Follow the standard of IEEE-568B. Supports resolutions up to 1080p Full HD
• It can transmit HDMI 1080P signal to above 120M by using UTP CAT6.

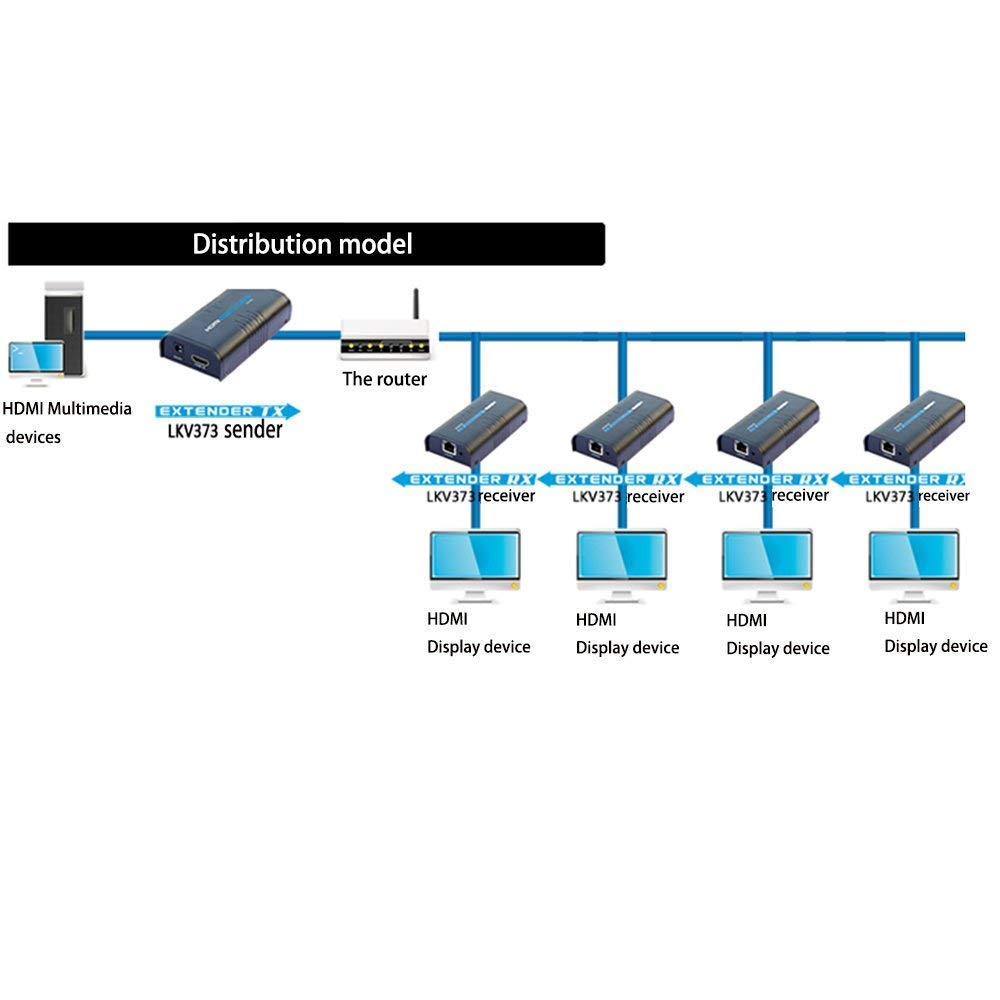

This LKV373 HDMI receiver for extender does not include transmiteter converts HDMI signal to standard TCP/IP and transmit by CAT5e/6 Cable or LAN.With the advantage of TCP/IP standard, it can transmit HDMI signal source from HD STB,DVD,PS3,HDMI display card etc to HD projector, DLP,LCD,LED and other audio visual equipments. Extends by Router connection or LAN connection ,Cable length requirements are as follows: CAT5 Maximum 80 meters between two Devices CAT5e Maximum 100 meters between two Devices CAT6 Maximum 120 meters between two Devices Specification: Supports resolutions: 480i@60Hz,480p@60Hz,576i@50Hz, 576p@50Hz,720p@50/60Hz,1080i@50/60Hz, 1080p@50/60Hz Working Temperature: -10¡æ ~60 ¡æ Link Connector(Sender/Receiver): UTP/STP CAT5e/6 Power Consumption: 3W (max) each Relative Humidity: 20%~90% Power Supply: DC 5V/1A Dimensions: 110 x 58 x 26 mm Weight: 239 g Cat5e/6 cable: Follow the standard of IEEE-568B Package Included: 1 x HDMI Extender Receiver 1 x DC 5V/1A power Supply 1 x User manual
