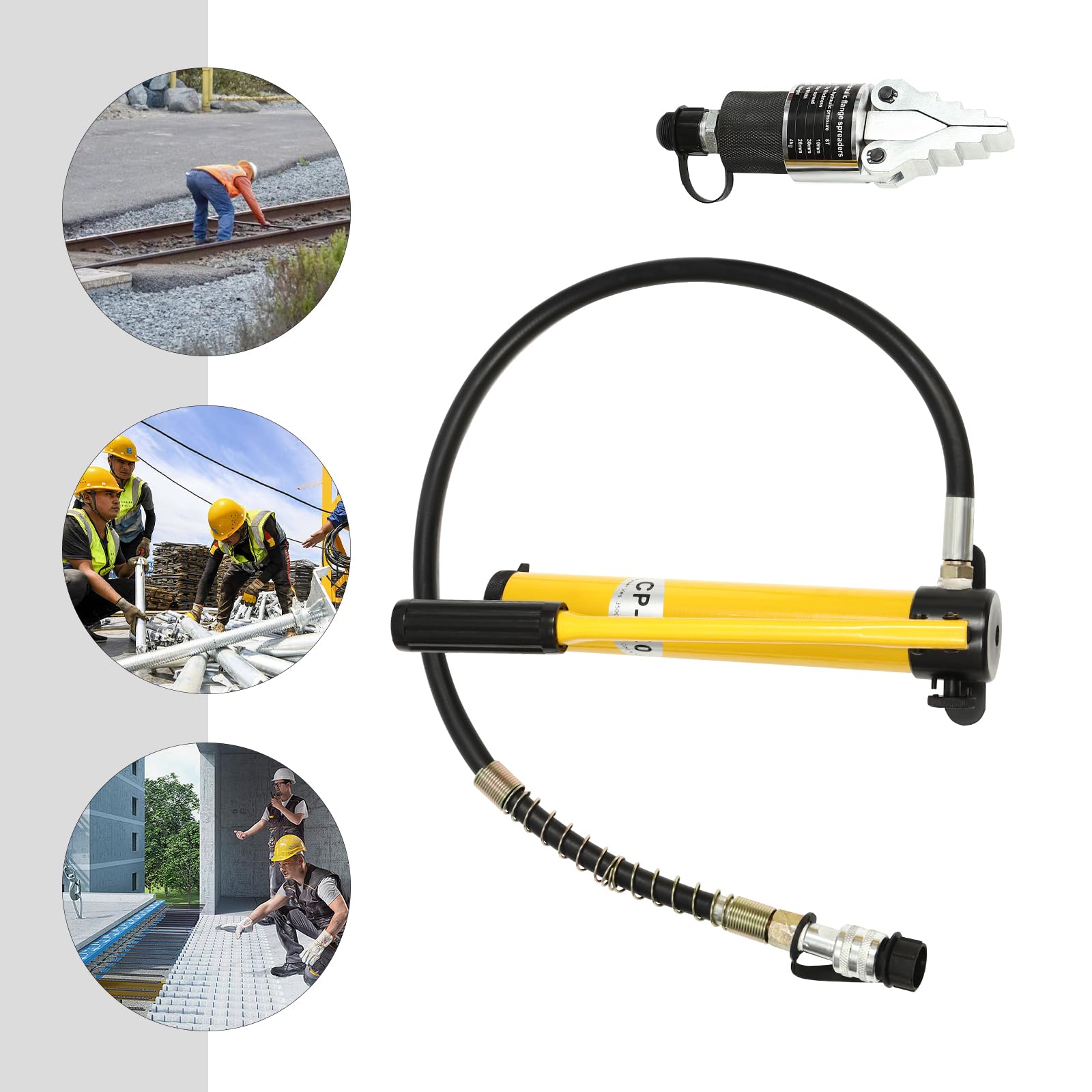

8T / 14T Hydraulic Flange Spreader Split, Hydraulic Flange Splitter Expander Stretching Pliers with Manual Hydraulic Pump (8T)

• EXCELLENT PERFORMANCE: The maximum hydraulic output of the flange spreader is up to 8T/14T. With a maximum separation distance of up to 30mm(8T)/81mm(14T) the flange spreader can meet different working requirements, providing more space for operation.

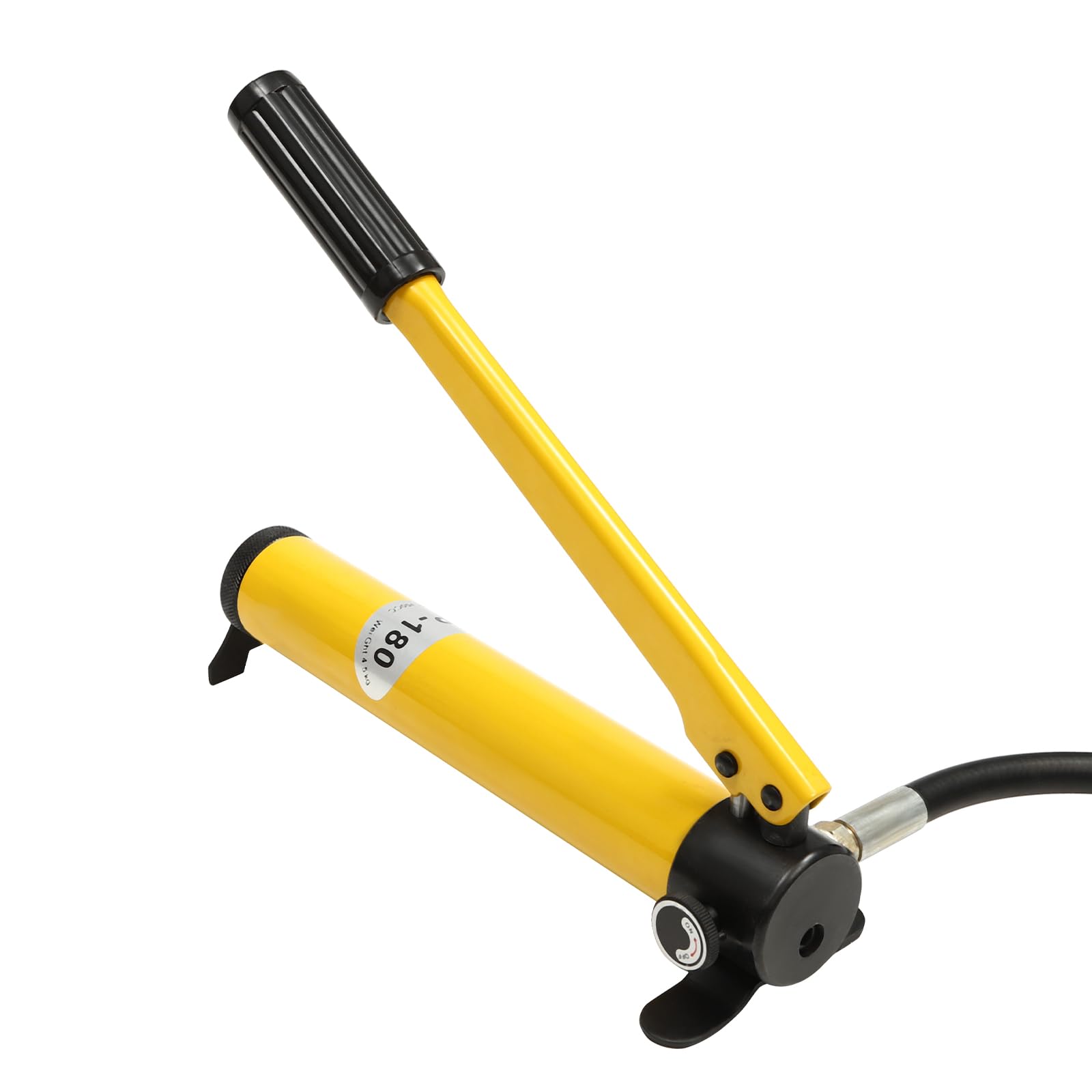

• SPLIT DESIGN: The flange spreader and manual hydraulic pump can be freely dismantled according to your needs. The manual hydraulic pump can also be used for other equipment, which is very economical and convenient.
• USER FRIENDLY: The extended hydraulic pump lever makes working with the pump more comfortable and effortless. Even after long periods of use, you will not feel fatigued, giving you a great sense of comfort.

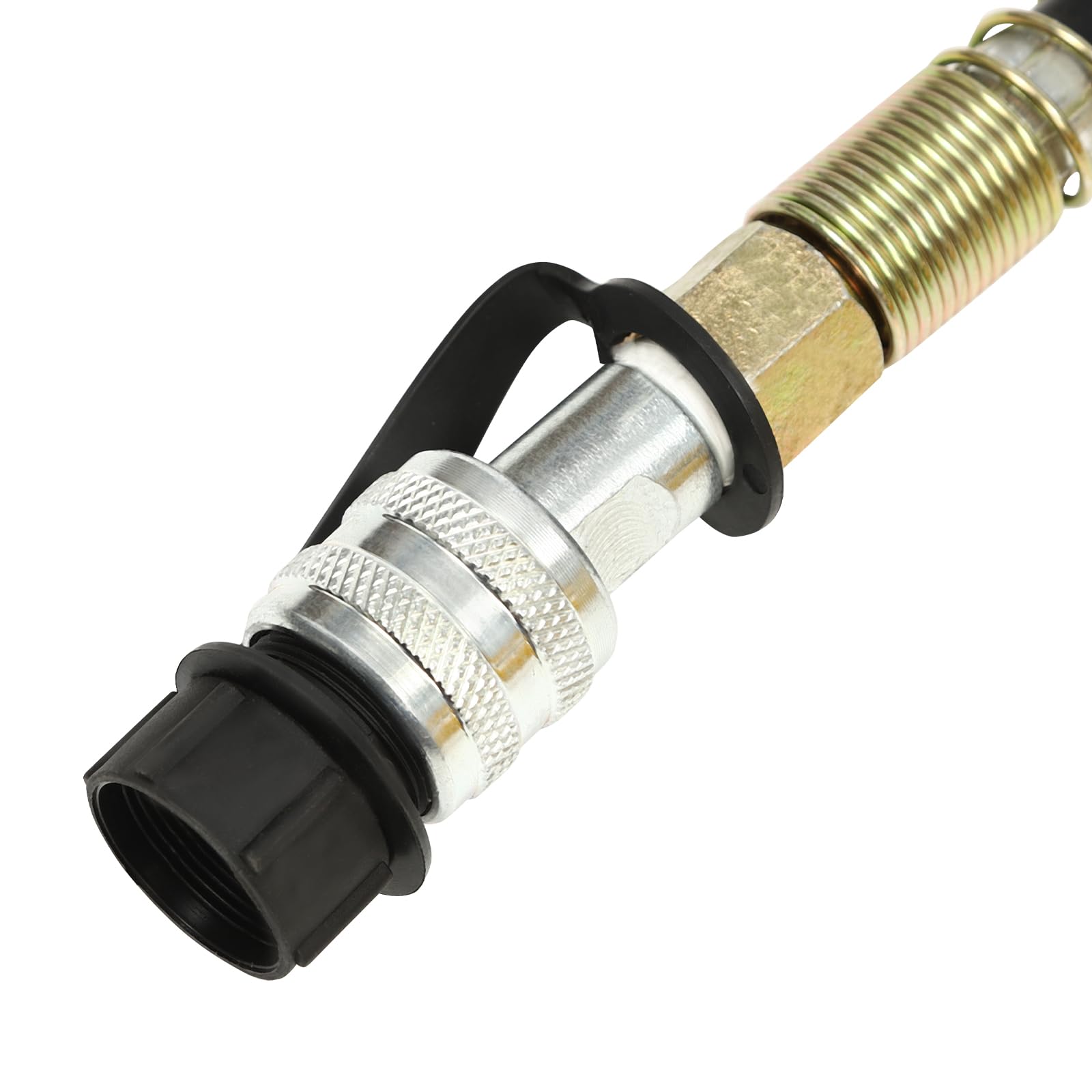

• EASY TO INSTALL: The installation procedure is very simple. All you need to do is connect the threaded connector on the spreader to the connector on the hydraulic pump, and you can use it immediately.
• BROAD APPLICATION: This hydraulic flange spreader can be used for pipeline maintenance/repair/inspection, flange/valve replacement, cylinder head opening, power plant, jacking work, maintenance gasket, pressure vessel, bearing disassembly, oil and electric drilling, motor rotor disassembly, offshore platform, shipbuilding, fire breaking, industrial equipment, power maintenance, construction work, fire safety, horizontal movement of workpieces and other industry fields.

[TECHNICAL SPECS] Material: Cr45 Steel, Plastic Process: Heat Treatment Assembly Required: Yes Working Type: Hydraulic Pressure Hydraulic Pump Model: CP-180 Threaded Connector Specification: ZG3/8 -8T- Flange Spreader Model: FYQ-30 Oil Storage Capacity: About 1L/33.8oz Max. Hydraulic Output: 8T/17637 lbs The Thickness of the Tip: 10mm/0.39in Max. Separation Distant: 30mm/1.18in Package Size: 37.5*22.5*16.5cm/14.76*8.86*6.5in Gross Weight: 7kg/15.43 lbs -14T- Flange Spreader Model: FS-14 Oil Storage Capacity: 400cc/400ml Max. Hydraulic Output: 14T The Thickness of the Tip: 6mm/0.23in Max.separation Distant: 81mm/3.18in Package Size: 38.5*22.5*17cm/15.15*8.85*6.69in Gross Weight: 14kg/30.86in [WHAT’S IN THE BOX] 8T : 1* Flange Spreader + 1* Hydraulic Pump 14T : 1* Flange Spreader + 1* Hydraulic Pump + 1* Safety Block + 2* Step Blocks + 1* Allen Key
