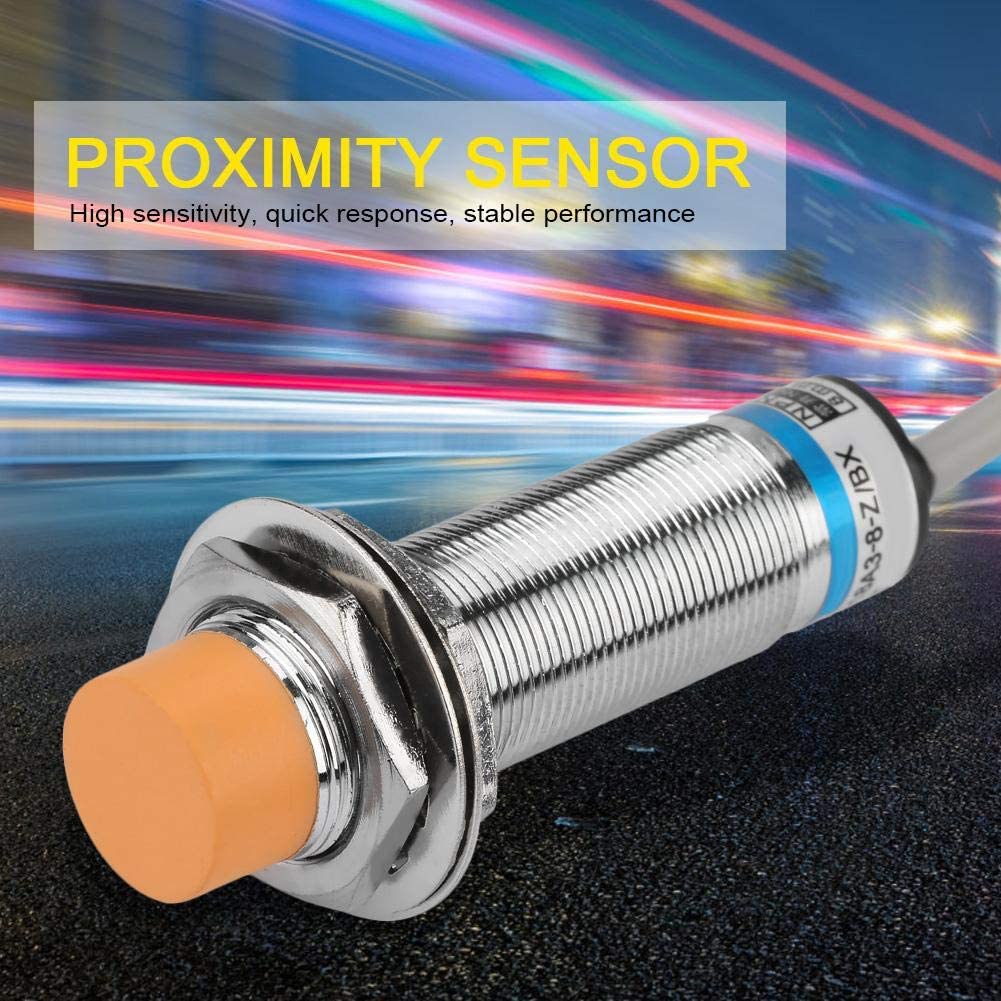

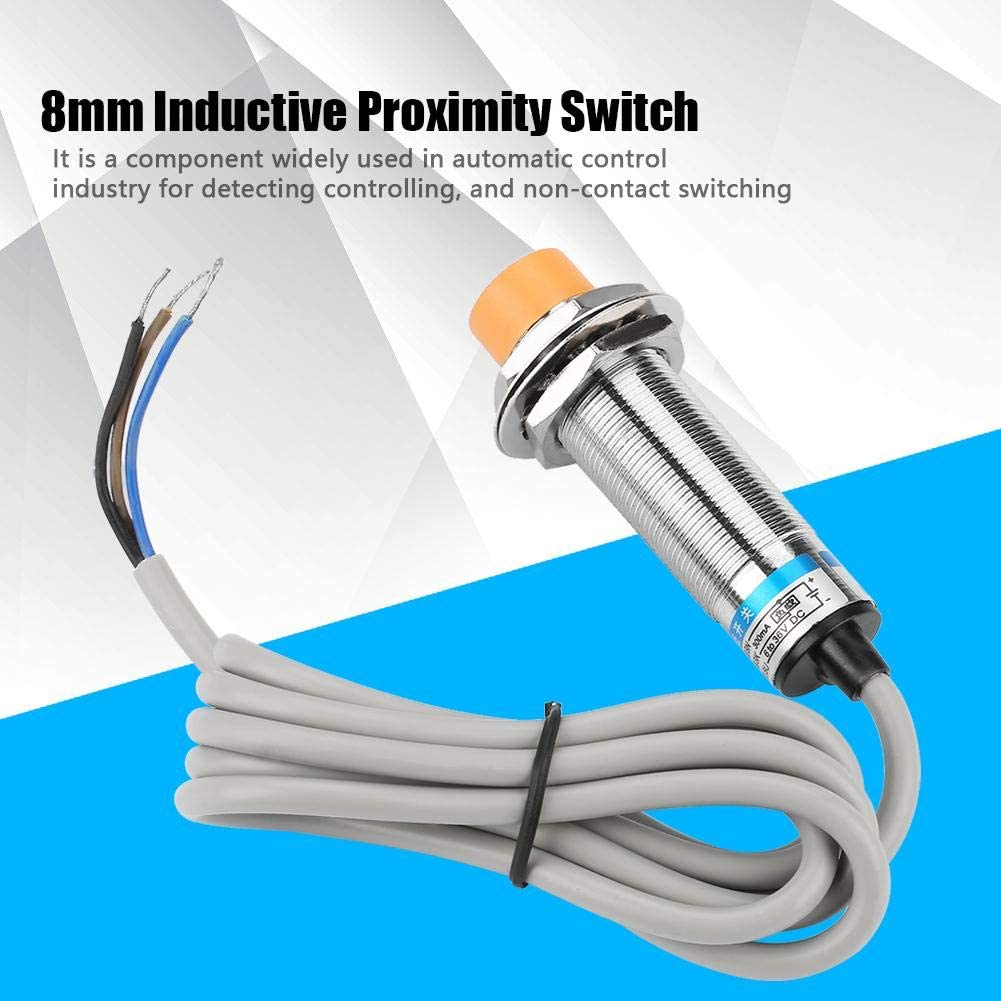

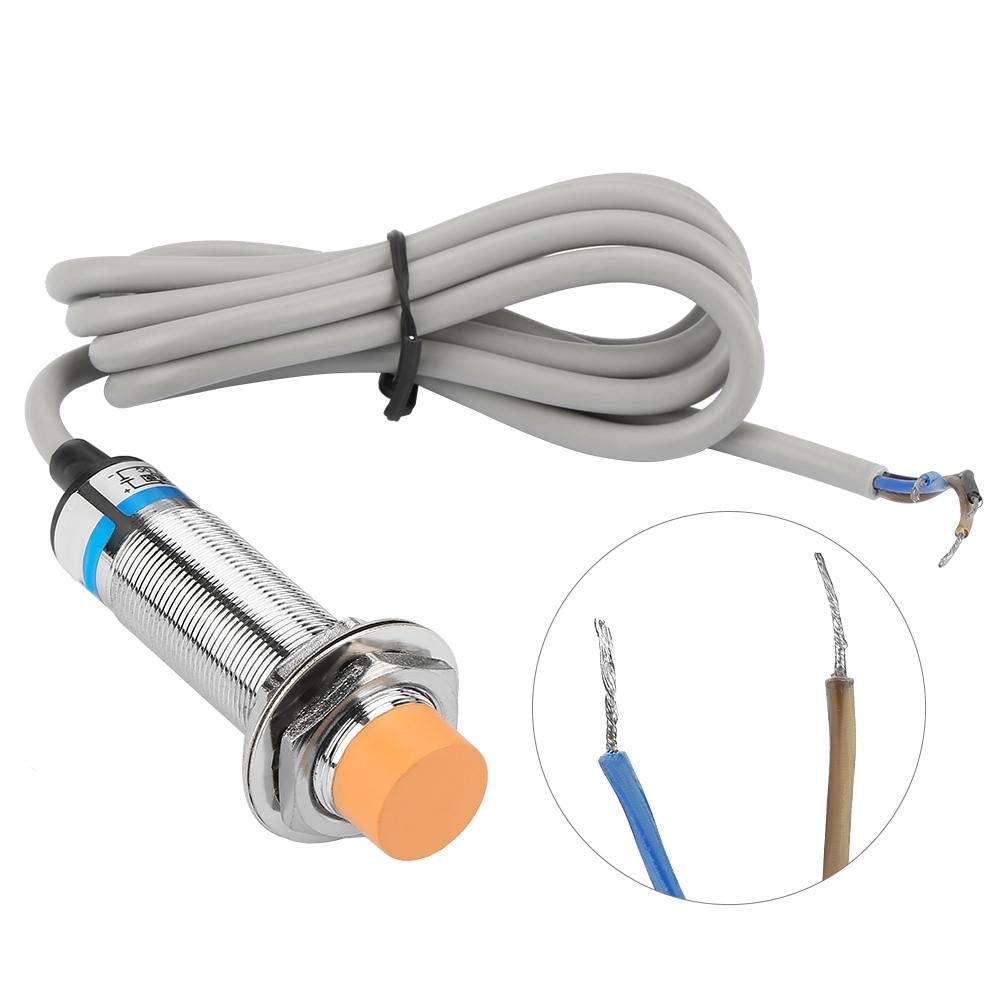

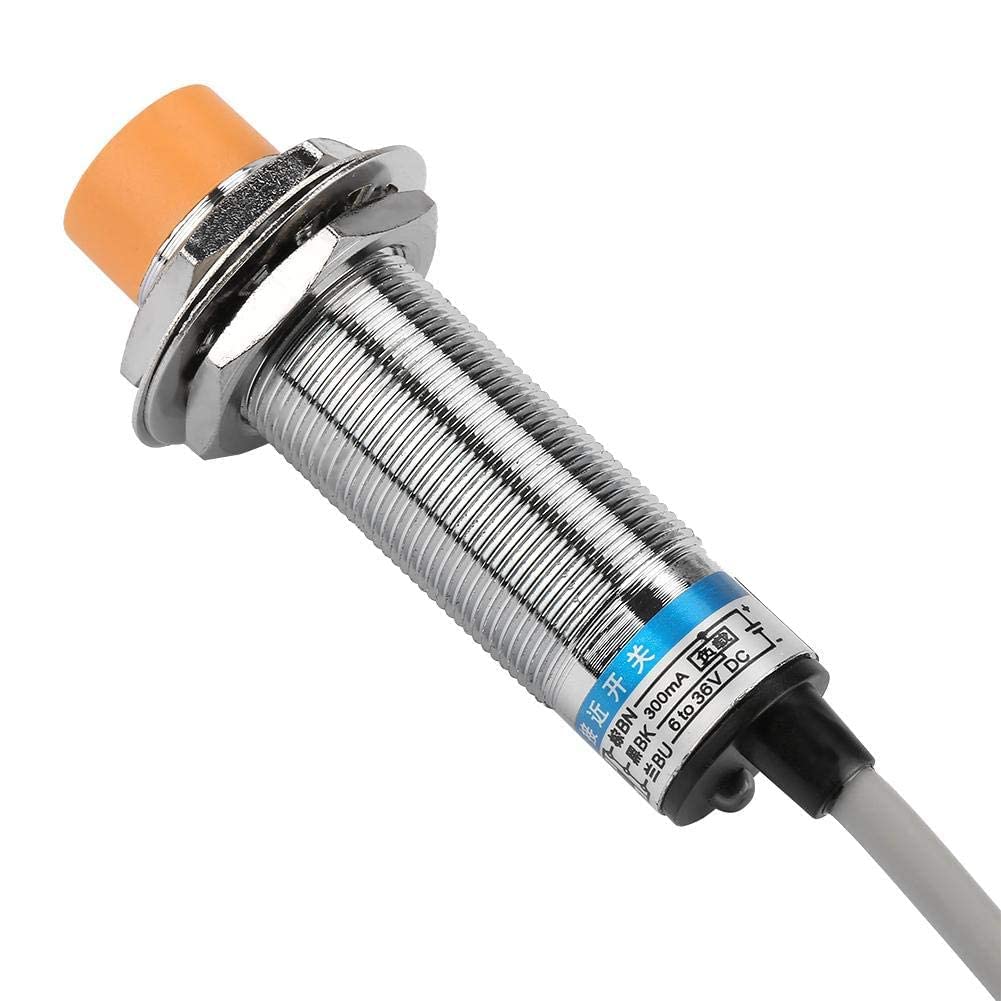

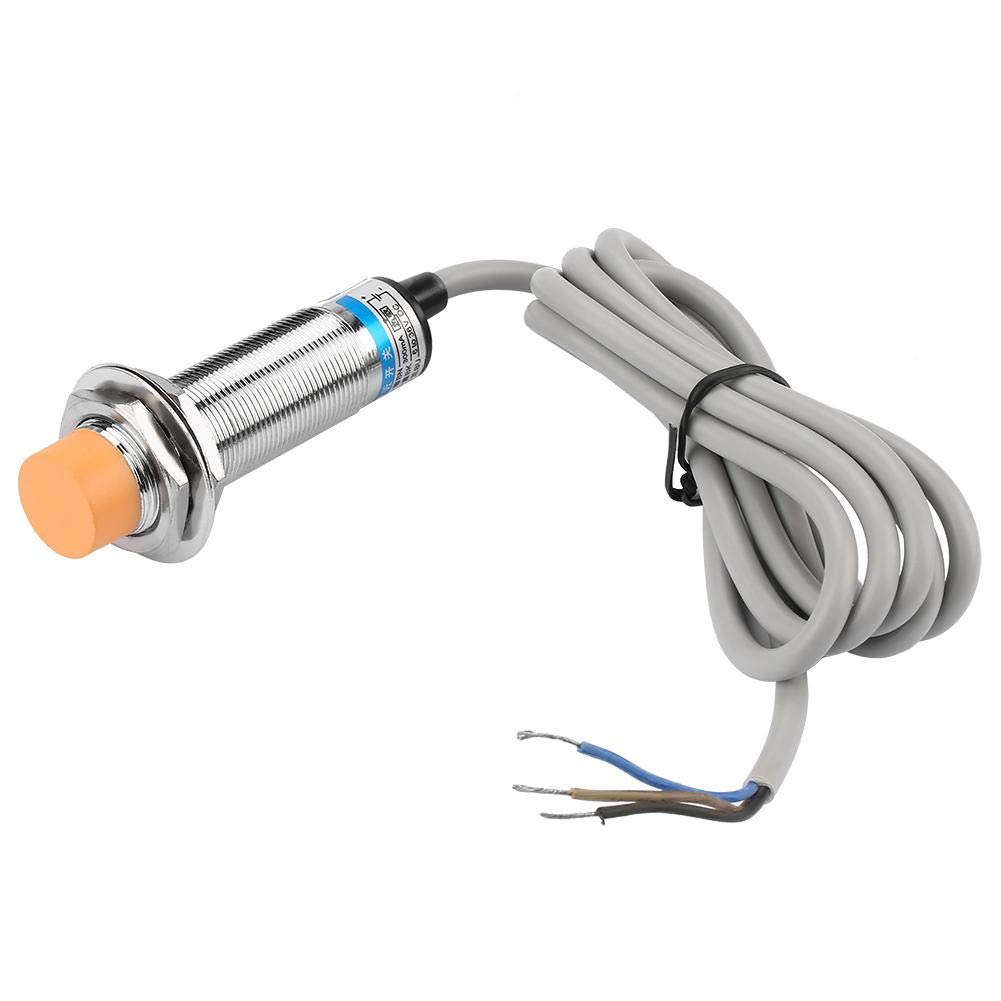

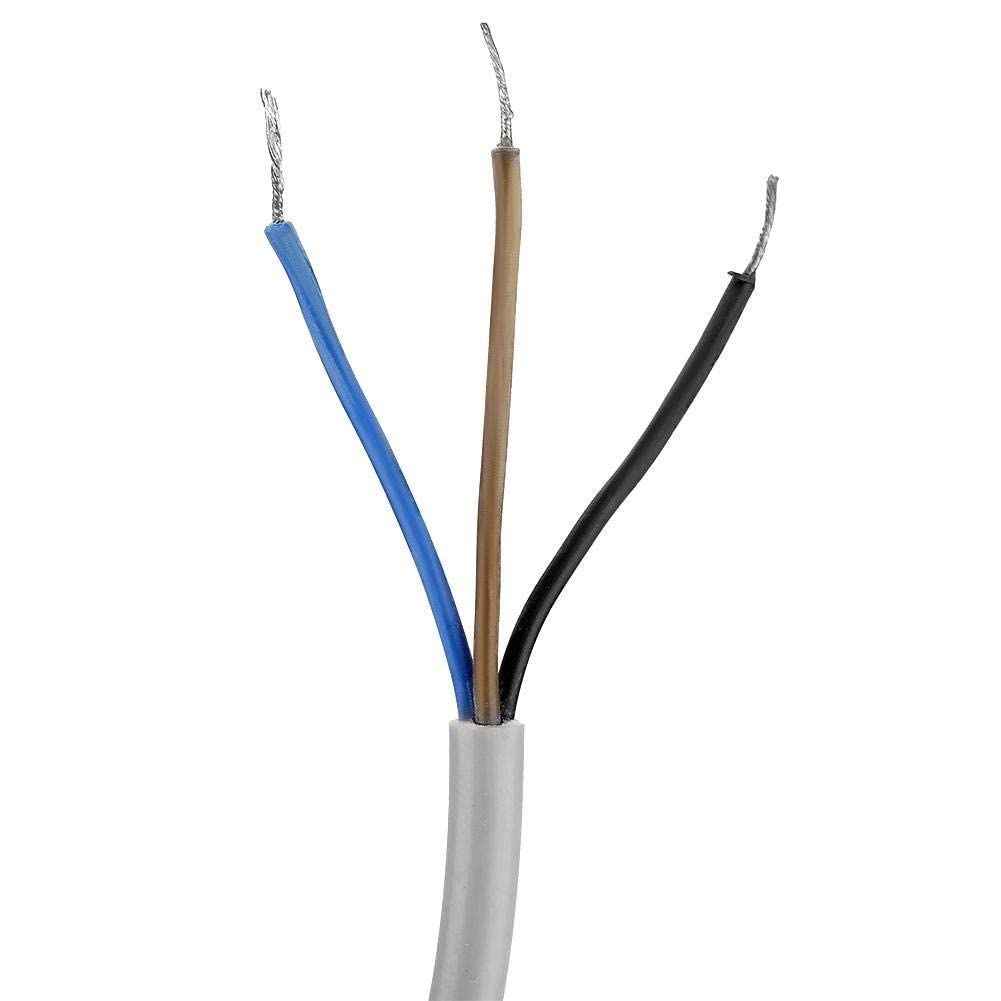

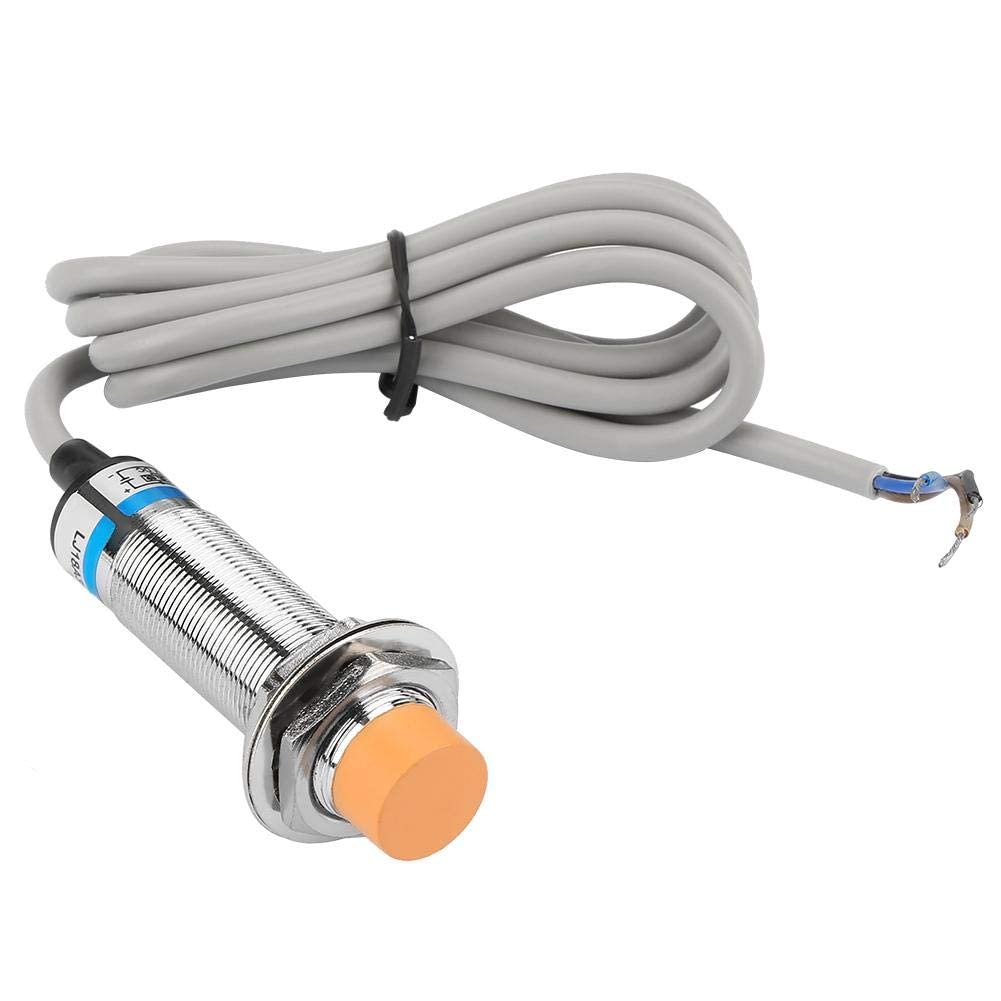

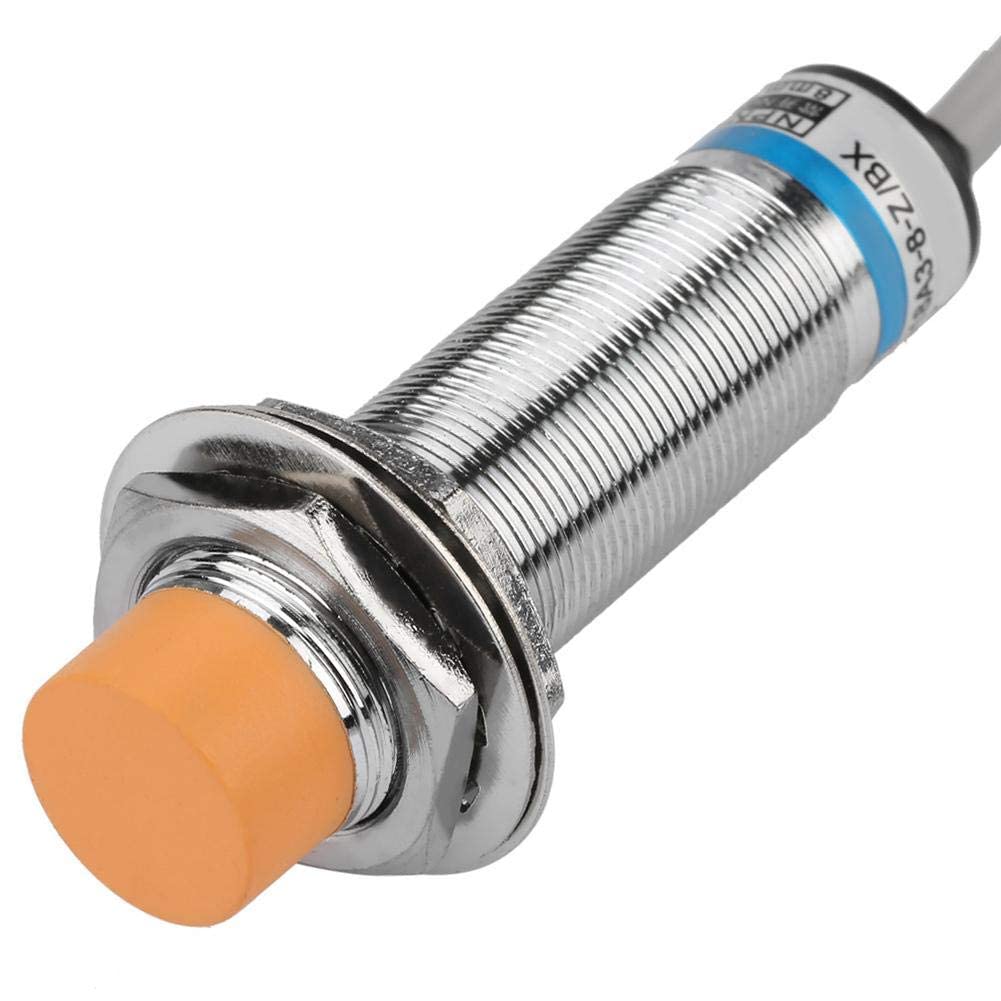

8mm Inductive Proximity Sensor Switch DC NPN 3 Wire Normally Open Detecting Distance Approach Sensor LJ18A3-8-Z/BX Nickel-Plated Brass

• This proximity switch is a normally open proximity switch sensor with a detection distance of 8 mm.
• When the proximity switch is near a target object, it sends a control signal.
• It is a component commonly used in the automatic control industry for detection, control and non-contact switching.
• High sensitivity, fast response, stable performance.
• The non-contact detection protects the sensor and the target object from damage.

Specification: Model: LJ18A3-8-Z / BX Detection distance: 8 mm ± 10%. Adjustment distance: 0-7 mm. Delay distance: <10% of detection distance. Detection object: magnetic metal (the detection distance decreases when it is non-magnetic metal). Standard detection object: iron 30 x 30 x 1 mm. Response frequency: 0.5 kHz. Supply voltage: DC12-24V (6-36V) pulse (P-P) below 10%. Withstanding voltage: AC1000V 50/60Hz 1min Power consumption: N.P type: <13mA, D type: <0.8mA, A type: <1.7mA Control output: N.P type: <300mA, D type: <200mA, A type: <400mA Loop protection: type N.P.D: reverse polarity protection, shock absorption, load short circuit protection, type A: shock absorption Ambient temperature and humidity: -30 ~ 65 ℃, 35-95% RH Temperature influence: temperature range -30 ~ 65 °C, at 23 °C, ± 15% detection distance; temperature range -25 to 60 °C, at 23 °C, ± 10% 0detection distance Insulation impedance: > 50 MΩ. Casing material: nickel-plated brass. Detection area: ABS Approx. weight: 80 g / 2.8 oz. Package contents: 1 x inductive proximity switch.
