8Ch Non-Realtime Color Video Multiplexer Switcher Processor for CCTV Surveillance Cameras, Digital Zoom In/Out, Video Freezing, Video Loss, Motion Detection, Audio In/Out

• -Support 8 channels non-realtime video display with multiple display modes.

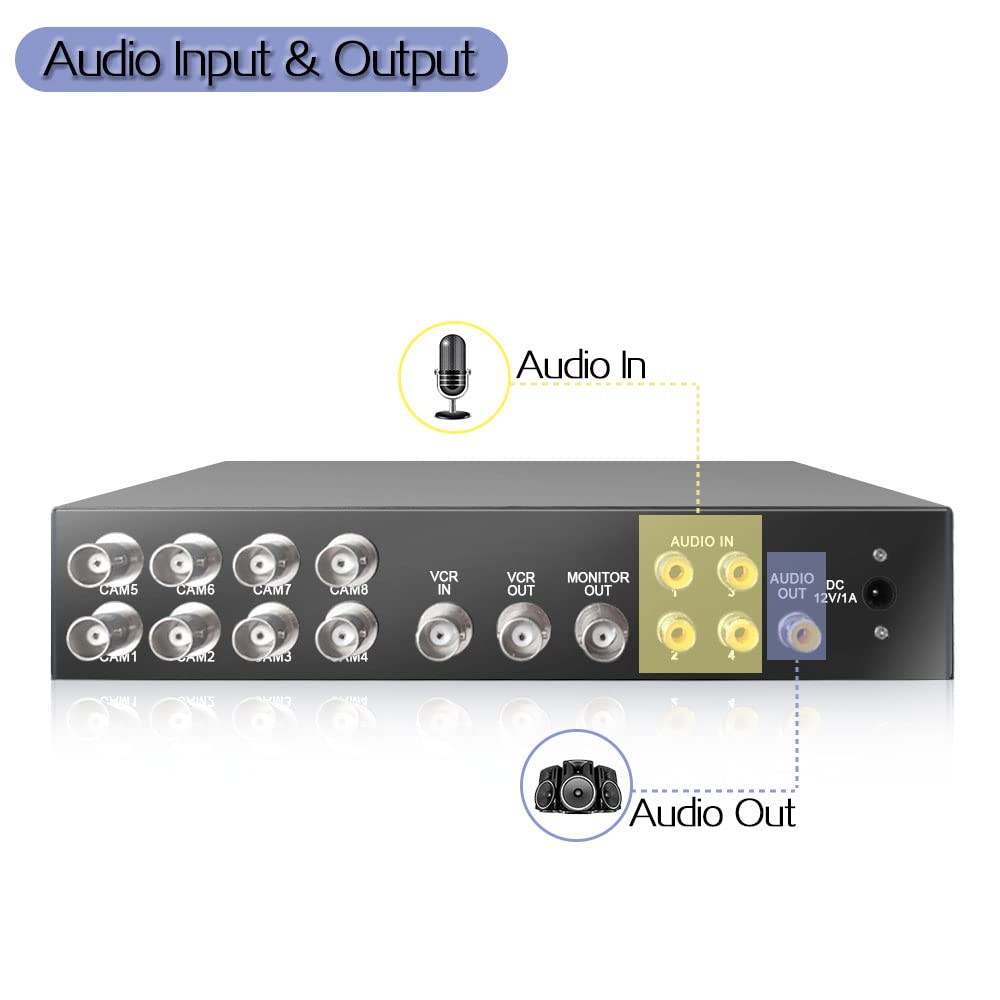

• -Support 4 channels audio input and 1 channel audio output.
• -Support digital zoom in/out. Support auto sequential switching.
• -Support multiple video channels freezing at the same time.
• -Support motion detection alarm and video loss alarm. Note: this video multiplexer supports ana-log cctv security cameras ONLY, doesn't support AHD or IP cameras.

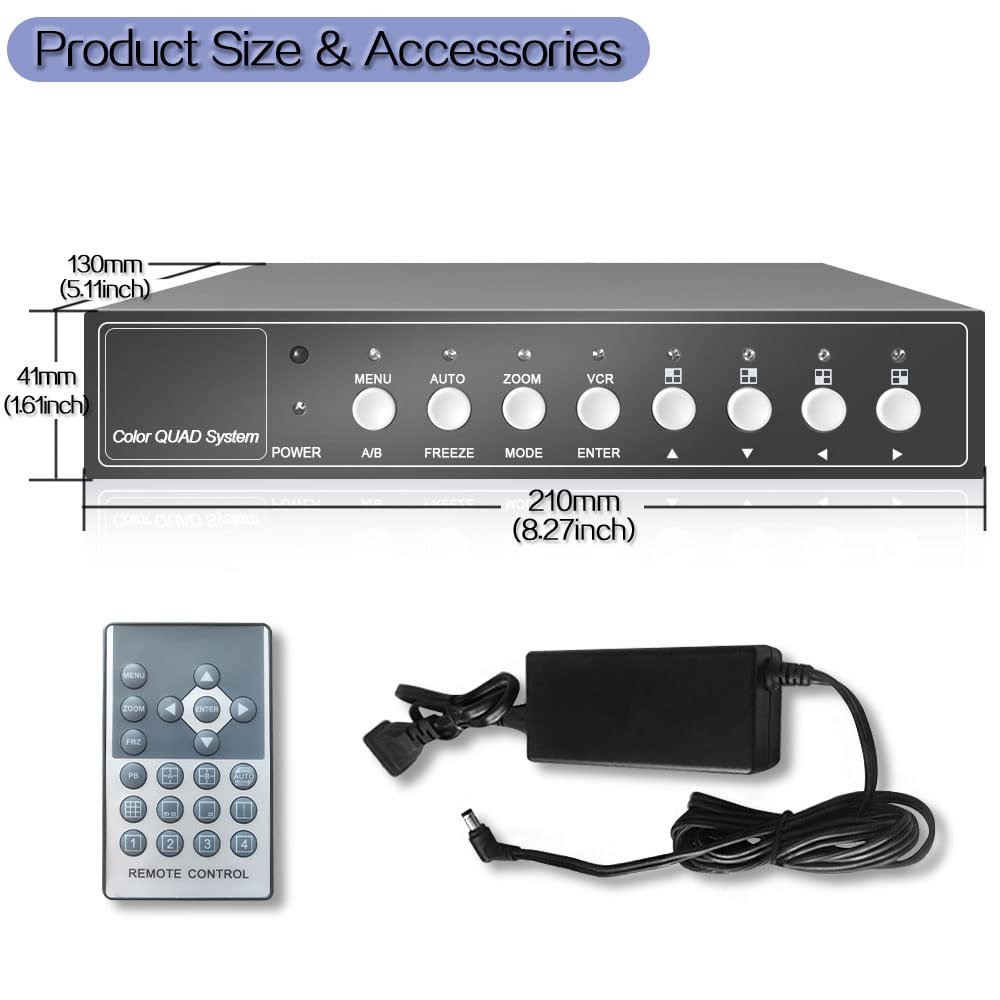

Key Features: -Support 8 channel non-realtime video display, each channel can be renamed. -Support 4 channels audio input, 1 channel audio output and 2 channels video outputs. -Support 8, 4, 2 channels, single channel or PIP multiple video display mode. -Auto sequential switching. -Support digital zoom in/out. -Support multiple video channels freezing at the same time. -Support motion detection alarm, detective area and alarm duration are adjustable. -Support video loss detection and alarm. -Support IR Remote Control. Parameters: Video System: NTSC/PAL Video Frame Rate: PAL: 150fps; NTSC: 180fps Video Resolution: PAL: 720×576; NTSC: 720×480 Video Input: 8xBNC 1Vp-p,75Ω, 1xBNC, 1Vp-p,75Ω Video Output: 1 channel main monitor output, 1Vp-p,75Ω; 1 channel slave monitor output, 1Vp-p,75Ω Auto Switch Intervals: 0~99 seconds selectable Audio Input: 4xRCA Audio Output: 1xRCA Event Records: 60 groups in max Alarm Output: None OSD Language: English Customized Menu: Brightness ,Contrast ,Saturation, Hue, Sharpness can be adjustable Power Consumption: 5W (400mA) Power Supply: DC 12V, 1A Operation Environment: -10℃~ +60℃ Gross Weight: 1kg Product Size: 210mm×130mm×40mm Note: this video multiplexer supports ana-log cctv security cameras ONLY, doesn't support AHD or IP cameras.
