868MHz LoRa Breakout Board with Antenna/Long Range Radio Module for e.g. Arduino/Raspberry Pi

• ✅ WIRELESS CONNECTION - Connect your project to the Internet or your mobile devices even in remote regions using the long range transceiver based on the SX1276 chipset.
• ✅ HIGH RANGE - The transceiver is suitable for the transmission of small data packets over long distances, which are unsuitable for 2.4 GHz networks (BT, BLE, WLAN, ZigBee).
• ✅ SAFE OPERATION IN EUROPE - The chip has been preset to a frequency of 868MHz and is therefore suitable for operation within Europe.

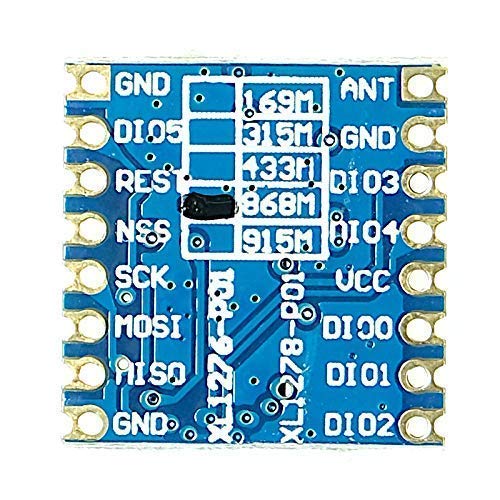

• ✅ EASY CONTROL - Communication between the microcontroller or development board of your choice and the radio module takes place via the SPI interface.
• ✅ PROVEN QUALITY - If, despite our quality controls, you have reason to complain, we at Paradisetronic will help you quickly and easily.

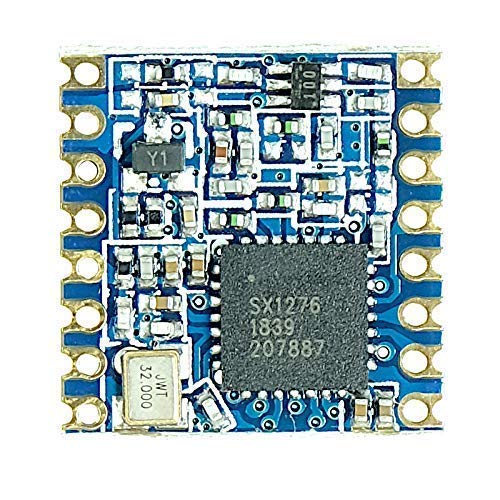

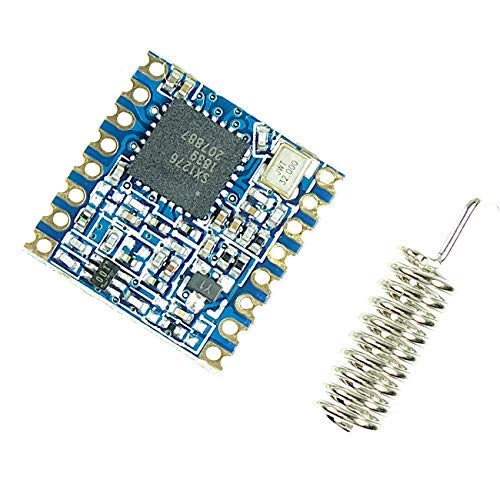

868MHz SX1276 LoRa Breakout Board with Antenna Connect your project to the Internet or your mobile devices in remote regions using the long range transceiver based on the SX1276 chipset. The chip was preset to a frequency of 868MHz and is therefore suitable for operation within Europe. The transceiver is suitable for the transmission of small data packets over long distances, which are unsuitable for 2.4 GHz networks (BT, BLE, WLAN, ZigBee). Communication between the microcontroller and radio module takes place via the SPI interface. Product features : based on the SX127x LoRa module Simple control via SPI interface Low current consumption of about 12 mA when receiving Operating Voltage: 3.3V The module is supplied with the antenna shown, which you can solder on if required.
