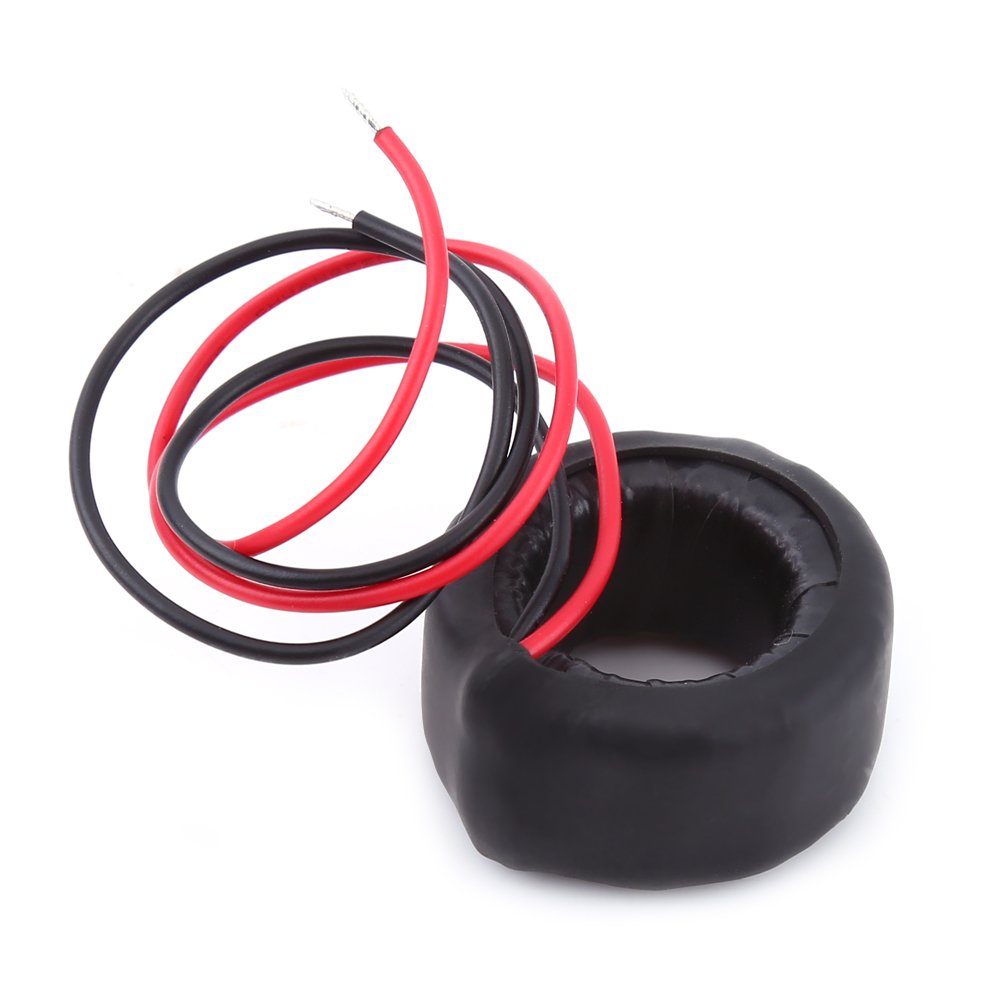

80-260V AC 100A Digital Monitoring Multimeter Ammeter Voltmeter Power Energy Voltage Current Electrical Tester with CT

• MULTIFUNCTIONAL: This is a multifunctional AC electric meter that can test current, voltage, power and energy with wide voltage range from 80V to 260V.
• ALARM SYSTEM: The meter support overload alarm function, reset energy function, power alarm threshold preset function, etc.

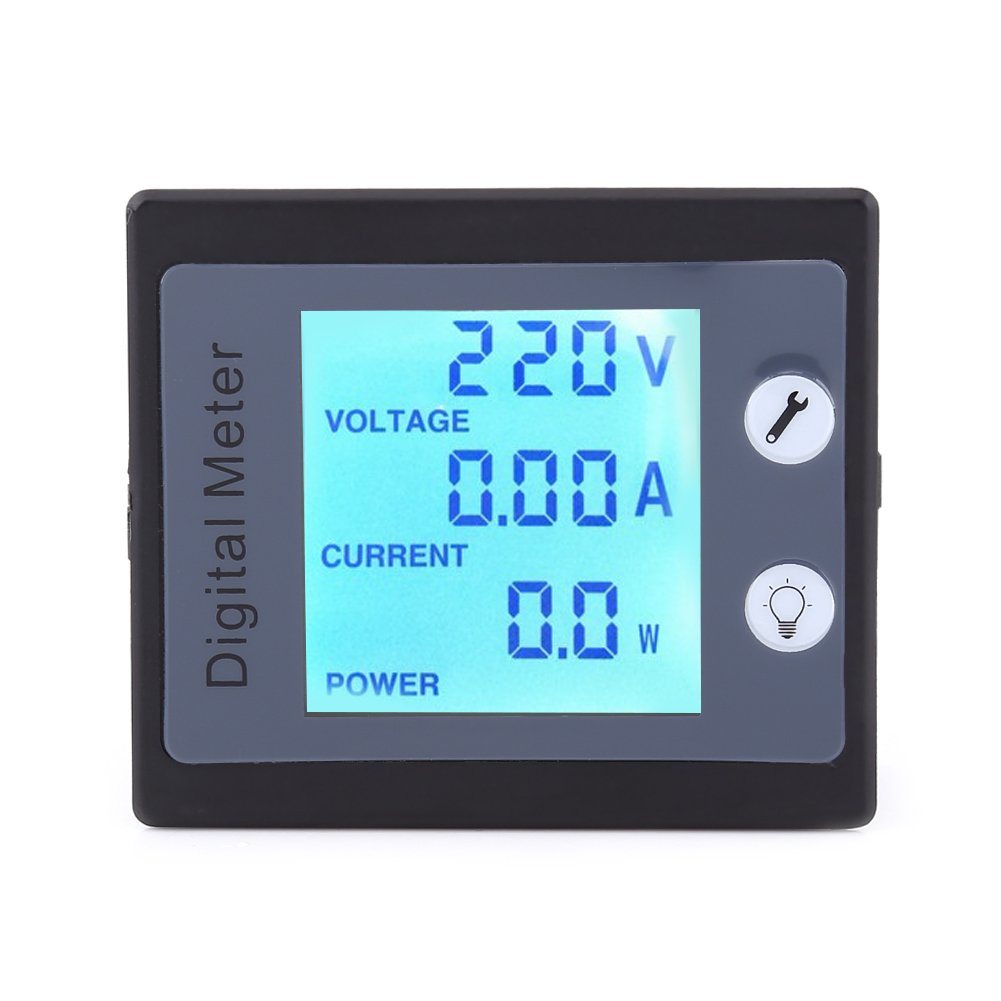

• SHOW 3 DATA THE SAME TIME: This multimeter could show 3 measured data at the same time, and you can simply press one button to switch power and energy data.

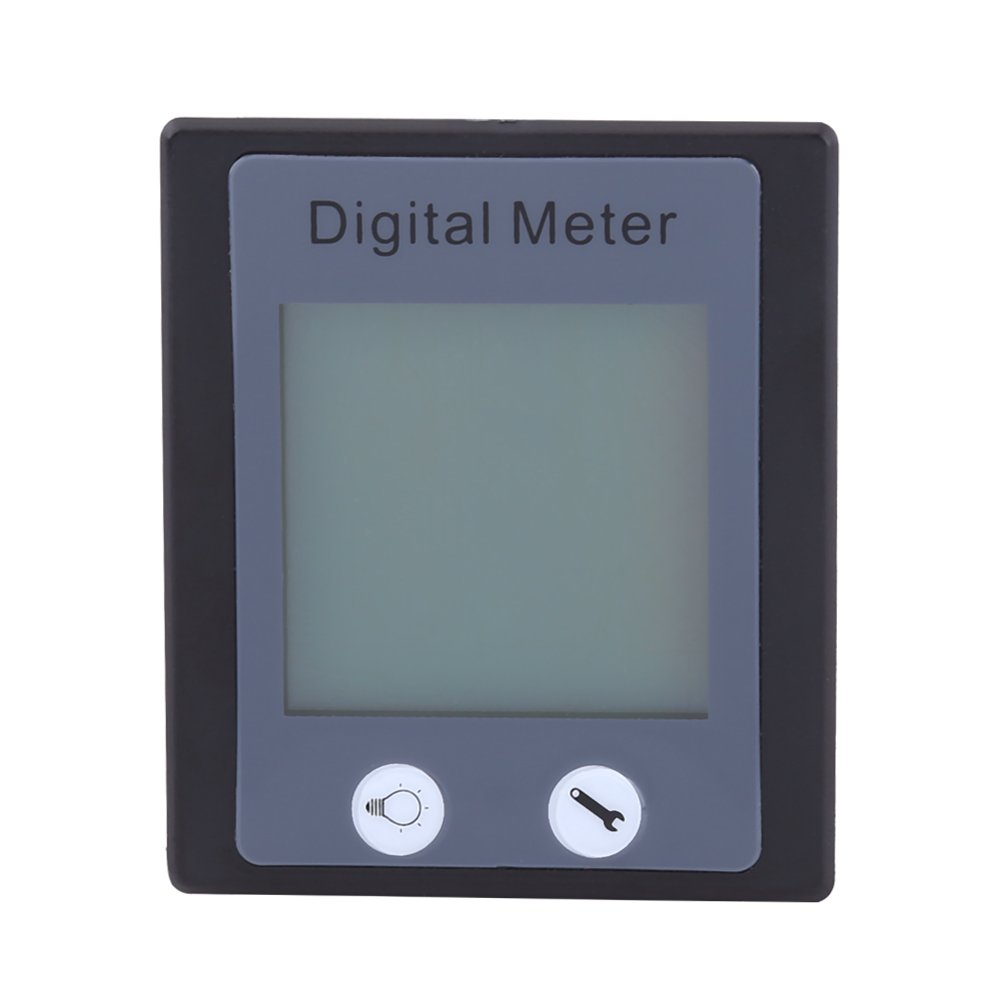

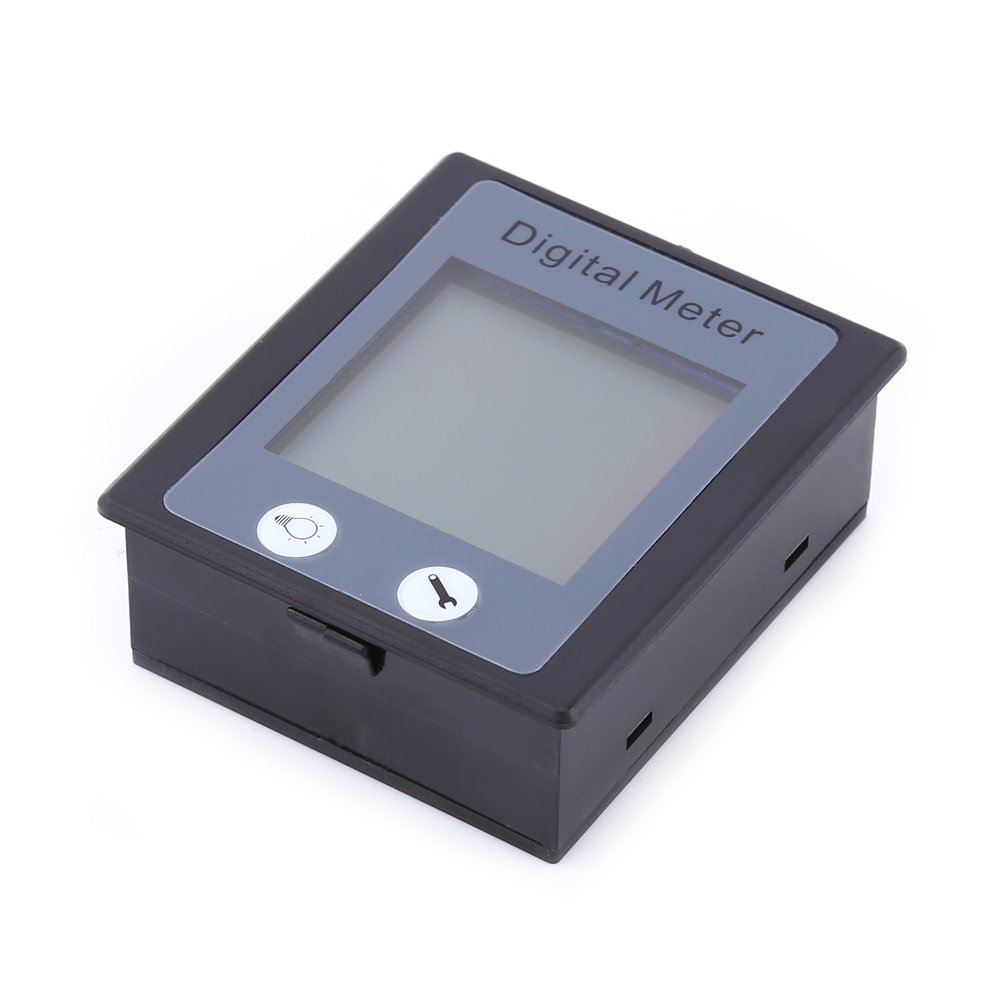

• BACK LIGHT LCD DISPLAY: This multimeter adopted a large LCD display with backlight function and the digits can be read clearly from various angles.

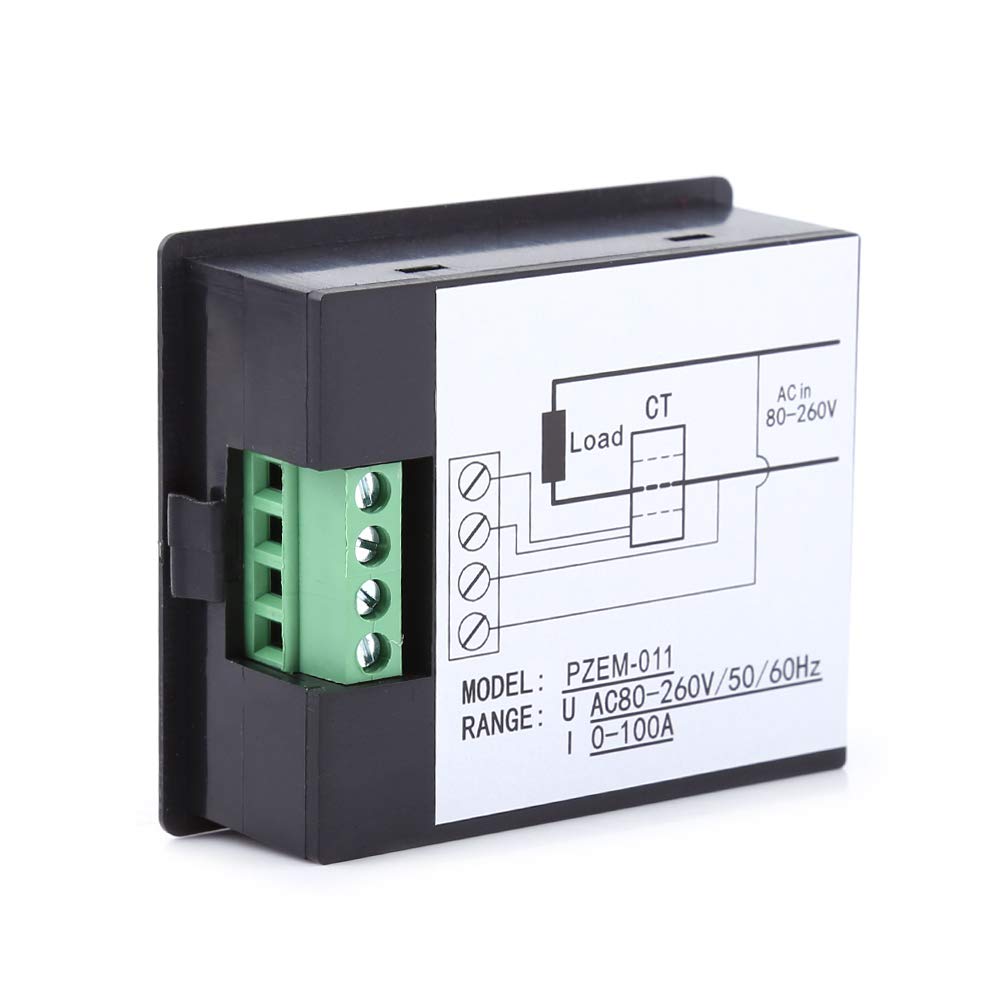

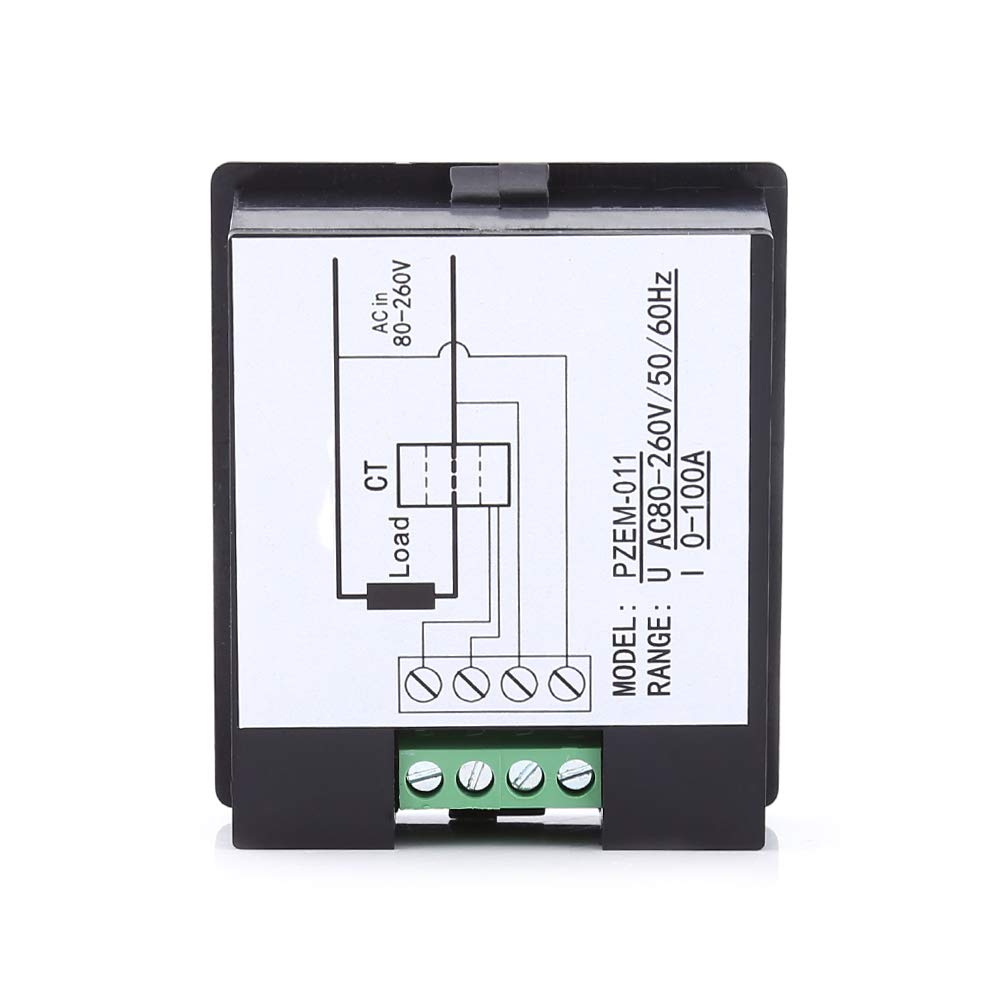

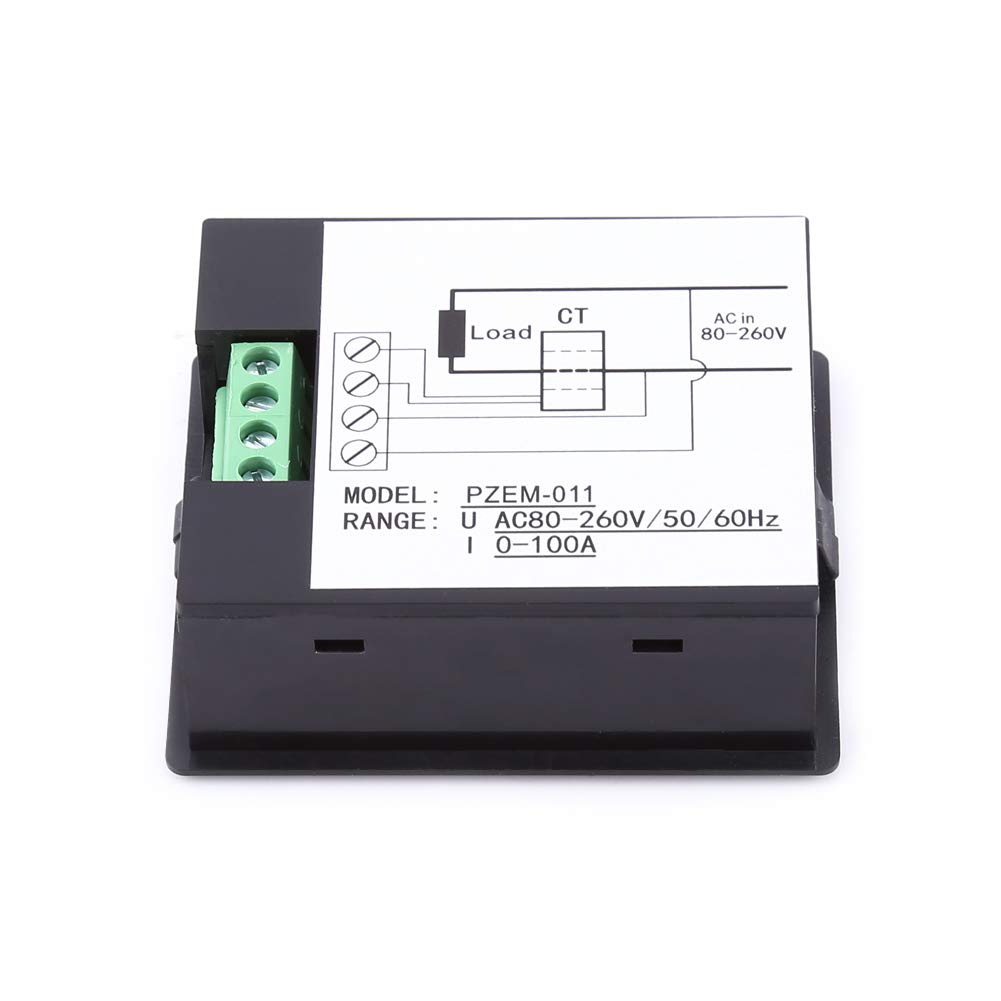

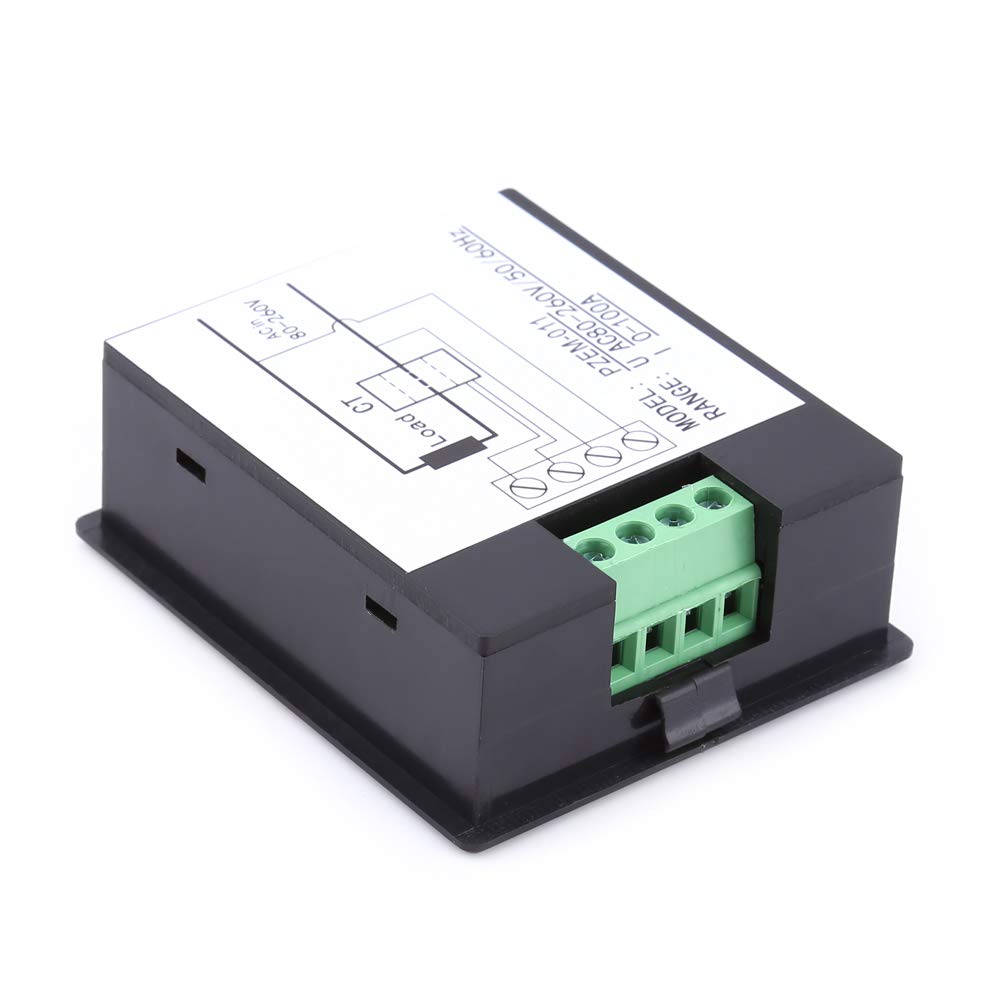

• WIRING DIAGRAM: The wiring diagram is on the back of this multimeter for convenient wiring.

Input Voltage: 80~260VAC Test Voltage: 80~260VAC Rated Power: 22kW Frequency: 45-65Hz Measuring Accuracy: ±1.0% Size: 67 x 57.5 x 24mm / 2.63 x 2.26 x 0.94" Power Test Range: 0~22kW Display Format: 0.0~999.9W when <1kW; 1000~9999W when ≥1kW and <10kW; 10.0~22.0kW when ≥10kW and ≤22kW. Energy Test Range: 0~9999kWh Display Format: 0~9999Wh when <10kWh; 10~9999kWh when ≥10kWh and ≤9999kWh. Automatically back to zero if over test range. Voltage Test Range & Display Format: 80~260V Current Test Range: 0~100A Display Format: 0.00~99.99A Instruction: 1. Backlight: Press "light" button to open or close. 2. Energy Reset: Step 1:Press and hold "set" button for more than 3 seconds until the energy display flashes; Step 2:If press "set" button again, reset energy data and exit the reset state; If press "light" button, exit the reset state without resetting energy data; If no button is pressed for 10 seconds, exit the reset state without resetting energy data. 3. Power Alarm Value Reset: Step 1:Press and hold "light" button for more than 3 seconds until the power display flashes; Step 2:When the last digit of power display alarm value flashes, press "set" button to +1, press "light" button to switch to other digit. Alarm value cannot be more than 2.5kW Step 3:Press and hold "light" button for more than 3 seconds or not press any button for more than 10 seconds to save value and exit. 4. Power/Energy Display Switch: Press "set" button to switch display of power or cumulative energy data Note: This indoor meter cannot be used in autotransformer, silicon controlled rectifier circuit or load. Package Includes: 1 x Multimeter 1 x Current Transformer
