8-Pin Time Relay H3CR-A8 Delay Timer Relay for H3CR-A8 H3CR-A8 Delay Timer Relay 1.2S-300H Knob Control Time Relay, for Automated Control Circuit

• 【HIGH-QUALITY PLASTIC SHELL】Time delay relay is made of high-quality plastic shell, which is waterproof and dustproof.

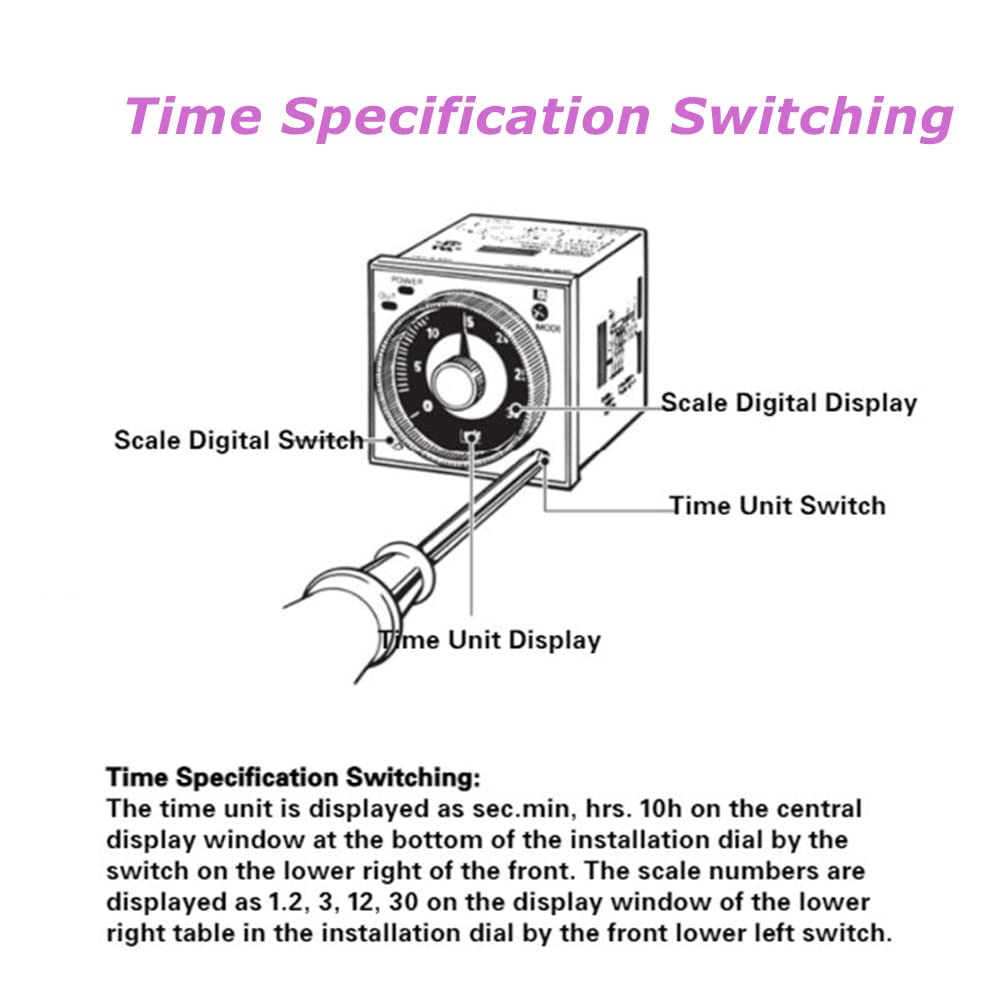

• 1.2 seconds to 300 hours tima【ADJUSTABLE TIME RANGE】Adjustable time range:1.2 seconds to 300 hours timing range.ing range.
• 【HIGH PRECISION】This solid-state timer features high precision, large contact capacity, stable and performance.
• 【H3CR-A8】The delay timer relay has stable performance, long service life.Model: H3CR-A8.
• 【WIDELY APPLICABLE】Adjustable delay timer widely applied to automated control circuit such as remote control, communication, automatic control, mechatronics and so on.

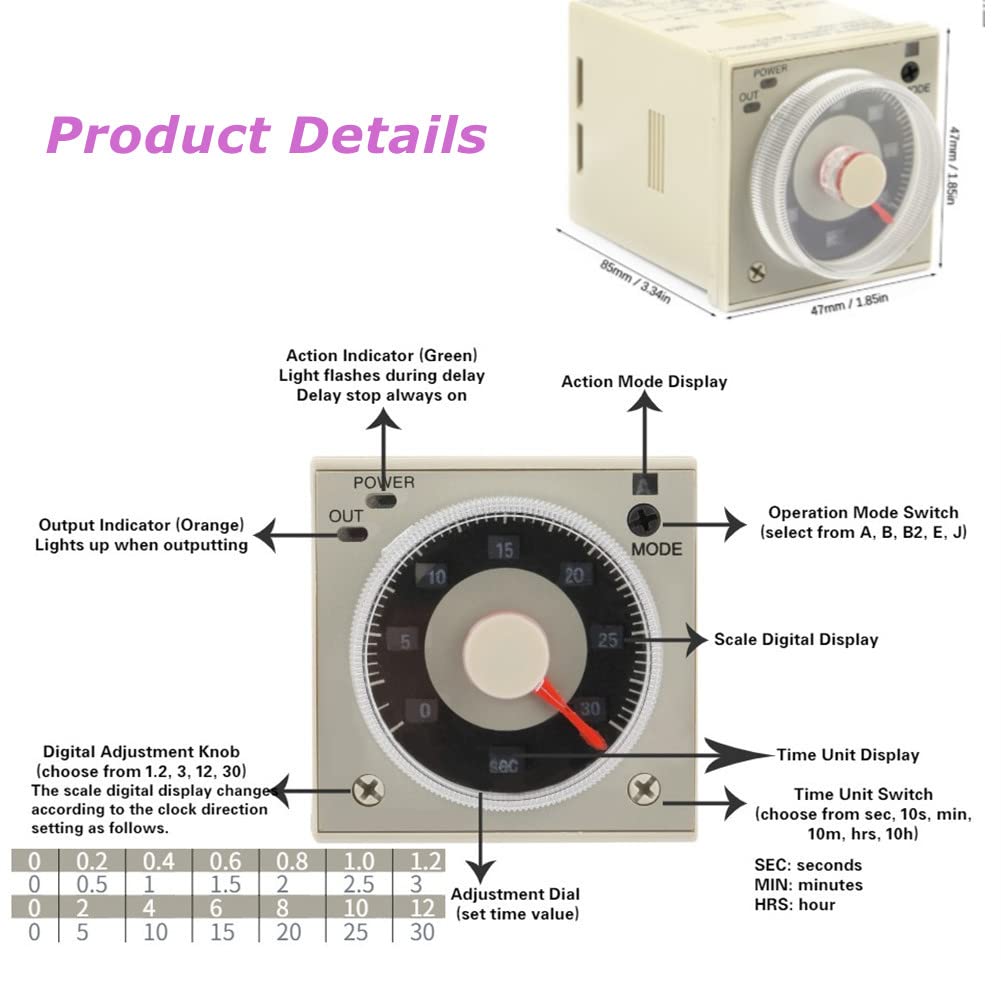

Features: 1. High quality plastic case, waterproof and dustproof. 2. 1.2 seconds to 300 hours timing range. 3. High accuracy, large contact capacity. 4. Stable performance, long service life. 5. Widely applied to automated control circuit such as remote control, communication, automatic control, mechatronics and so on. Specification: Model: H3CR-A8 Rated current: 5A Output: 2NC (double delay) Time range: 1.2 seconds to 300 hours (adjustable) Contact load: Medium power Contact switching current: 5A Contact switching voltage: 220V Contact form: Two open and two closed Coil power supply: 220v Coil power: 3W Pull-in current: 5A Release current: 1A Size: 47 x 47 x 85mm / 1.85 x 1.85 x 3.34in Package weight: Approx. 114g/4.0oz Package list: 1 x Delay Timer Relay
