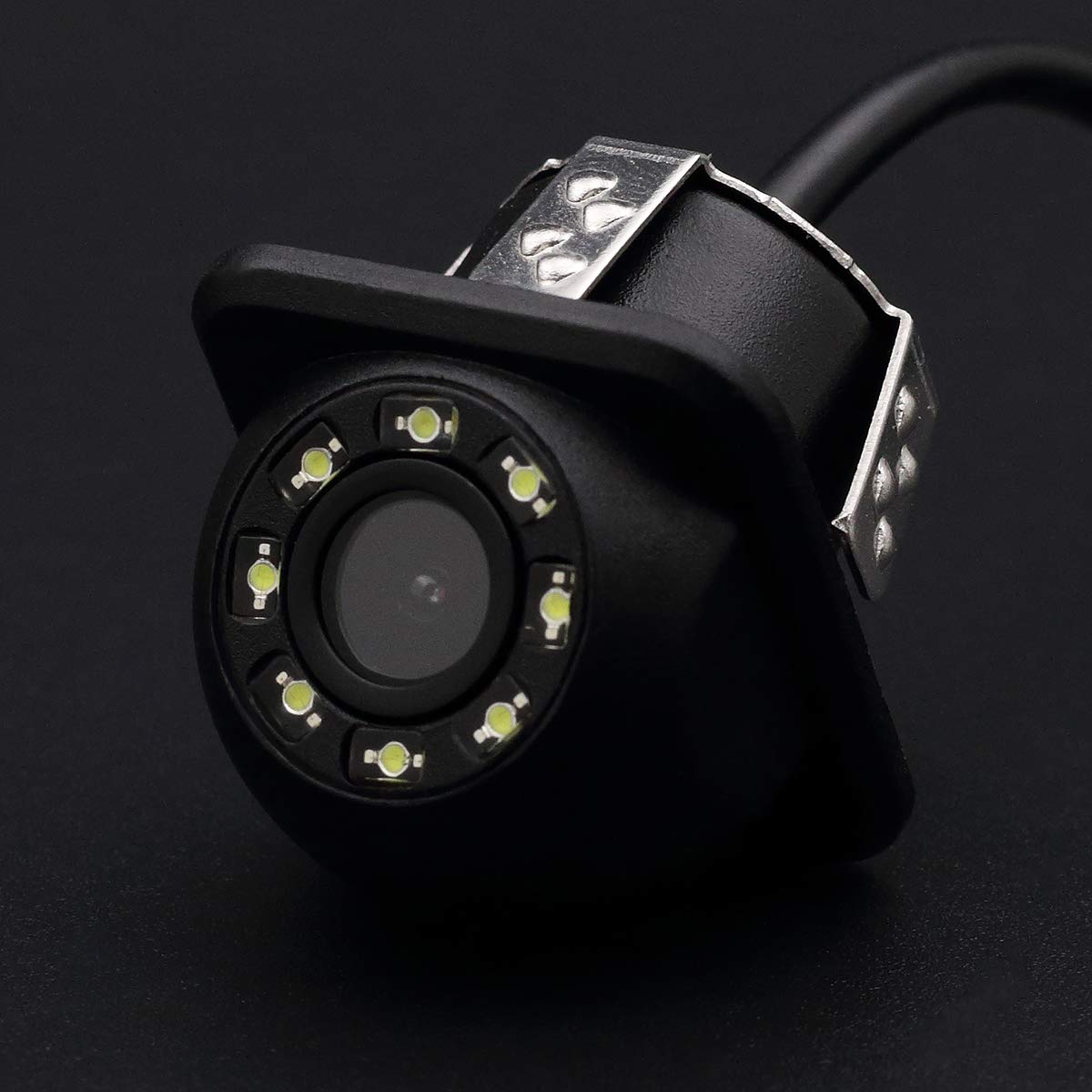

8 LED CCD 170 Degree HD Universal Front View Camera Night View Large Camera Forward Back Rear View Camera Car Reverse Backup for Camera Monitor Parking Waterproof

• CCD hanging night vision universal reversing camera,Easy to install, the camera can be easily mounted anywhere on the body and can be used as a front/side/back view camera.

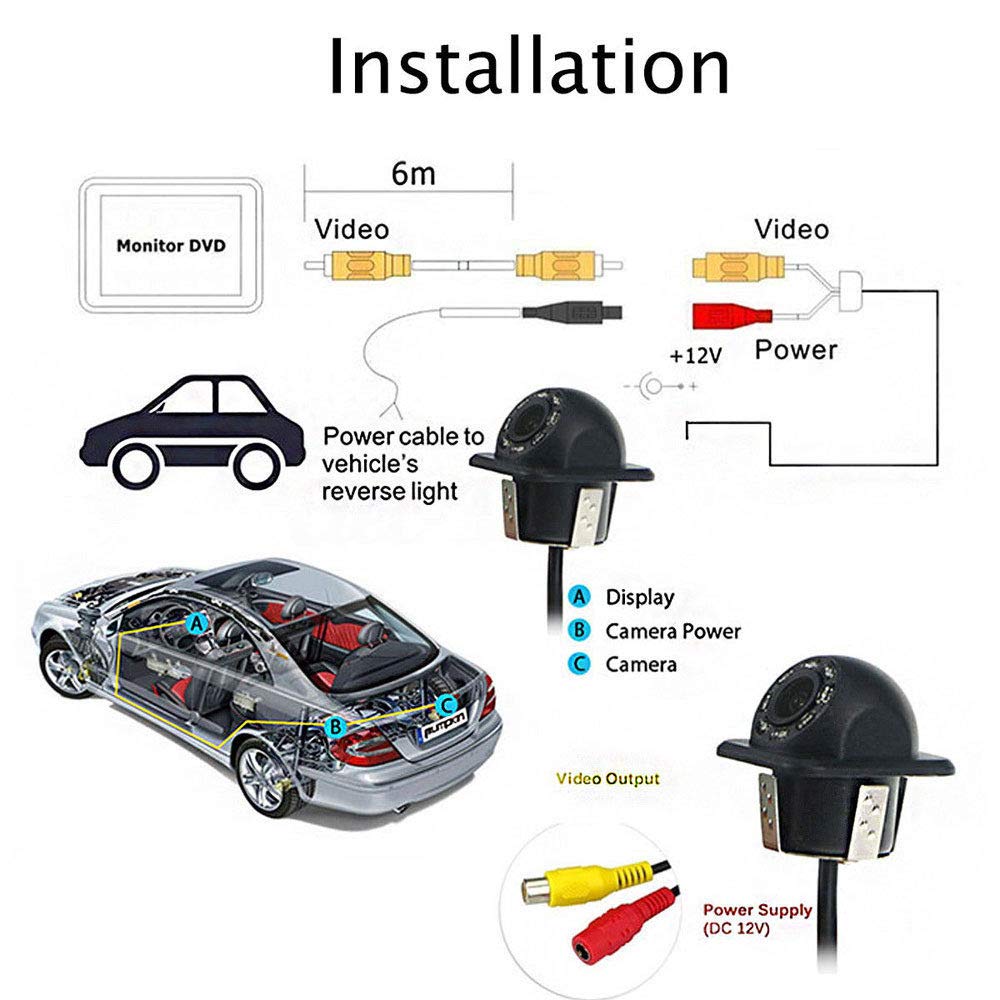

• Connect the video cable of the camera to the extension cord.Connect the extension cord to your car monitor.
• Use the hole driller to mount the camera at the back of the car.

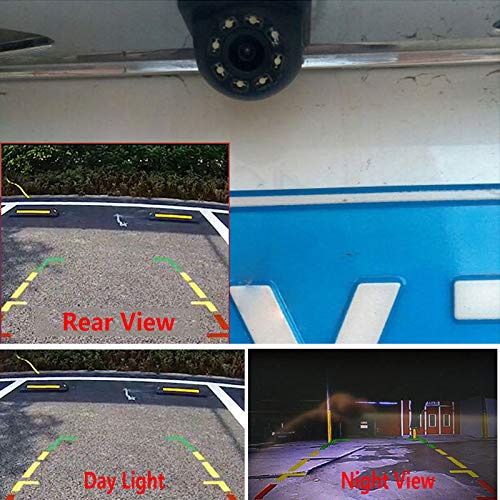

• 170 Degree wide viewing angle, can help avoid incidents and accidents abrasion well.
• Connect the power of the camera to your reverse lights - red wire to positive and black wire to negative.

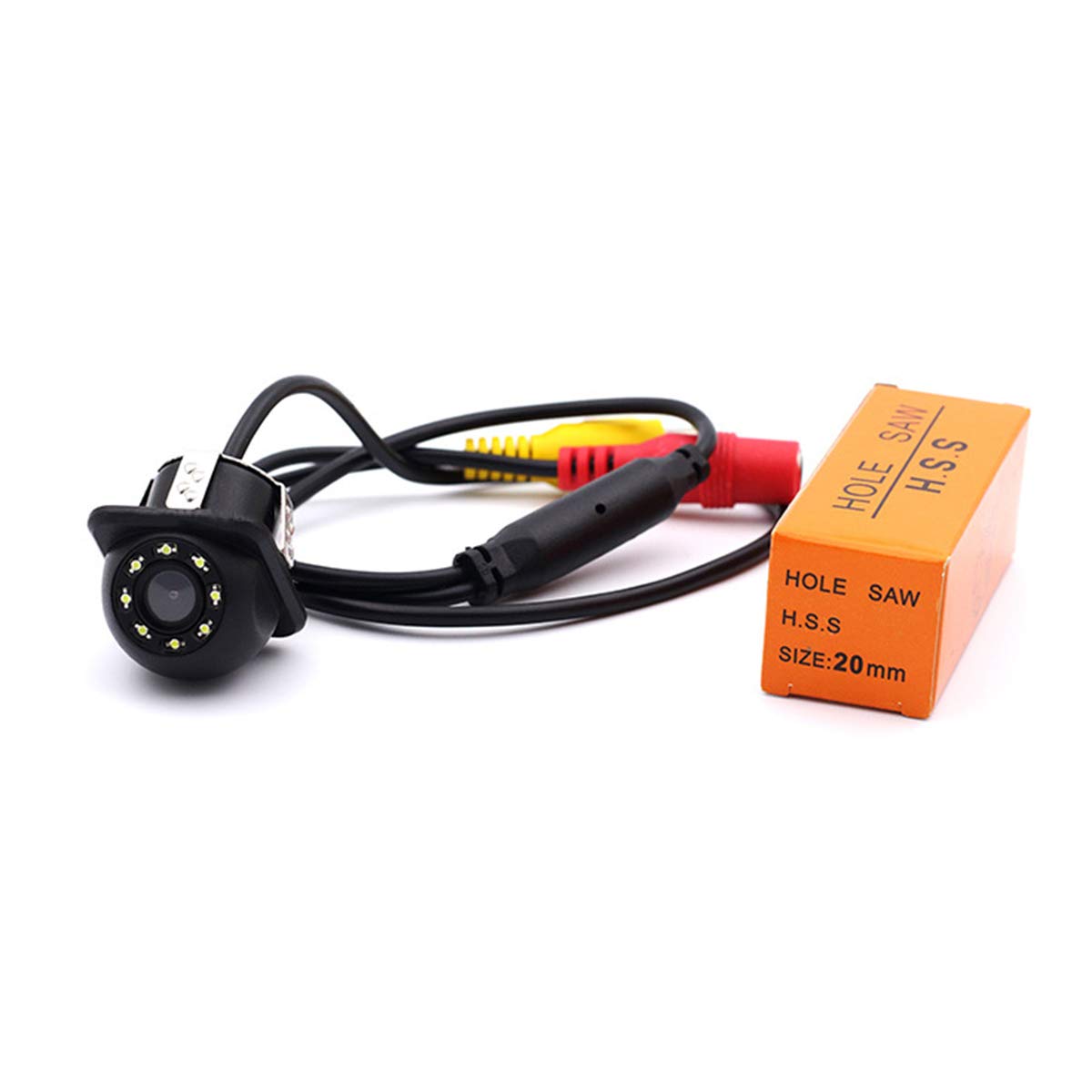

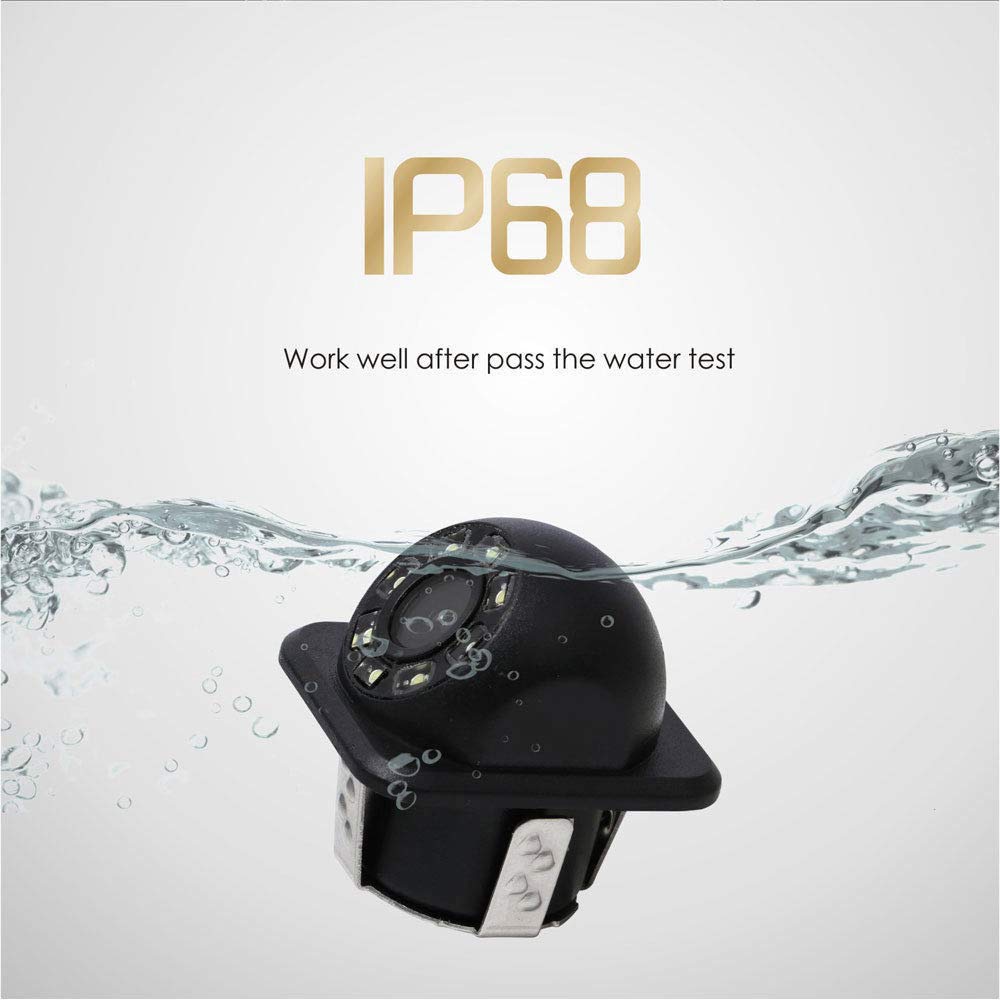

Product Specifications: Image sensor: CCD Photosensitive Type: CMOS Applicable Power: DC 12V Effective Resolution: 648(H)*493(V) Dynamic Range: 60dB Output Format: NTSC Video Interface Type: AV RCA View Angles: 170° LED Fill Light: 8 LED lights The Lens Type: Glass lens module Power consumption: 120mA Operating temperature: -20C to +75C, RH 95% MAX Storage temperature: -40C to +80C, RH 95%MAX Waterproof rating: IP67 Packing List: 1x Camera 1x DC Power Cable 1x 6m ExtendedCable 1x 20mm Hole Saw
