8-5V 24V 8-Channel Logic Level Converter Translator,Npn/Pnp To Npn Squarewave Converters Module Level Translator 10MHZ

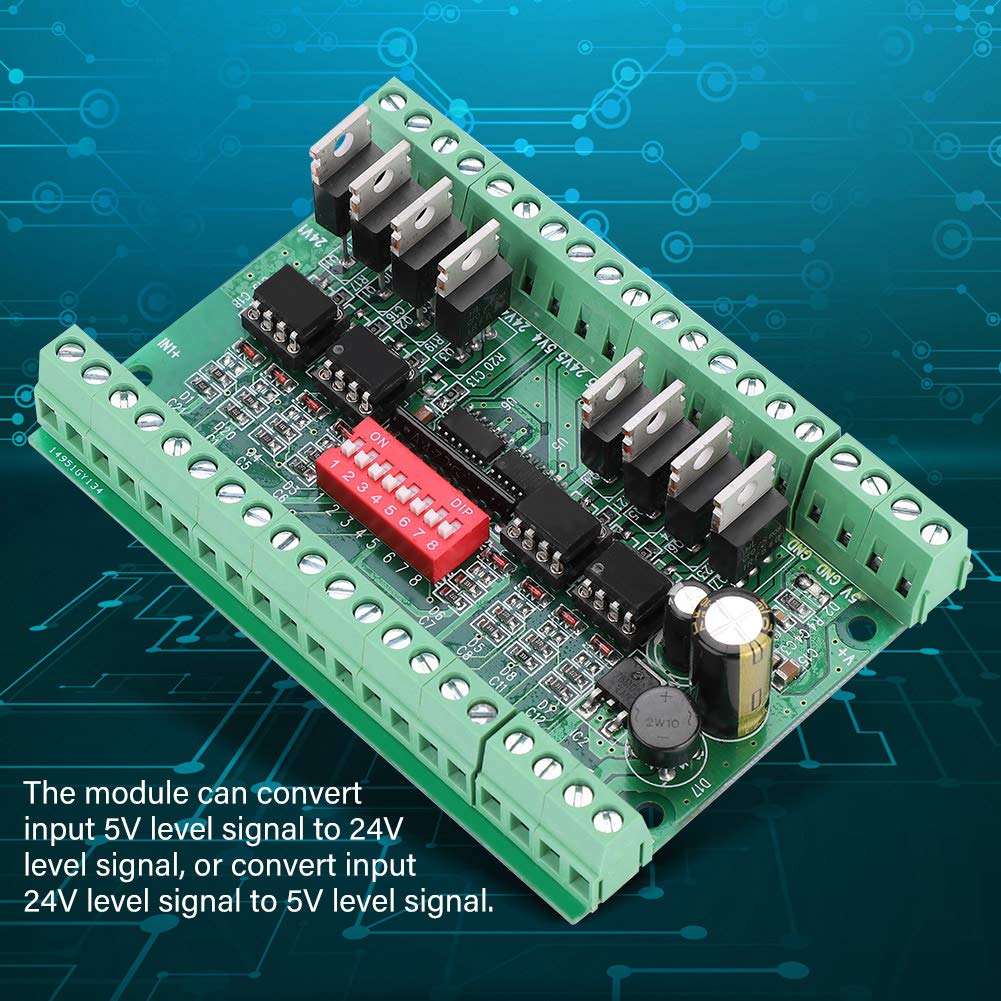

• The module can convert input 5V level to 24V level signal, or convert input 24V level to 5V level signal
• It can also convert 5V to 5V, or 24V to 24V level, and isolate input and output through optocoupler, which can improves anti-interference ability of circuit
• Input level can be set by DIP switch, 24V level output is NPN OC output, output current is 100mA
• It has conversion and amplification circuit, good wave, strong driving ability

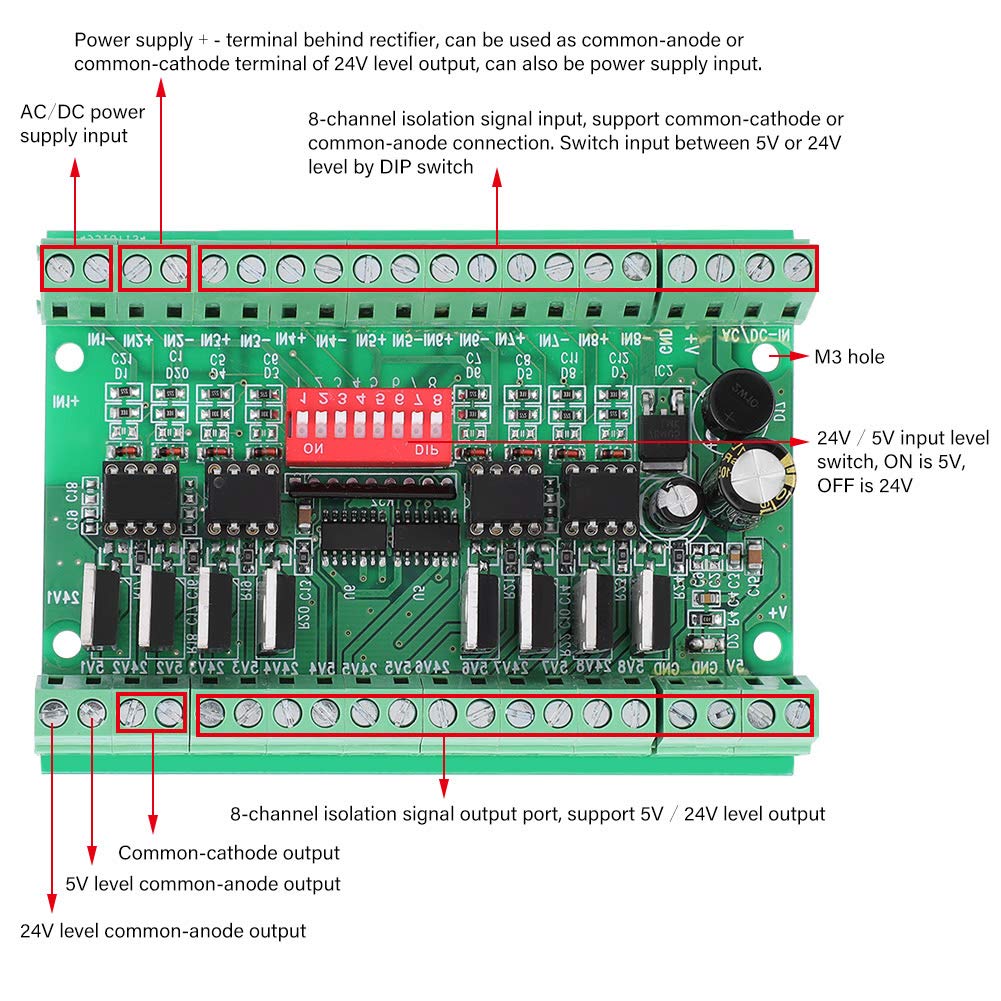

• Compatible with a common-cathode or common-anode input connection, matching European and Japanese PLC interface standards

Features: The module can convert input 5V level to 24V level signal, or convert input 24V level to 5V level signal. It can also convert 5V to 5V, or 24V to 24V level, and isolate input and output through optocoupler, which can improves anti-interference ability of circuit. Input level can be set by DIP switch, 24V level output is NPN OC output, output current is 100mA. It has conversion and amplification circuit, good wave, strong driving ability. Compatible with a common-cathode or common-anode input connection, matching European and Japanese PLC interface standards. Compatible with AC/DC input power supply interface, designed with power indicator light. When output is selected as 24V level, it is NPN OC output, with maximum 1A load capacity. 24Voutput is OC output (NPN collector open circuit output), if you want to test output, it must add resistor, normally use a 10KR resistor. When converting to 24V level, the power supply of input should be 24V. When converting to 5V level, the power supply of input can be in between 7V-35V. You can use 4pcs M3 standoffs(not included) to install it. Specification: Model: 8-5V24V Channel: 8-channel Input: NPN or PNP, 5V or 24V level squarewave signal Output: NPN 5V or 24V squarewave signal Size: Approx. 10.3*7.3*3cm/4.1*2.9*1.2inch Weight: Approx. 100g / 3.5oz Package List: 1 x Level Converter
