7mm Cotter Pins R Clips (Pack of 3) Large Double Winded Spring Clip Pin for Holding the Bolts, Clevis in Place - Zinc Plated Heavy Duty Certified Standart DIN 11024

• R-clips are used for securing bolts and axles. They are easy to install and can be reused. The ends have no sharp edges.

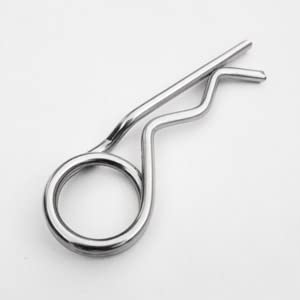

• Easy use R-clips or R-pins - They’re sprung pins with a straight section that bends to form a ring at the head, with a curved section offset from the straight pin. The straight section may be pushed through a hole in a shaft, while the curved section clips around the outside of the shaft, retaining the pin in place. A finger can be inserted through the ring at the head to pull the pin out of the hole.

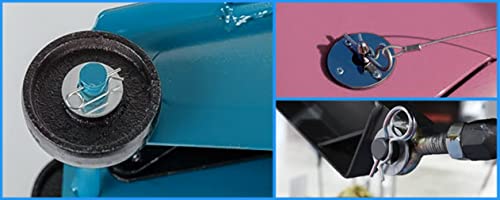

• Universal use - For trucks, towing and haulage, motor homes, utes, trailers, tray backs, camper trailers and service vehicles. Also used for mining, vehicle body manufacture, transport, marine, government and defence vehicles.
• High quality zinc plated – Spring cotters of a bolt are made of high quality Zinc Plated metal, anti-rust, anti-corrosion and water resistant. Durable and strong R-pins, perfect for indoor and outdoor use. Smooth and not easy to deform or damage.

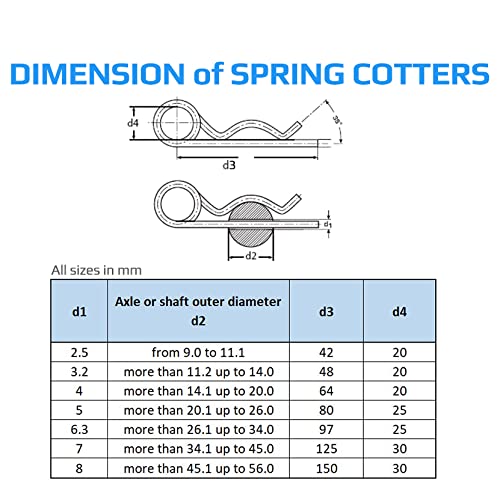

• Specifications - DIN11024 Type -D, Equivalent norms: UNI 8833. Material - Zinc plated steel, R Clip is double coil, has a wire thickness of 7 mm, suits min from 34.1mm to max 45mm shaft. Pack of 3pcs.

Metric DIN 11024 Spring Cotter Pins also known as "R" Clips. They are generally used to secure bolts to axles or any pin that uses a hole for attachment. The double coil allows an attachment cable to be installed to avoid losing the pins. Installation is very easy and can also be removed easily for reusability, Keple offers one of the most complete ranges of metric pins and other metric industrial fasteners. Spring Cotter Pins/ R Clips are available for sizes: Diameters ranging from M2.5 to M8 The presence of a ring on category D products extends the service life of the part by increasing the number of installations and removals without loss of spring properties. Fixation with such hardware is more durable and reliable. Current norm: DIN 11024 Equivalent norms: UNI 8833 B Dimensions: Axle or shaft outer diameter more than 34.1mm up to 45.0mm Diameter wire: 7mm Package contains: 3pieces
