75mm Actis Hybris Multi Foil Insulation LABC Approved, loft roof Wall Floor Ceiling (2)

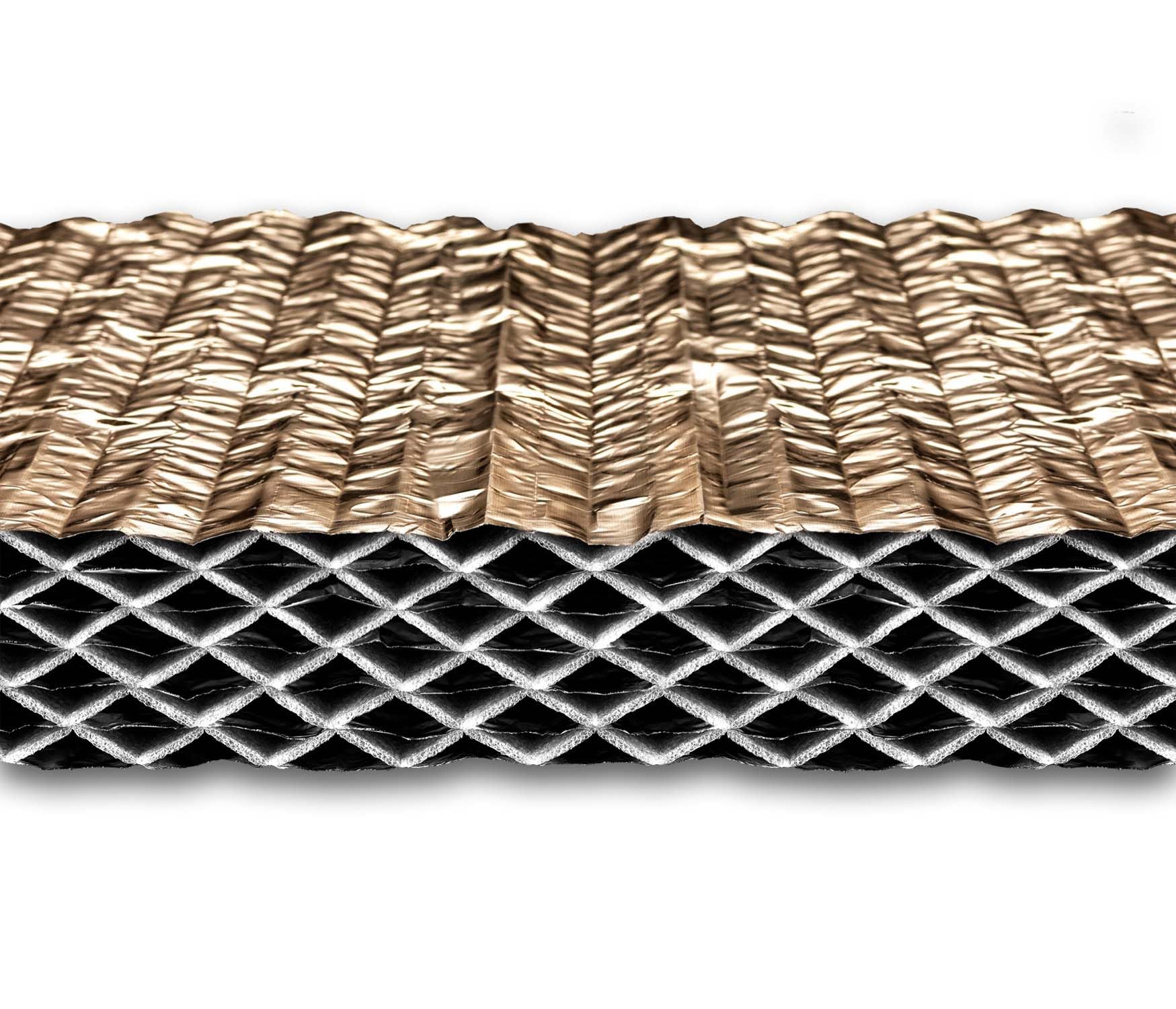

• HYBRIS is a new hybrid reflective insulation material for timber frame or masonry walls, pitched roofs or ceiling applications.

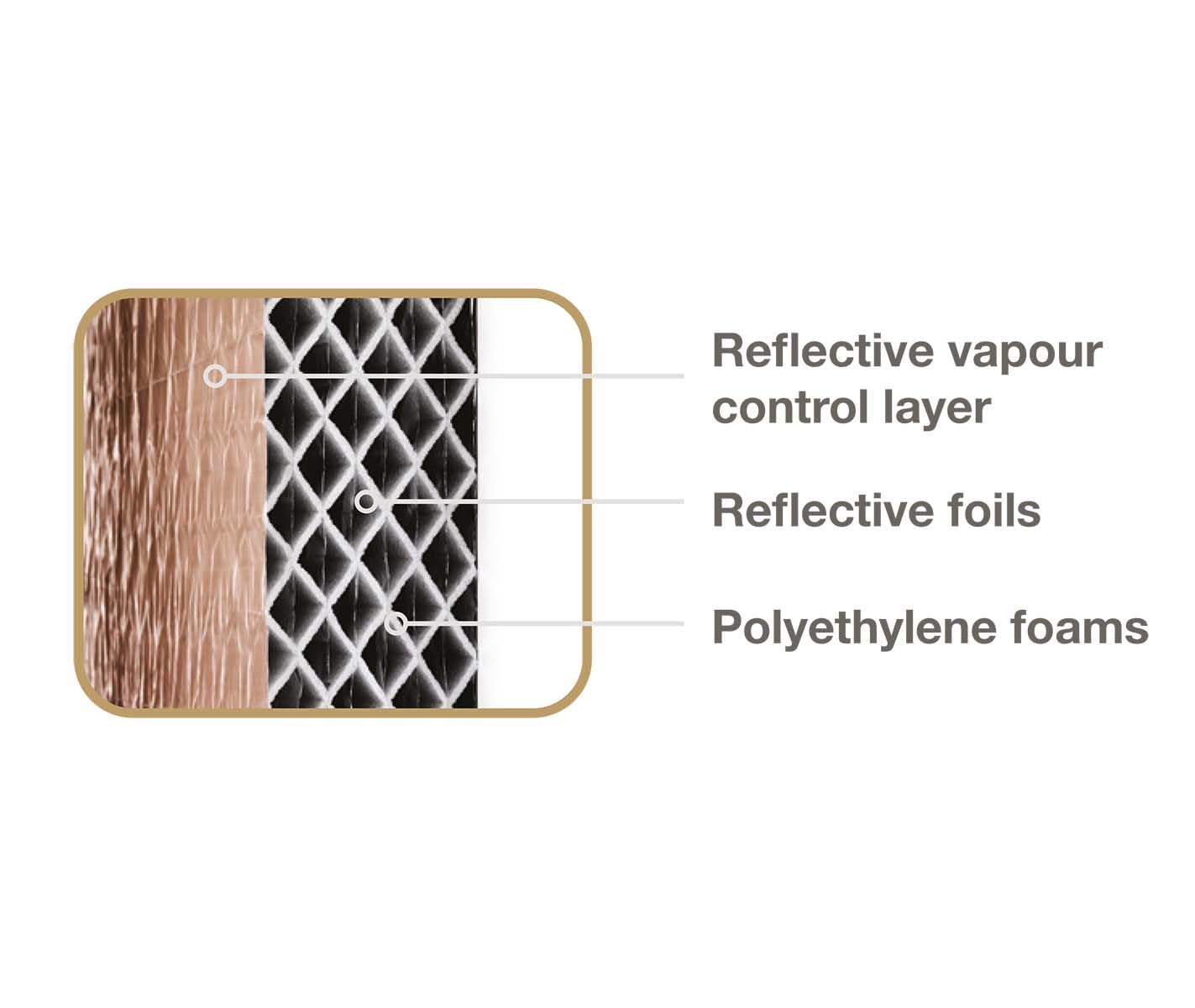

Actis Hybris Insulation Top Advantages From the European leading multi foil insulation manufacturer. Up to 40% cheaper than PIR board for equivalent thickness. Can be 10x faster to install than cutting PIR boards, see YouTube install videos Can double up as vapour and air tightness barrier, (air leakage accounts for 20-40% of heat loss) Clean to install, no dust or fibres Up to 105% thinner than mineral wool for equivalent insulation Easier to transport Only 7.2Kg per m3 compared to PIR foam at 35kg/m3, meaning Hybris uses an incredible 450% less material and less end-of-life recycling. Hybris Applications HYBRIS is an innovative insulation material for timber frame or masonry wall, pitched roof, ceiling and suspended timber floor applications. HYBRIS in wall/roof applications is generally used as the main insulation layer and often situated between the Boost-R Hybrid insulating breather membrane on the outside/cold side and the H-Control insulating vapour barrier used on the inside/ warm side of the construction. HYBRIS is available in panels of 1145mm x 1200mm and in a range of thicknesses from 50mm to 185mm. AN INNOVATIVE TECHNOLOGY HYBRIS is a reflective insulation product based on a honeycomb structure made of shaped polyethylene foams glued to aluminium coated polyethylene foils. High thermal performance is provided by a special structure composed of a large number of low emissivity cavities, protected from dust and excessive air movement. Moreover, the low emissivity external films provide additional thermal resistance, when associated with air cavities. Hyrbis CRADLE TO CRADLE CERTIFICATION Hybris is the only reflective insulation in Europe to achieve Bronze Cradle to Cradle certification for its sustainability credentials. Cradle to Cradle certified is the global standard for products that are safe and responsibly made, having a positive impact on people and the planet. Thermal performance chart, see images Technical Specification Thickness - 50 mm/li> Weight - 7.2Kg/M3 Each bale - 1145mm wide x 1200mm long. Thermal conductivity - 0.033 W/mK Thermal Resistance - 1.50 M2K/w (50mm) to 5.65m2K/w (185mm) Declared Emissivity - 0.06 / 0.10 (inner/ outer) Vapour Resistance - 450 MNs/g Watertightness - Watertight, W1, EN 12572 Set C Reaction to Fire - Class F Coverage 70mm = 4 bales = covers 5.49m2
