IBest 7.5inch E-paper Display HAT Module 640x384 Resolution 3.3V/5V Two-Color E-ink Display epaper Screen for Raspberry Pi/Jetson Nano/Arduino/STM32 Support Full Refresh, SPI Interface

• Compatible with Raspberry Pi 2B/3B/3B+/Zero/Zero W
• Ultra low power consumption, basically power is only required for refreshing
• SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
• Onboard voltage translator, compatible with 3.3V/5V MCUs,Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
• No backlight, keeps displaying last content for a long time even when power down

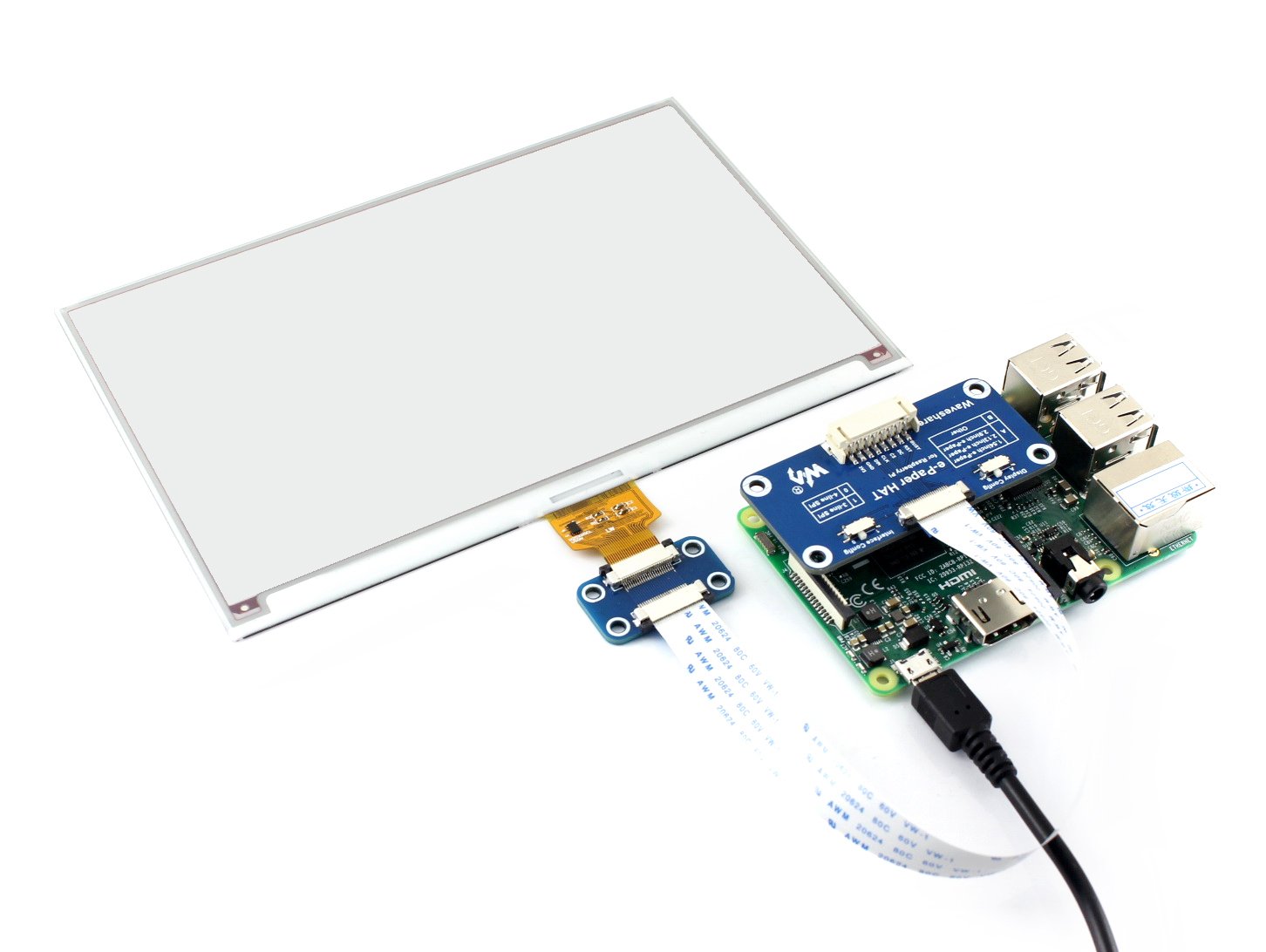

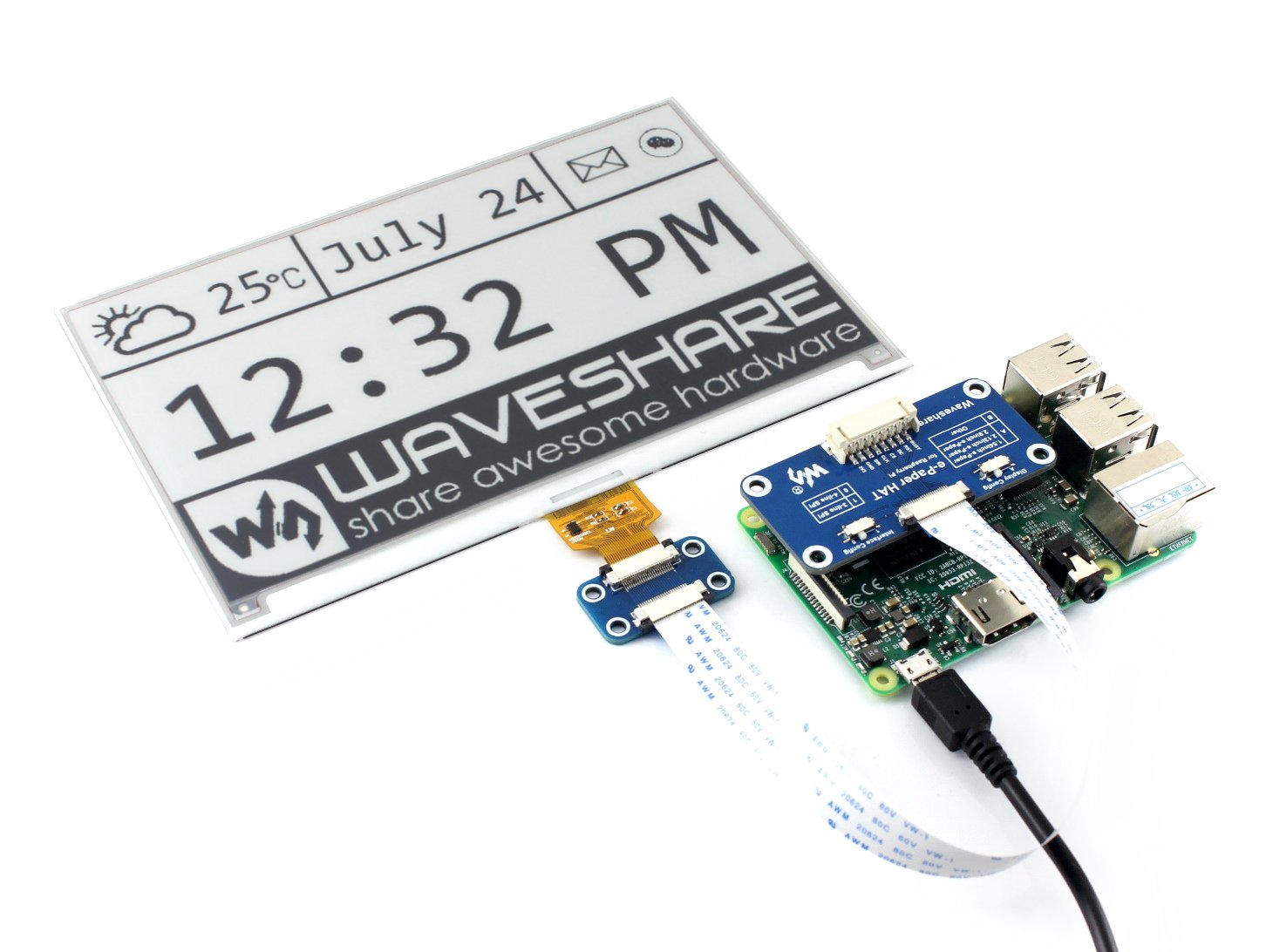

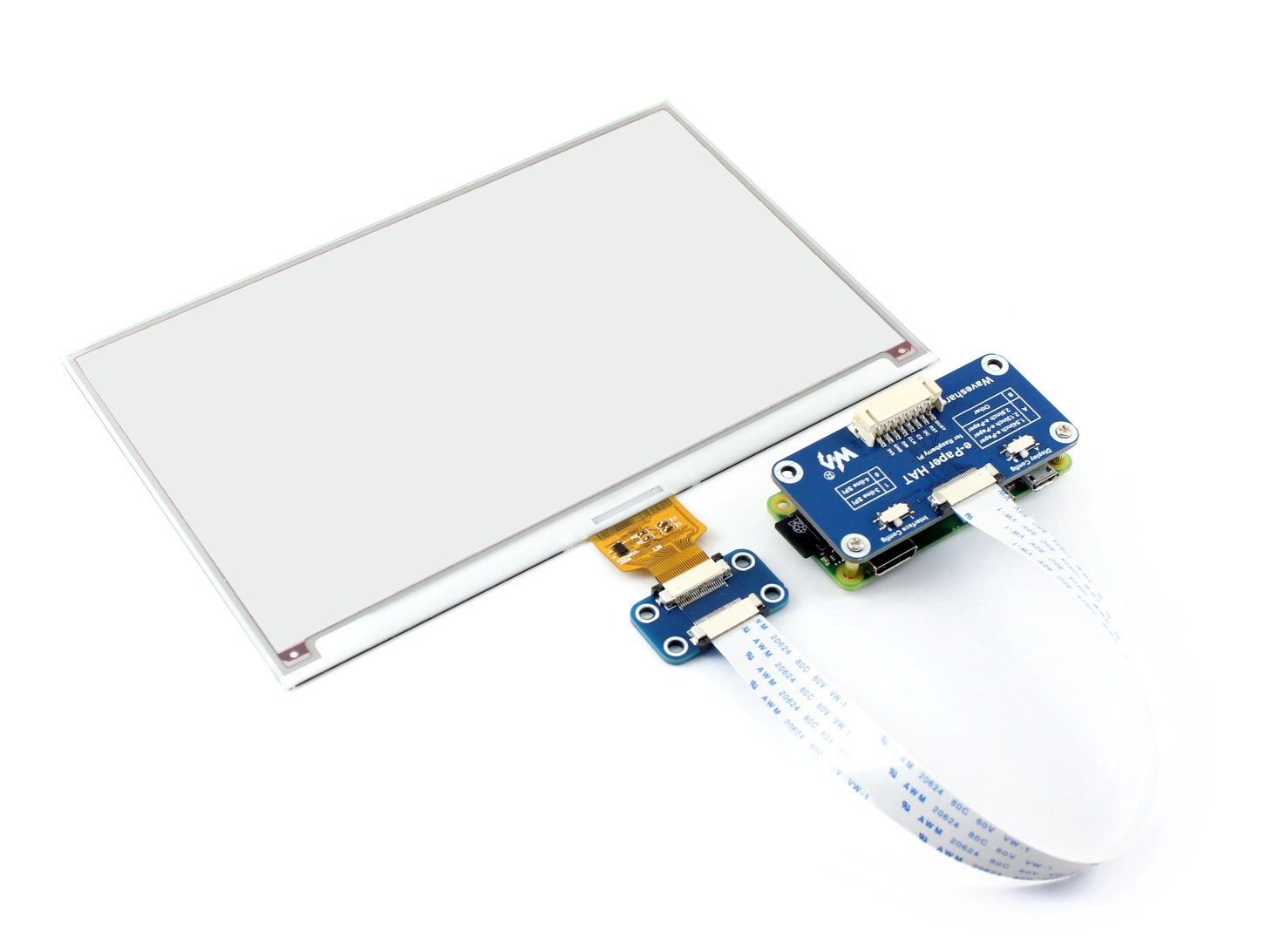

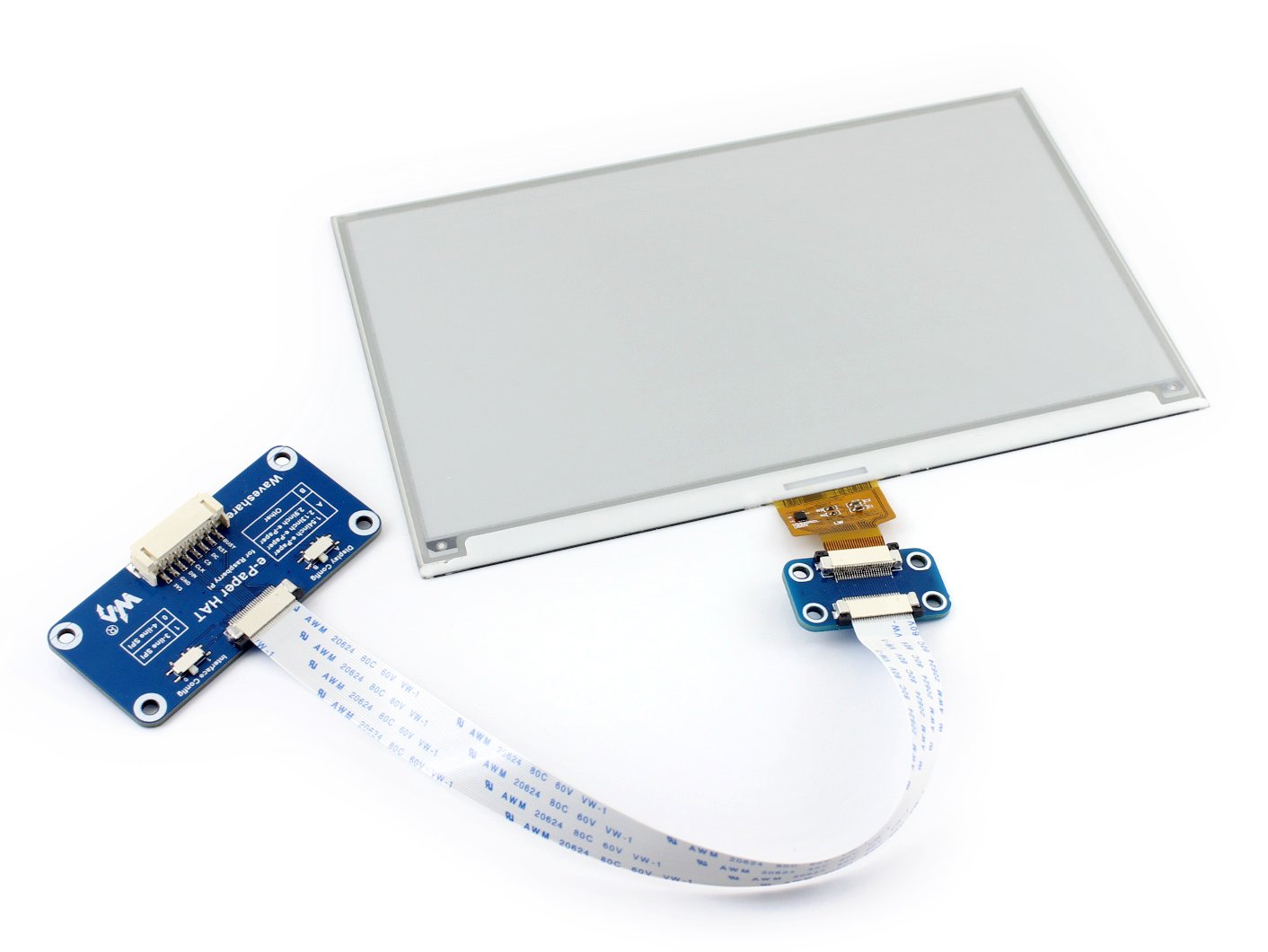

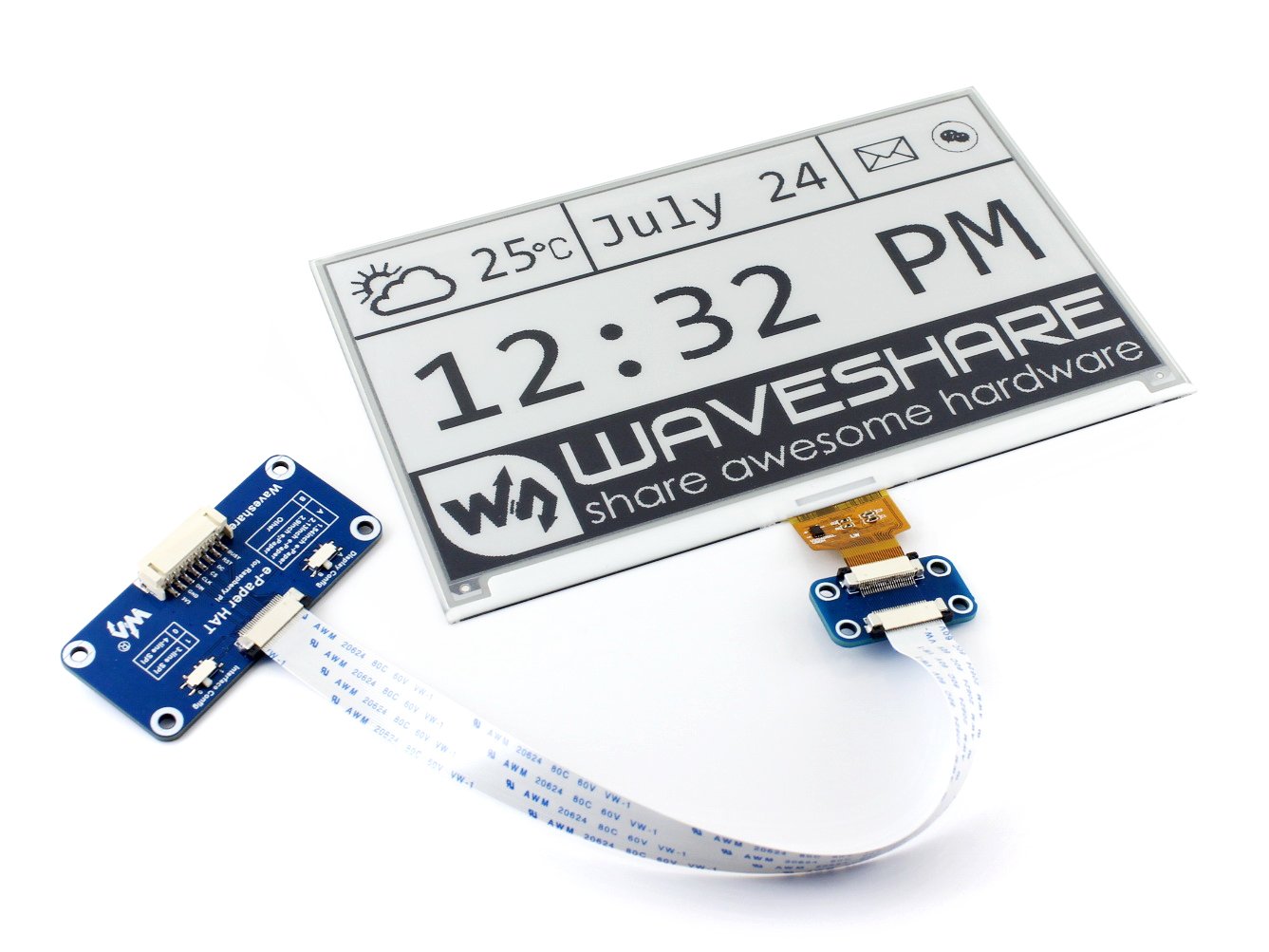

Overview This is an E-Ink display HAT for Raspberry Pi, 7.5inch, 640x384 resolution, with embedded controller, communicating via SPI interface. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on. Features No backlight, keeps displaying last content for a long time even when power down Ultra low power consumption, basically power is only required for refreshing Compatible with Raspberry Pi 2B/3B/3B+/Zero/Zero W SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc. Onboard voltage translator, compatible with 3.3V/5V MCUs Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32) Specifications Operating voltage: 3.3V~5V Interface: SPI Outline dimension: 170.2mm × 111.2mm Display size: 163.2mm × 97.92mm Dot pitch: 0.255 × 0.255 Resolution: 640 × 384 Display color: black, white Grey level: 2 Full refresh time: 6s Refresh power: 38mW(typ.) Standby power: ＜0.017mW Viewing angle:＞170° Package Content 7.5inch e-Paper x1 e-Paper Driver HAT x1 RPi screws pack (2pcs) x1 PH2.0 20cm 8Pin x1 Noted: 1.More resources if you need , please contact us via Amazon message firstly to get .
