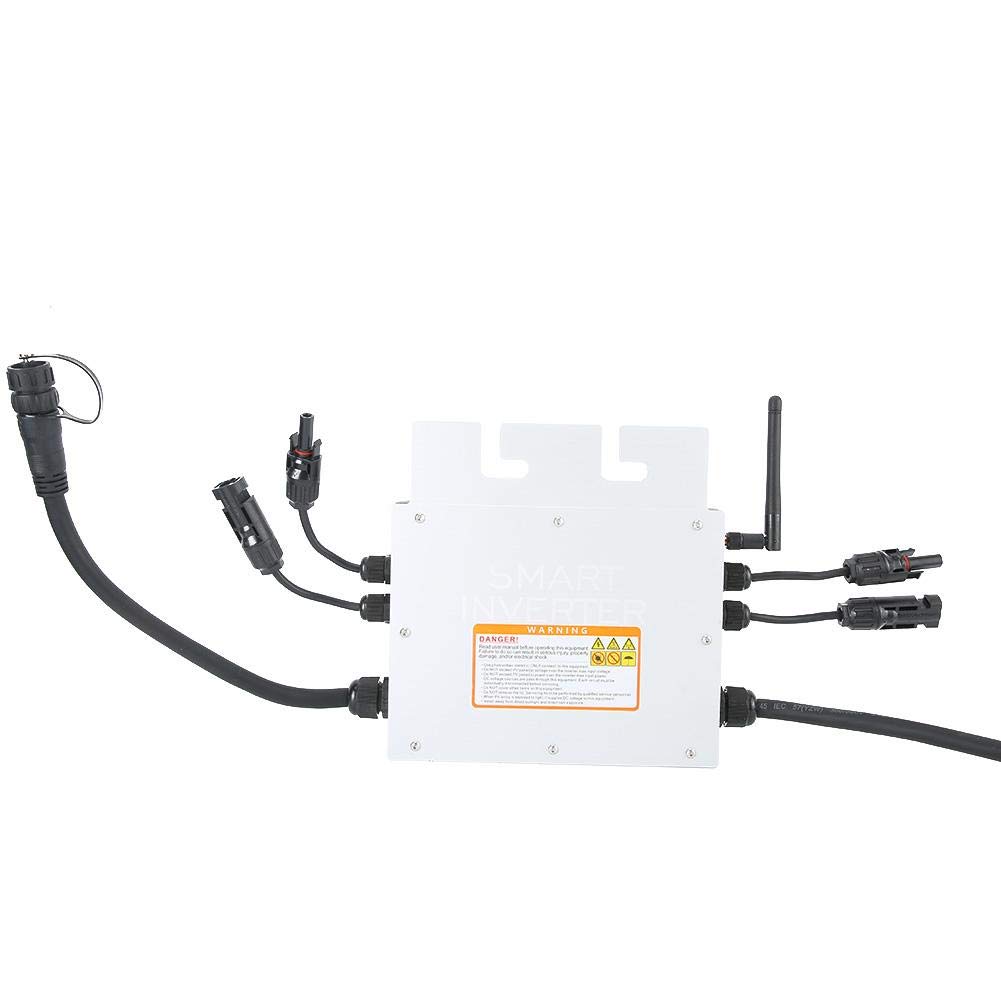

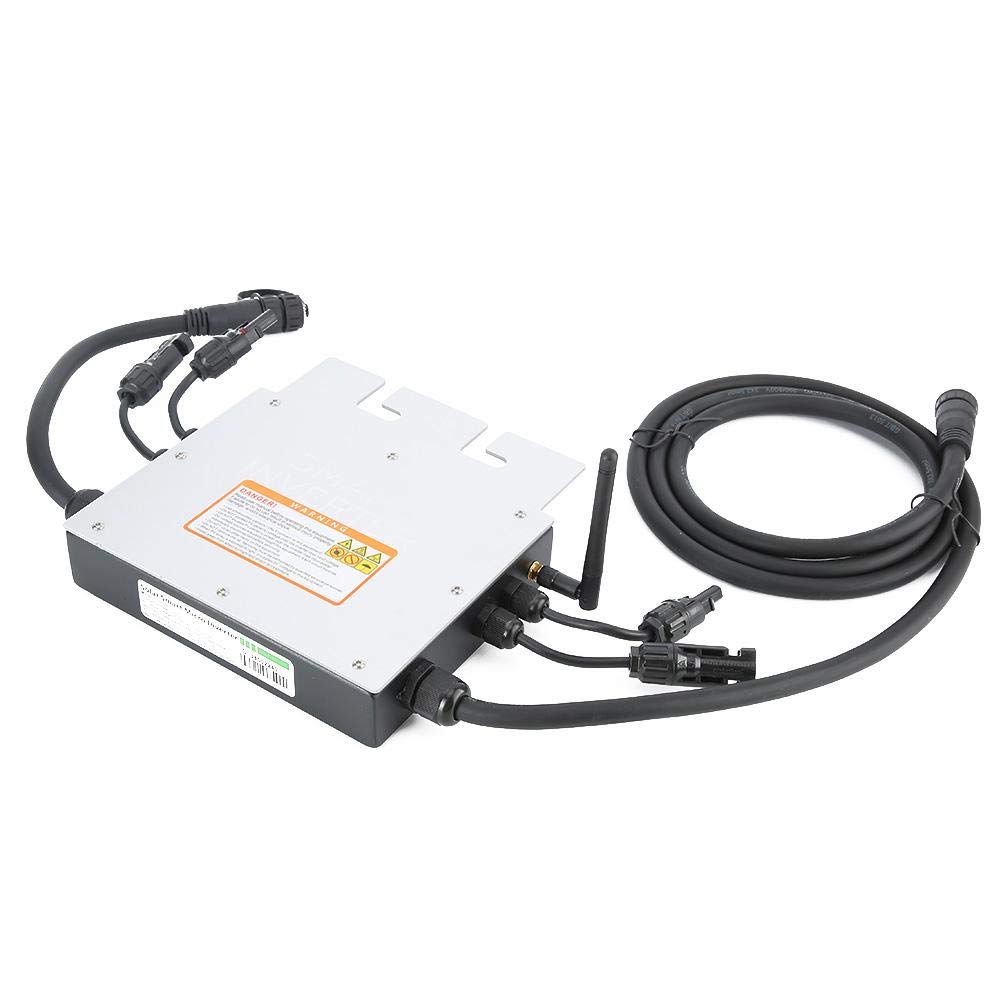

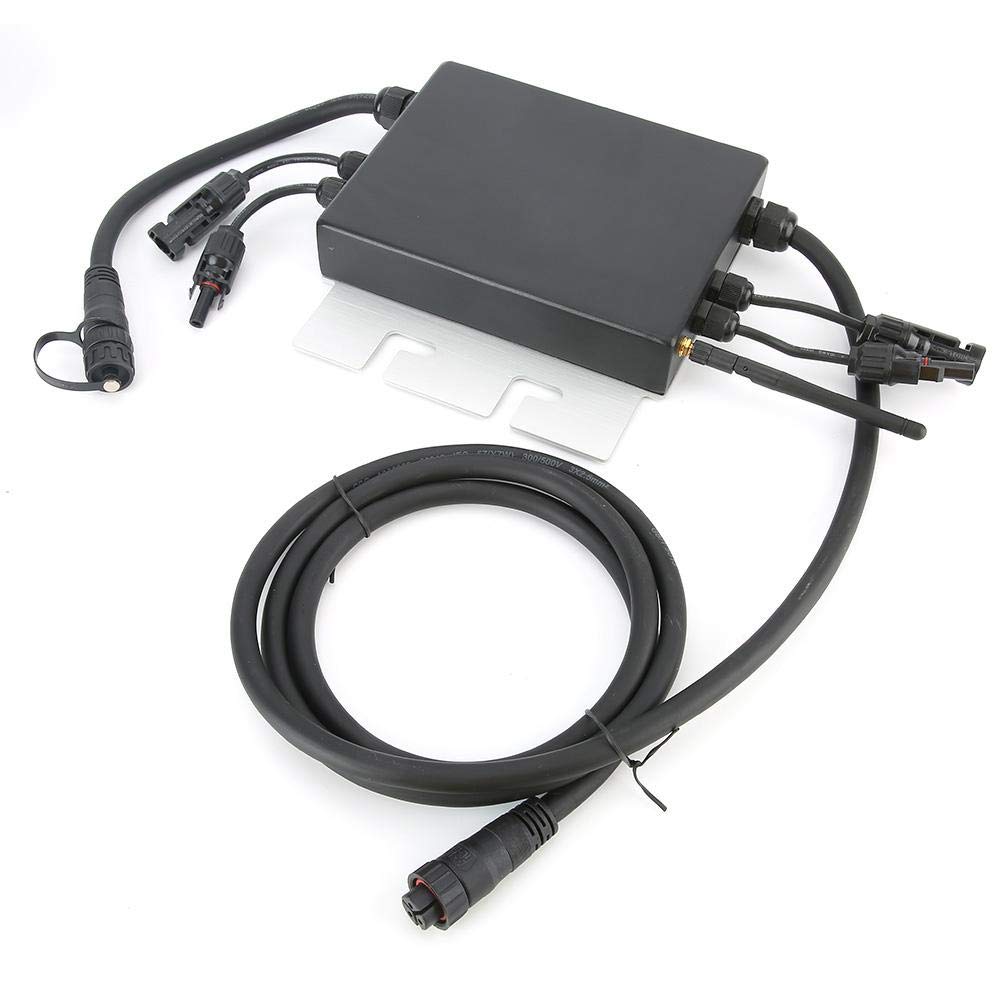

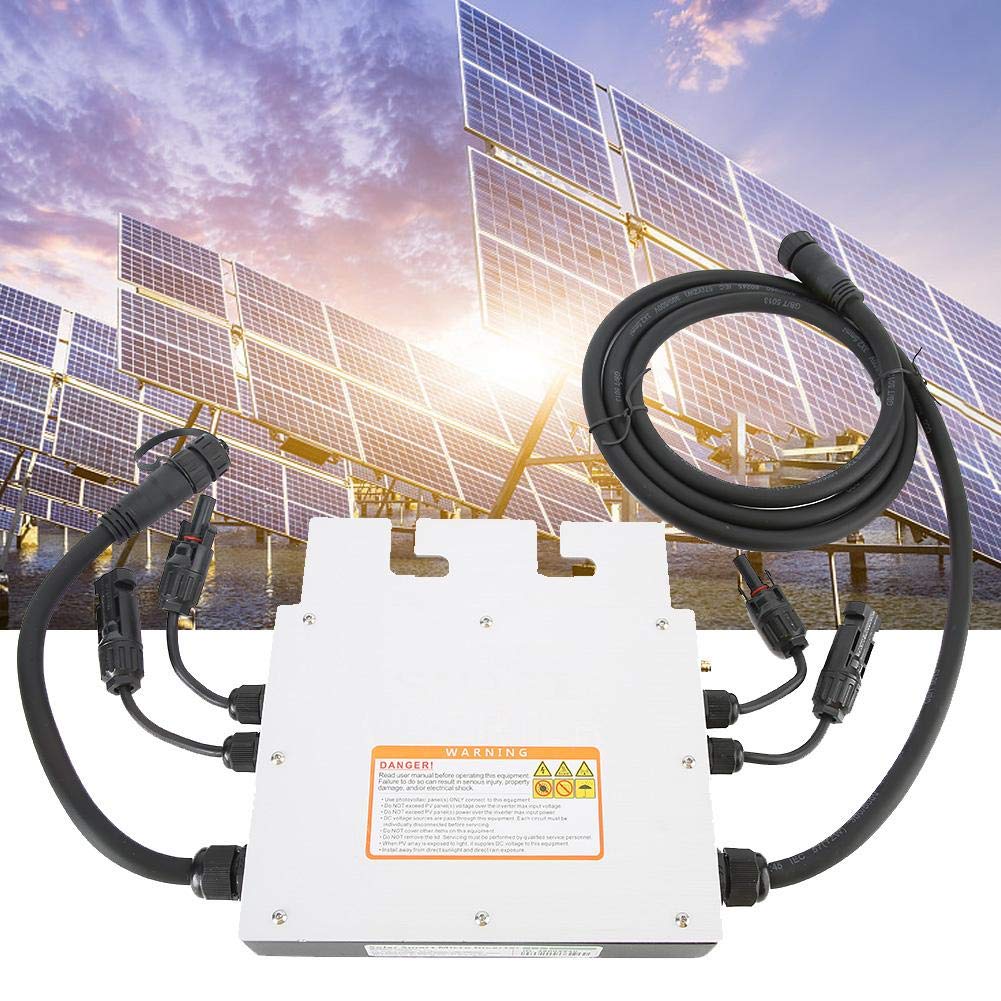

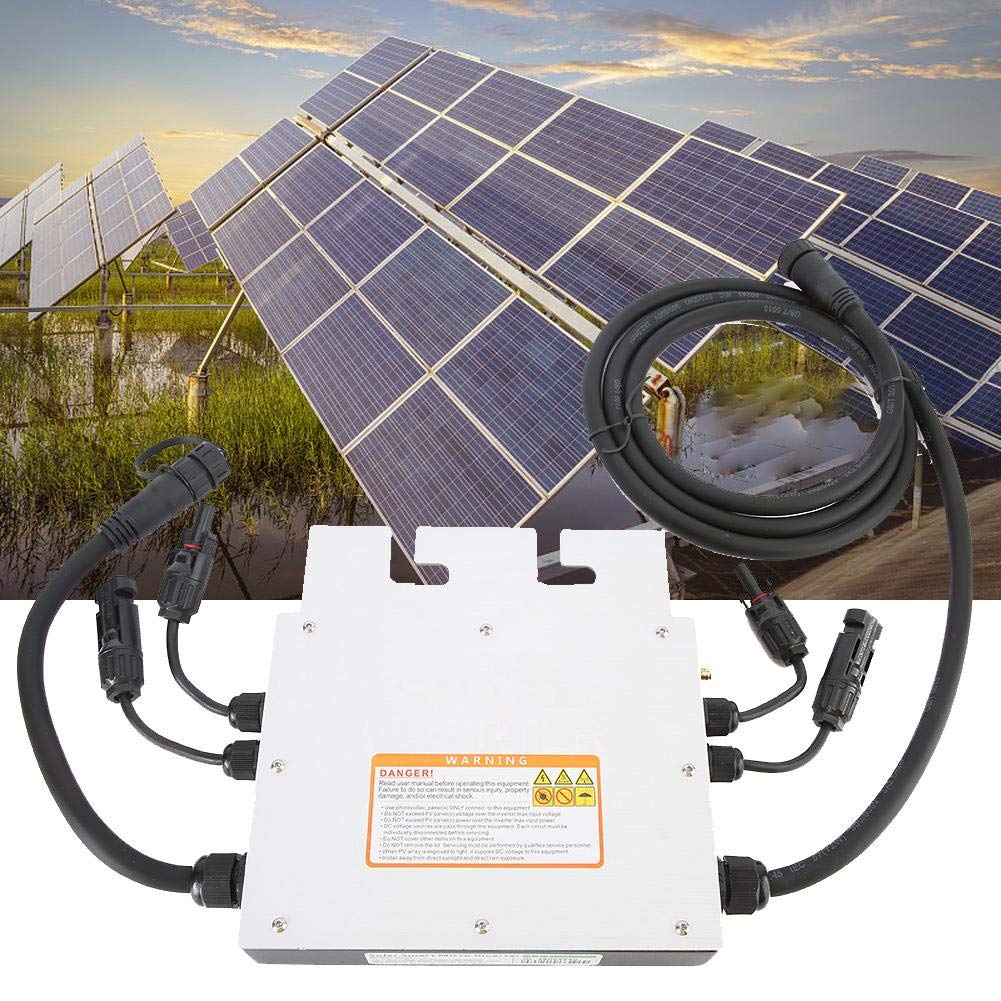

600W MPPT Micro Grid Tie Solar Inverter SG600MD 120V 230V IP65 Waterproof Grid Inverter for Solar Panels Pure sine Wave Current Converter

Feature: 1. SG600MD 120V 230V waterproof micro solar inverter, LED display, more clear and intuitive. 2. With protection function, voltage protection, frequency protection, temperature protection, current protection, etc. 3. Natural convection cooling method, no fan. 4. IP65 protection class, good dustproof and waterproof performance. 5. 2.4G wireless communication and monitoring. Specification: Item Type: Micro Solar Inverter Product Series: SG Series Model: SG600MD Input Data (DC, PV): Number Of Input MC4 Connectors: 2 sets MPPT Voltage Range: 24V-40V Working Voltage Range: 18V-50V Maximum Input Voltage: 50V Starting Voltage: 18V Maximum Input Power: 2 x 300W Maximum Input Current: 2 x 12A Output Data (AC): Single-Phase Grid Type: 120V & 230V Rated Output Power: 590W Maximum Output Power: 600W Nominal Output Current: At 120VAC: 5A / At 230VAC: 2.6A Nominal Output Voltage: 120VAC / 230VAC Default Output Voltage Range: At 120VAC: 80V-160V / At 230VAC: 180V-280V Nominal Output Frequency: 50Hz / 60Hz Default Output Frequency Range: At 50Hz: 47.5Hz-52.5Hz/ At 60Hz: 57.5Hz-62.5Hz Power Factor: > 0.99 Total Harmonic Distortion: THD<5% Maximum Units Per Branch: At 120VAC: 4 Units / At 230VAC: 8 units Peak Efficiency: 95% CEC Weighted Efficiency: At 120VAC: 92.5% / At 230VAC: 93.5% MPPT Nominal Efficiency: 99.9% Night Power Consumption: <700mw Working Environment Temperature Range: -40 ℃ ~ + 65 ℃ Storage Temperature Range: -40 ℃ ~ + 85 ℃ AC Bus Cable Maximum Current: 20A Waterproof Rating: IP65 Communication Method: 2.4G Output Connector: (Length Cm, Left Male M, Right Female F): M24 + F182 Cooling Method: Natural convection, no fan Package List: 1 x Inverter 1 x Receiver
