600mm CONDENSING UNIT WALL KIT

• Suitable for air con units, cellar coolers and and heat pump systems.
• For mounting units to any brick / concrete or block walls.
• Fully Adjustable Height & Width - fits to any Unit (Max - 600mm Depth)
• HDG - Hot Dipped Galvanised (Corrosion Resistant)

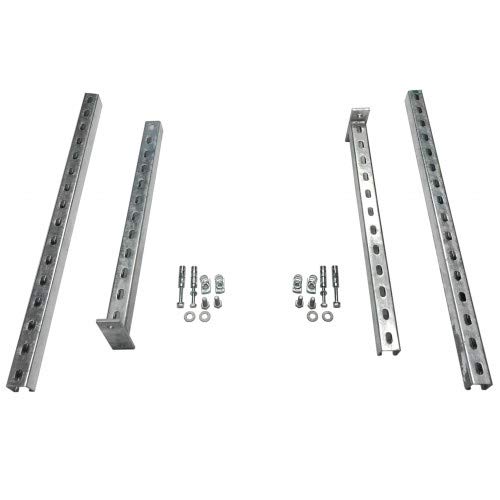

600mm Air Conditioning Wall Bracket Kit – Hot Dip Galvanised Heavy-duty 600mm wall bracket kit suitable for mounting air conditioning units, cellar coolers, refrigeration units and heat pump condensers onto brick, concrete or block walls. The fully adjustable design allows the mounting width and height to be positioned according to the condenser unit. Manufactured from hot dip galvanised steel for improved corrosion resistance and reliable long-term outdoor use. Key Features: 600mm cantilever arm projection Fully adjustable mounting width and height Suitable for air conditioning units, heat pumps, cellar coolers and refrigeration units Hot dip galvanised steel construction Suitable for fixing to brick, concrete and block walls Approximate Safe Working Load: 200kg, based on the weight being positioned centrally on the cantilever arms Kit Contents: 2 × 600mm slotted cantilever arms – hot dip galvanised 2 × 750mm lengths of 41x41mm slotted strut channel – for fixing to the wall 4 × M10 long channel nuts 4 × M10x30mm hex-head set screws 4 × M10x25mm hot dip galvanised penny washers 1 × pack of 4 M8x40mm Timco shield anchors 4 × M10x40mm hammerhead channel bolt sets 6 × 41mm black plastic end caps Sold as one complete wall bracket kit. Please Note: The stated load rating is approximate and assumes that the condenser’s weight is positioned centrally across the cantilever arms. Do not position the full load at the outer edges of the arms. The installer is responsible for checking the wall structure, fixings and suitability of the installation. Air conditioning unit, heat pump or condenser not included.
