6-in-1 Wall Scanner | High Precision Stud Finder with LCD Display & Sound Warning. Electronic Sensor for Wood, Metal, AC Live Wire: Joists, Pipes, DIY Home Improvement Detector Tool

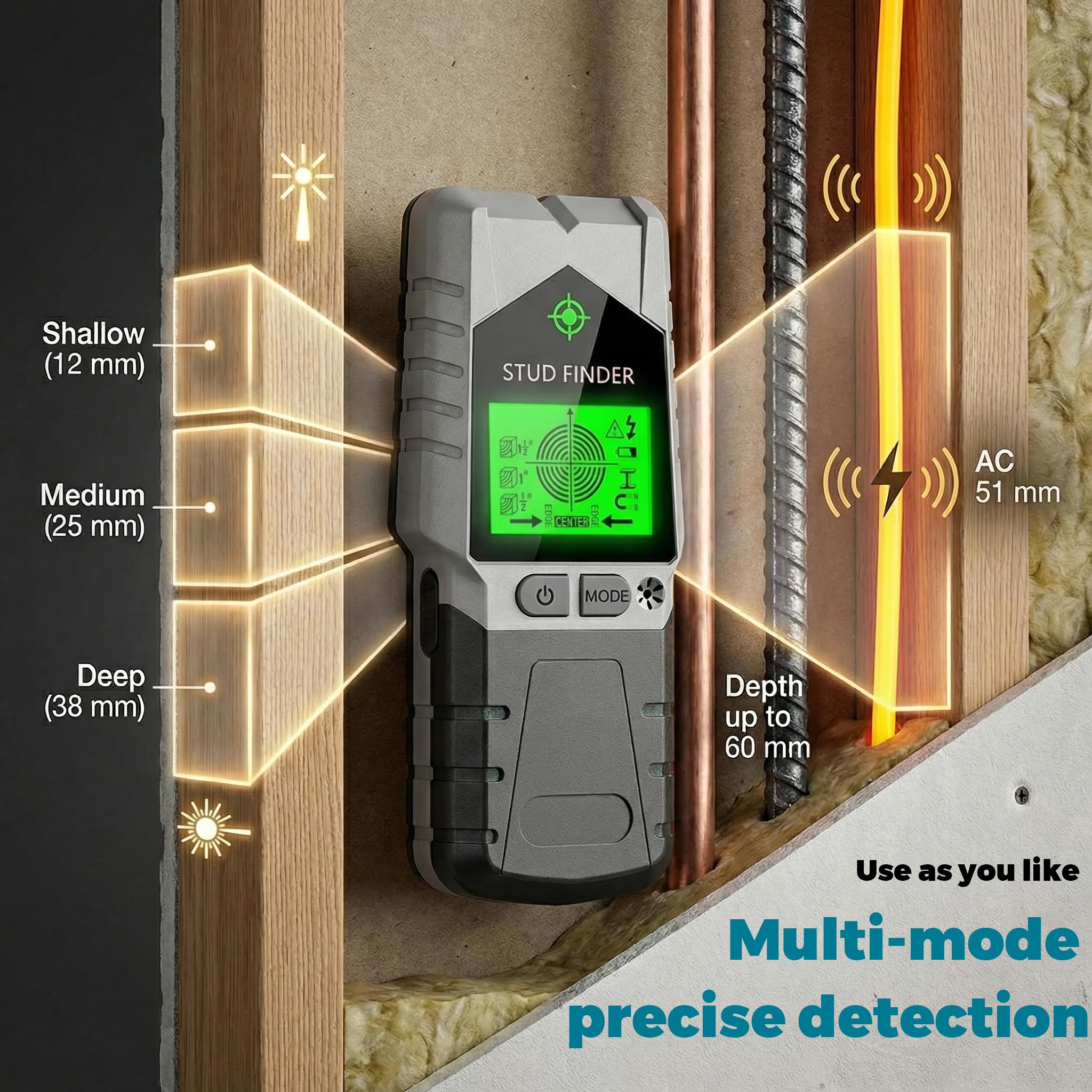

• 【6-Mode Target Detection】 The internal hardware supports six distinct operational states for identifying subsurface structures. It includes three standard depth ranges (12mm, 25mm, and 38mm) for locating structural joists and beams, alongside a dedicated deep scan and a specialized 2.5mm setting. Additional configurations identify metallic elements (pipes, rebar) up to 60mm and active electrical lines up to 51mm deep.

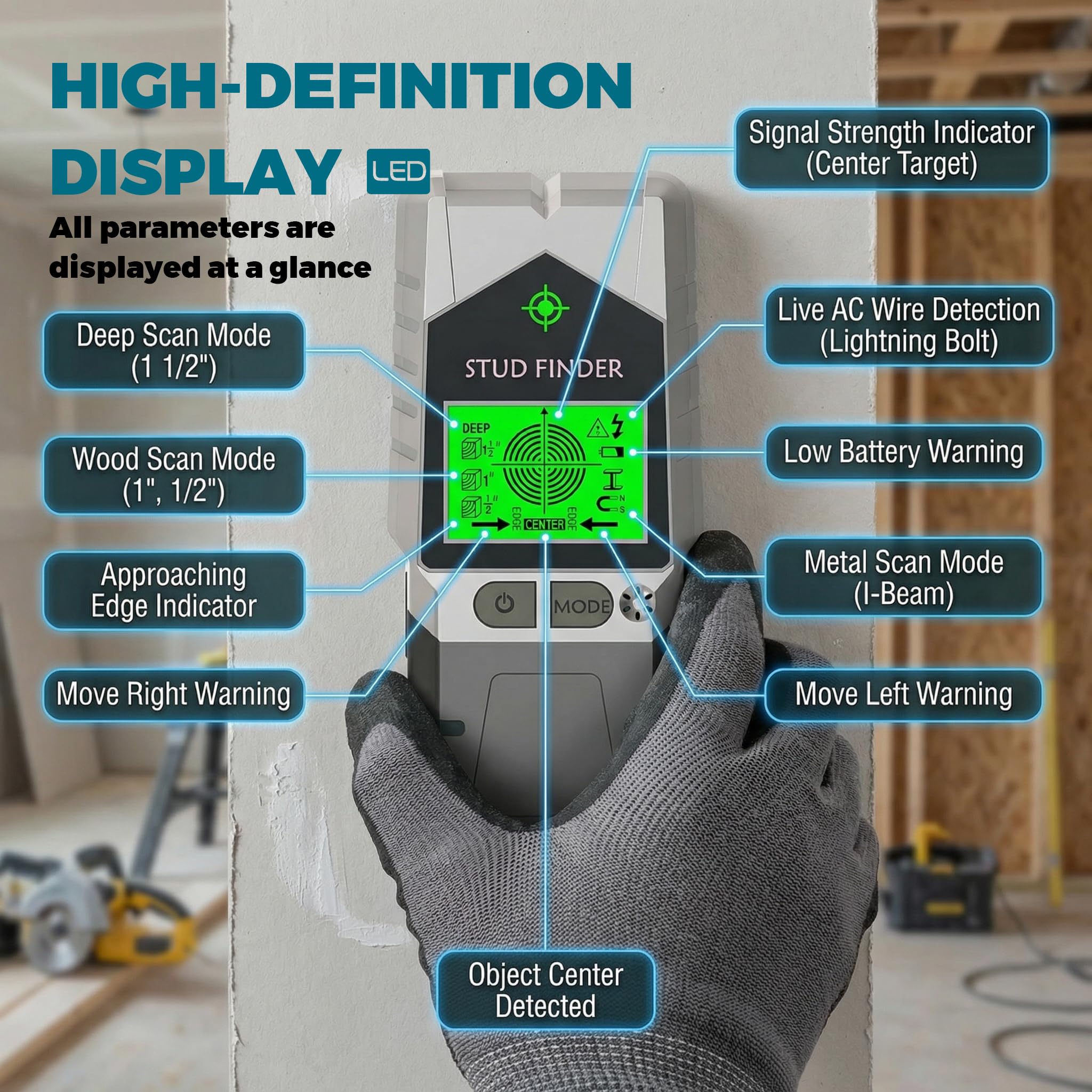

• 【Audio-Visual Feedback System】 Equipped with a high-definition LCD screen paired with a physical internal buzzer for audible alerts. The diagnostic system utilizes a 3-color LED indicator that dynamically responds as the unit approaches hidden targets. This dual-signal mechanism allows operators to objectively distinguish between wood structures, metallic components, and live cables during the scanning process.
• 【One-Key Calibration & Centering】 Features an automated calibration function triggered by a single button press to adjust to varying drywall densities and isolate external signal interference. The internal electronic processing chip is engineered to calculate and indicate the exact physical center of detected objects, establishing baseline accuracy prior to structural drilling.
• 【Continuous AC Wire Monitoring】 To prevent electrical hazards, the alternating current detection circuit remains fully engaged regardless of the selected operational mode. It consistently tracks hidden live wiring up to 2 inches (51mm) beneath the surface, triggering a constant "Lightning" graphic on the digital interface whenever active power lines are detected in the immediate vicinity.
• 【Ergonomic Chassis & Material Compatibility】 The outer casing incorporates non-slip side grips to maintain physical stability and operational leveling during surface scans. This hardware functions across multiple substrates, including standard drywall, concrete, ceilings, and wooden flooring. Its magnetic tracking capabilities serve as a practical addition to diagnostic toolkits containing moisture meters or levels.

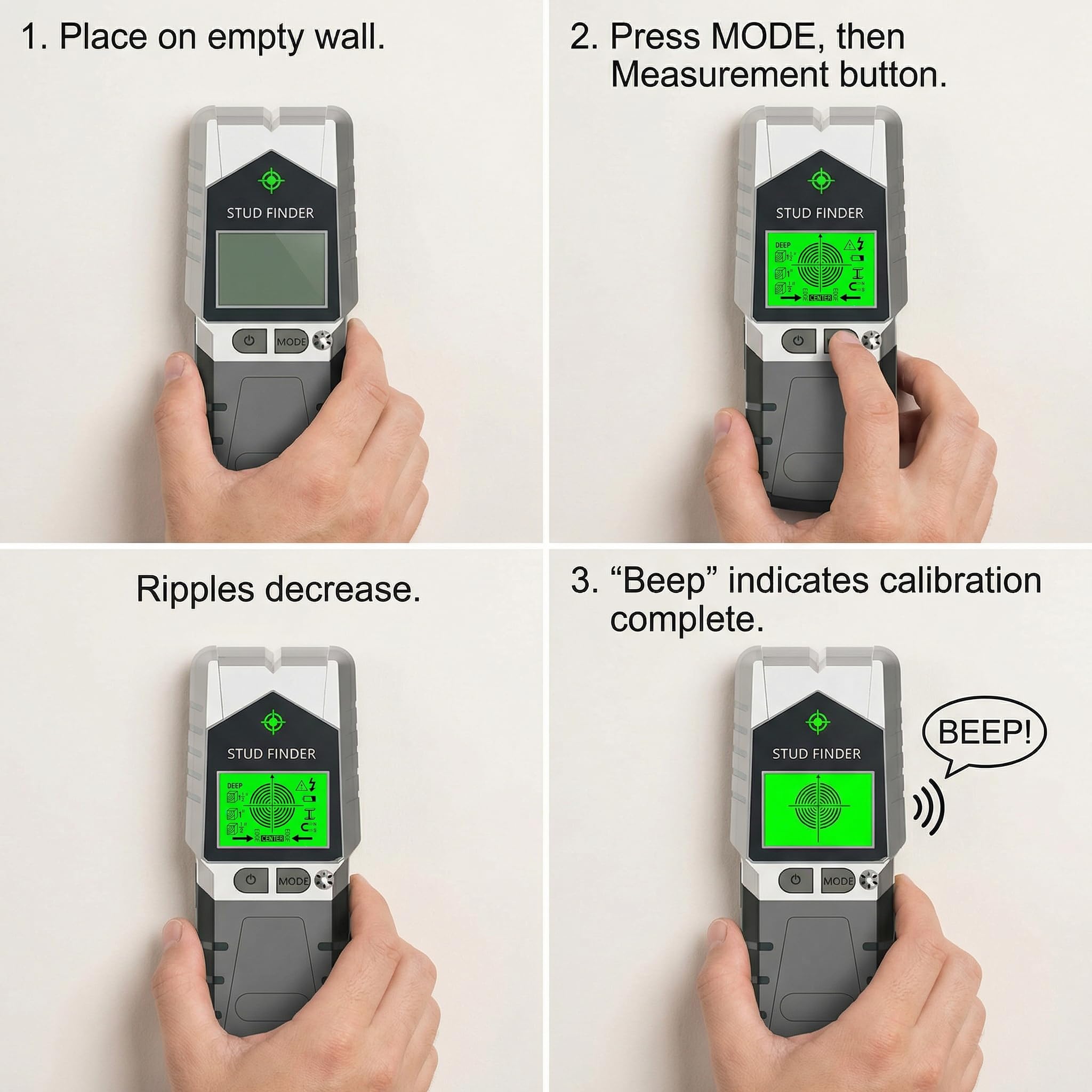

【Pre-Operational Calibration Sequence】 To establish baseline accuracy prior to drilling, place the hardware flush against the target surface. Activate the unit via the MODE button, followed by depressing and holding the measurement button. The internal circuitry will process the native wall density, visually indicated by shrinking signal rings on the digital LCD interface. A distinct audible "Beep" confirms the calibration sequence is complete and the sensor is operational. 【Structural Application & Hazard Avoidance】 This hardware is engineered to locate solid support structures required for heavy installations, such as mounting 75-inch televisions or gallery framework. The device calculates the physical center of underlying wood joists and beams, ensuring fasteners achieve a maximum load-bearing hold. Concurrently, it maps subsurface hazards, preventing accidental penetration of water pipes, power cables, and active AC electric lines. 【Standard Operating Protocols】 Maximize detection accuracy by adhering to the following physical scanning guidelines: Surface Contact: The unit must maintain continuous, flat contact with the substrate. Lifting or tilting the chassis during operation will disrupt sensor data and yield inaccurate readings. Scan Velocity: Glide the detector slowly and steadily across the drywall. Rapid movements prevent the electronic array from registering subtle density transitions between wood and metal. Verification Pass: Upon locating an initial target, mark the position and conduct a secondary scan from the opposite direction. This bi-directional method isolates the exact target "EDGE" and geometric "CENTER".
