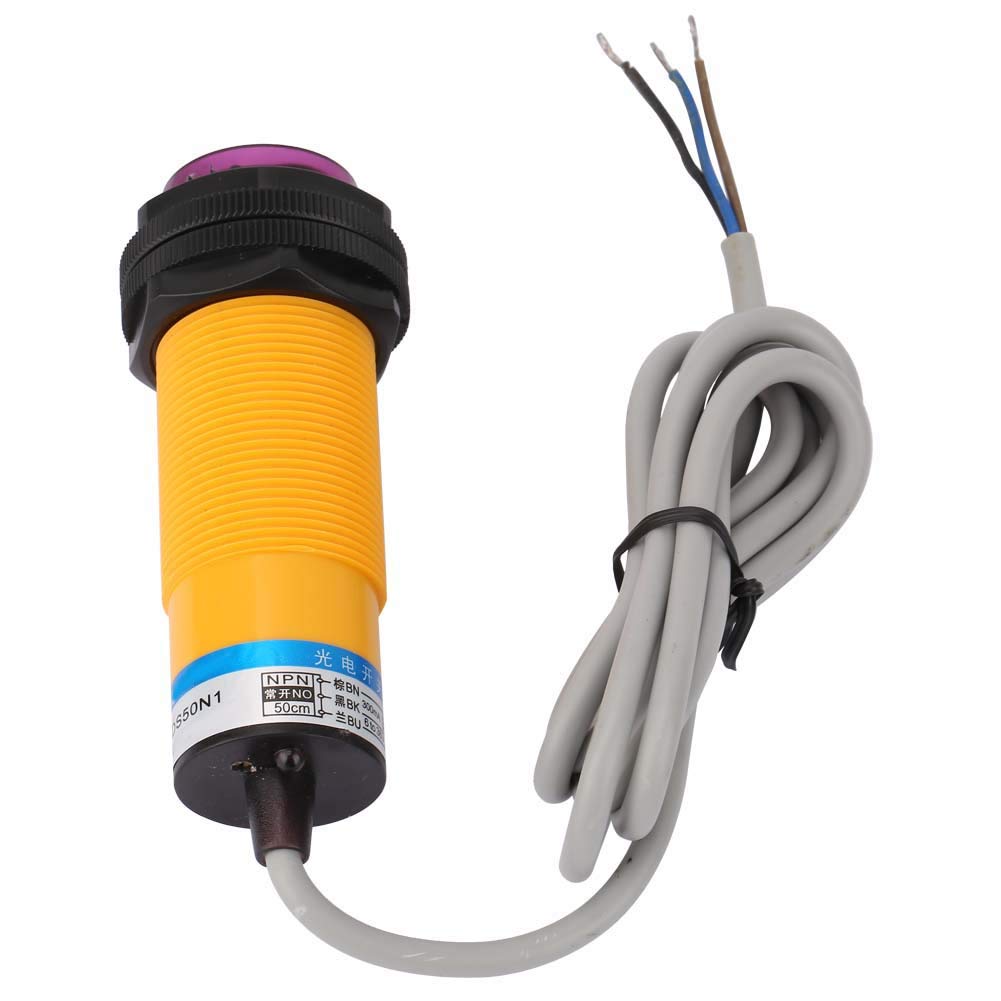

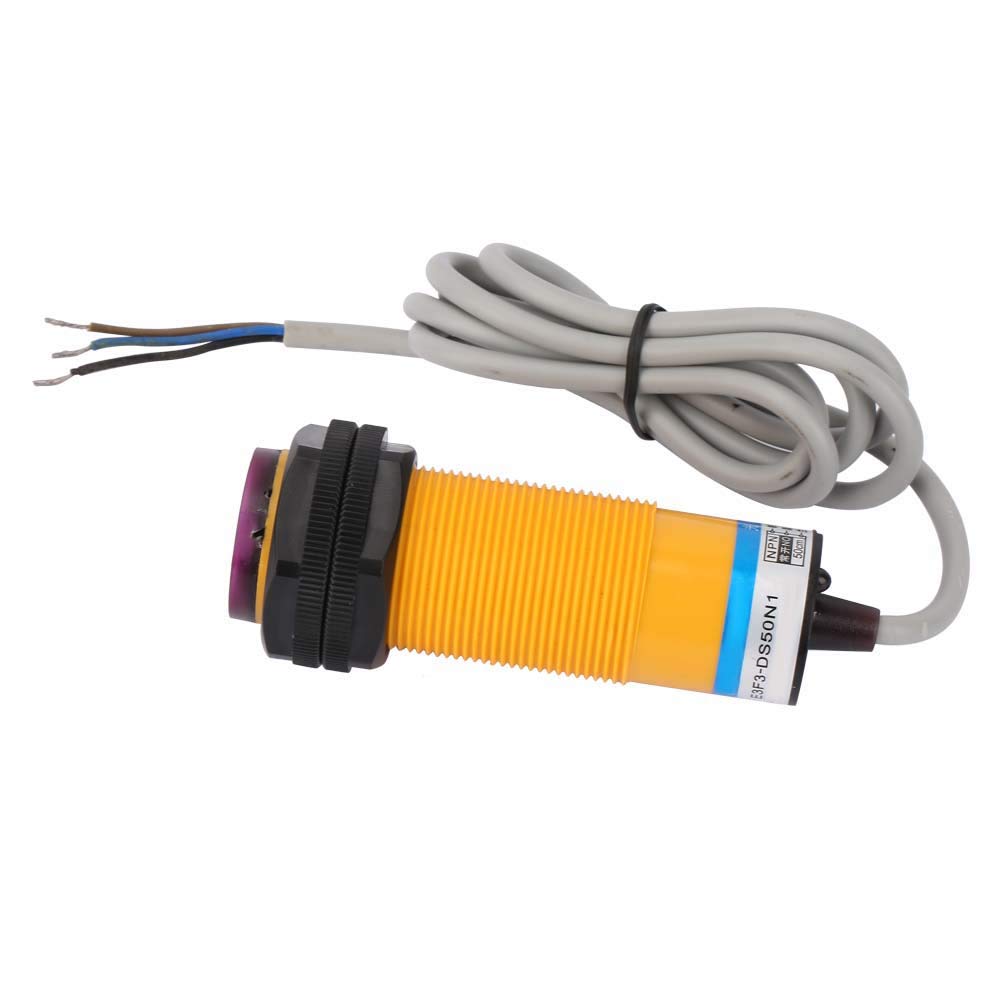

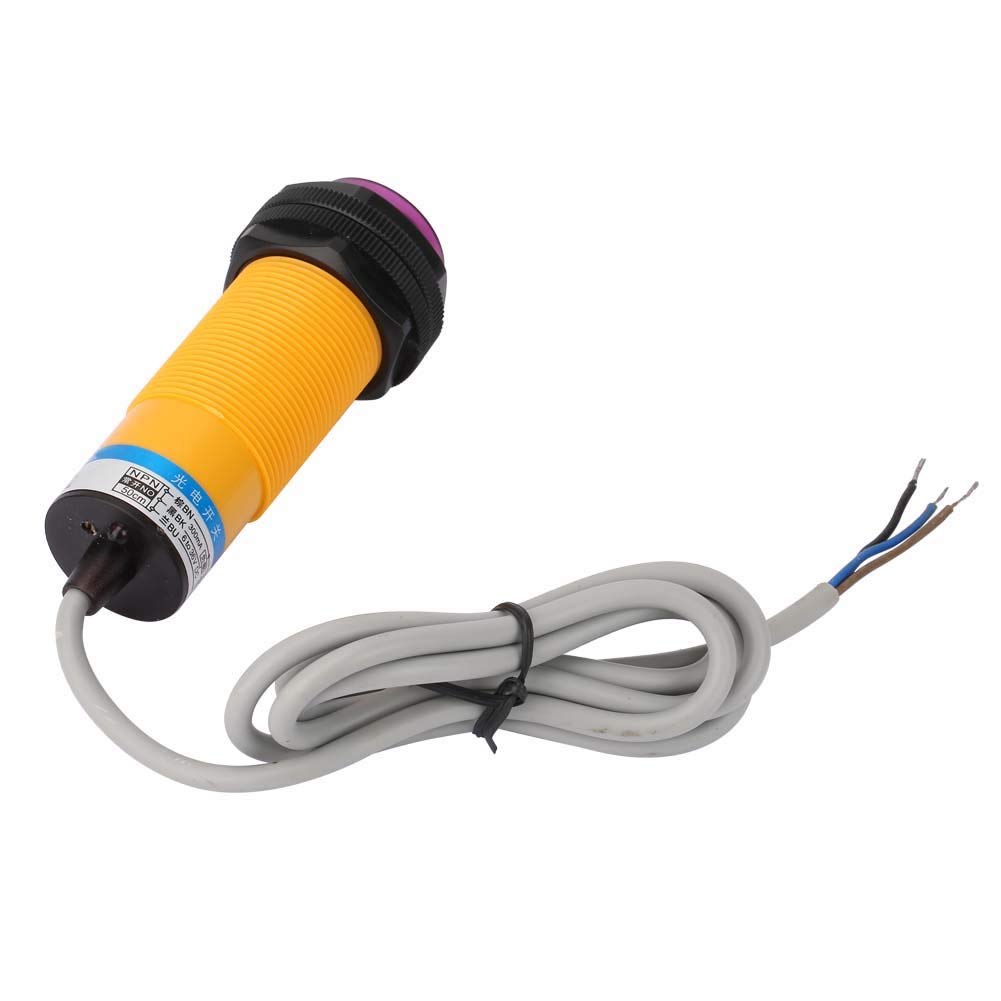

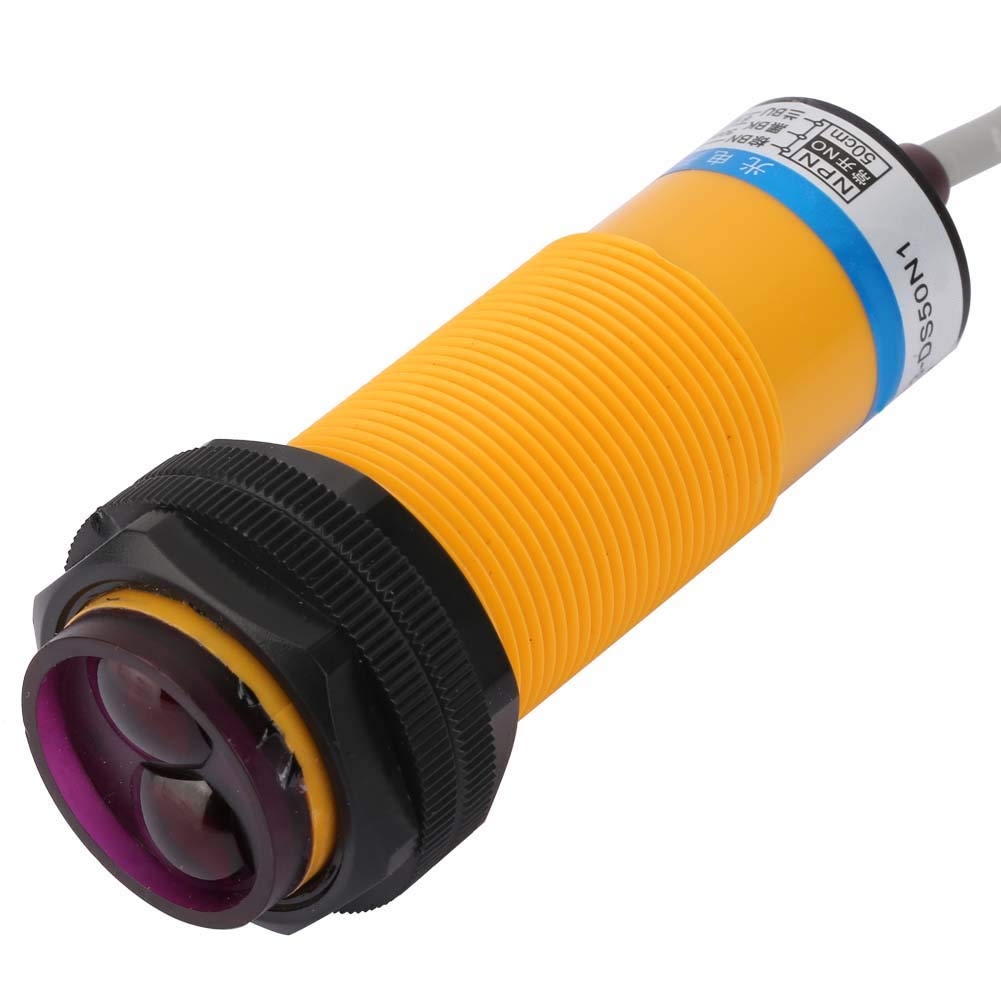

6-36V DC Infrared Proximity Sensor E3F3-DS50N1 Photoelectric Switch with 70cm Detection Range High Precision Fast Response Industrial Grade Proximity Detection

• WORKING PRINCIPLE:Photoelectric Switch uses the blocking or reflection of the detected object to the beam, to detect the existence of the object.
• NON-CONTACT DETECTION:The non-contact detection of this photoelectric switch does not affect the operating conditions of the measured object.
• WIDE RANGE OF USES:The detection objects of this photoelectric sensor switch are not limited to metal, and all objects that reflect light (or block light) can be detected.
• 70CM DETECTION DISTANCE:This is an photoelectric proximity switch sensor with 70cm detection distance.
• STRONG ANTI-INTERFERENCE AND STABLE PERFORMANCE:This proximity switch has strong anti-interference capability, action, stable performance and fast frequency response.

Specification: Detection Range: 70cm±10% Detection Range Adjustment: Sensitivity regulator Detection Target: Transparent/opaque object Response Time: 1ms On-delay: 1.5ms Light Source: Infrared light 660nm Supply Voltage: DC12-24V(6-36V) impulse (P-P) <10% Withstand Voltage: AC1000V 50/60Hz 1min, between charging part and housing Voltage Influence: ±10% Detection distance (within ±15% of rated supply voltage range) Current Consumption: N.P type: <20mA, A type: <1.7mA Control Output: N.P type: <300mA, A type: <400mA, J type: <2A Contact Life: 100,000 times Circuit Protection: N.P.D type: reverse connection protection, absorption, load short circuit protection; A type: absorption Operation Environment: -30~65°C (no freezing, no condensation), 35-95% RH Temperature Influence: Temperature range -30~65°C, at +23°C: ±15% detection distance; temperature range: -25~60 ° C, at +23 ° C: ± 10% detection distance Insulation Impedance: >50MΩ (DC500 megohmmeter), between charging part and housing Housing Material: ABS Detection Surface (lens): PMMA Weight: 118g (approx.) Package List: 1 x Photoelectric Switch
