5X M10 x 115mm Heavy Duty Anchor Galvanised Metal dowels Wedge Anchor Lightning Dowel

• Reliable anchoring: high-quality Lumonic heavy duty dowels ensure immediate resilient and permanent attachment of your canopies, railings, shelves and dividers in concrete and masonry.
• Optimal rust protection: the galvanised surface reliably protects against rust and ensures long-lasting attachment even outdoors and damp environments.
• Versatile through mounting: ideal for angle profiles, rails, brackets and wooden beams - the cone spreader mechanism activates by simply tightening the nut without setting tools.
• Immediately loadable: no curing times like chemical anchors - after assembly, you can load your construction directly and complete your project without waiting time.

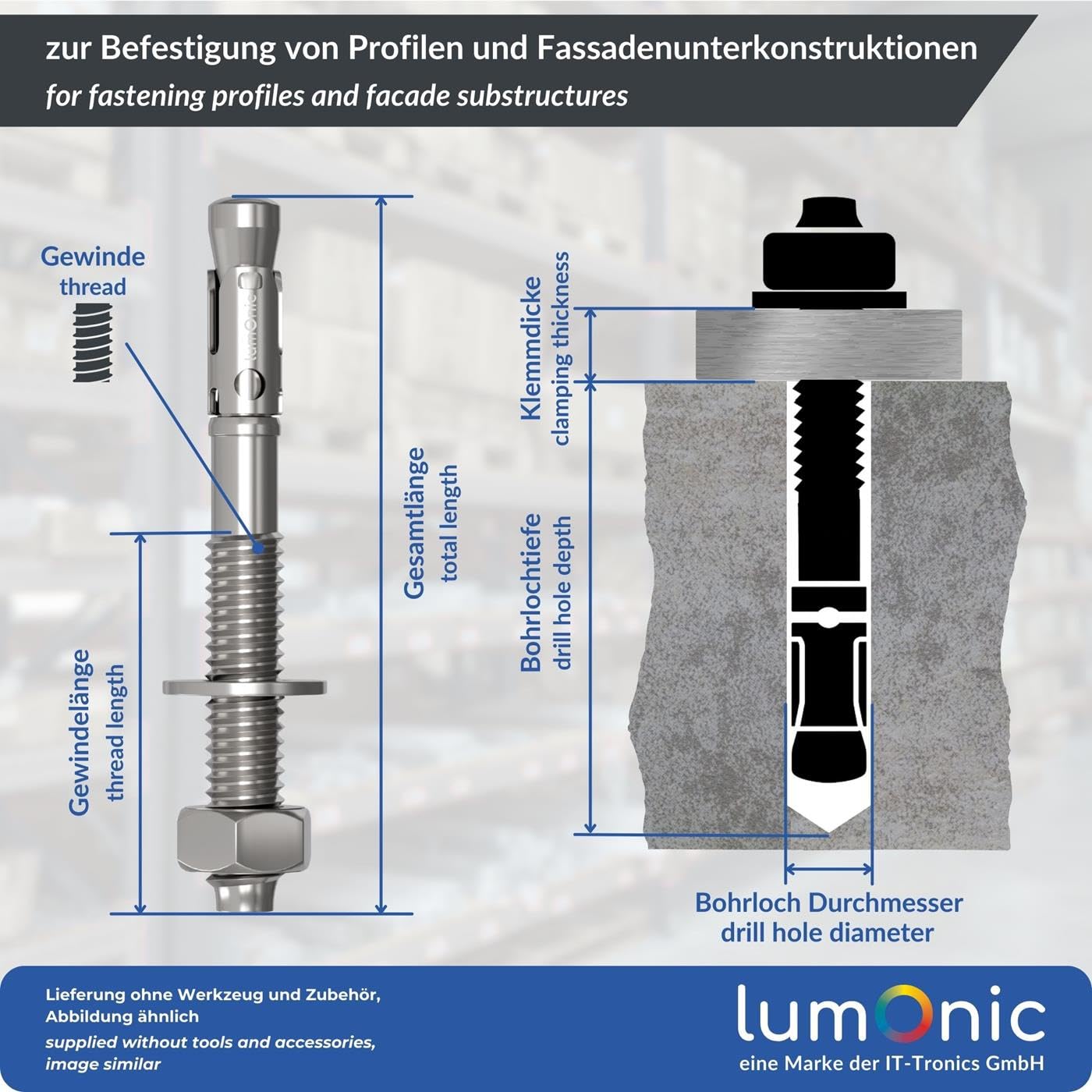

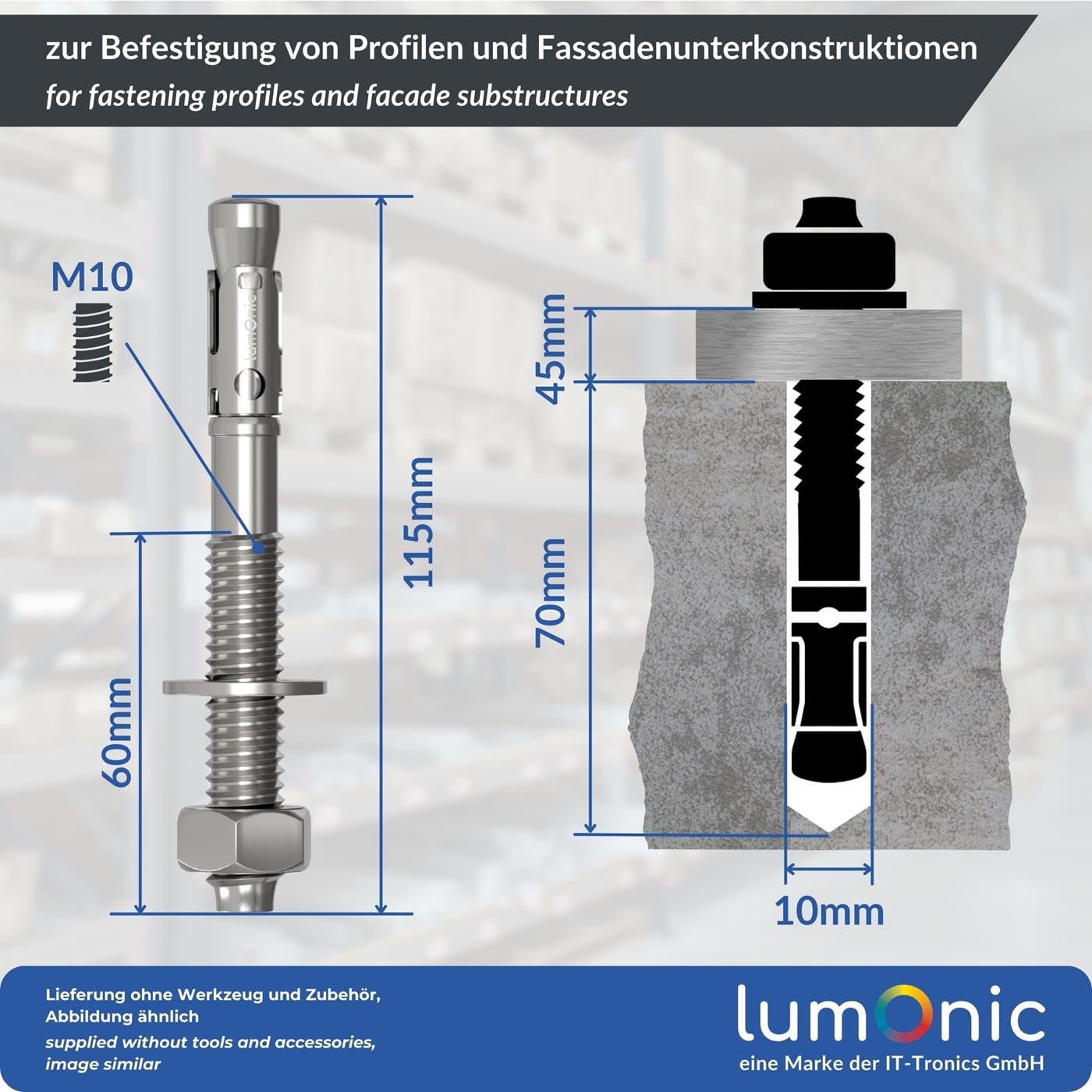

• Technical specifications: M10 thread, 115 mm total length, 60 mm thread length, 45 mm clamping thickness, 10 mm drill hole, 70 mm drilling depth - precise dimensions for secure installation.

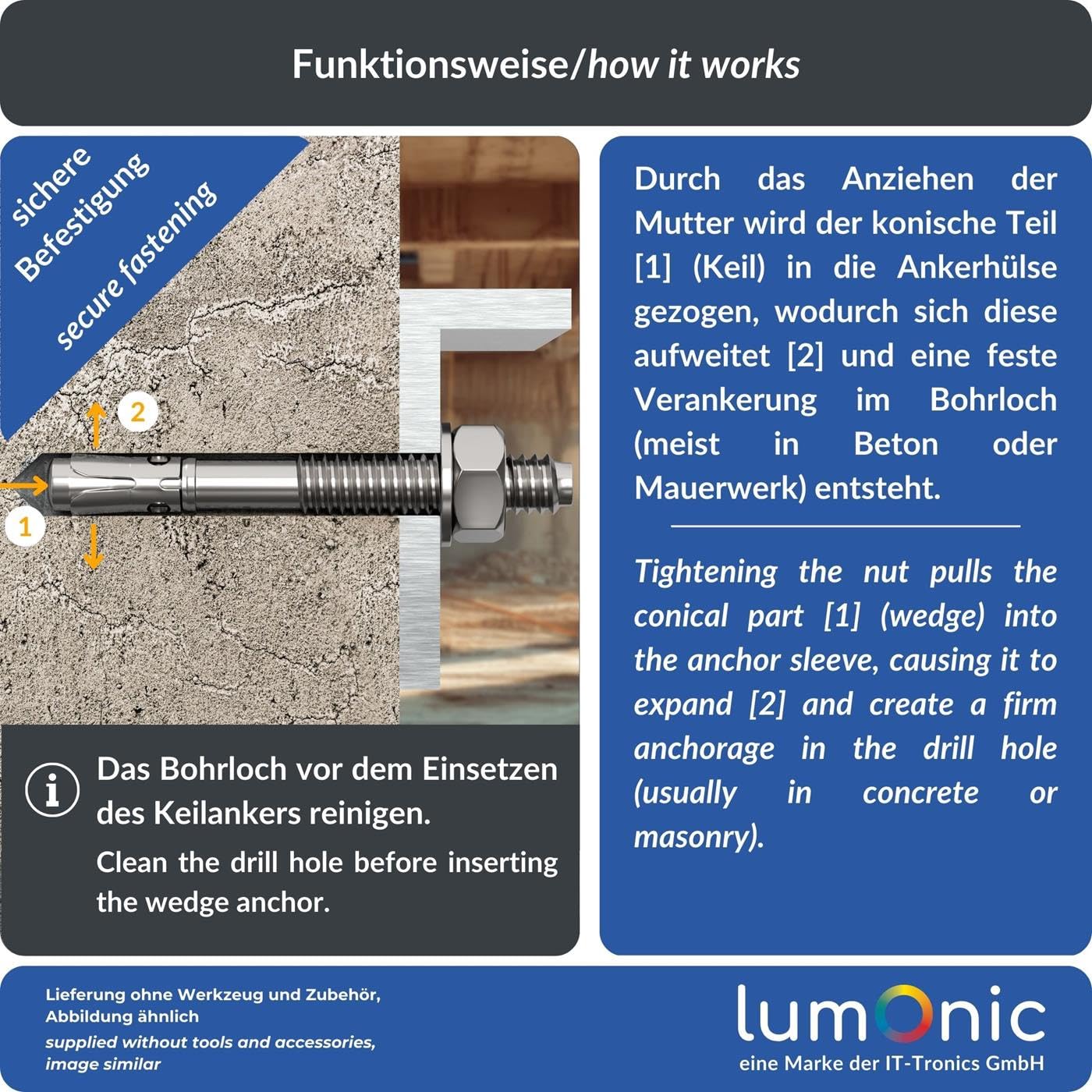

✔ Areas of application: the corner anchor is suitable for the pressure installation of angle profiles, rails, brackets, wooden beams and facade substructures, among others. ✔ Features: quick assembly, ideal for mounting through hole, low assembly effort. ✔ How it works: the corner anchor is pushed into the drill hole, the expansion clip is then attached against the wall of the drill hole due to the internal tension. When the nut is tightened, the cone sinks into the expansion clip, expands it and presses it against the building material. Product: Metal Dowel Tip: heavy anchor. Material/quality: galvanised. Discussion wire: M10 Total length: 115 mm. Cable Length: 60mm Clamp Thickness: 45mm Probe diameter: 10mm Probe length: 70 mm. Torque: 30Nm
