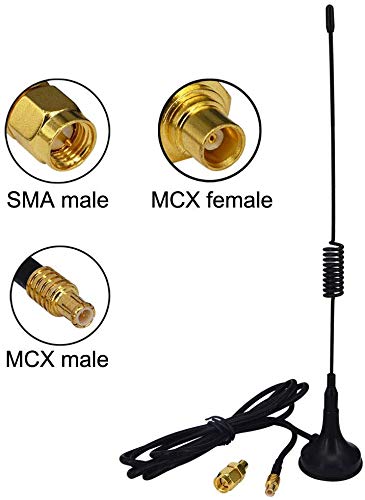

5DBi 1090MHz Antenna MCX Antenna ADS-B Aerial with Magnet Base RG174 1M Cable + SMA Male to MCX Female RF Coax Adapter for ADS-B Receiver RTL SDR Software Defined Radio USB Stick Dongle Tuner Receiver

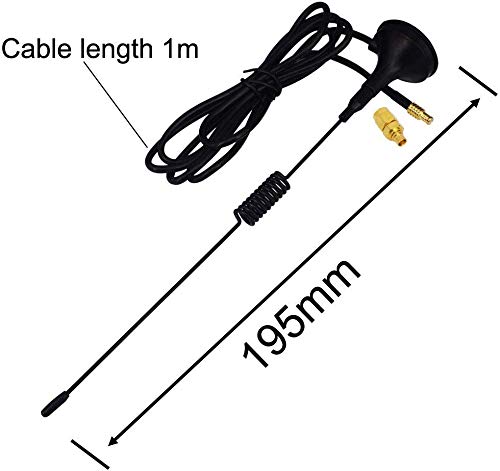

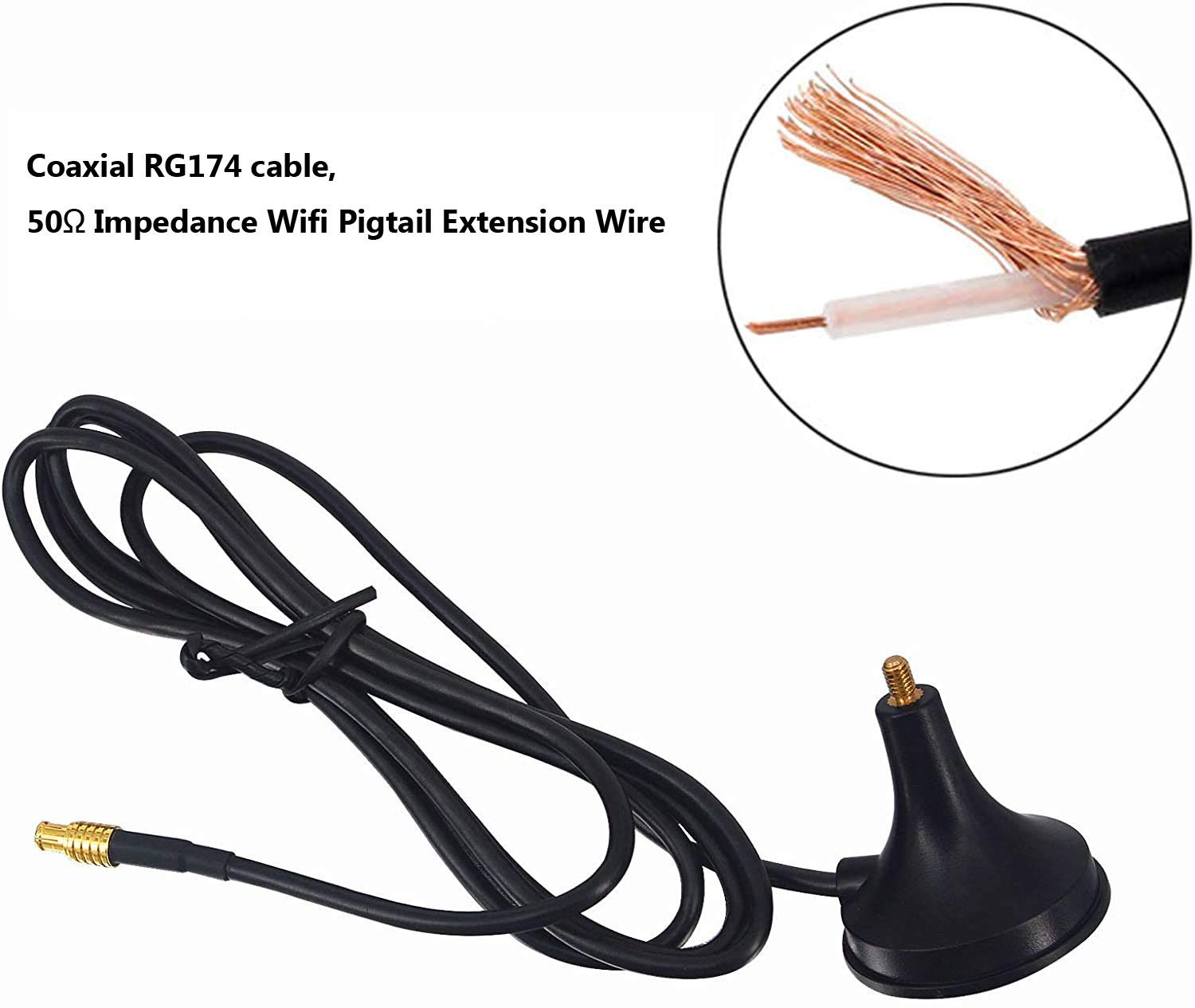

• Frequency Range: 1090MHz Antenna | Gain: 5DBi (Max) | Total length (from base to top): 17CM | Cable Type: RG174 | Cable length: 1M

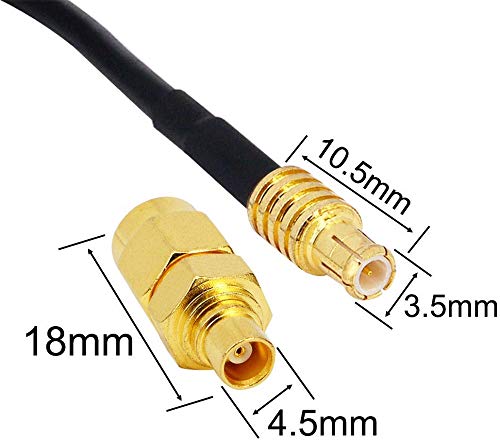

• Antenna Adapter: MCX male | Adapter Type: SMA male to MCX female | Material: Gold-Plated | Impedance: 50 Ohm
• With Magnetic Base Antenna - Improve DAB reception by using large metal surfaces. The more surfaces of the magnetic base antenna are attached to the metal bracket, the better it can be fixed and get a clear signal.
• Perfect for embedded, portable or ground ADS-B applications, compatible with ADS-B DVD Stick DVB-T, DVBT freeware All modern Car DAB Radios SDR with MCX/SMA input connector, Compatible with: RTL SDR Software Defined Radio SDR ADS-B Receiver USB Stick Dongle Tuner;
• Package Included: 1 * 5DBi 1090 MHz MCX Antenna + 1 * SMA Male to MCX Female RF Adapter

Description: 1.Frequency:1090Mhz 2.VSWR:<1.5 3.Gain: 5dBi (Max) 4.Polarization Type:Vertical 5.Rated Power:50W 6.Antenna Connector: MCX Plug 7.Total Length(from the base to Top): 20cm 8.Base diamter: 3cm 9.Cable Type: RG174 10.Cable Length: 100cm Compatible with: used for Software Defined Radio Aviation ADS-B Receiver ATSC DVB-T DVB-T2 TV Radio USB Stick Dongle Tuner
