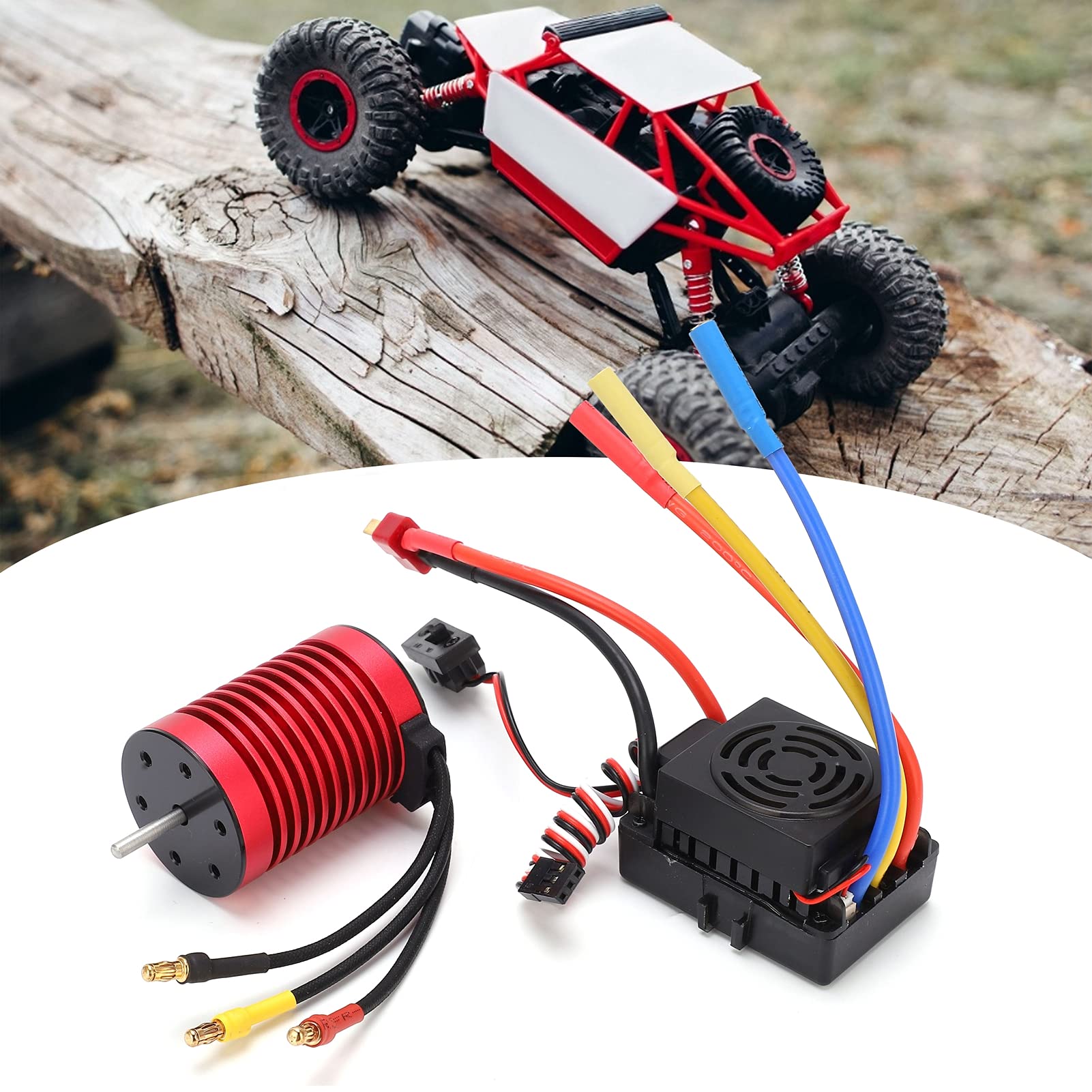

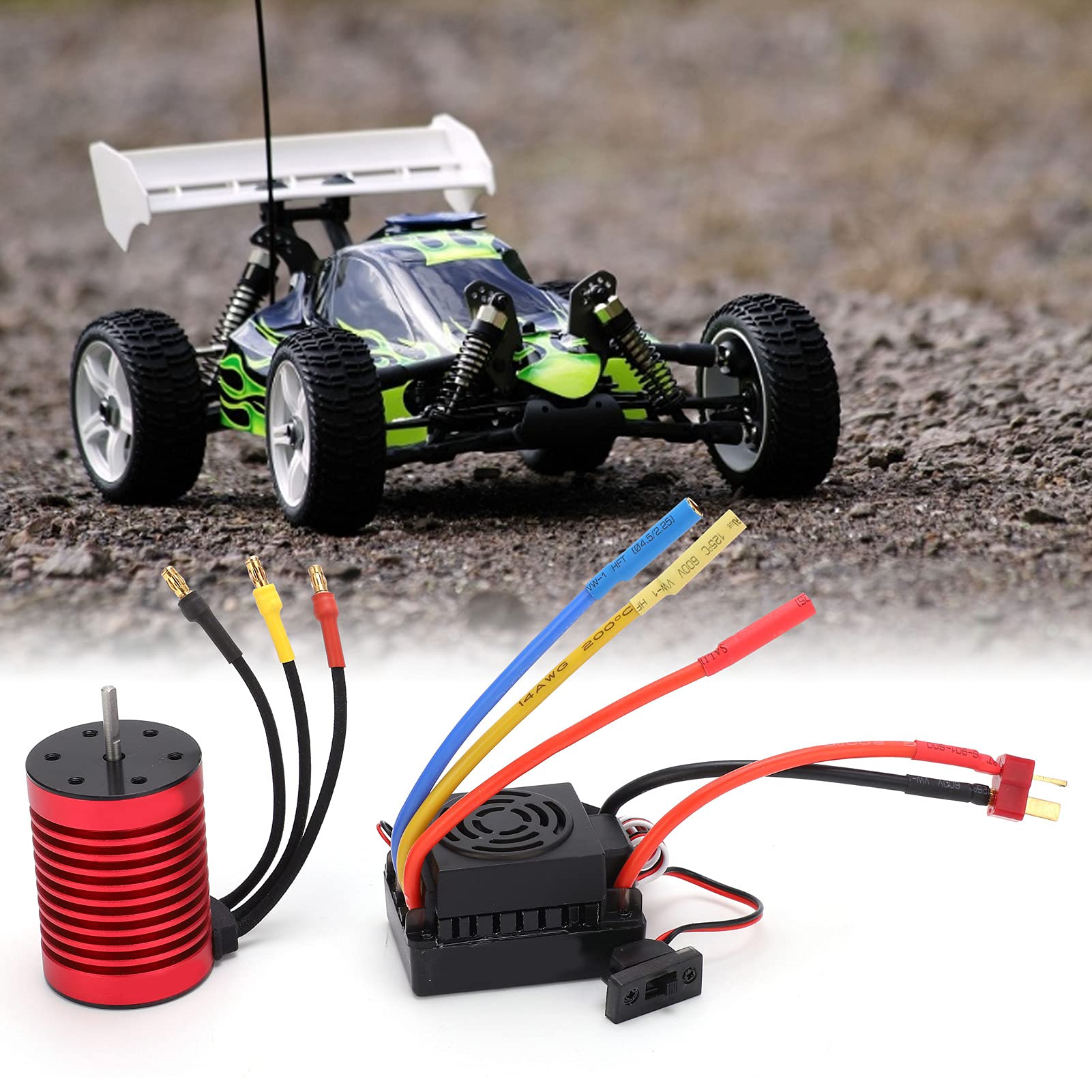

SPYMINNPOO 540 Motor+ESC Set, F540 Brushless Motor 3900KV and 60A Brushless ESC Set with T Plug for 1/10 Remote Control Cars Sportinggoods Model Car Accessories Sportinggoods Model Car Accessories

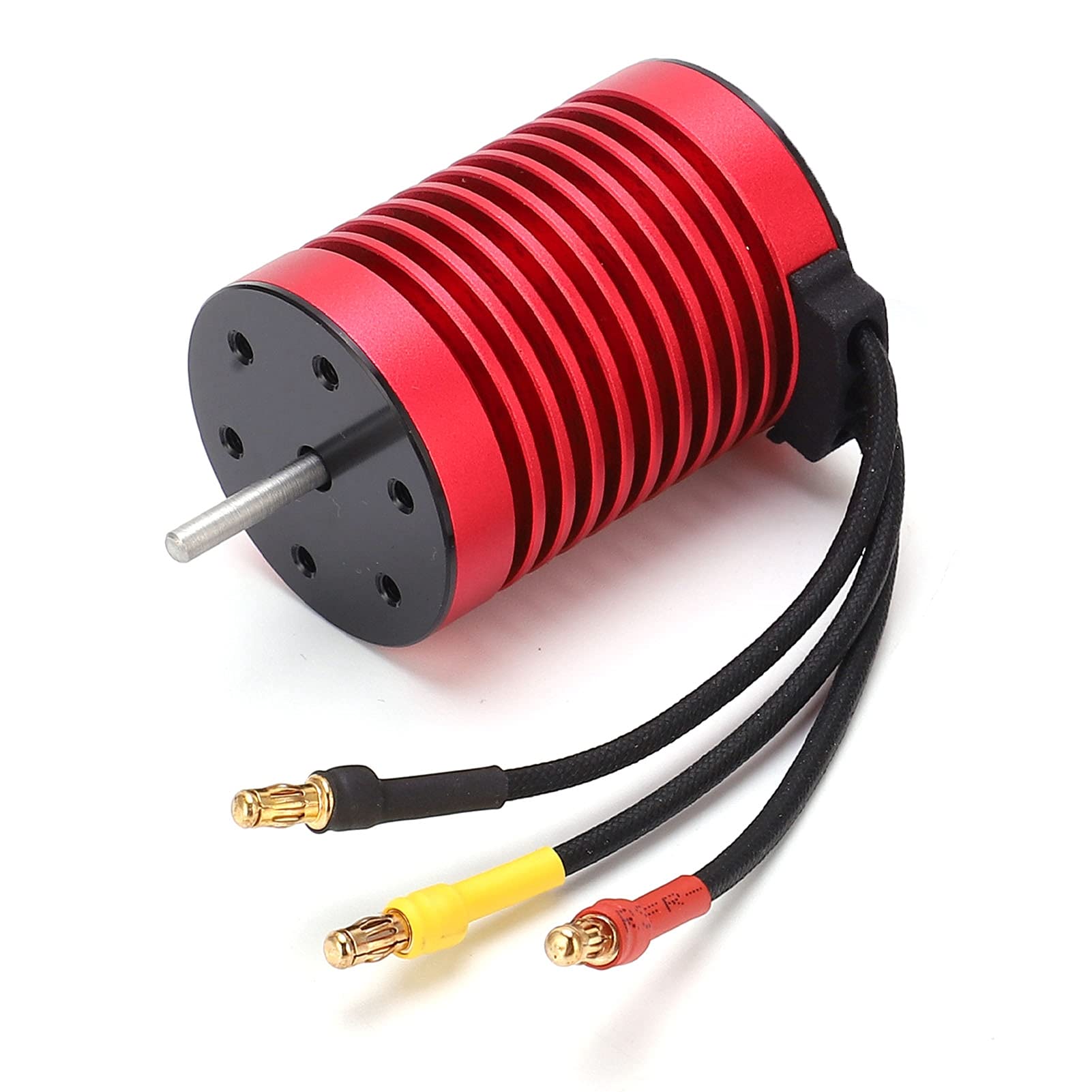

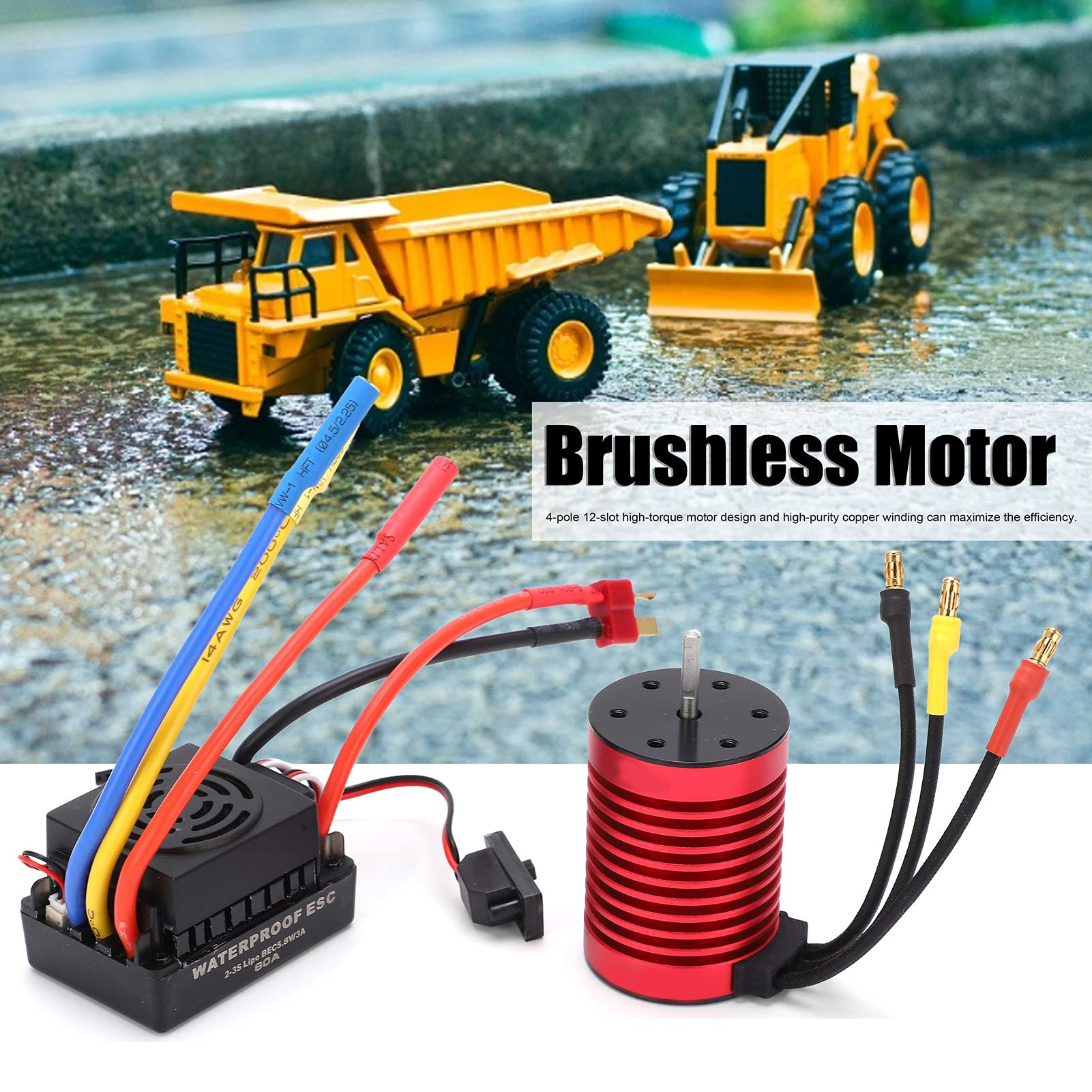

• 4-pole 12-slot Motor Design--The brushless motor unit uses a 4-pole 12-slot motor design, equipped with high-purity copper windings, maximized efficiency and long service life.
• Safe to Use--The brushless motor unit has a high safety factor and multiple protection functions, such as low voltage cut-off protection, overheat protection, and throttle signal loss protection functions.
• Extend the Use Time--The brushless motor unit can achieve maximum energy conversion, save energy, extend the use time, and improve the excellent use experience.
• Reliable and Stable--The brushless motor unit has enhanced throttle response, excellent acceleration, strong braking and throttle linearity, the best reliability, and the highest speed.
• Service Guarantee--If you have any questions about our brushless motor + ESC group, you can contact us by email at any time, we will reply and solve your problem in time, and strive to provide better service.

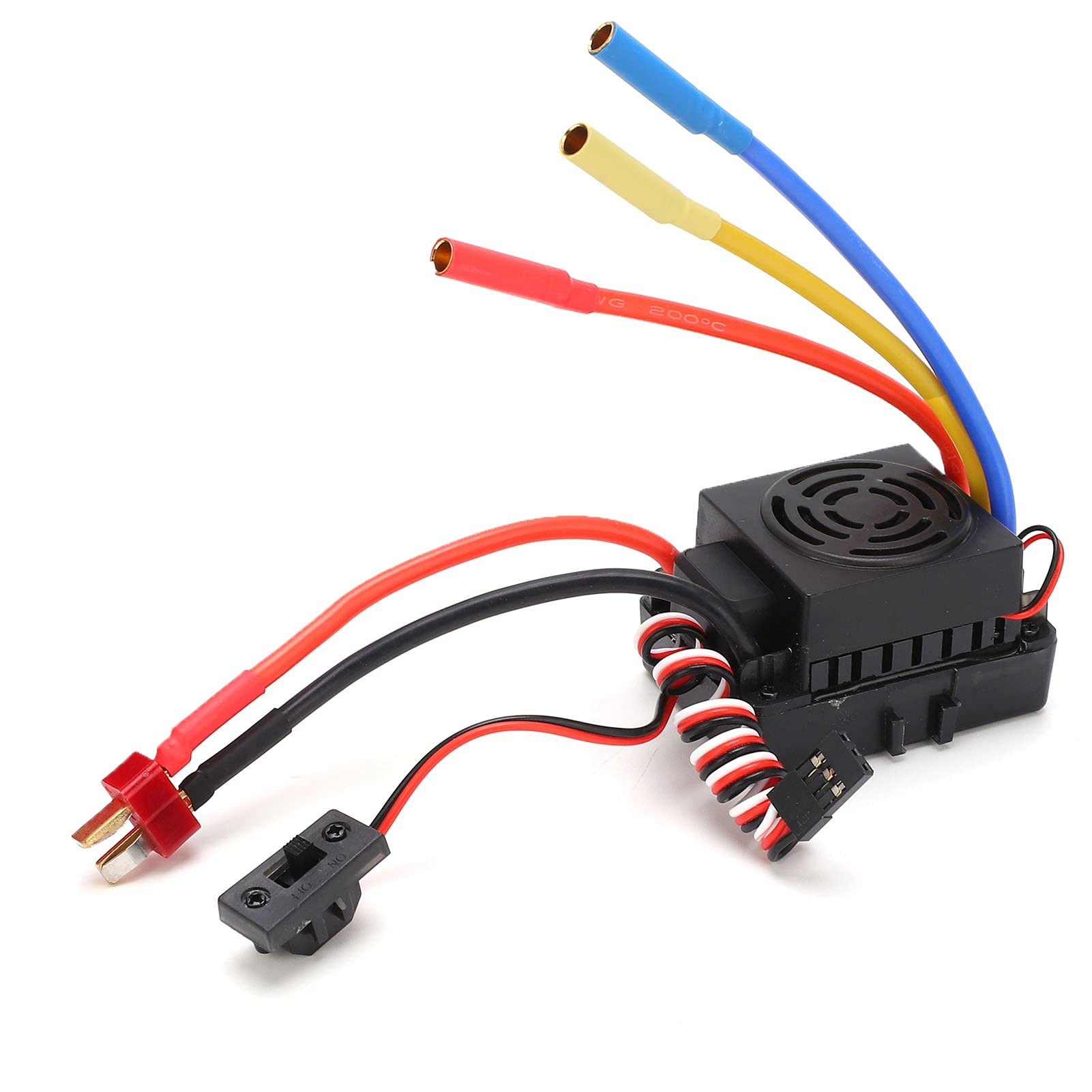

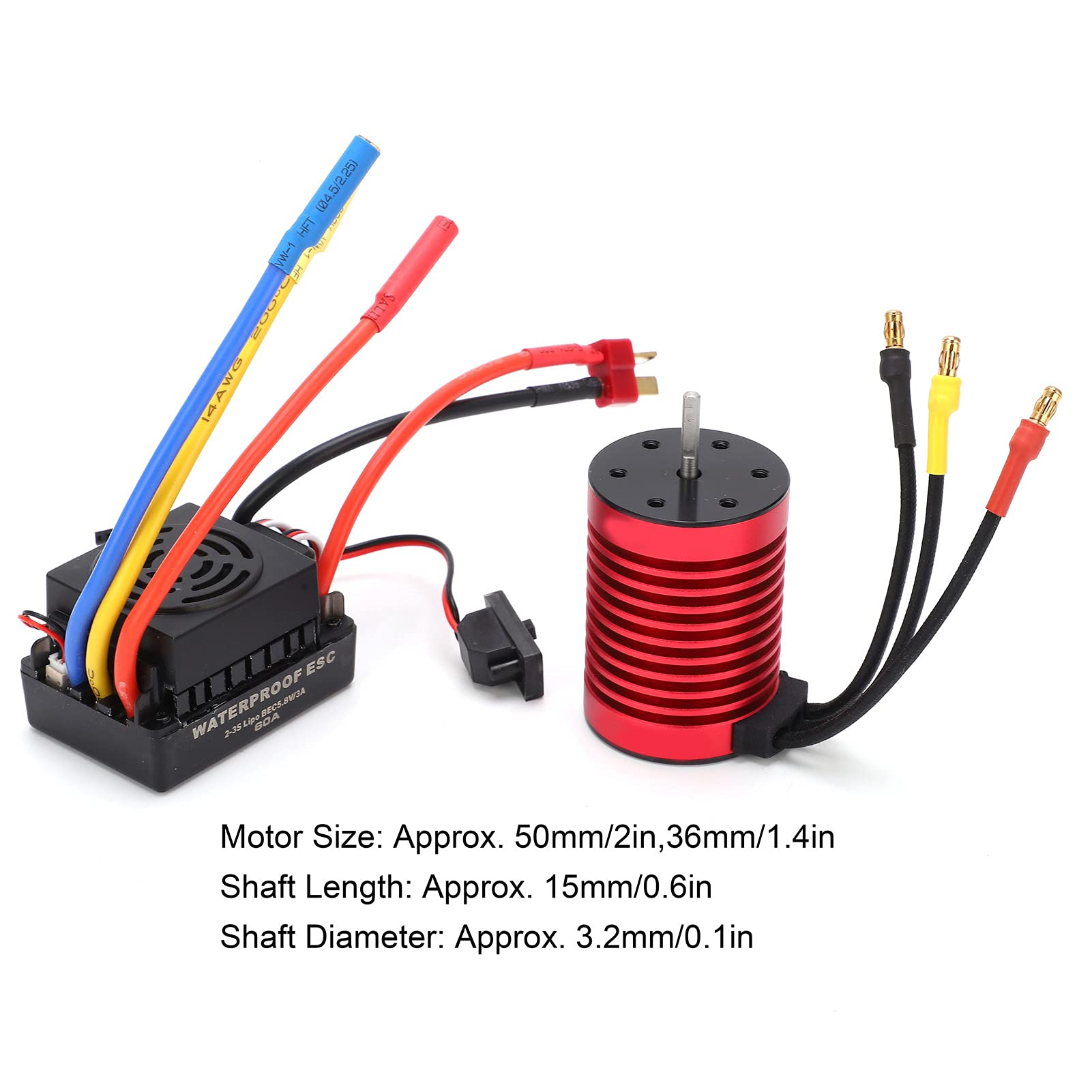

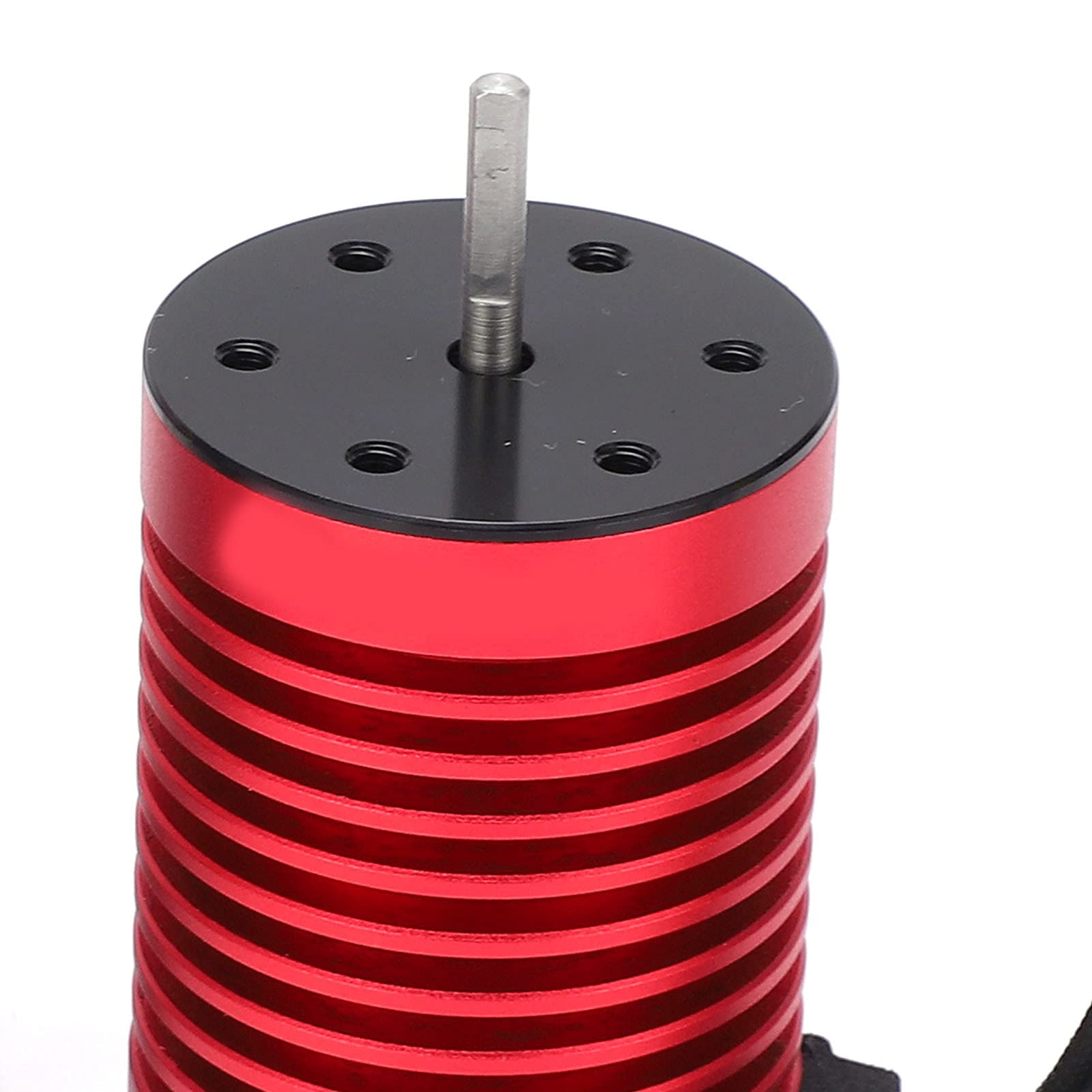

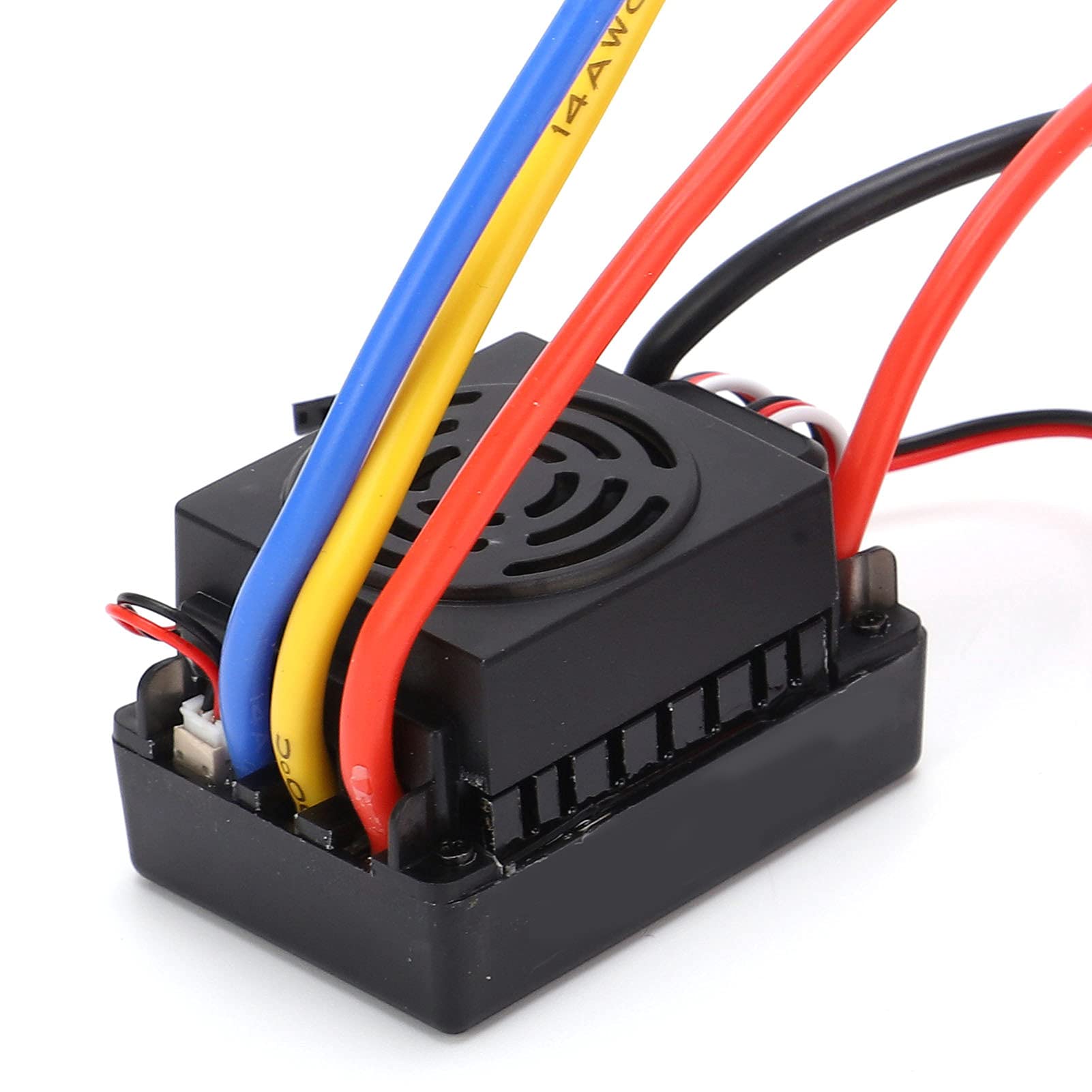

How to Use: 1. Connect the BEC line to the receiver 2. Connect the motor leading to the ESC 3. Turn on the transmitter 4. Connect the battery pack to the ESC, and then turn on the ESC. 5. After the connection of the motor and the battery is completed, the motor will make a "buzzing" sound. 6. When the throttle lever is in the neutral position, the motor will re‑beep. 7. ESC is working. Specification: Item Type: 540 Motor+ESC Set Material: Aluminum Alloy+Plastic Motor: Color: Red Motor Size: Approx. 50x36mm/2x1.4in Voltage: 820W Maximum Voltage: <13V Maximum Current: 60A KV(RPM/Volt): 3900KV Maximum Revolving Speed: 50000 Shaft Length: Approx. 15mm/0.6in Shaft Diameter: Approx. 3.2mm/0.1in Plug Type: 4mm Banana Plug ESC: Sustained Current: 60A Suitable Battery: 2-3S Li-Po/4-9S Ni-Mh Ni-Cd (Not included) BEC Output: 5.8/3A Plug: Male T Plug Compatibility: for 1/10 RC Car Weight: Approx. 229g/8.1oz Package List: 1 x Brushless Motor1 x Brushless ESC 1 x Instruction
