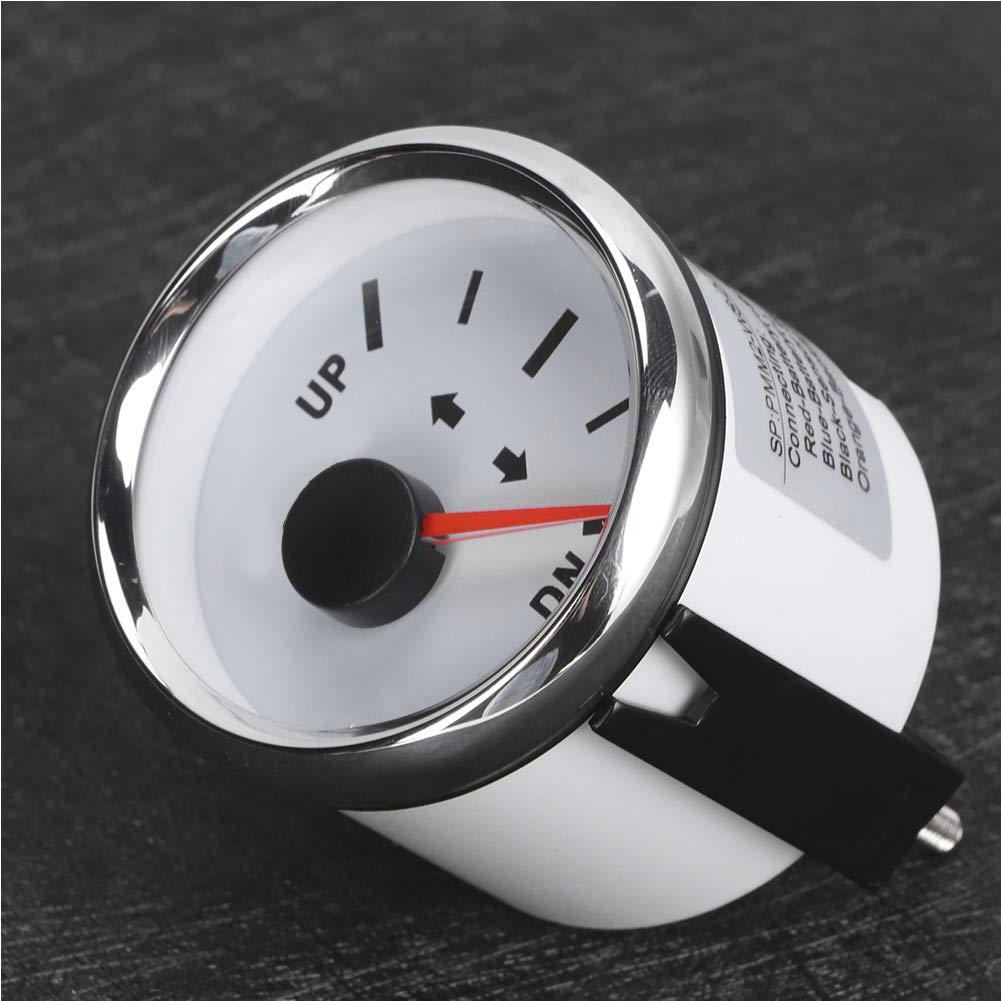

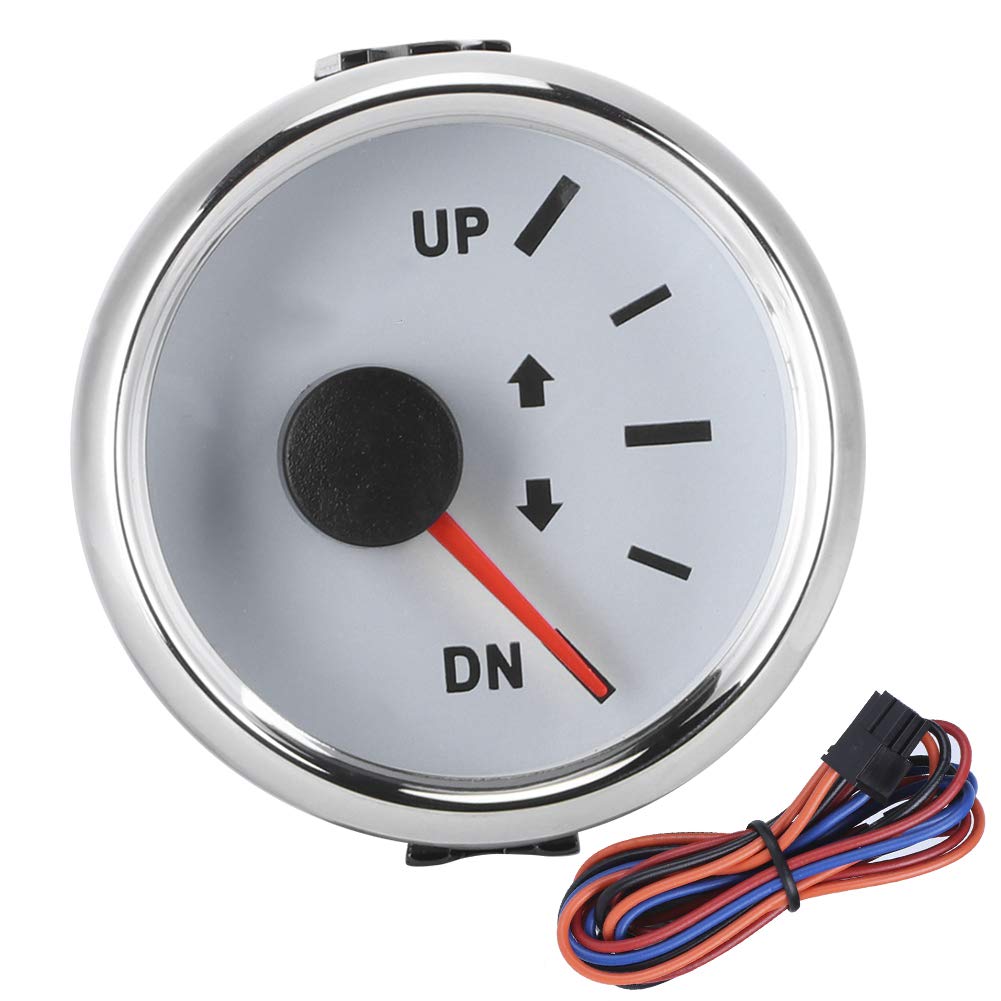

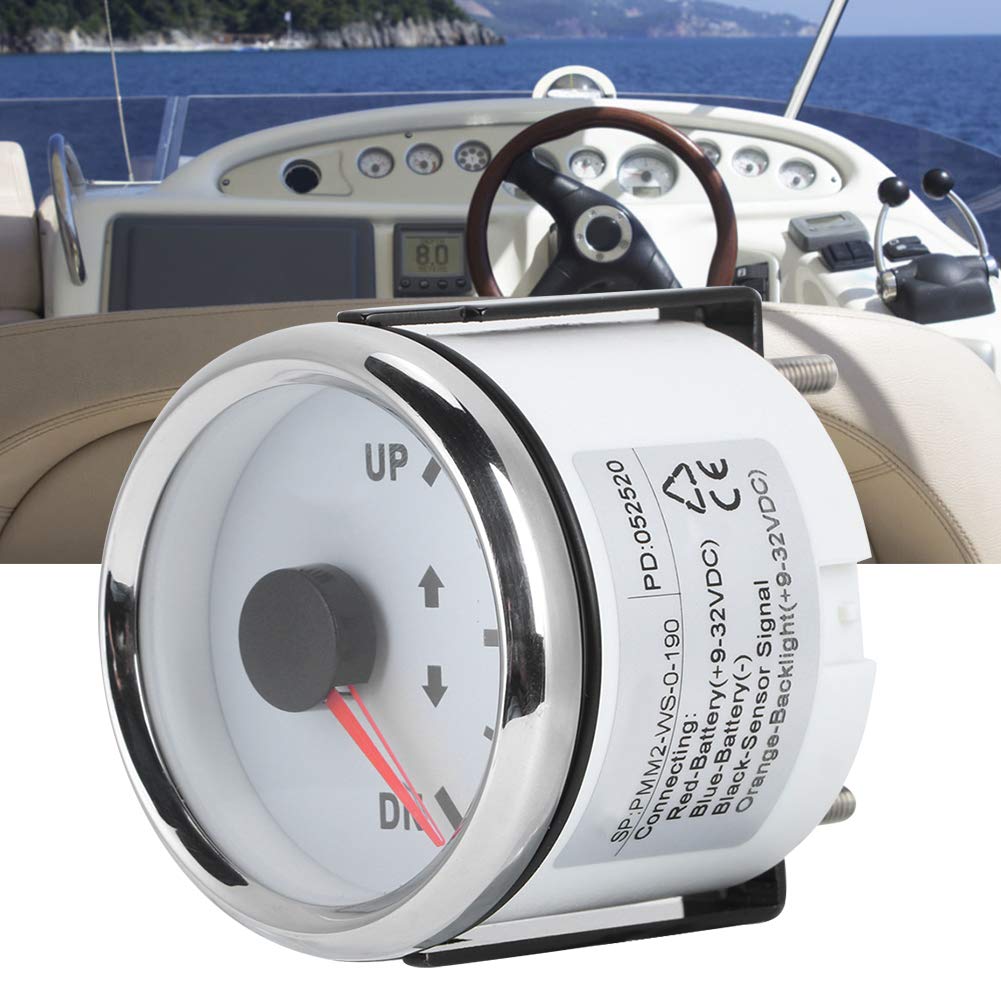

52mm/2in UP-DN Boat Trim Gauge 0-190ohm Marine Boat Trim Gauge Kit Signal Trim Tilt Indicator Red Backlight(White Dial)

• ★【IP67 Waterproof】This boat trim gauge adopts industrial-grade electronic components and structural parts, can withstand the working temperature of -30 - + 75 ℃. Super waterproof structure designed, IP67 waterproof and dustproof, can work underwater the depth of 1m for trim gauge for boat
• ★【IP67 Waterproof】This boat trim gauge adopts industrial-grade electronic components and structural parts, can withstand the working temperature of -30 - + 75 ℃. Super waterproof structure designed, IP67 waterproof and dustproof, can work underwater the depth of 1m for champion bass boat trim gauge
• ★【IP67 Waterproof】This boat trim gauge adopts industrial-grade electronic components and structural parts, can withstand the working temperature of -30 - + 75 ℃. Super waterproof structure designed, IP67 waterproof and dustproof, can work underwater the depth of 1m for trim gauge for omc
• ★【IP67 Waterproof】This boat trim gauge adopts industrial-grade electronic components and structural parts, can withstand the working temperature of -30 - + 75 ℃. Super waterproof structure designed, IP67 waterproof and dustproof, can work underwater the depth of 1m for sierra drive trim gauge white
• ★【Low Power Consumption】Using ultra-wide working voltage designed, 9-32V long-term working voltage, and can up to 36V (≤ 1 minute). Ultra-low power consumption, working current≤60mm, dependable to use for trim and tilt gauge

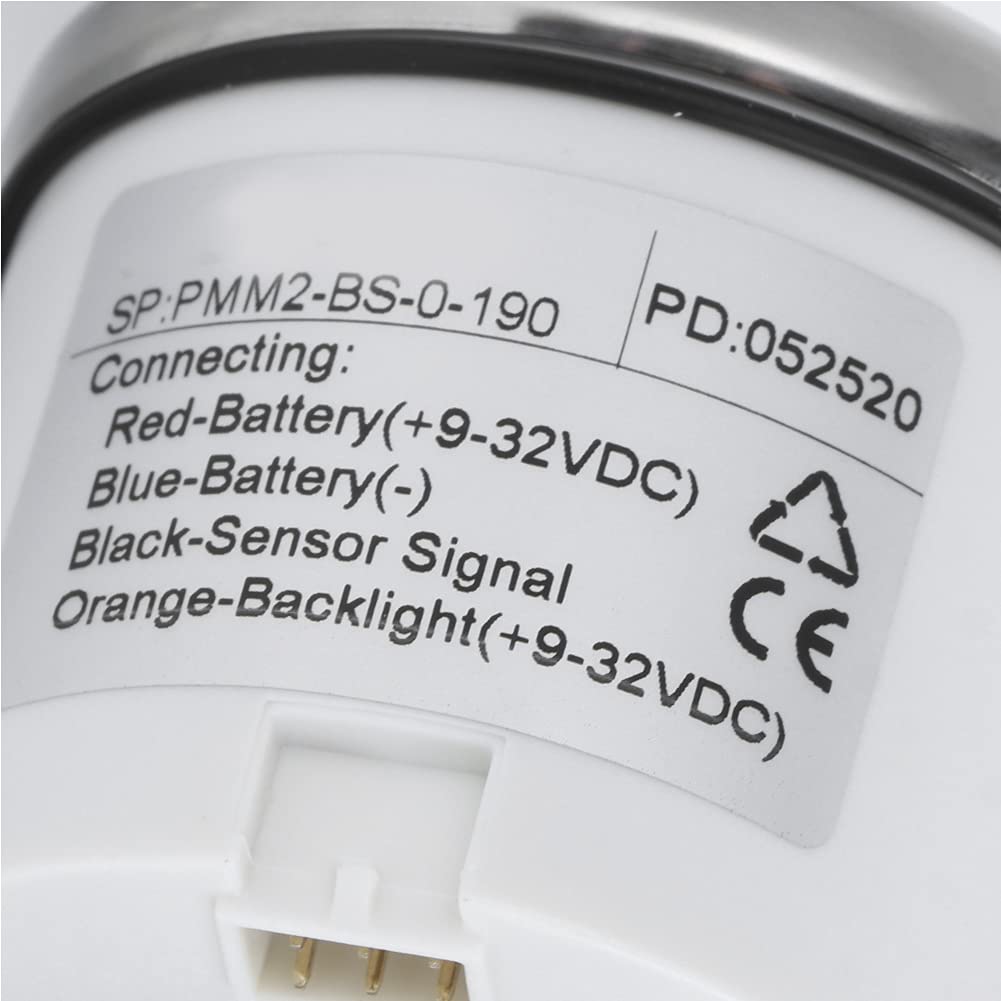

Specification: Condition: 100% Brand New Item Type: Boat Trim Gauge Material: Stainless steel + nickel-plated plastic Color: As picture shown Optional Type: Black Dial Silver Frame, White Dial Silver Frame Diameter: Approx. 52mm/2in Operating Current: ≤60mm Operating Voltage: 12V 24VLong Term Operating Voltage: 9-32V (Maximum 36V ≤1min) Connectioning: Red-Battery(+9-32VDC) Blue-Battery(-) Black-Signal Orange/Yellow-Blacklight(+9-32VDC) Indicating Range: UP-DN Signal: 0-190ohm Protection Class: IP67, can work underwater 1m position Application: Suitable for engines, generator sets, ships, construction machinery, agricultural machinery, modified vehicles and other fields. Package List: 1 x Boat Trim Gauge 1 x Connect Cable 1 x Manual
