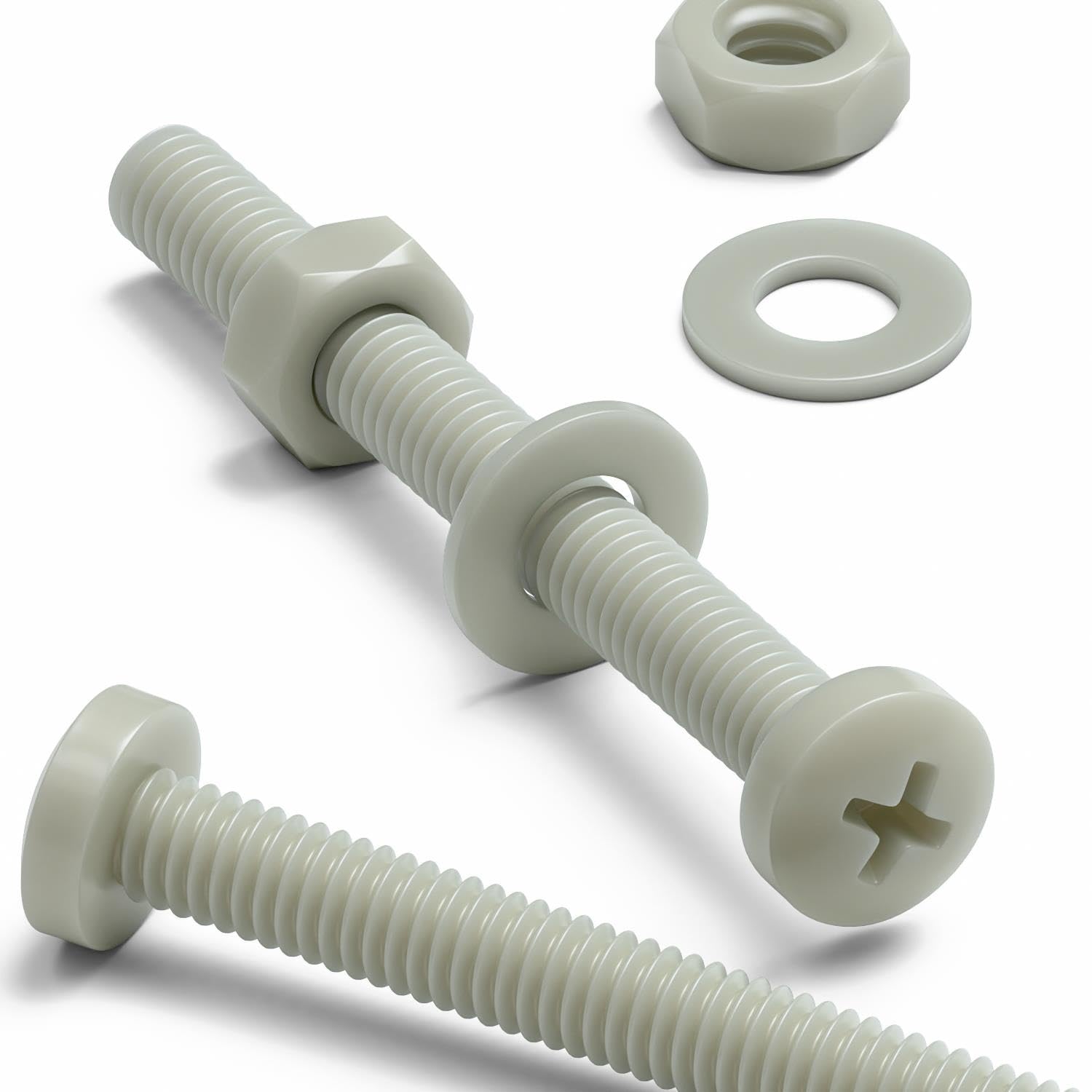

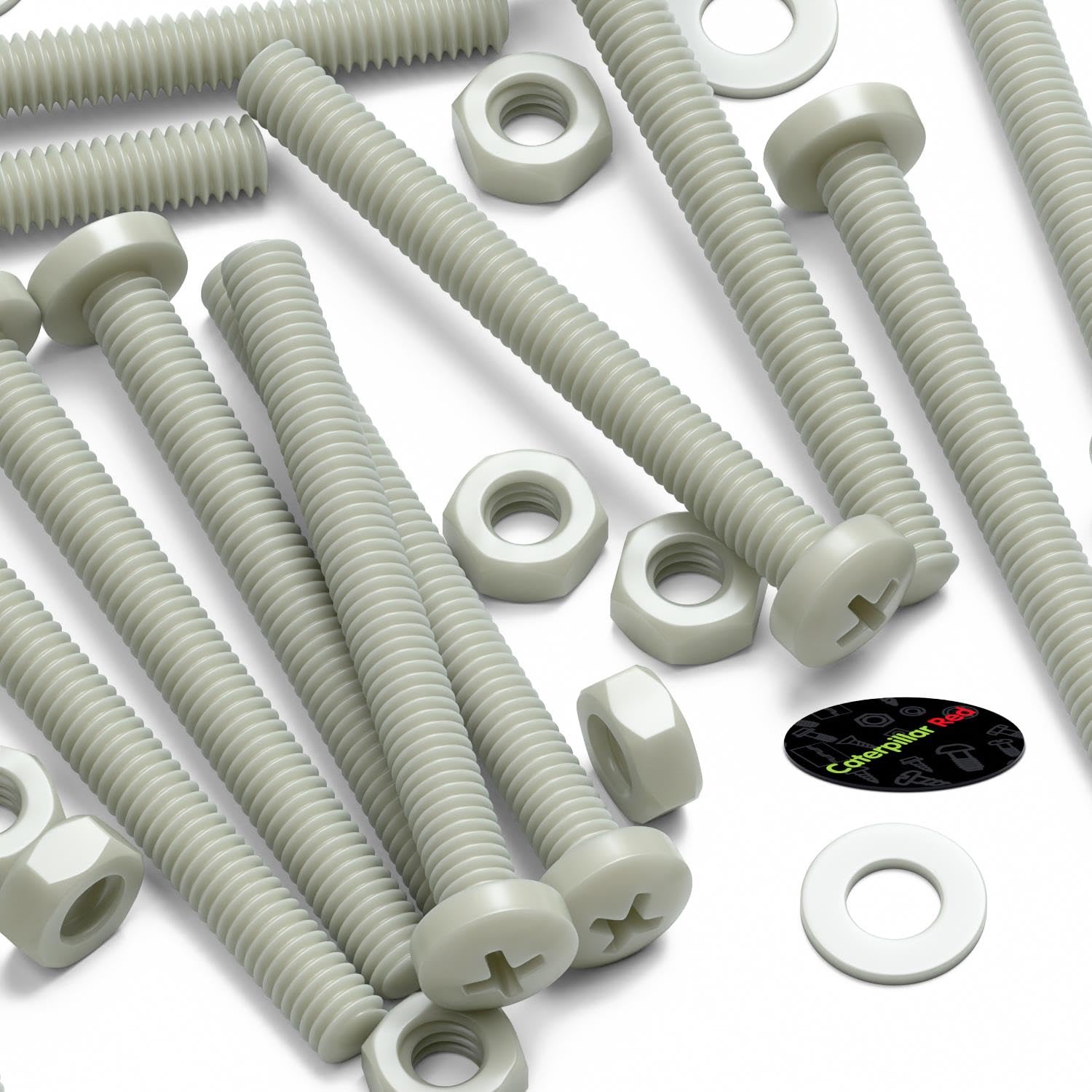

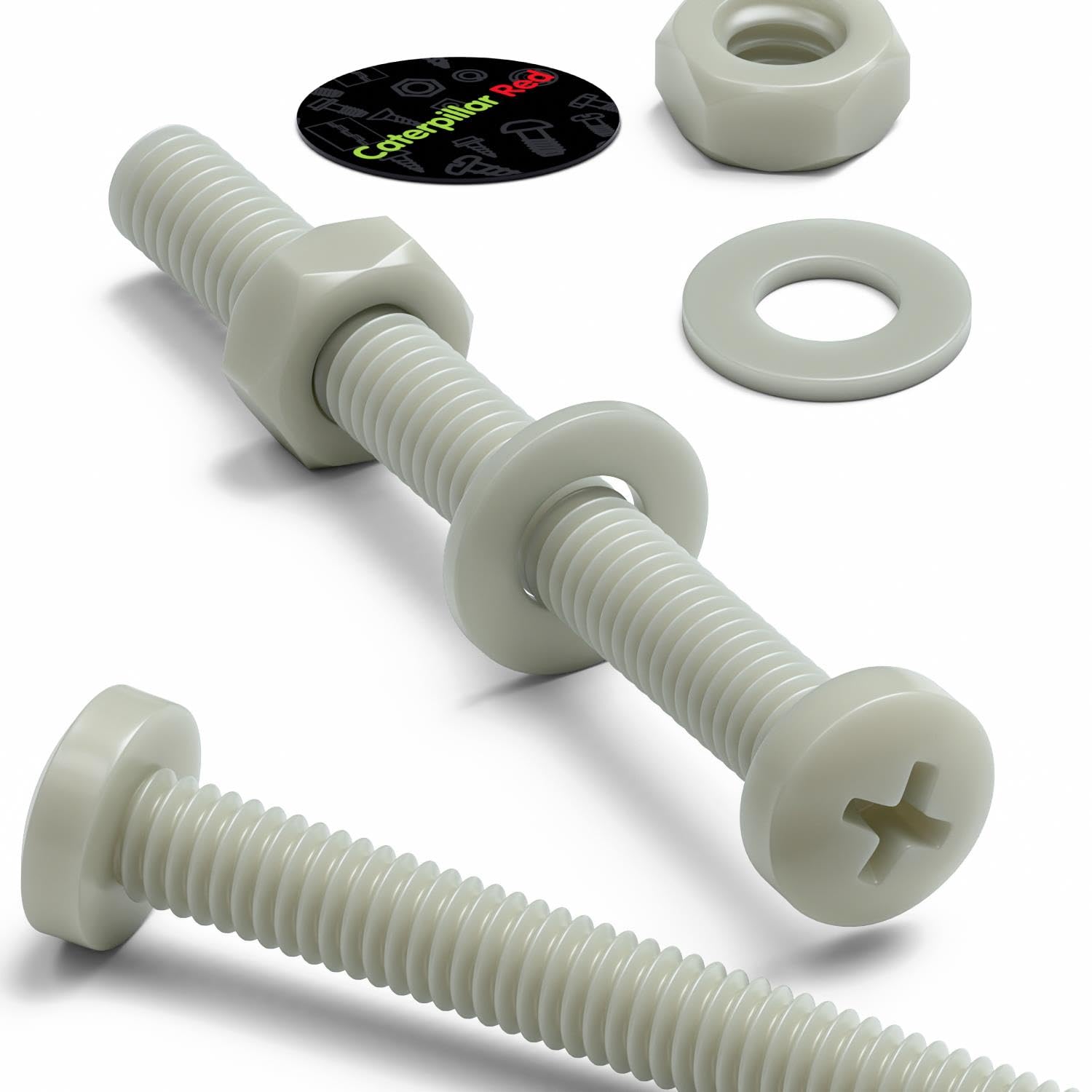

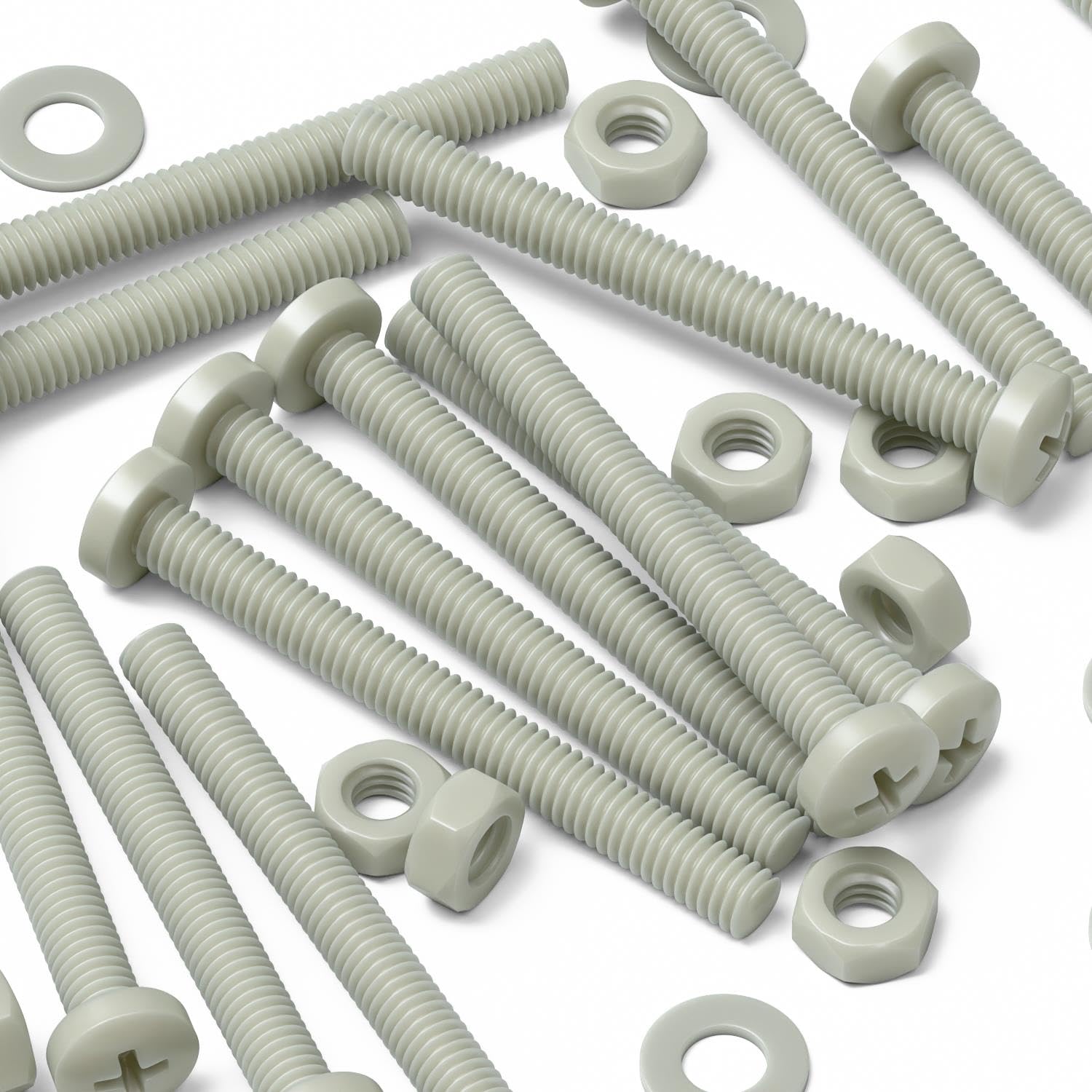

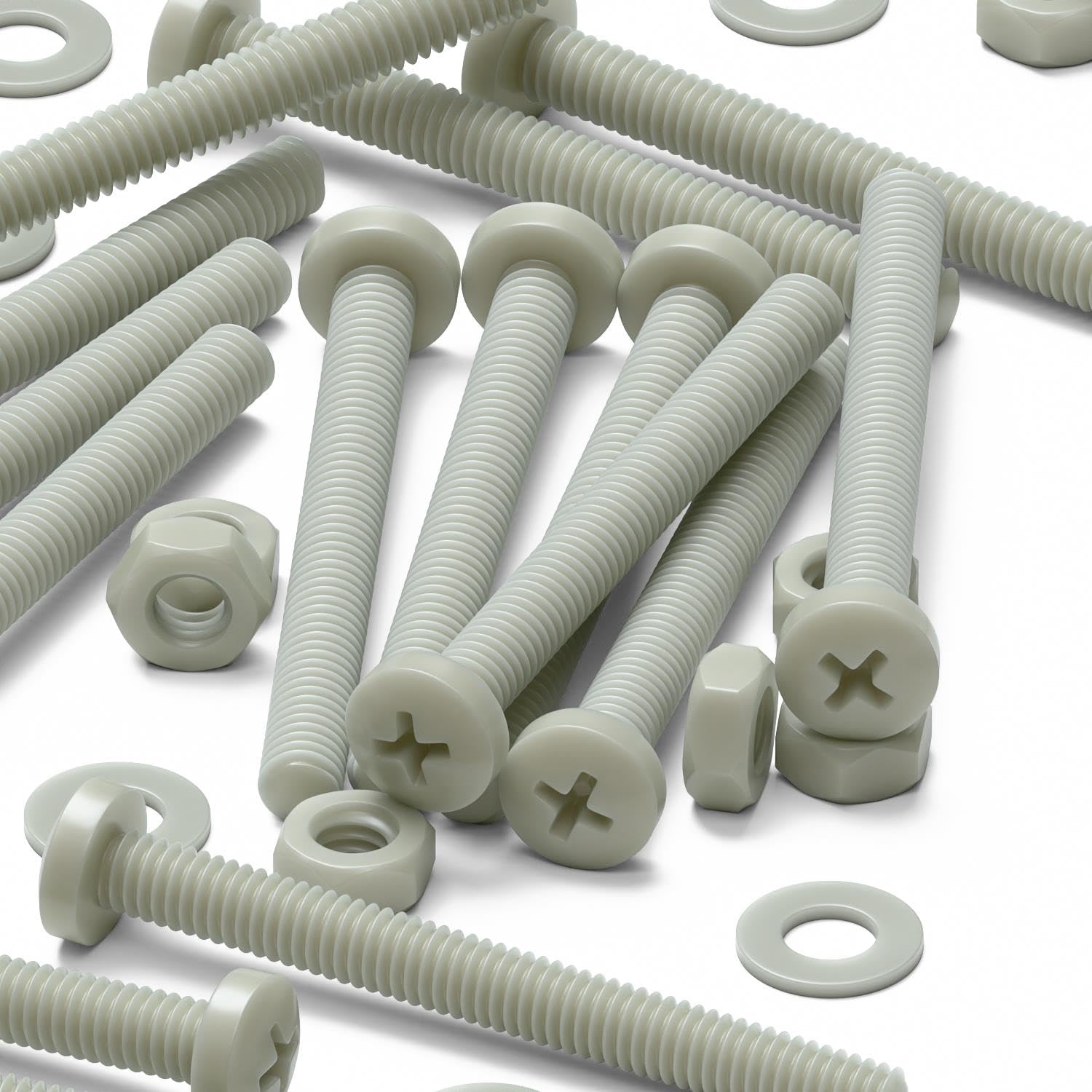

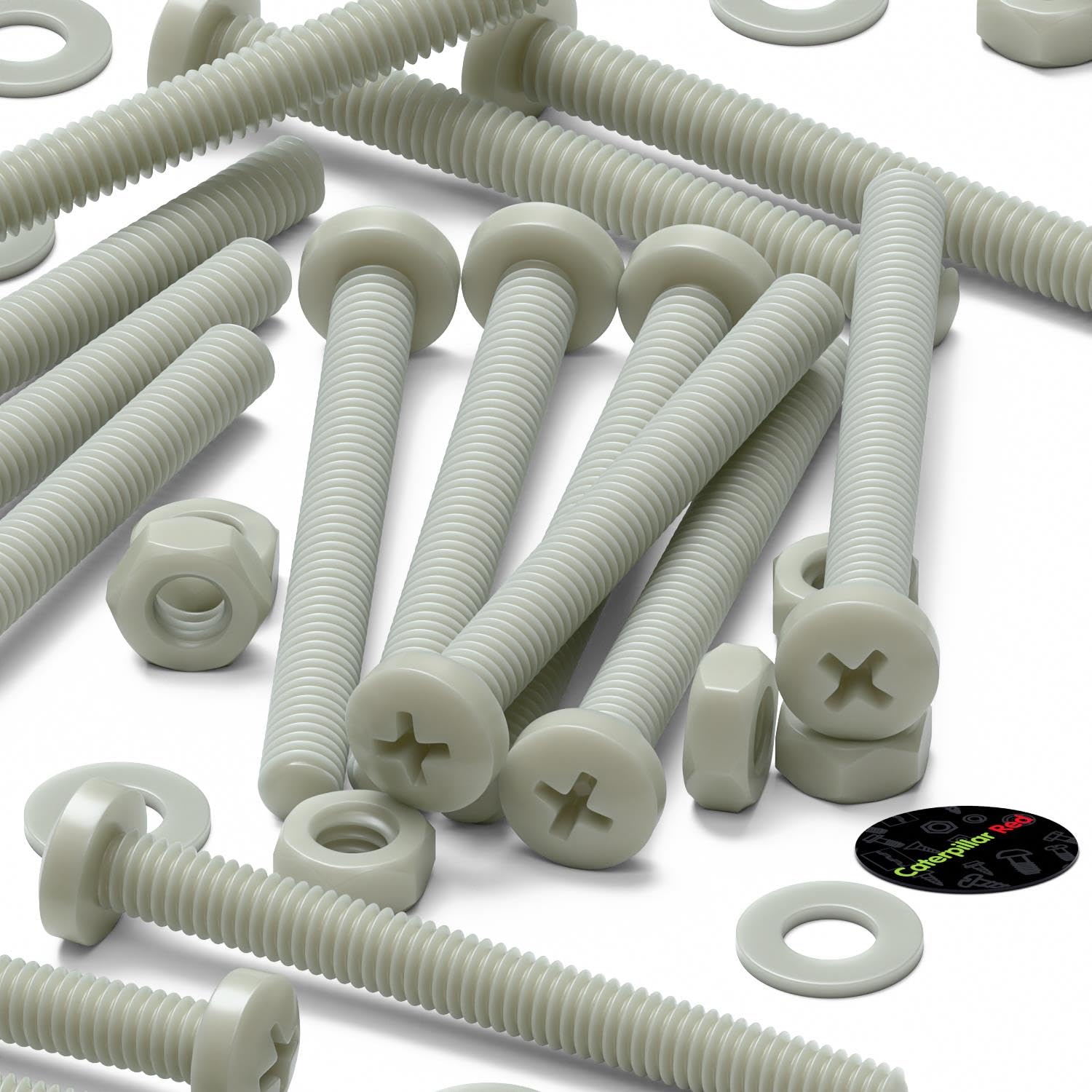

50 x Glass Filled Reinforced Super Nylon Pan Head, Crosshead Machine Screws, M4 x 40mm, Plastic Nuts and Bolts, Washers,

• 50x Bolts, 50x Nuts, 50x Washers. Material: PA 66 / 50% GF. Type: Pan Cross Head Bolts. Length: 40mm. Diameter: 4mm. Pitch: 0.7mm. SKU: 501.
• Our 50% glass fibre (GF) filled material has superior tensile, flexural and impact strength, enabling it to be used in load bearing applications.
• Glass fiber reinforcement was introduced to PA66 to improve its mechanical properties and thermal stability, enabling its use in demanding applications.
• The addition of glass fibers enhances the heat deflection temperature, enabling the material to perform reliably at elevated temperatures.
• Cross drive design for screwdriver installation and wide underside for even load distribution.

Please refer to the technical image for size details. All measurements are in millimetres/millimeters. || - Product Specifications - || Product_SKU: 501. Product_Type: Pan Cross Head Bolts. Product_Size: M4 x 40mm. Product_Colour: Natural. Product_Quantity: 50 Pack. Product_Pitch (mm): 0.7mm. Product_Length (mm): 40mm. Product_Width (mm): 4mm. Product_Depth/Thickness (mm): 4mm. || - Reference Details - || Primary_Material: Nylon PA 66 / 50% Glass Fibre Reinforced. Secondary_Material: . Type_Reference: Pan Cross Head Bolts. || Product_With_Tape?: . Product_With_Nib?: . Product_Vial_Accuracy: . || - Additional Specifications - || Nut Product Image Drawing References: Stock Code: CR06369PA+GF Material: Polyamide+fiberglass Material Reference: PA+GF/HN Head/Drive Type: Hexagon Nut size: M4 N (mm): M4 HN B: 6.89 mm HN H: 3.05 mm. || Bolt Product Image Drawing References: Stock Code: CR03013PA+GF Head/Drive Type: Cross Pan Head Bolt size: M4 x 40 D: 4 mm Pitch: 0.7 mm L: 40 mm HD: 7.82 mm HH: 3.01 mm. || - Additional Description - While the melting point remains largely unchanged, the heat distortion temperature of PA66+GF is superior to that of PA66, meaning that the composite can withstand higher temperatures before beginning to deform under load. The composite exhibits reduced moisture absorption, a significant improvement over PA66's susceptibility to moisture. Common applications include automotive components, industrial machinery and consumer goods where high strength and thermal resistance are required. Hex Bolts & Screws also known as plastic bolts, plastic screws, plastic bolt, plastic screw.. ||
