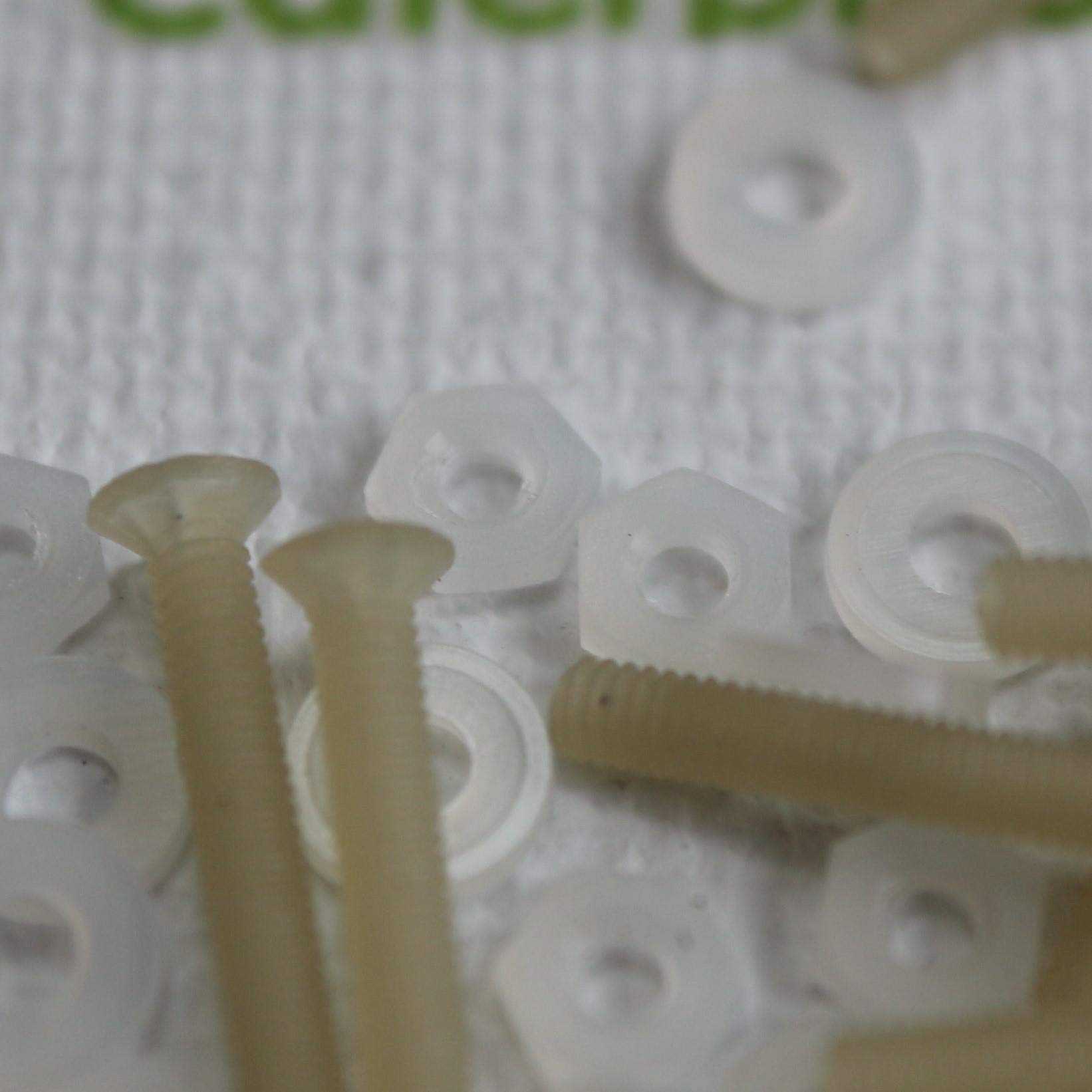

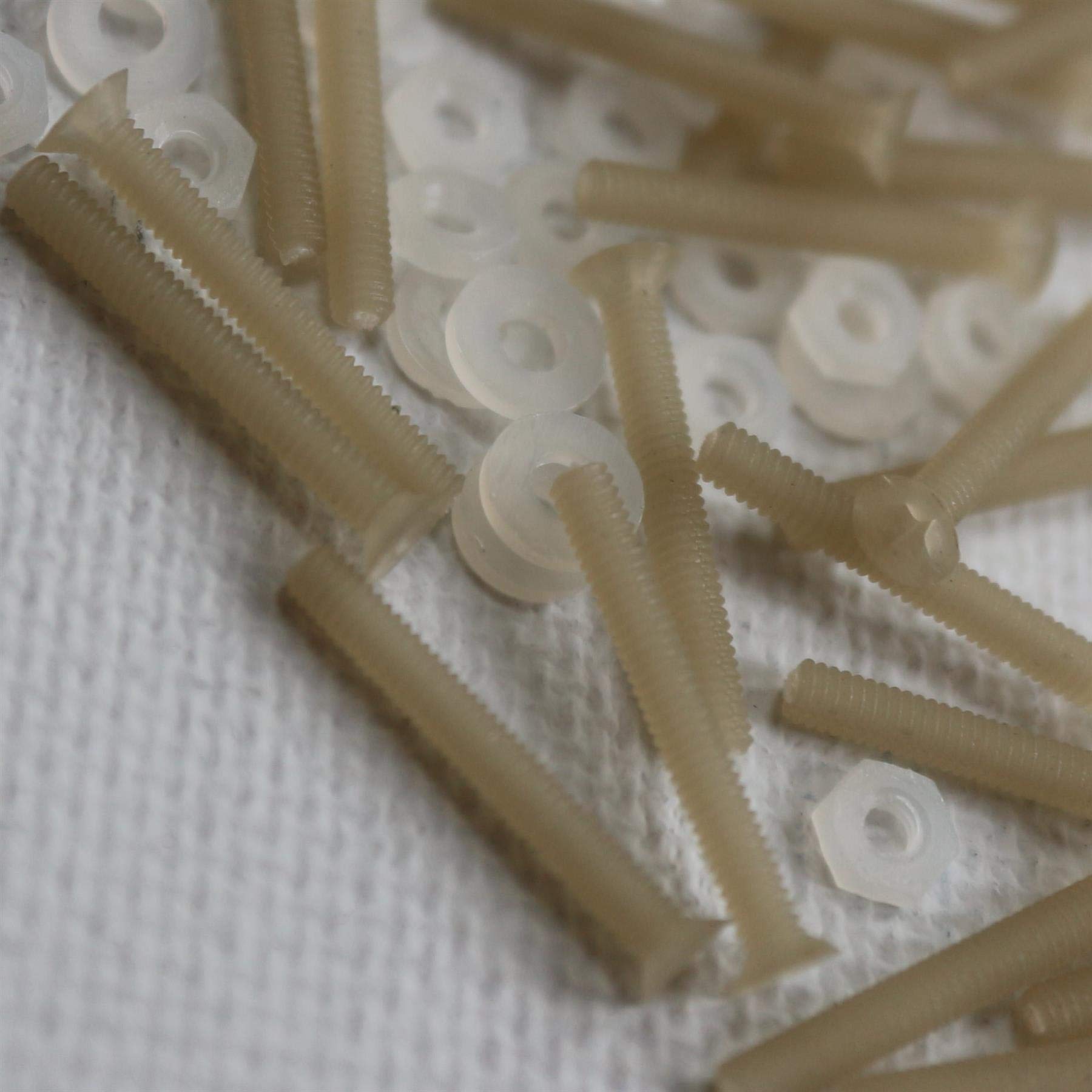

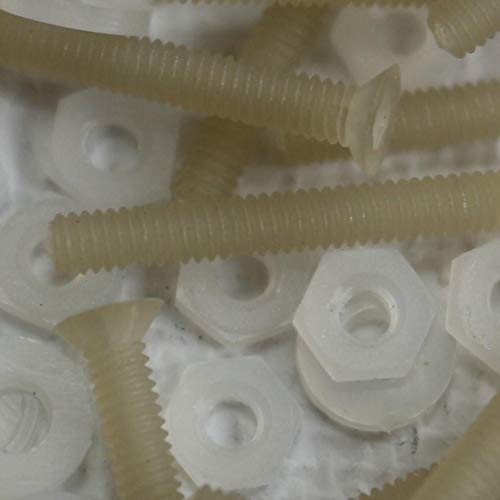

50 x Glass Filled Reinforced Super Nylon Countersunk Machine Screws, M3 x 25mm, Plastic Nuts and Bolts, Washers,

• 50x Bolts, 50x Nuts, 50x Washers. Material: PA 66 / 50% GF. Type: Countersunk Cross Head Bolts. Length: 25mm. Diameter: 3mm. Pitch: 0.5mm. SKU: 541.
• Our 50% GF demonstrates superior tensile and flexural strength, as well as impact resistance, enabling its use in load-bearing applications.
• Glass fiber-reinforced polyamide (PA66+GF) is a composite material derived from PA66 (nylon 66) and glass fibers.
• Improvements include greater tensile strength, deflection temperature, shear strength, and lower moisture absorption.
• Glass fibers improve tensile strength, stiffness, and impact resistance while reducing the material's susceptibility to creep under load.

Product description Please refer to the technical image for size details. All measurements are in millimetres/millimeters. || - Product Specifications - || Product_SKU: 541. Product_Type: Countersunk Cross Head Bolts. Product_Size: M3 x 25mm. Product_Colour: Natural. Product_Quantity: 50 Pack. Product_Pitch (mm): 0.5mm. Product_Length (mm): 25mm. Product_Width (mm): 3mm. Product_Depth/Thickness (mm): 3mm. || - Reference Details - || Primary_Material: Nylon PA 66 / 50% Glass Fibre Reinforced. Secondary_Material: . Type_Reference: Countersunk Cross Head Bolts. || Product_With_Tape?: . Product_With_Nib?: . Product_Vial_Accuracy: . || - Additional Specifications - || Nut Product Image Drawing References: Stock Code: CR06368PA+GF , Material: Polyamide+fiberglass , Material Reference: PA+GF/HN , Head/Drive Type: Hexagon Nut , Overall Size: M3 , N (mm): M3 , HN B: 5.41 , HN H: 2.28 ,. || Bolt Product Image Drawing References: Stock Code: CR04406PA+GF , Material: Polyamide+fiberglass , Material Reference: PA+GF/I0 , Head/Drive Type: Cross Countersunk Head Bolt , Overall Size: M3 x 25 , Metric Size: M3 , D: 3 , Pitch: 0.5 , L: 25 , HD: 5.35 , HH: 1.65 ,. || - Additional Description - While the melting point remains largely unchanged, the heat distortion temperature of PA66+GF is superior to that of PA66, meaning that the composite can withstand higher temperatures before beginning to deform under load. The composite exhibits reduced moisture absorption, a significant improvement over PA66's susceptibility to moisture. Please note that the bolts are 50% glass filled nylon. Due to manufacturing constraints, the nuts and washers are nylon (no glass fill).. || Manufacturer Contact Information info@caterpillar-red.com
