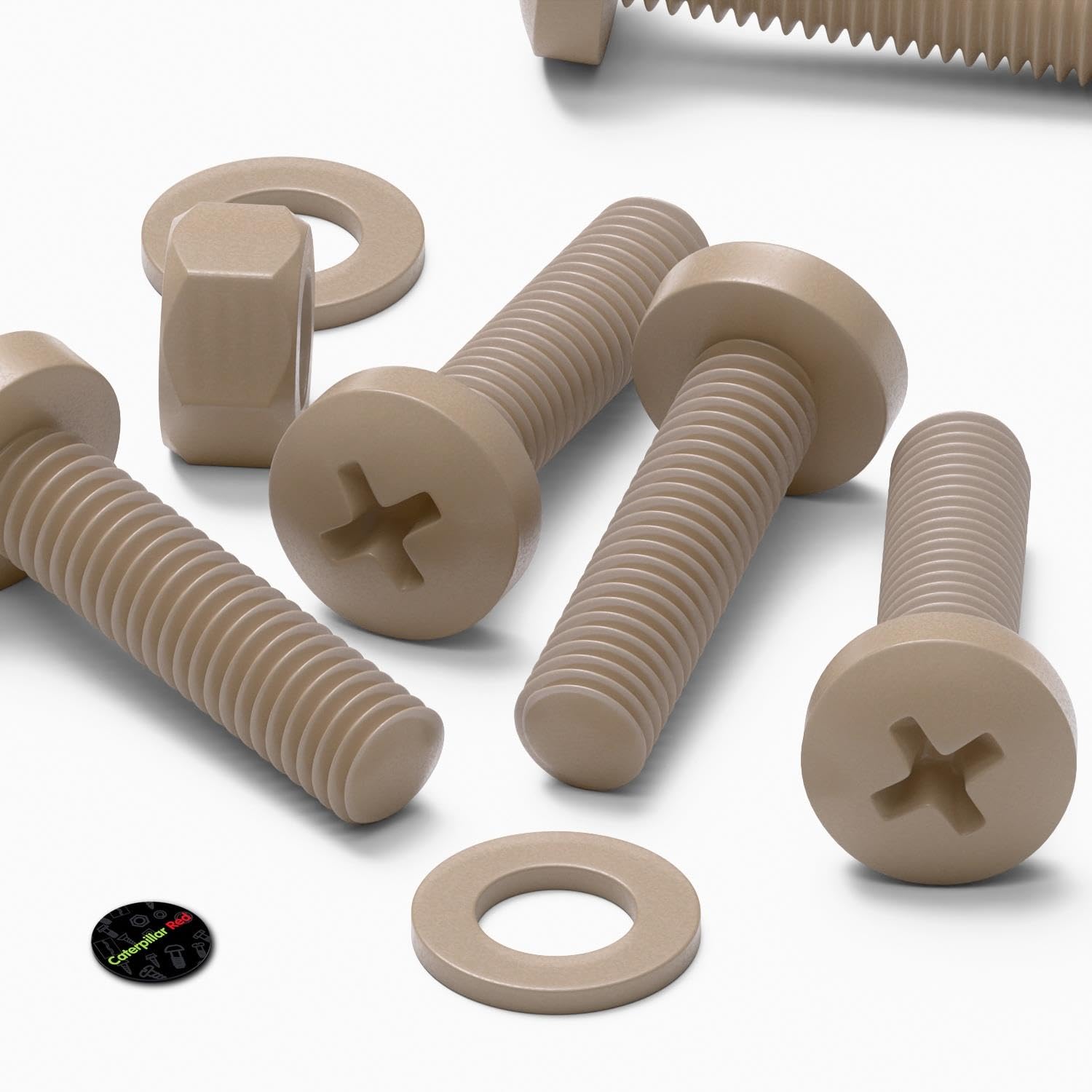

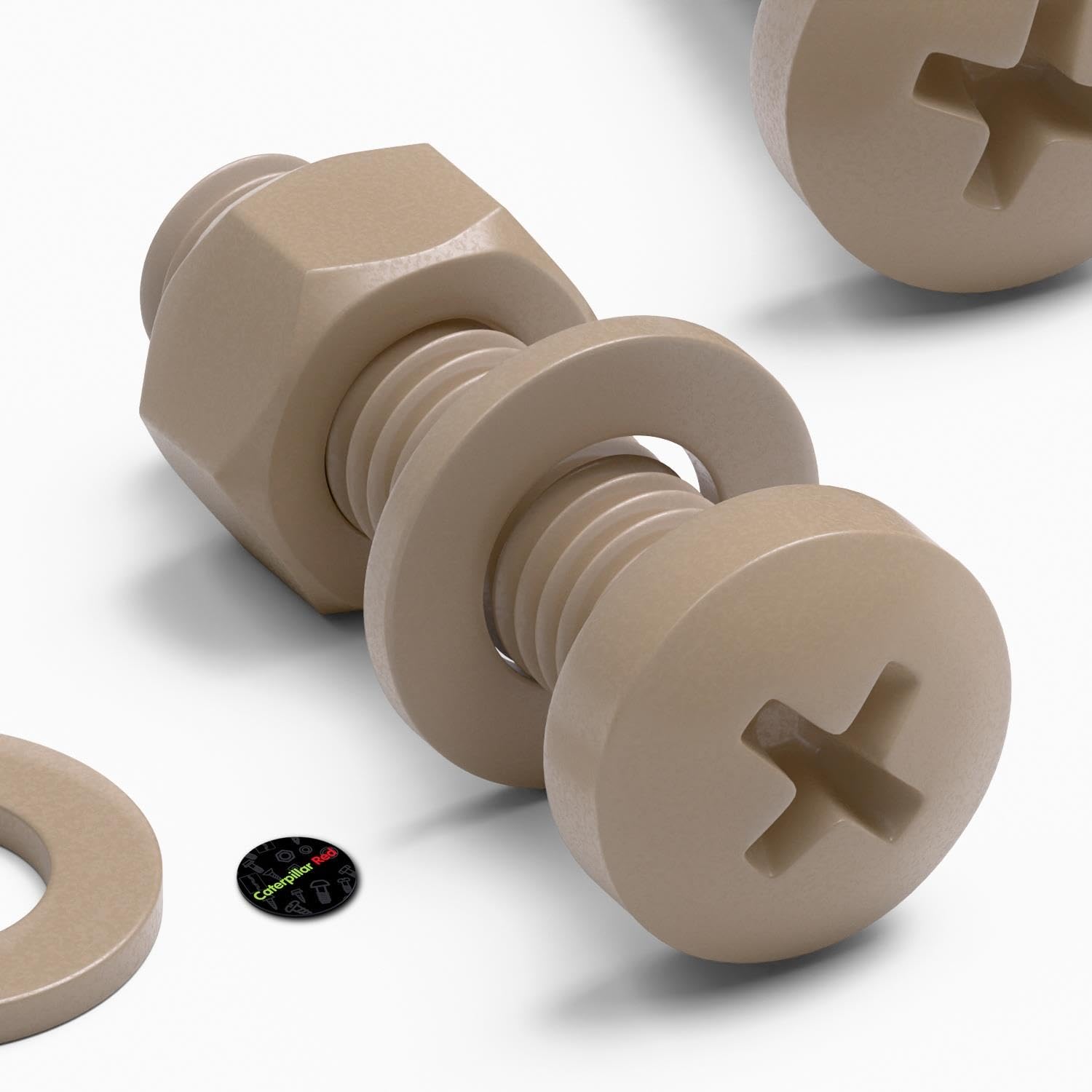

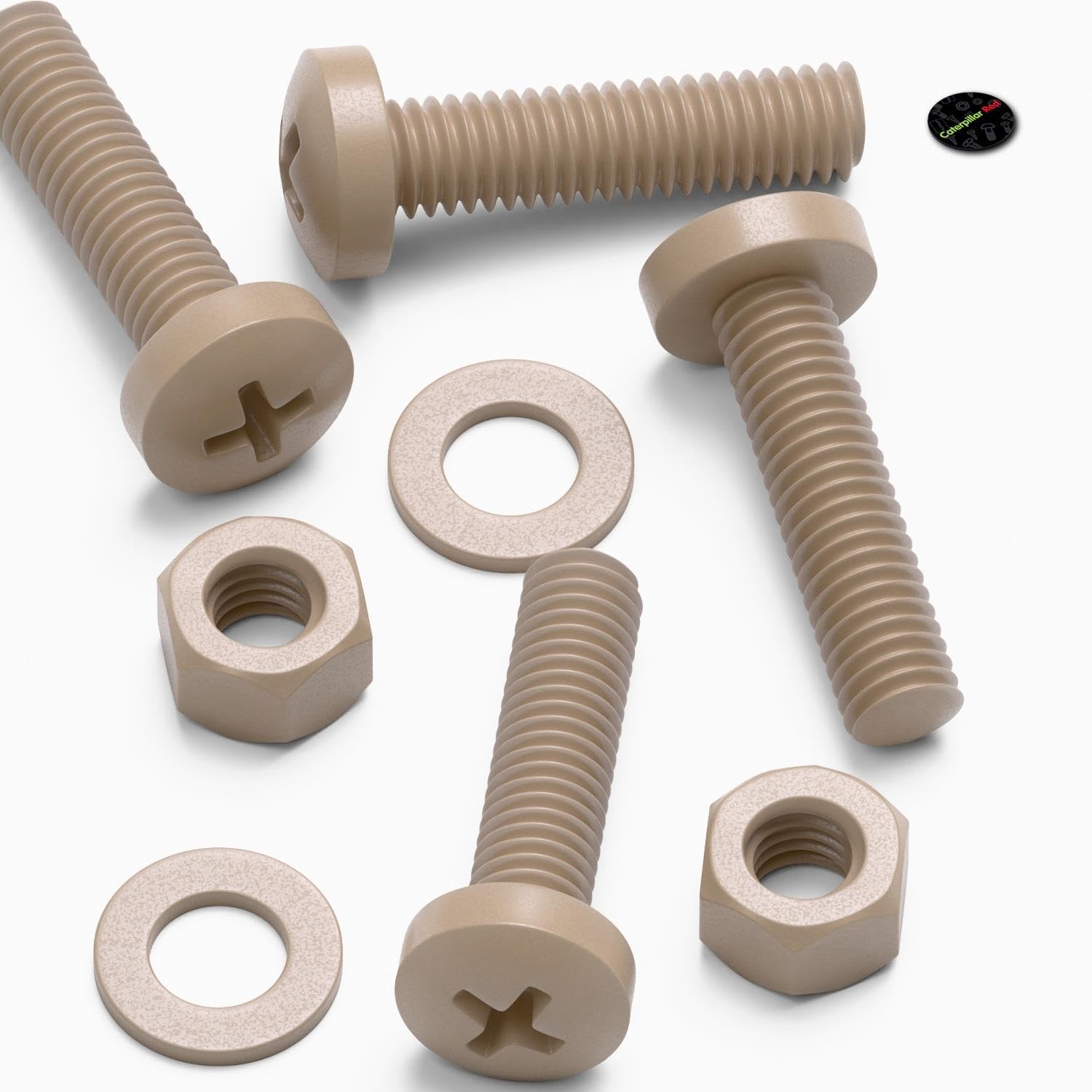

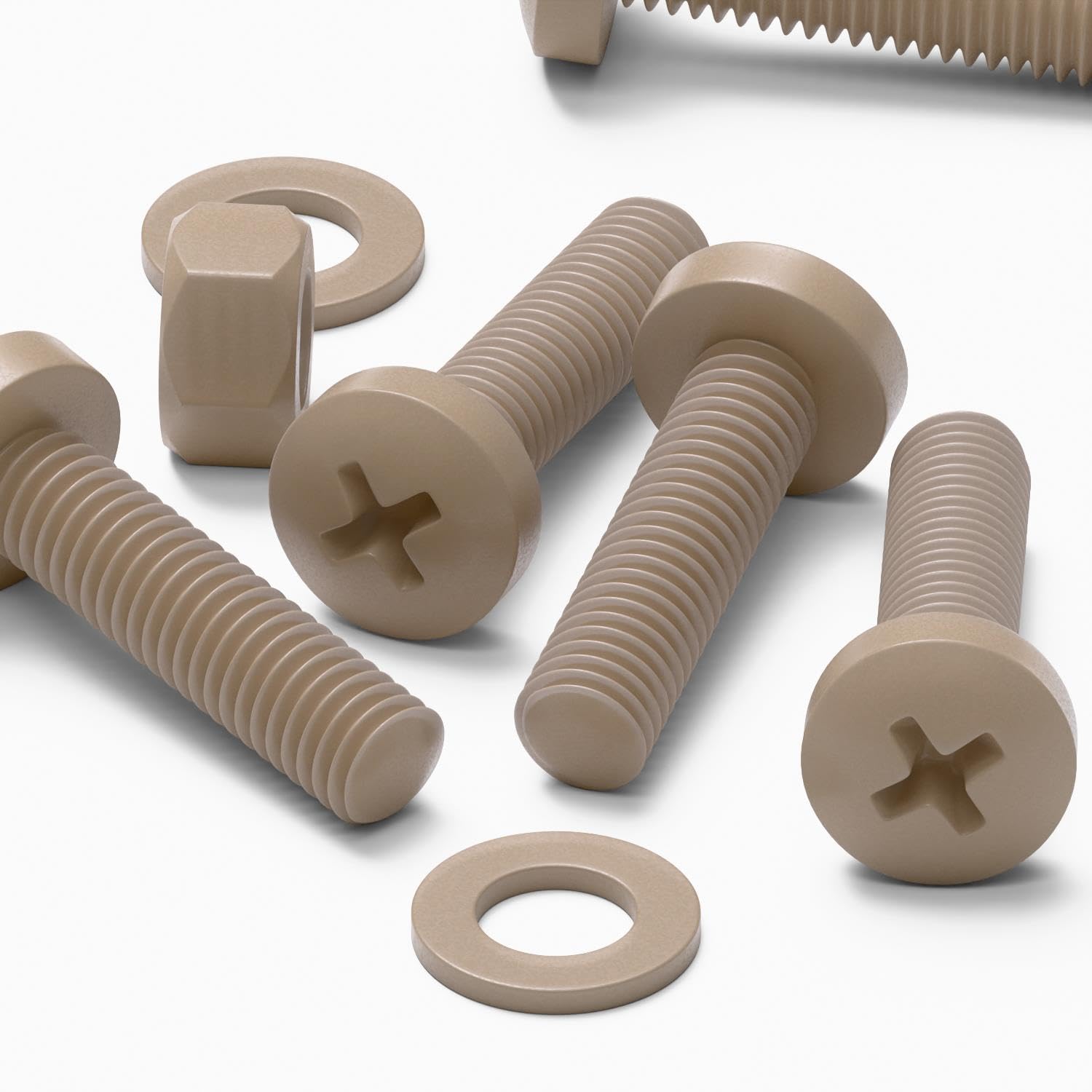

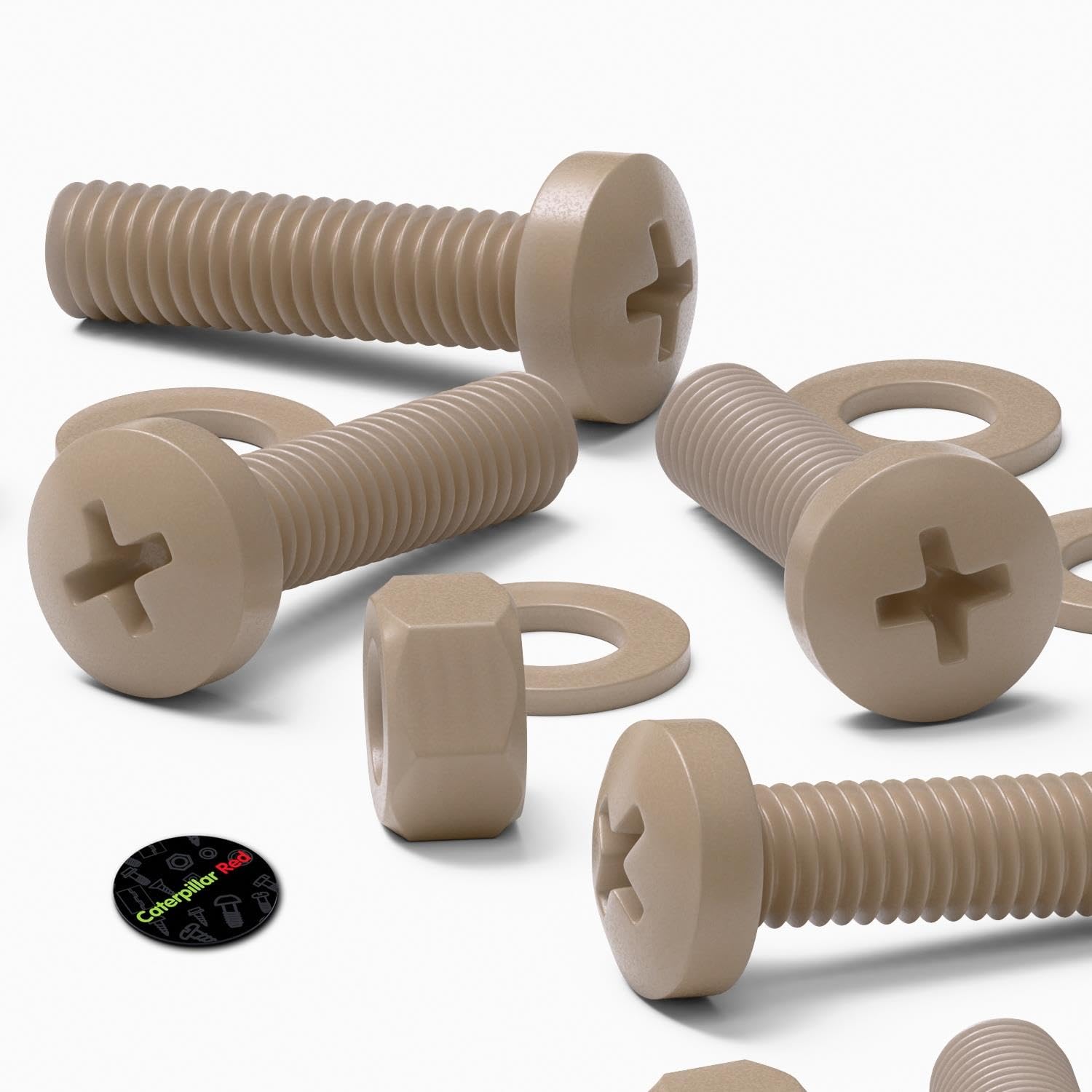

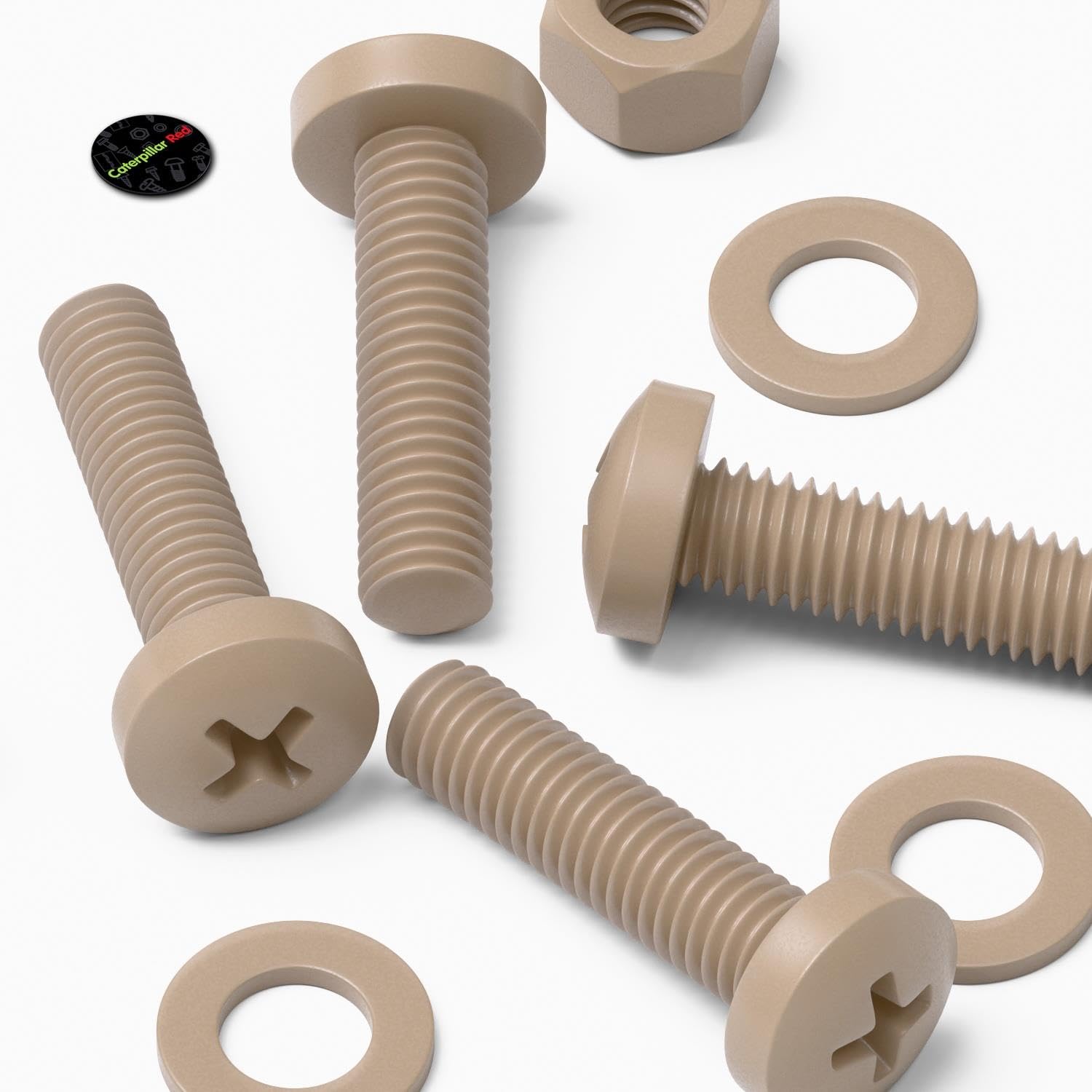

5 x PEEK Pan Head Screw M5 x 20mm Nuts & Bolts - Peek Plastic Nuts and Bolts, Anti Corrosion, Chemical Resistant, high Temperature Resistance, Non-Expanding

• 5x Bolts, 5x Nuts, 5x Washers. Material: PEEK. Type: Pan Cross Head Bolts. Length: 20mm. Diameter: 5mm. Pitch: 0.8mm. SKU: 306.
• PEEK demonstrates excellent chemical resistance to most acids (including strong acids like sulfuric acid), bases, and organic solvents.
• PEEK also has stable electrical insulating properties, even in high-heat environments.
• PEEK became a popular choice for the aerospace, automotive, and industrial sectors due to its excellent mechanical, chemical, and thermal properties.
• Cross drive design for screwdriver installation and wide underside for even load distribution.

Product description Please refer to the technical image for size details. All measurements are in millimetres/millimeters. || - Product Specifications - || Product_SKU: 306. Product_Type: Pan Cross Head Bolts. Product_Size: M5 x 20mm. Product_Colour: Natural. Product_Quantity: 5 Pack. Product_Pitch (mm): 0.8mm. Product_Length (mm): 20mm. Product_Width (mm): 5mm. Product_Depth/Thickness (mm): 5mm. || - Reference Details - || Primary_Material: PEEK / Polyether ether Ketone. Secondary_Material: . Type_Reference: Pan Cross Head Bolts. || Product_With_Tape?: . Product_With_Nib?: . Product_Vial_Accuracy: . || - Additional Specifications - || Nut Product Image Drawing References: Stock Code: CR06358PEEK , Material: Polyether ether ketone , Material Reference: PEEK/HN , Head/Drive Type: Hexagon Nut , Overall Size: M5 , N (mm): M5 , HN B: 7.89 , HN H: 4.55 ,. || Bolt Product Image Drawing References: Stock Code: CR03112PEEK , Material: Polyether ether ketone , Material Reference: PEEK/P0 , Head/Drive Type: Cross Pan Head Bolt , Overall Size: M5 x 20 , Metric Size: M5 , D: 5.0 , Pitch: 0.8 , L: 20 , HD: 9.32 , HH: 3.61 ,. || - Additional Description - Highly resistant to harsh chemicals, steam, water and seawater with excellent hydrolysis resistance. This engineering thermoplastic exhibits superior mechanical strength, dimensional stability and exceptional flexural, impact and tensile properties. It also has anti-corrosion properties and high dielectric strength at elevated temperatures. PEEK can be used in hot water or steam environments while maintaining its physical properties. Unique as a high performance semi-crystalline plastic, it offers unrivalled resistance to chemical attack and radiation, even at extreme temperatures.. || Manufacturer Contact Information info@caterpillar-red.com
