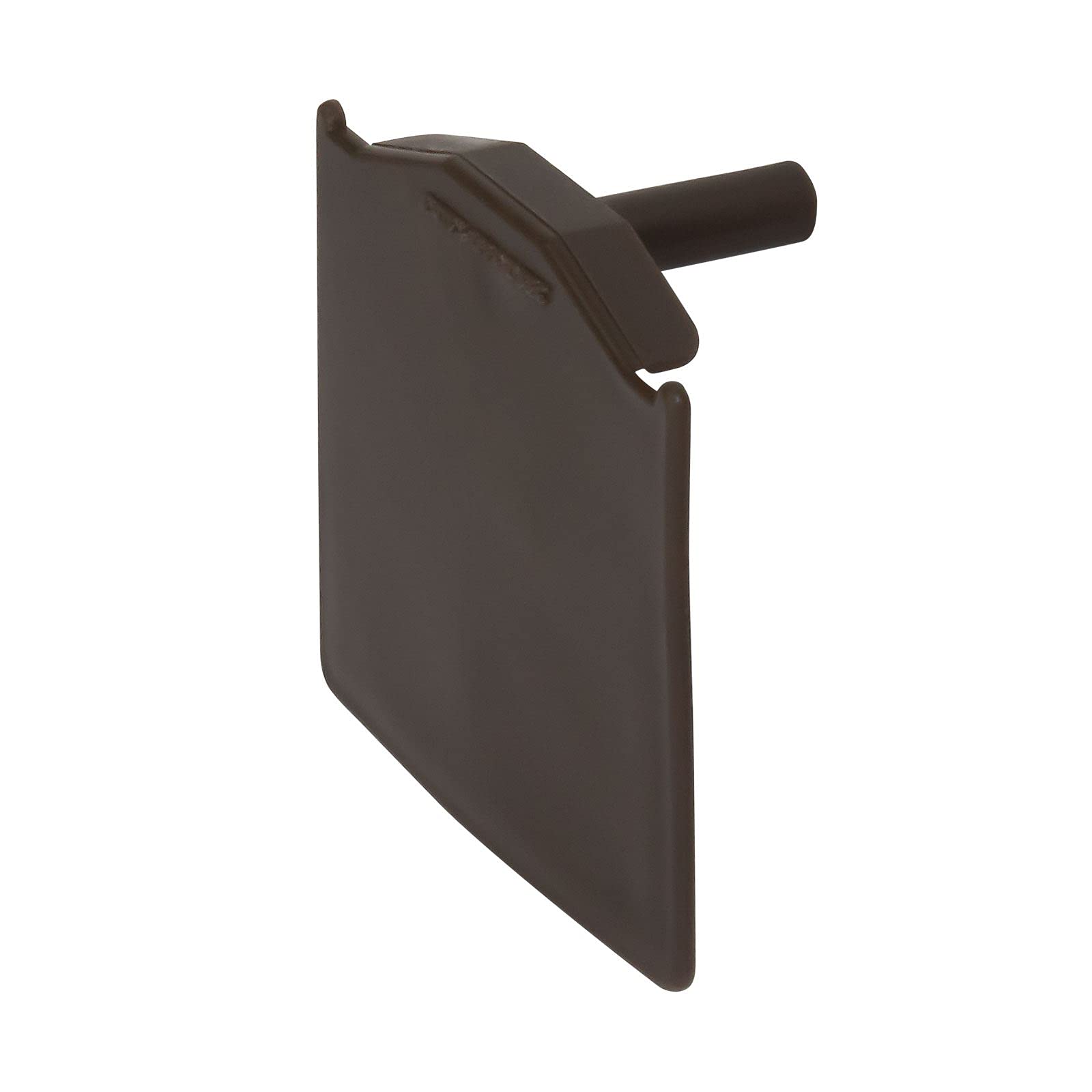

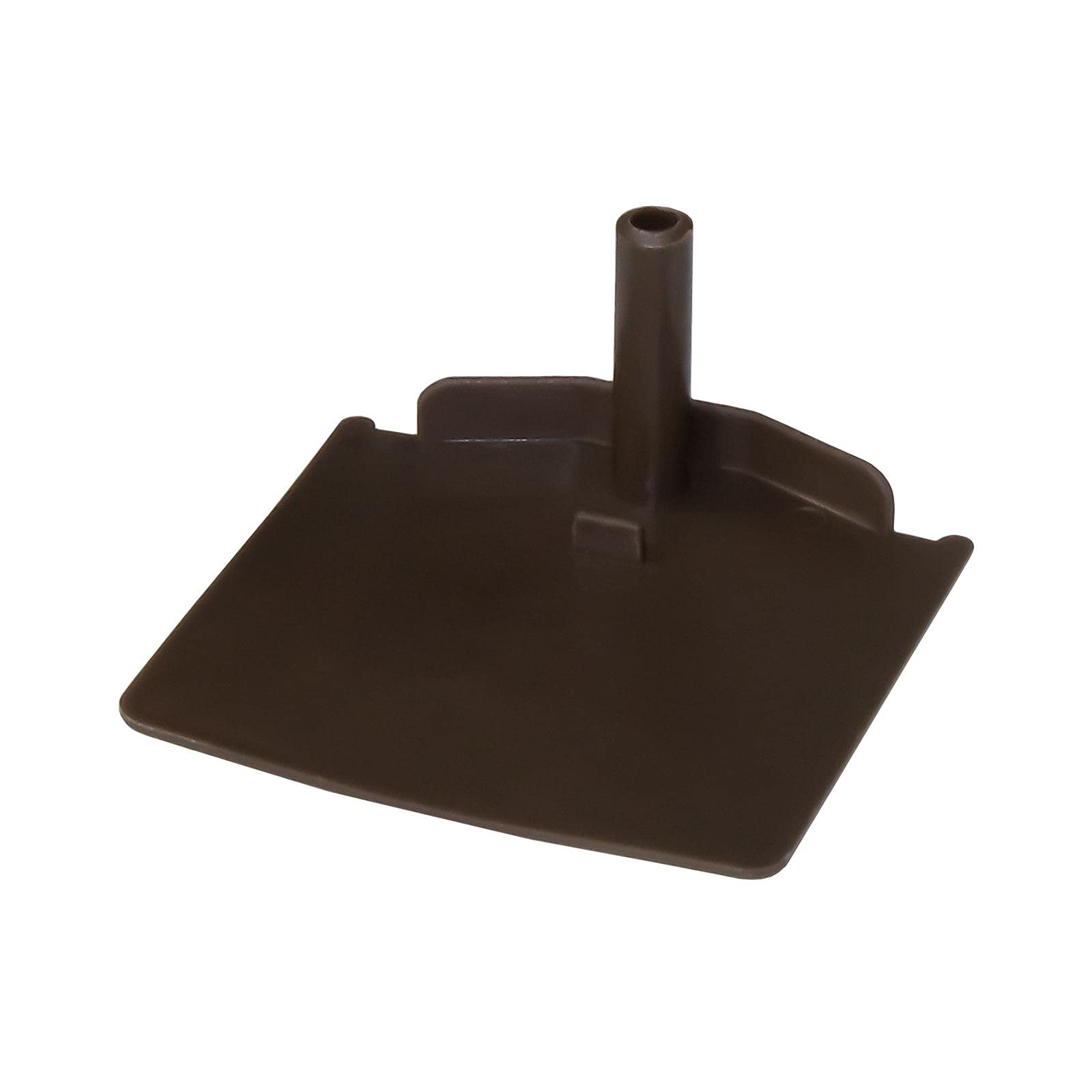

5 x Brown End Cap for Exitex Capex Snap Down Glazing Bar on Lean-to Timber Rafter

• Protection for ends of glazing bar
• Made from tough PVC-u plastic
• Fits easily to Capex Snap Down bars
• Part of Exitex Capex Snap Down system
• Low cost lean-to roof glazing

END CAP FOR EXITEX CAPEX SNAP DOWN GLAZING BAR (Choice of colour) Simple and strong push-fit plastic end cap for closing the open end of the Capex Snap Down 10-25 Glazing Bar. Fitting these end caps is really straight forward. Once a little silicone sealant has been applied to the underside of the short lip on top of the end cap, just push into place. Features & Benefits Protection for ends of glazing bar Made from tough PVC-u plastic Fits easily to Capex Snap Down bars Part of Exitex Capex Snap Down system Low cost lean-to roof glazing Technical Information Colour: White, Brown and Anthracite Grey Width: 52mm Height: 52mm Thickness: 1.5mm (25mm with protruding fixing peg) Compatibility: Suitable for use with Exitex Capex Snap Down 10-25 Glazing Bar Materials: Plastic PVC-u Fitting the Exitex Capex Snap Down Glazing Bar and End Cap The following is offered as a guide to typical installation, and not intended as comprehensive fitting instructions. Cut Base Bar and Top Capping to length of polycarbonate Fit rubber gasket to tracks on either side of Base Bar Pre-drill fixing holes between toothed up-stand Fixings no more than 500mm apart, and within 100mm of ends Screw the Base Bars to rafters using 5mm wood screws Slide profile up base bar, ensuring section has hooked into rail Peel film from edges of polycarbonate and sit in place Position capping over bar and push onto up-stand to seal Fit end closure to polycarbonate Apply silicone under top lip of end cap and push onto capping
