5 Pairs MC4 Male Coupling Connectors 10 mm² PV-KST4/10II & PV-KBT4/10II

• Original MC4 connector from Stäubli (formerly MultiContact) - here in a set of 5 with price advantage compared to buying individually
• For 10 mm² cable cross section, manufacturer reference PV-KST4/10II & PV-KBT4/10II

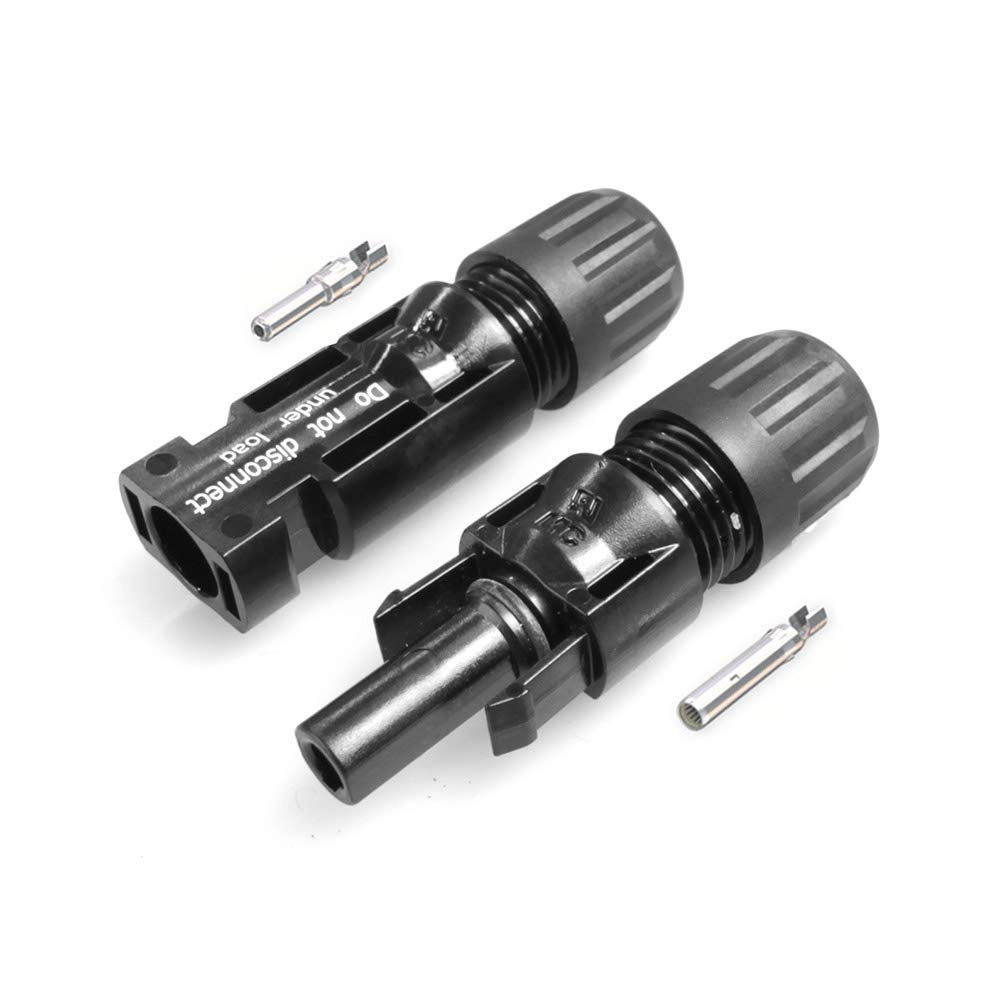

• Consists of MC4 plug, MC4 socket + crimp contacts
• Technical features: touch protection unplugged: IP22 – protection class, plugged IP67 – temperature range -40°. . . 90 °C – insulation material PA – locking system snap-in – cable strain relief according to IEC 61984 (06. 2001)
• Contact system MC contact lamellae – contact material copper, tin-plated – flame class UL94-V0 – protection class II – system voltage up to 1000 V – rated current up to 30 A

MC4 plug and socket pair for solar cables with 10 mm² cable cross section and an outer diameter of 5.5 - 9.0 mm. Especially in the area of 12 V solar applications, there are often large cable losses due to too small cable cross sections. That's why we offer the proven MC4 connector system also for 10 mm² cables. Important technical features for solar cables with outer diameter 5.5 - 9.0 mm touch protection, unplugged IP2X protection class, plugged in IP67 temperature range -40°. . . 90° C max current: 42A cable strain relief according to IEC 61984 (06. 2001) contact system with MC contact lamellas contact material copper, tin-plated, system voltage up to 1000 V
