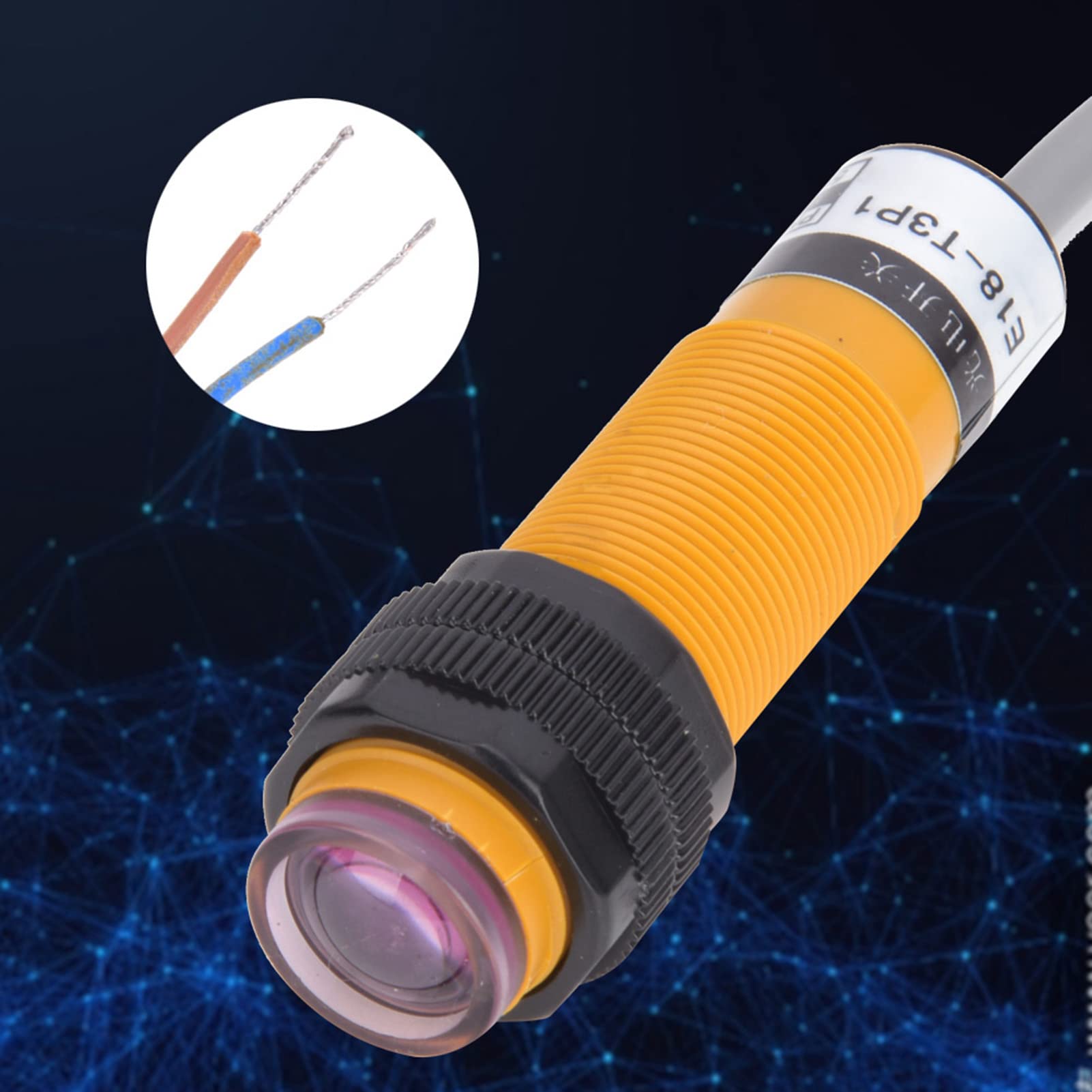

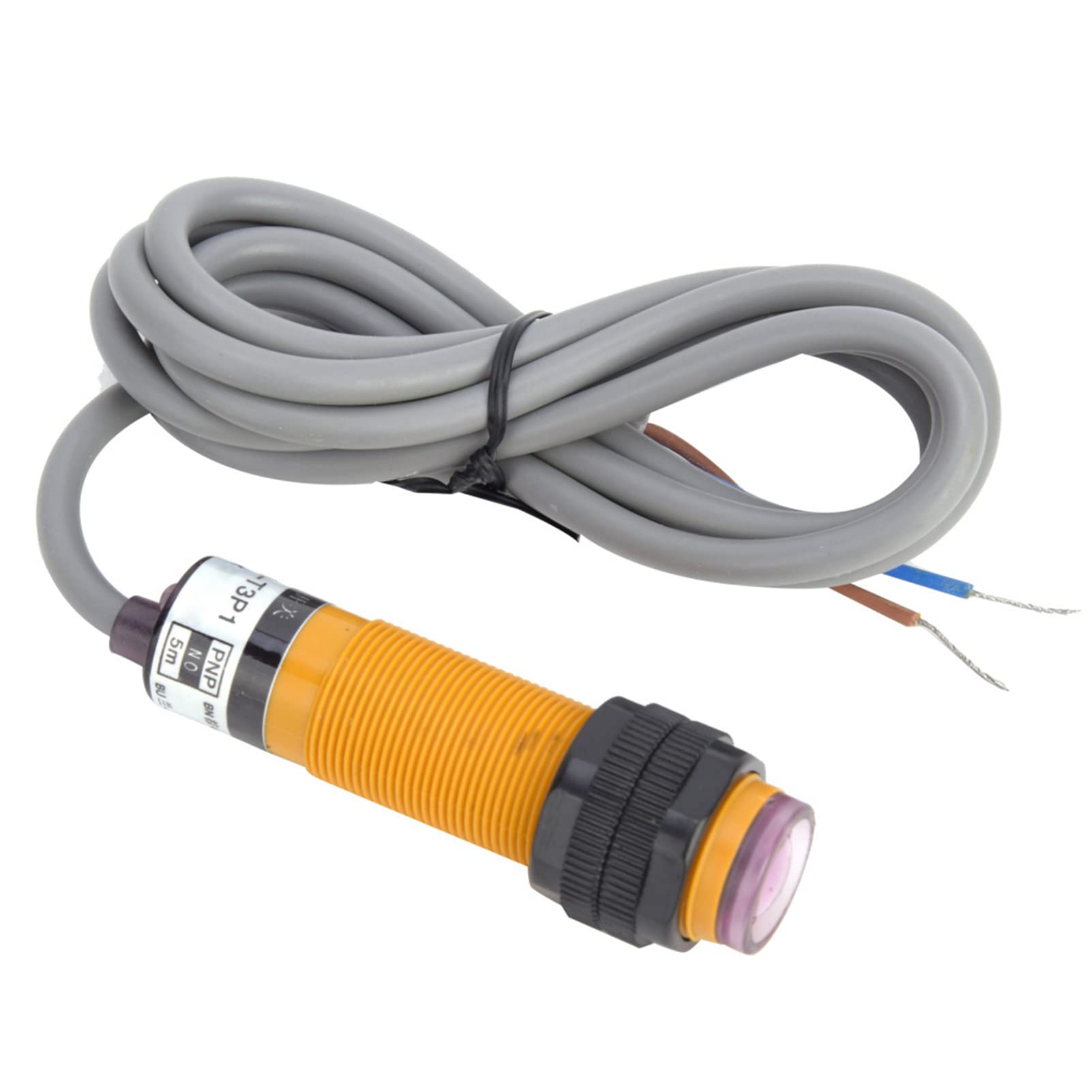

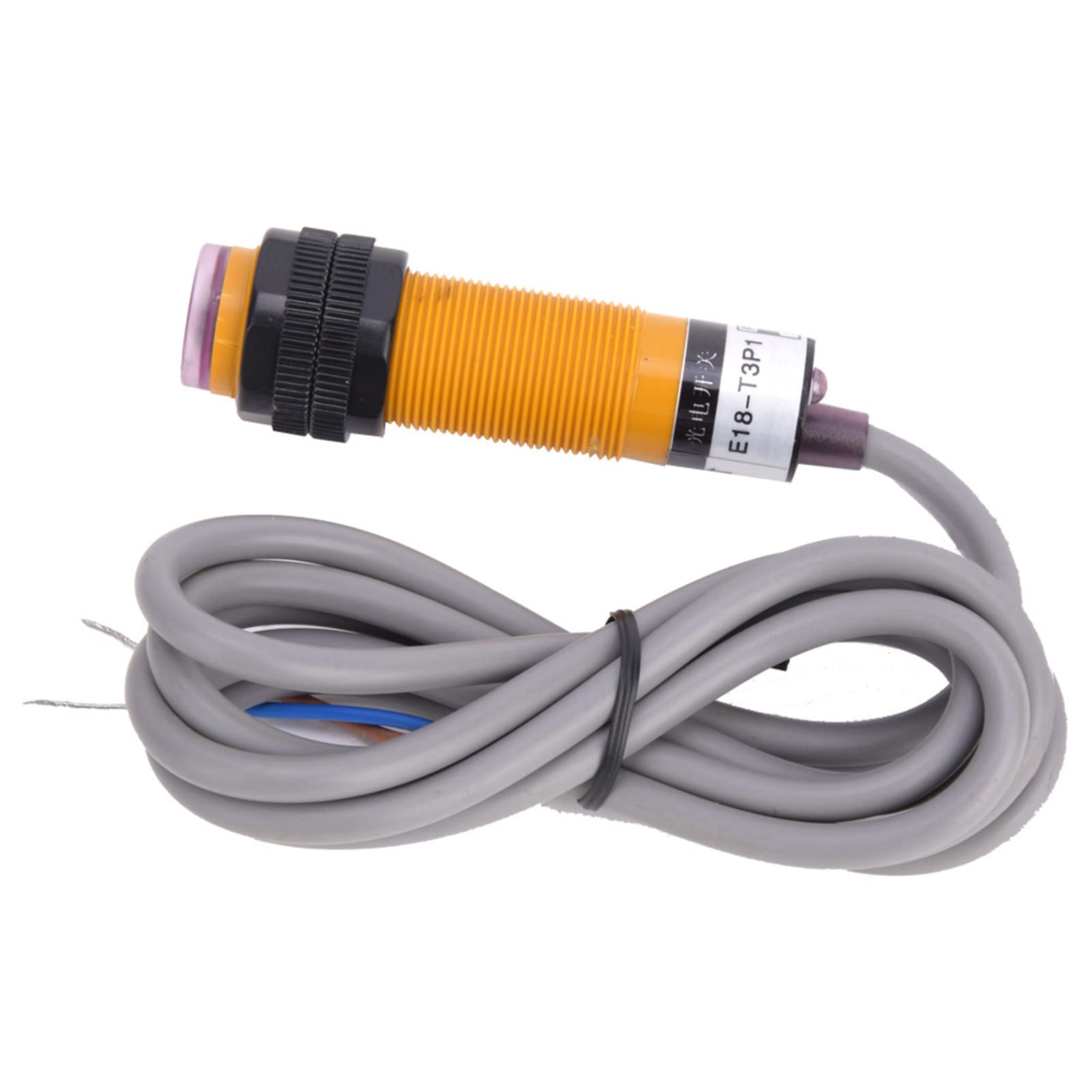

5 Pairs E18-T3P1 Photoelectric Switch Sensor 6-36VDC 300mA Through-Beam PNP Normally Open Induction Distance Sensor for Metallurgy Chemical Industry Industrial Automation

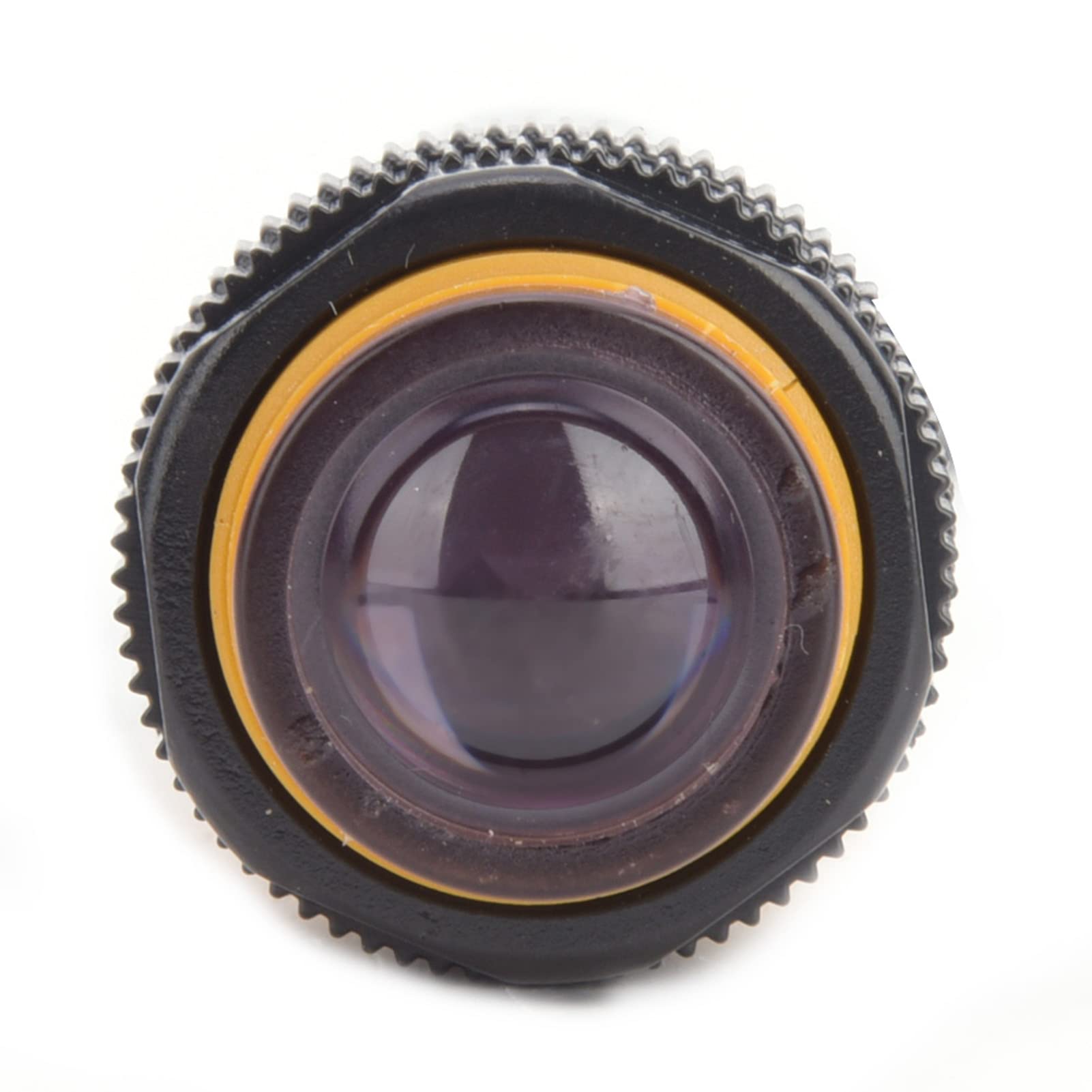

• The shell is made of ABS material, and the detection surface (lens) is made of PMMA
• Through-beam photoelectric sensor, sensitive and accurate, response time 1ms

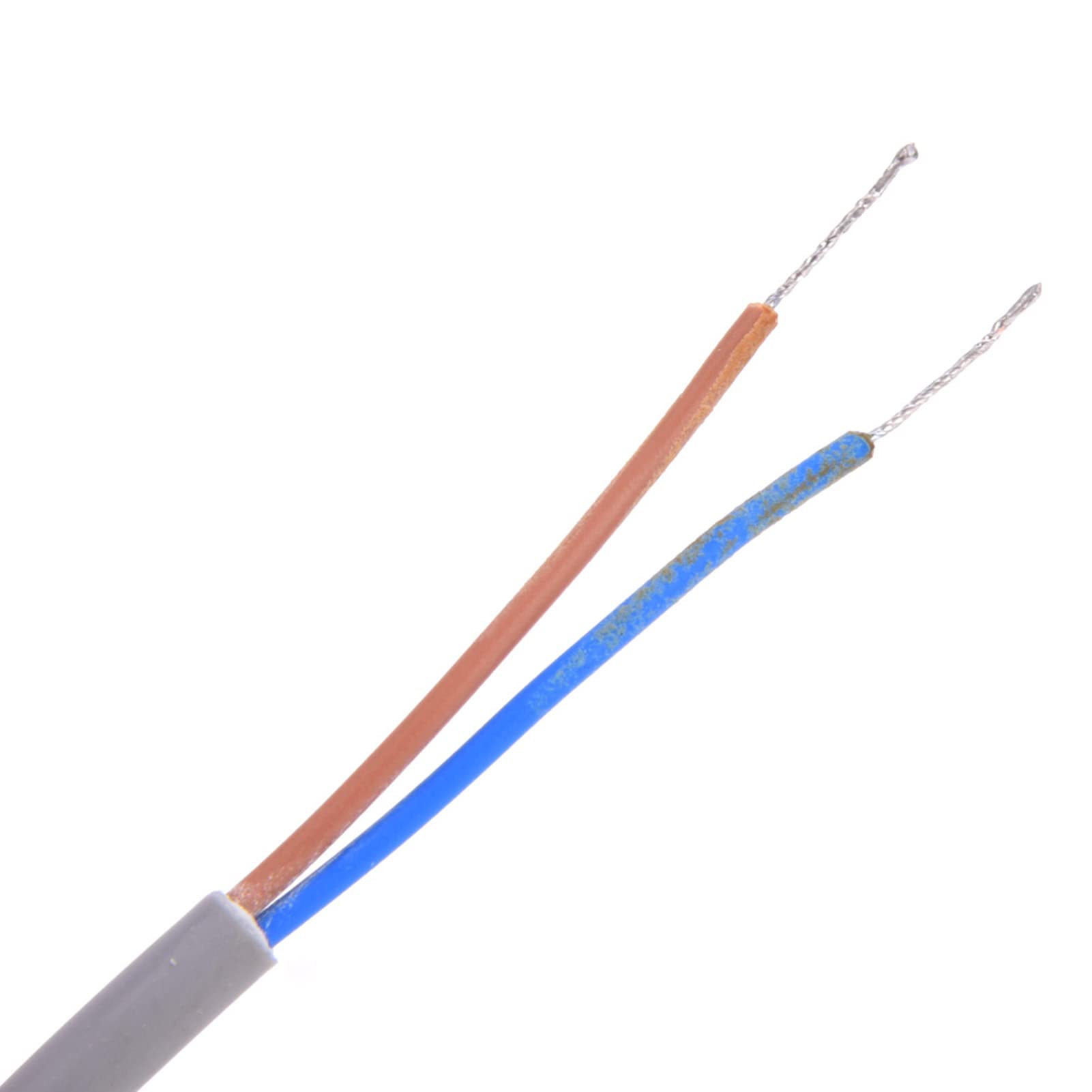

• Thickened cable, outer PVC flame retardant, durable and has strong conductivity
• The photoelectric switch uses the object to block or reflect the light beam, and the circuit is connected by the synchronous loop to detect the presence of the object
• The photoelectric switch converts the input current into a light on the transmitter, and the receiver then detects the target object based on the intensity of the received light or the presence or absence of the light.

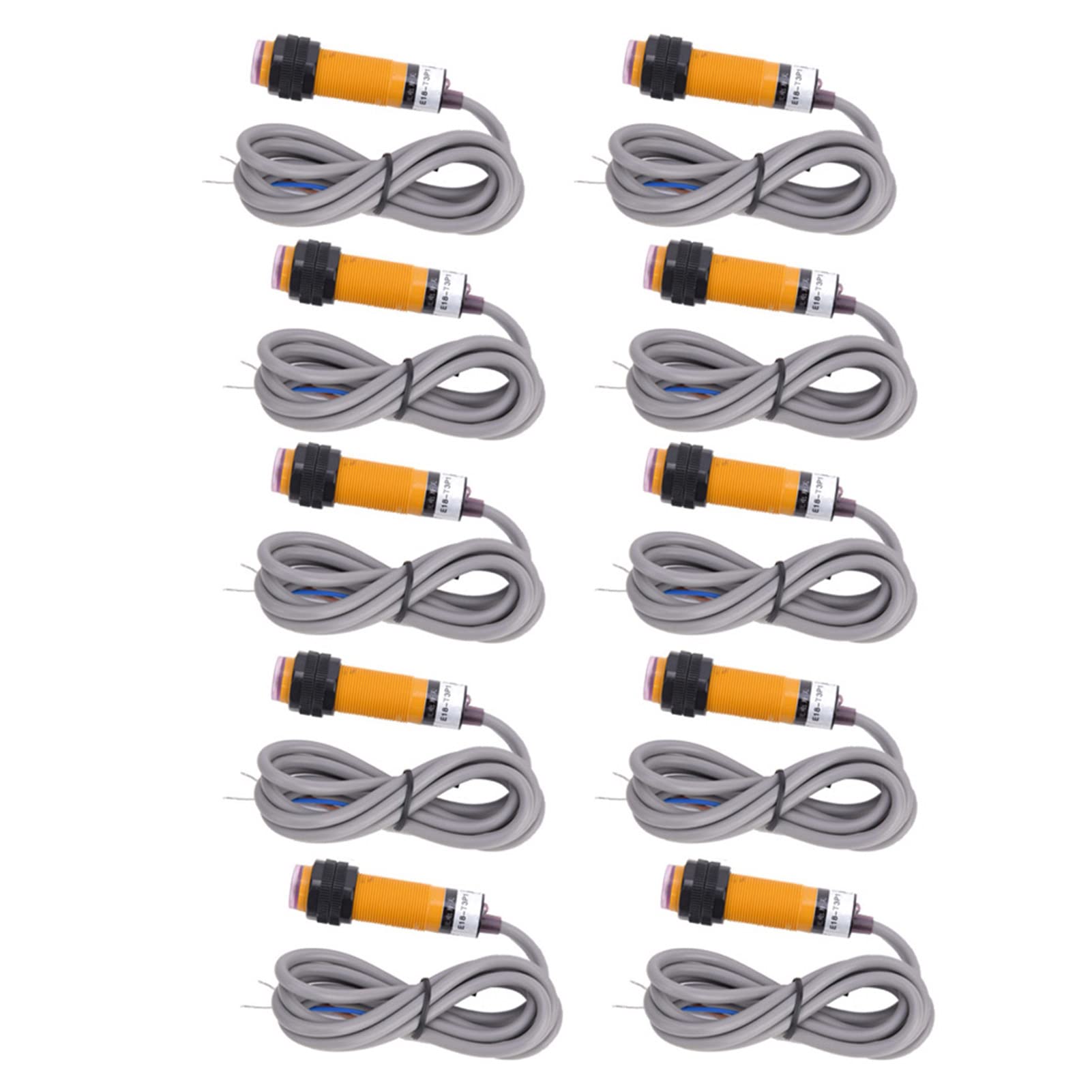

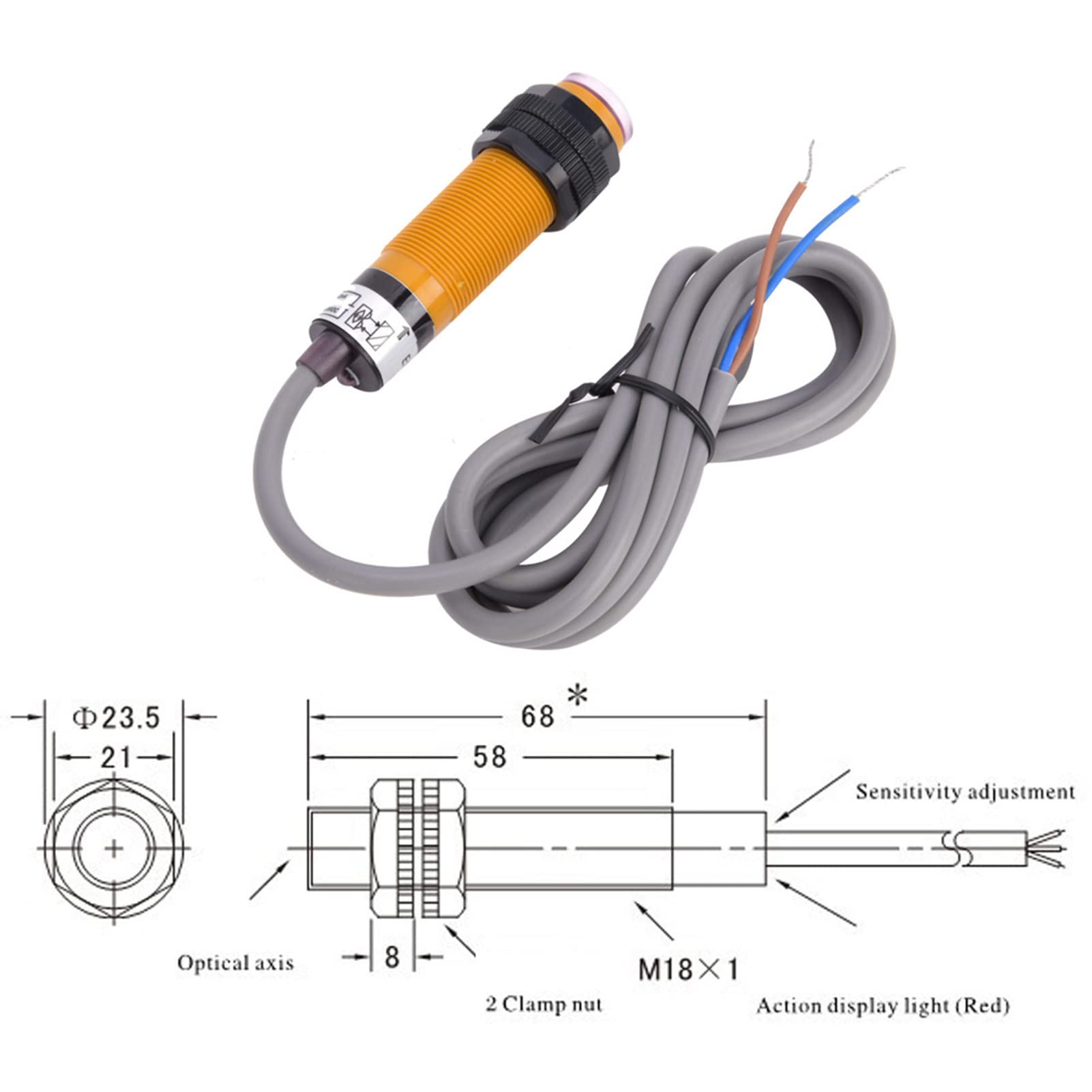

Specification: Item Type: Through-Beam Photoelectric Switch Model: E18-T3P1Brand: JYIO Working Voltage: 6-36VDC Light Source: Infrared light 660nm Output Form: PNP normally open Output Current: 300mA Detection Range: 5m ±10% Consumption Current: 20ma Response Time: 1ms Product Line Length: 1.2 meters Detection Object: Opaque object Φ10mm or more Working Temperature: -25- +55 Level: IP61-IP67 Hole Opening Size: 18mm Shell Material: ABS Detection Surface(lens) Material: PMMA Package List: 5 Pair Through-Beam Photoelectric Switch(transmitting sensor + receiving sensor)
