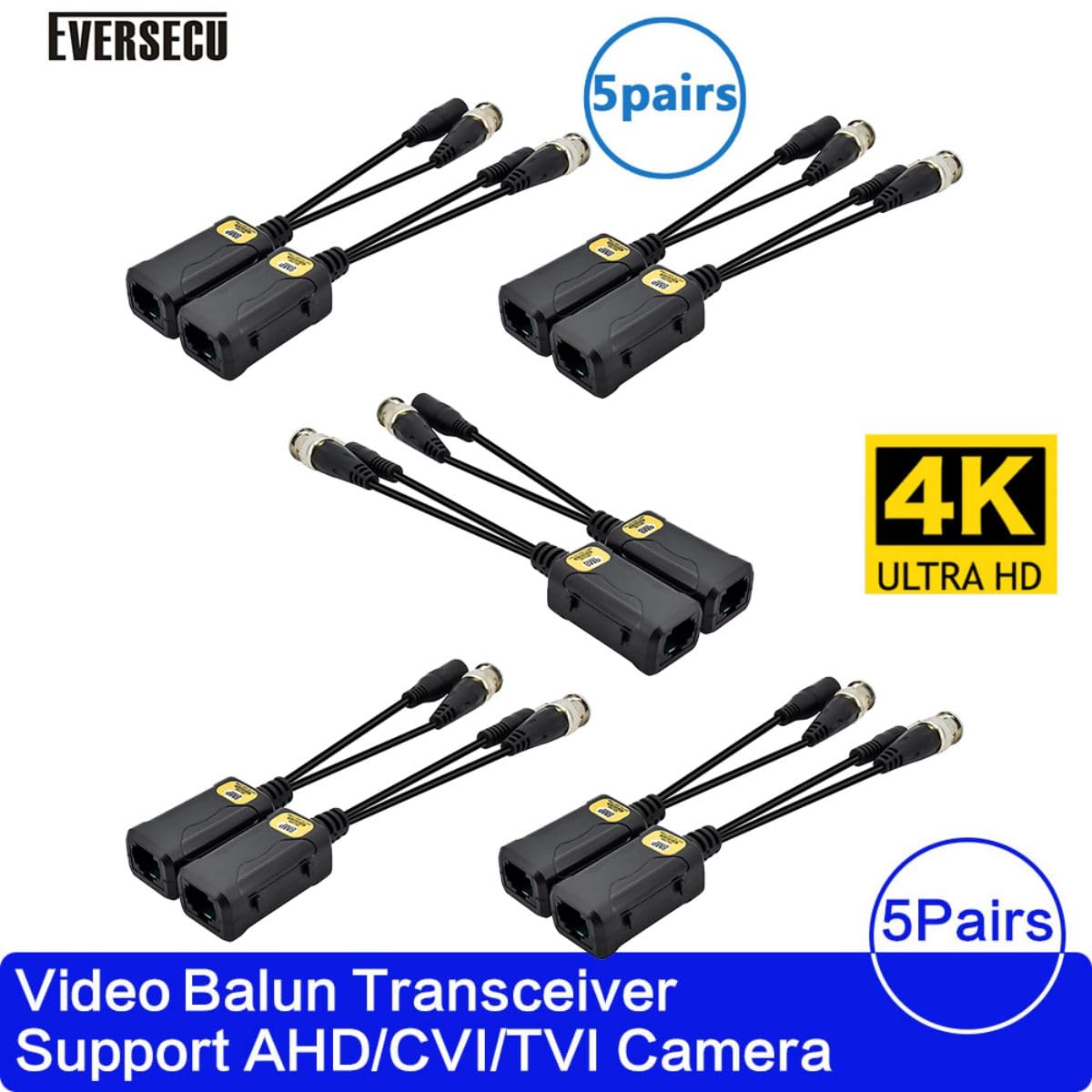

5 Pairs 8MP/4K Passive HD BNC Video Power Balun Transceiver Transmitter Via UTP RJ45 Cable AHD/TVI/CVI/CVBS Cable Connectors for 720P/960P/1080P/3MP/5MP/8MP CCTV Security Cameras

• 5 Pairs (10pcs) Passive Video & Power Transceive Balun support Up to 8MP HD-AHD/TVI/CVI/CVBS Coaxial Wired CCTV Cameras, it can transmit video/power through a singer UTP Cable
• 【8MP/4K HD Video/Power Balun】: This is newest design -8MP/4K HD Passive Video Balun Transmission Cable. Supports Up to 8MP AHD Cameras Over 250 meters, CVI cameras over 200 meters, TVI cameras over 150M(Max). Gold Plated BNC is provided with better transmission quality and long-distance HD transmitter. Support 720P/960P/1080P/3MP/5MP/8MP AHD/TVI/CVI/CVBS CCTV Security Cameras
• 【Video/Power transmission Via UTP CAT5/5E/ 6】：Only used for Category 5/Category 5E/Category 6 Cable. We provide a specification which has detailed installation steps make the procession of installation simple and convenient.
• 【Package Included】: EVERSECU [8MP 4K] HD-CVI/TVI/AHD Video Balun Mini CCTV BNC Passive Video Balun Transceiver 5 Pairs + 1 Year Friendly of Warranty Service.

This is a video power & video transmitter and receiver that allows the transmission of real-time up to 8MP CCTV HD video power signal via cost-effective Unshielded Twisted Paired (UTP) cable. It's compatible with all HDTVl, HDCVl, AHD, and CVBS analog cameras. Used in pairs, eliminates costly and bulky coaxial cable. The superior interference rejection and low emissions allow video signals to coexist in the same wire bundle as telephone, datacom, or low voltage power circuits. This allows the use of a shared or existing cable plant. built-in surge suppressor to protect video equipment against damaging voltage spikes. Its crosstalk and noise immunity ensure quality video signals. Feature: 1. Support multiple stitching, it can effectively transmit power, video signal . 2. Power supply with LED indicator, input and output 12V-48V voltage. 3. Built-in anti-thunder protection chip, stable performance and long service life. 4. Three levels of anti-thunder protection, more safe and reliable. 5. Support -CVI/AHD/TVI/CVBS video signals. Specification: Item Type: Power+Video Balun Color: Black Material: ABS Anti-thunder Protection Rating: 3 Transmission Distance: 720 P/960 P/1080p ≤ 300m / 984.3ft 3MP / 4MP / 5MP / 8MP ≤ 200m / 656.2ft Support Video Signal: -CVI / AHD / TVI / CVBS Input and Output Voltage: 12-48V
