5 Pairs 8MP/4K Passive HD BNC Video Balun Transceiver Transmitter Via UTP RJ45 Cable AHD/TVI/CVI/CVBS Cable Connectors for 720P/960P/1080P/3MP/5MP/8MP CCTV Security Cameras

• 【8MP/4K HD Video Balun】: This is newest design -8MP/4K HD Passive Video Balun Transmission Cable. Supports Up to 8MP AHD Cameras Over 250 meters, CVI cameras over 200 meters, TVI cameras over 150M(Max). Gold Plated BNC is provided with better transmission quality and long-distance HD transmitter. Support 720P/960P/1080P/3MP/5MP/8MP AHD/TVI/CVI/CVBS CCTV Security Cameras

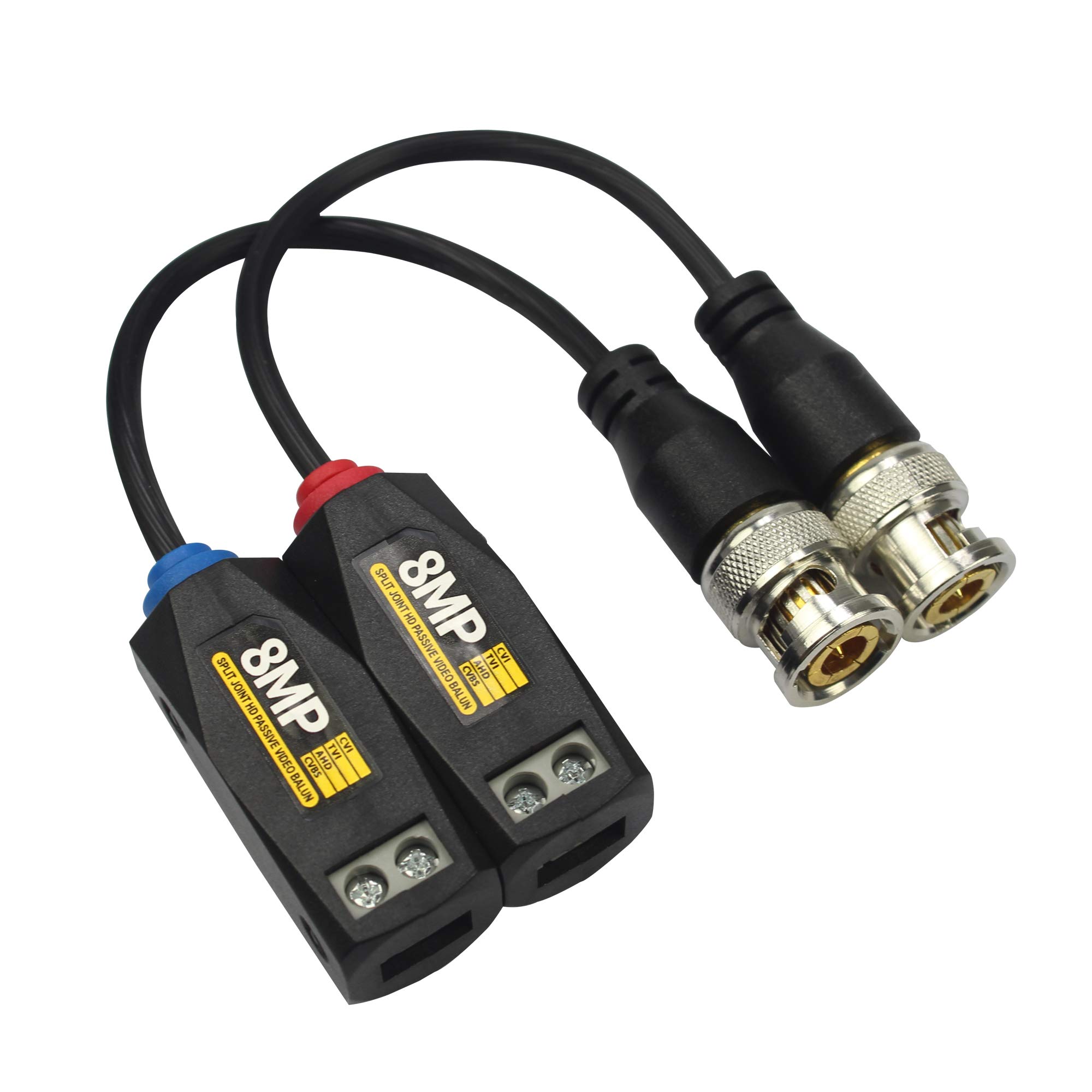

• 【Split Jointed Design】: You can combine these 8 MP video balun transmitter together by side to side and made a neat line so they are more manageable if more than one video balun is used.
• 【Video transmission Via UTP CAT5/5E/ 6】：Only used for Category 5/Category 5E/Category 6 Cable. We provide a specification which has detailed installation steps make the procession of installation simple and convenient.

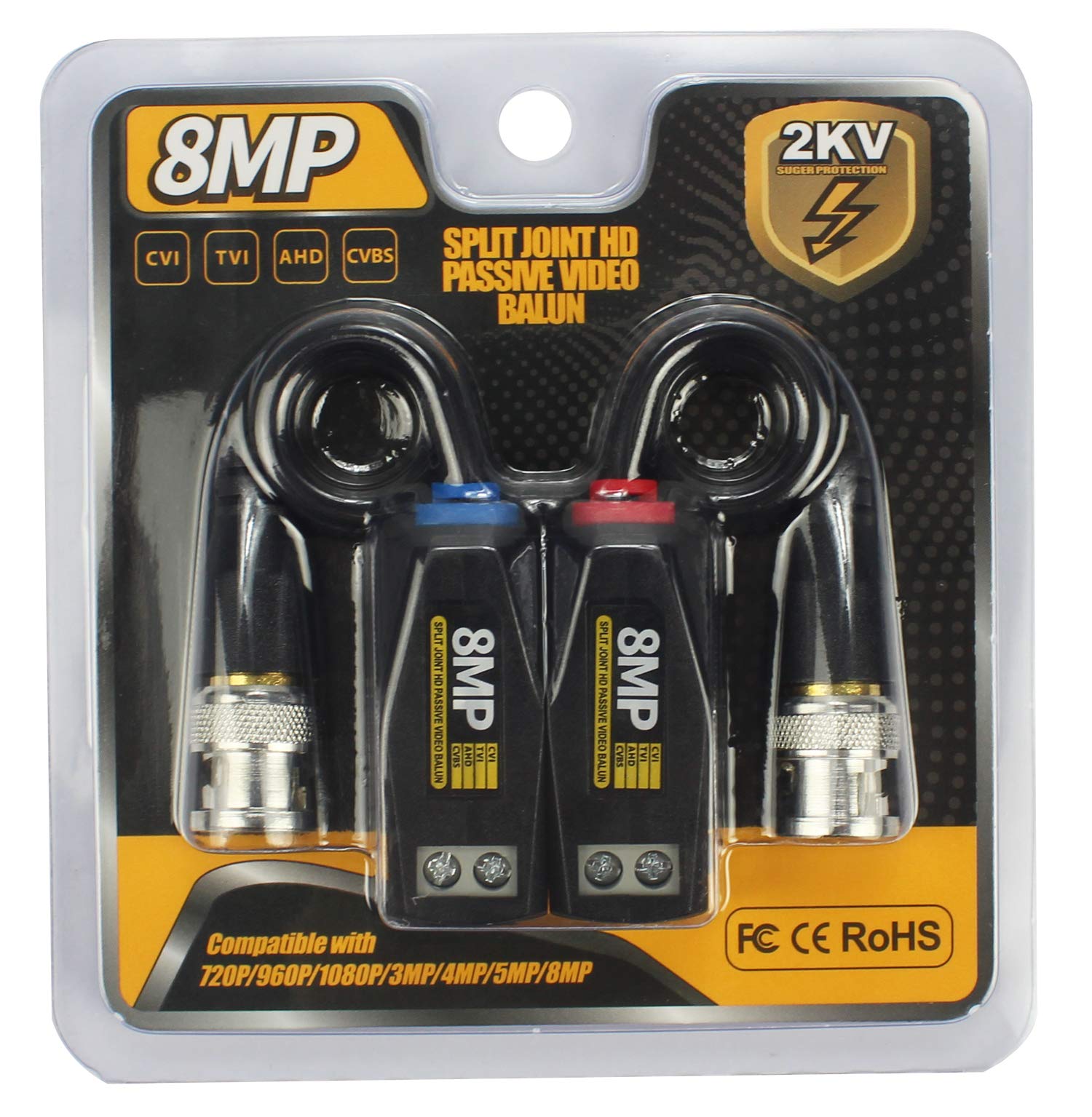

• 【Package Included】: EVERSECU [8MP 4K] HD-CVI/TVI/AHD Video Balun Mini CCTV BNC Passive Video Balun Transceiver 5 Pairs + 1 Year Friendly of Warranty Service.

EVERSECU [8MP/4K] HD-CVI/TVI/AHD Video Balun Mini CCTV BNC Passive Video Balun Transceiver 5 Pairs Specification: Transmission signal: 1 channel Transmission distance: AHD/CVI: 400M(Max) TVI:200M(Max) Category Type: UTP CAT 5/5E/6 Coaxial Video Connector: BNC-M Twisted-Pair Video Connector: Screw-terminal Compatible Format: AHD/HDCI/HDTVI/CVBS Resolution: 720P/960P/1080P/3MP/4MP/8MP Anti-interference: >60dB Coaxial Cable Connector:2KV(common-code) Per: IEC1000-4-5 UTP Cable Connector: 2KV(different-code), 4KV(common-code) Per: IEC1000-4-5 Impedance: BNC male 75 Ohms UTP cable 100 Ohms
