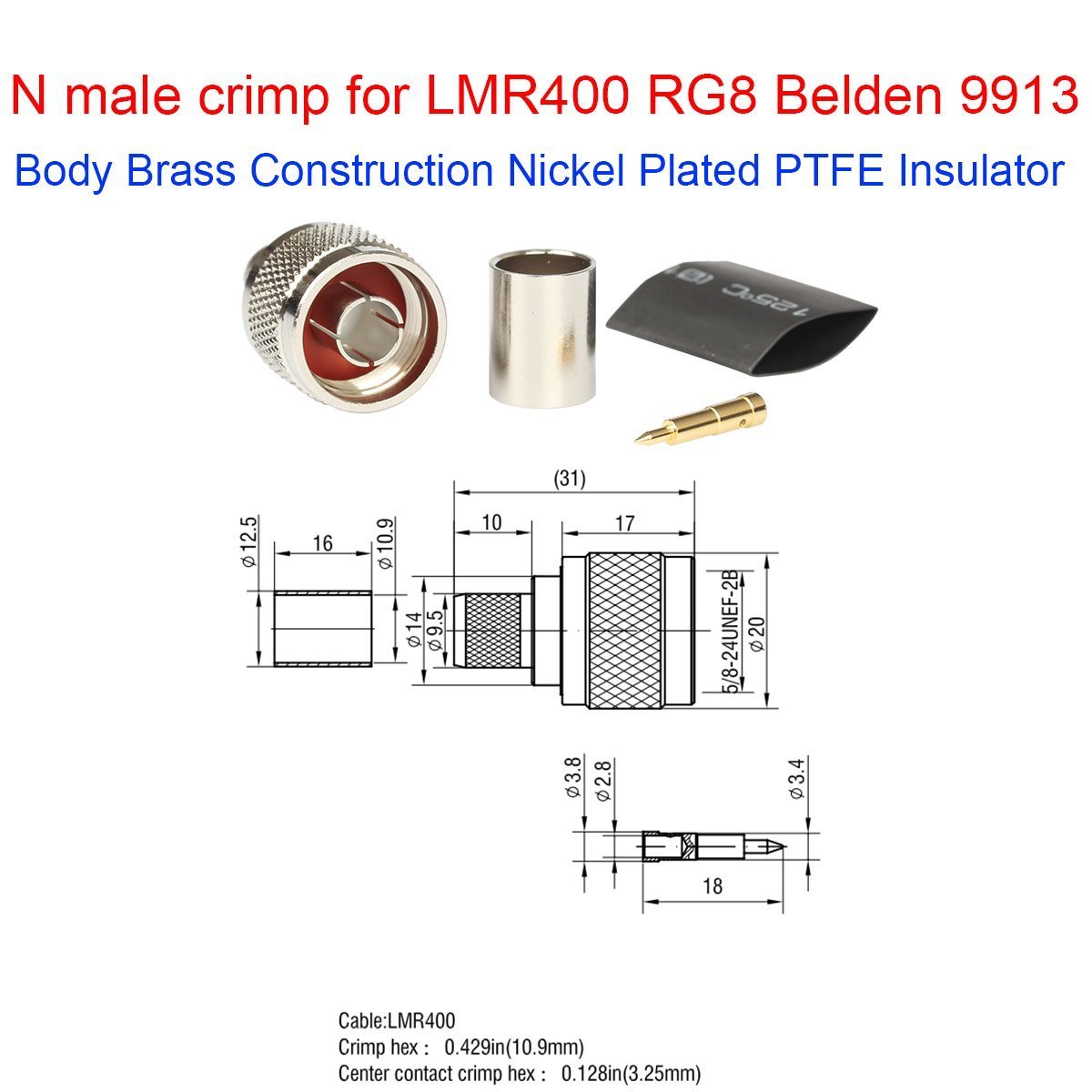

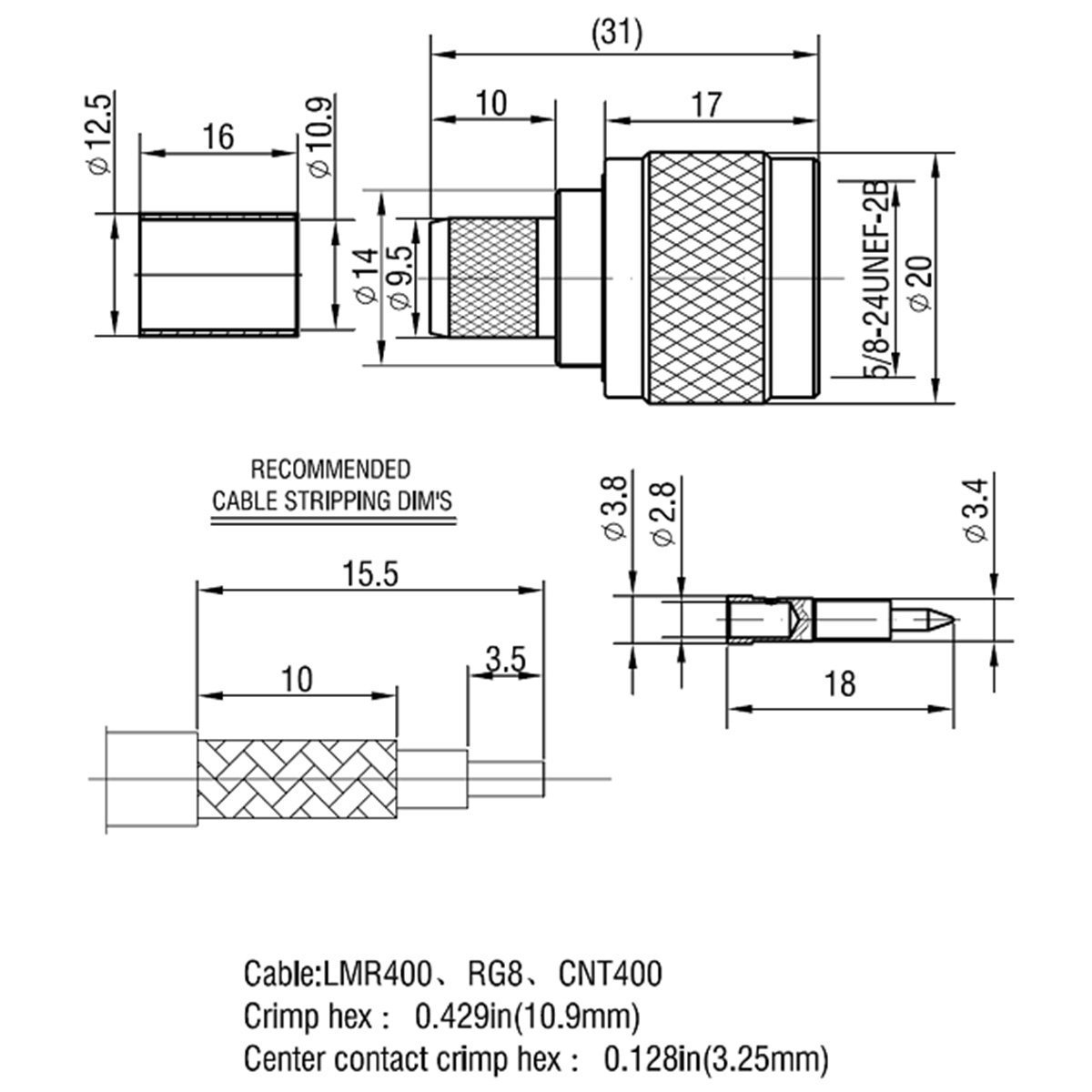

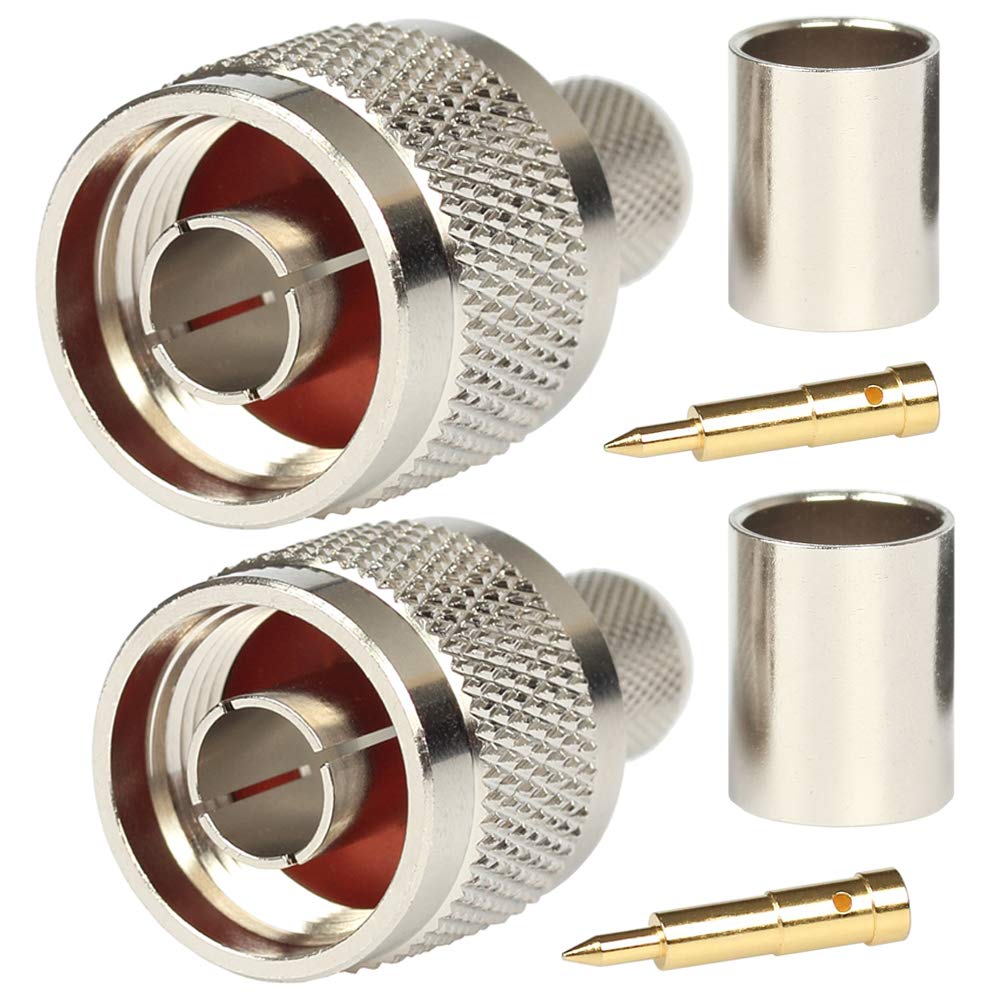

Fiotasy 5-Pack N Type Connector Male Crimp On Plug Coaxial Connector for LMR400 RG8 Belden 9913 50 Ohm Low Loss RF Coaxial Cable

• 1.lmr400 n male plug,Body brass nickel plated, Pin brass gold plated, Teflon(PTFE) Insulator ,50 ohm
• 2.N male connector crimp,Salt spray test for 48 hours ,VSWR below 1.3(DC-6G)
• 3.Crimp male n,It is easy to install, is reliable, and is built to last. Work with the 50ohm low loss RF cable :LMR-400 and Belden 9913 and L-com ca-400 and RG8
• 4. N type connector ,5 pieces connectors with Black heat shrink tube, It connected with any brand N female connector
• 5. Rg8 n plug connector,Insulation Resistance :≥ 5000MΩ Durability :≥ 500 cycles

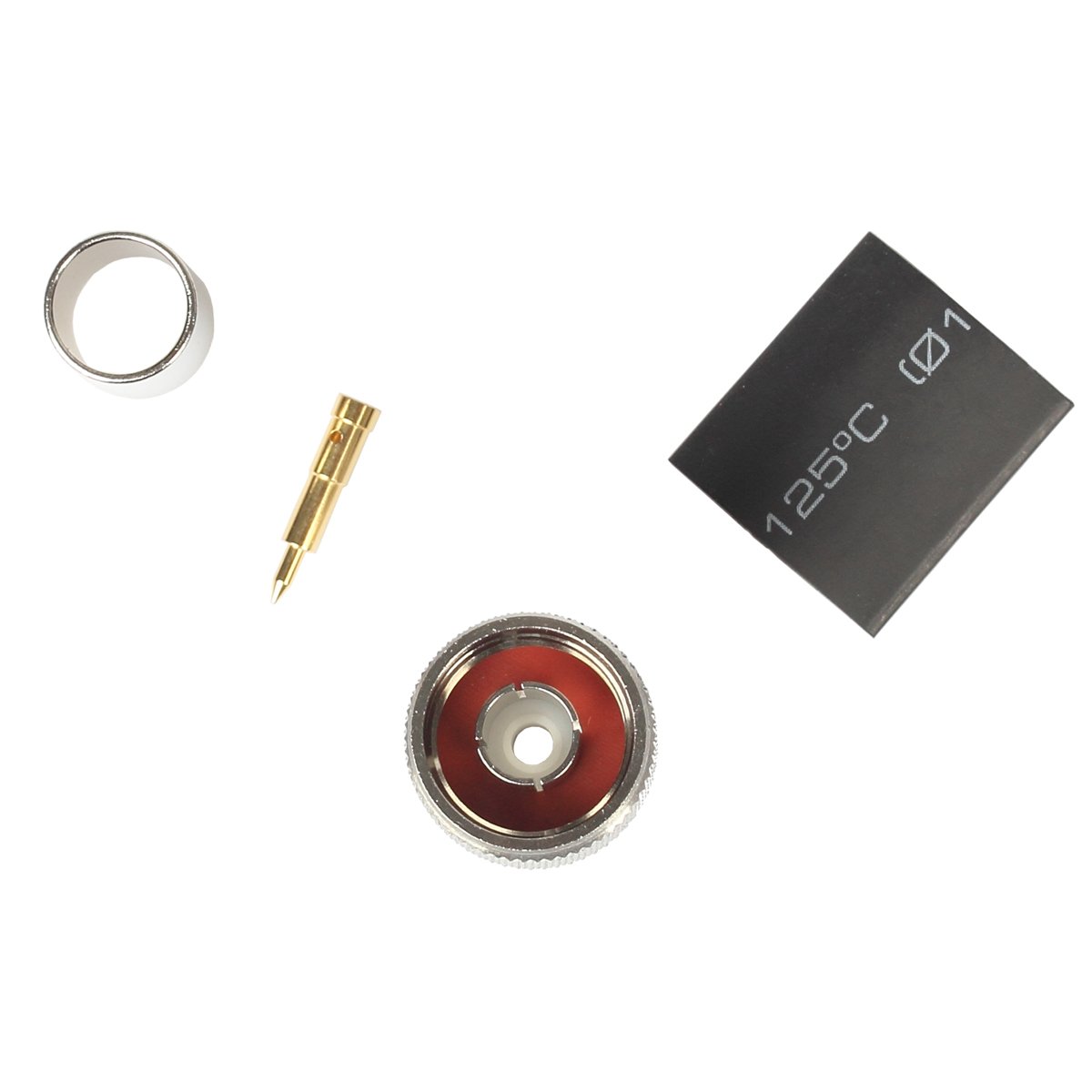

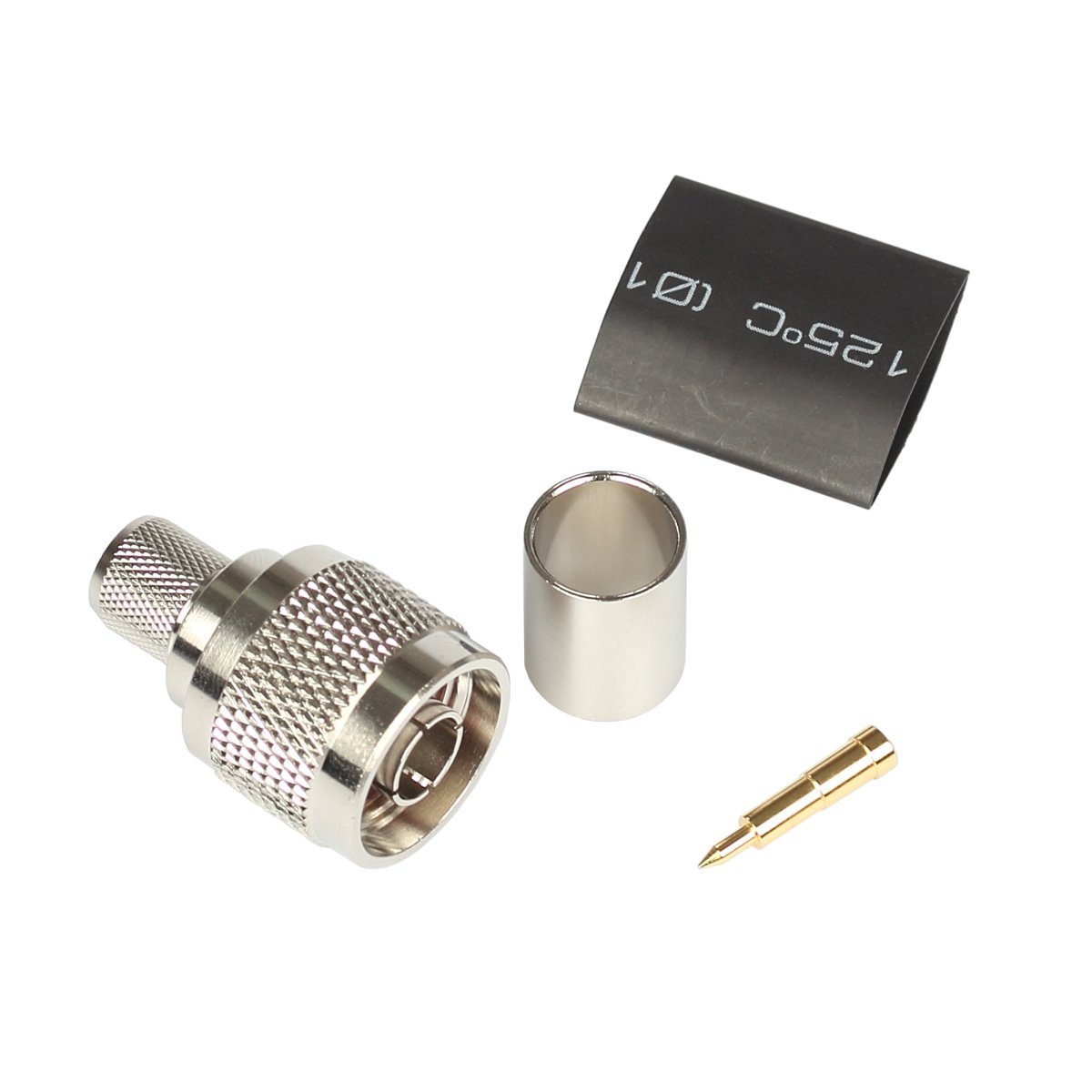

1.Materials & Plated: N connector Body brass nickel plated, Pin brass gold plated, Teflon(PTFE) Insulator for a reliable signal every time . lmr400 n connector Salt spray test for 48 hours ,VSWR below 1.3(DC-6G) 2.Electricail Characteristics: Impedance:50 ohm Dielectric Withstanding Voltage:2500V (RMS) Contact Resistance:Center conductor ≤ 1mΩ Outer conductor ≤ 1mΩ Insulation Resistance :≥ 5000MΩ Durability :≥ 500 cycles Temperature range: -40°C to +85 °C 3.Package include: 5 pieces Coaxial connectors with Black heat shrink tube.
