4Pack MG996R Servo Motor，55g Metal Gear Torque MG996R Digital Servo Motor for Arduino Futaba JR RC Helicopter Car Boat Robot

• 【Excellent Material】Made of insulating, durable and environmentally materials, resistant to friction, corrosion and long life
• 【Powerful Function】Through external adapter, connector wire length 300mm. Coreless motor, metal gear.Can rotate 180 degrees (90 in each direction)
• 【Work Perfectly】Torque at 6V 12kg/cm, 7.2V 13kg/cm. (Recommended voltage: 5V, current usage: 3A ).Stable and shock proof
• 【Widely Used】Can be a common use for robots, mechanical arms, climbing cars and remote control toys

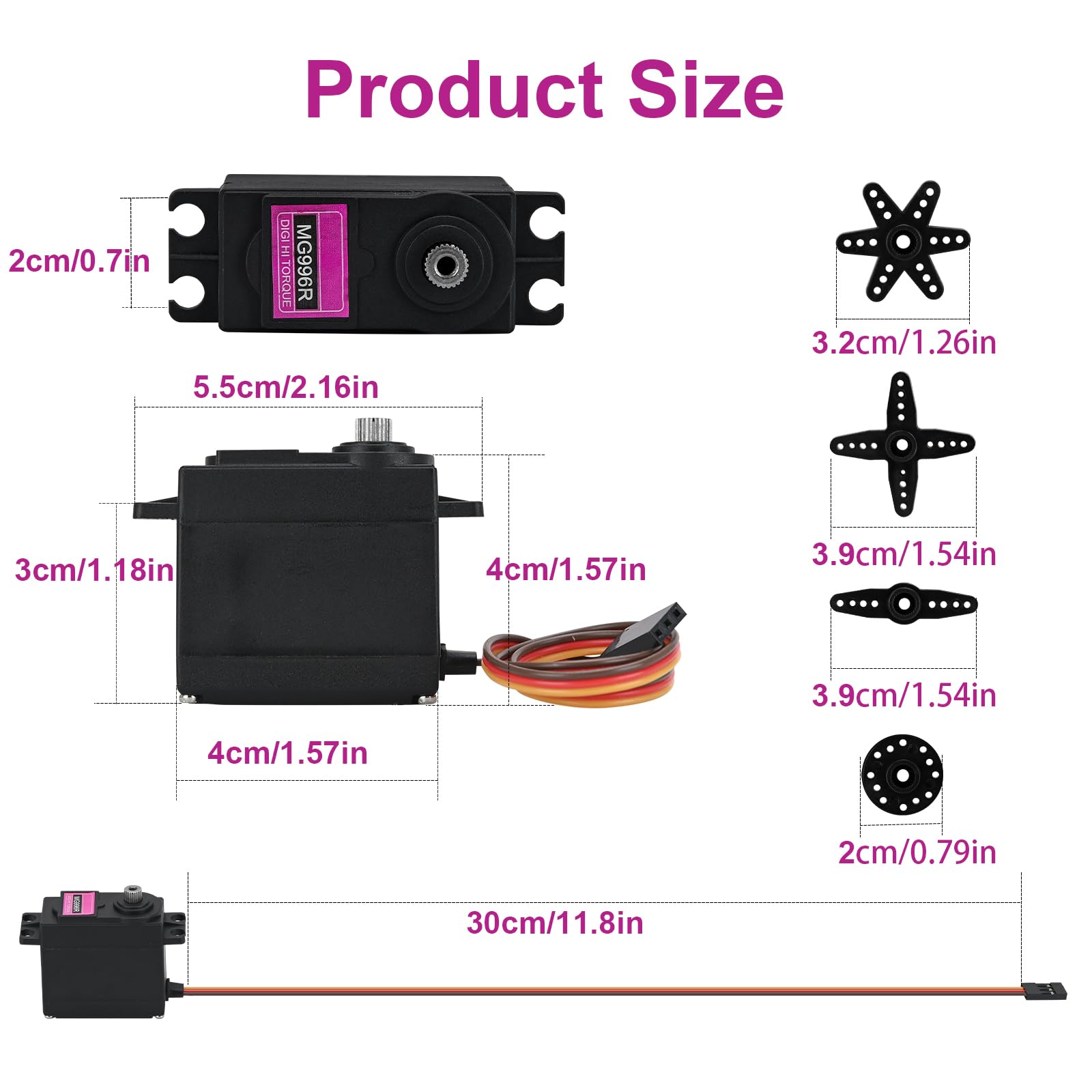

• 【Package Content】4Pack MG996R 55g Metal Gear Torque Digital Servo Motor. Dimension: 40.7*19.7*42.9mm (1.6*0.78*1.69inch)

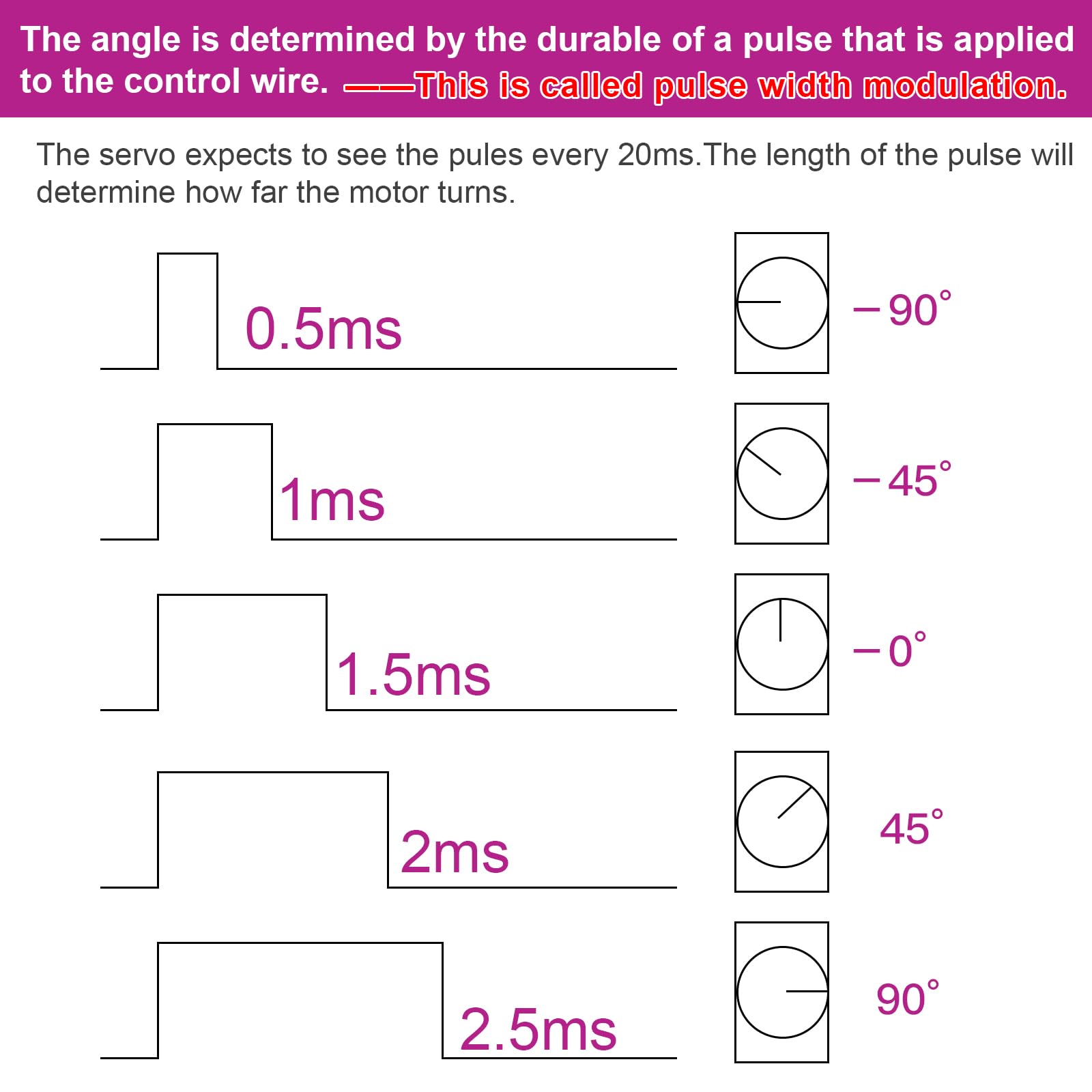

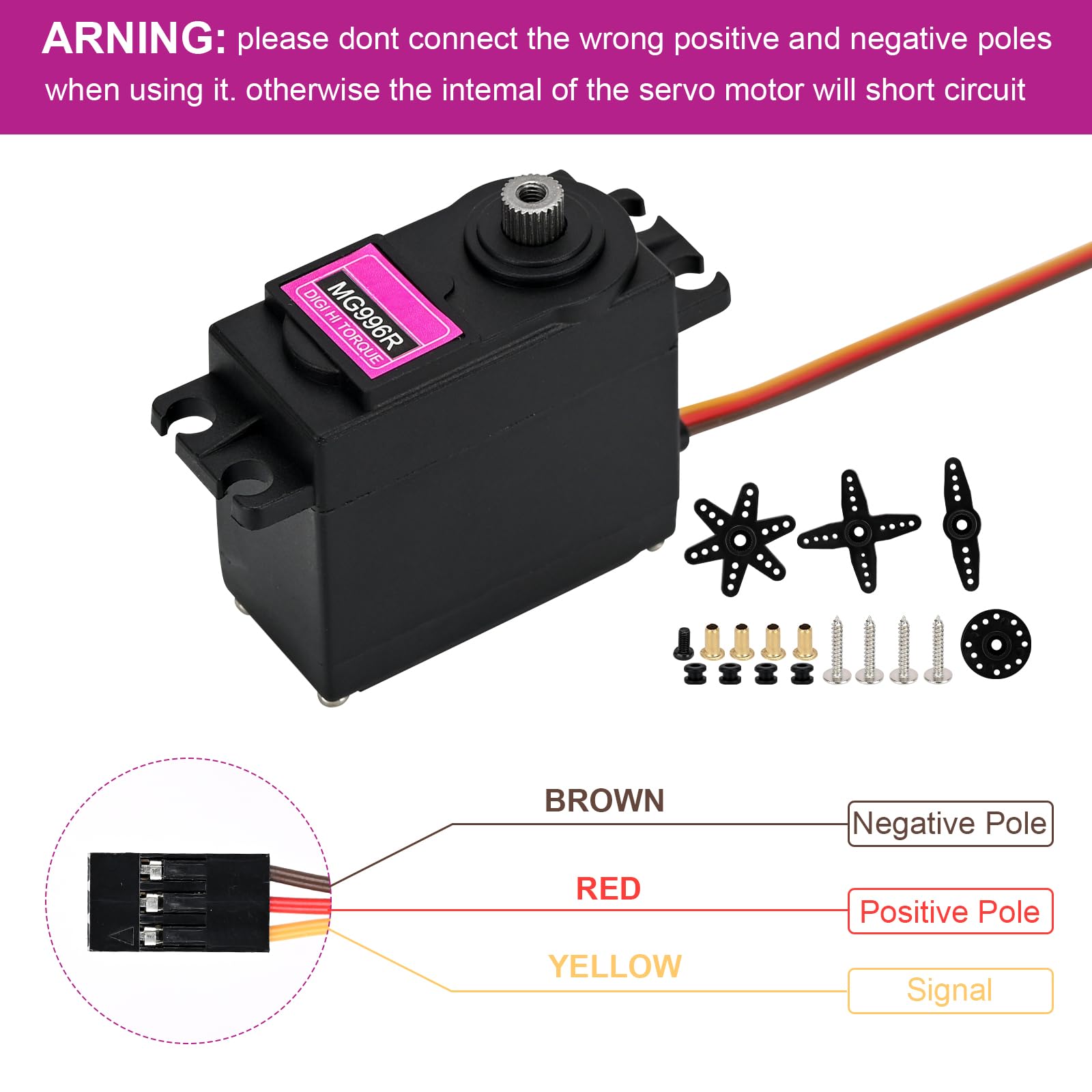

Rotation angle: (0-180 degrees) Wiring: Red voltage, brown ground, orange signal line 01: Structural material: digital metal 02: Length of connecting line: 30 cm, signal line (yellow line), red line (power line), brown (ground line) 03: Size: 40.7*19.7*42.9mm 04: Weight: 66.2 grams 05: Reaction speed: no-load speed 0.17 seconds/60 degrees (4.8V); 0.13 seconds/60 degrees (6.0V) 06: Stall torque; 07: Working dead zone: 4 microseconds 08: Plug specification: JR FUTABA Universal 09: Working voltage; 3.0V-7.2V 10: Working torque: 13KG/cm 11: Operating temperature: -30+60 degrees Celsius 12: Suitable models: bipedal robot/manipulator/remote control car, suitable for 50-90 methanol fixed-wing aircraft and 26cc-50cc gasoline fixed-wing aircraft and other models 13: Accessories; steering wheel, fixing screws, vibration damping rubber sleeves and aluminum sleeves. The control of the servo generally requires a time base pulse of about 20ms. The high-level part of the pulse is generally the angle control pulse part in the range of 0.5ms-2.5ms, and the total interval is 2ms. Taking 180-degree angle servo as an example, the corresponding control relationship is as follows: 0.5ms--------------0 degrees; 1.0ms------------45 degrees; 1.5ms------------90 degrees; 2.0ms-----------135 degrees; 2.5ms-----------180 degrees; Application: 1:10 and 1:8 sports cars, off-road vehicles, trucks, monster trucks, climbing cars, bipedal robots, manipulators,remote control boats, suitable for 50-90 methanol fixed-wing aircraft and 26cc-50cc gasoline fixed-wing aircraft models. 360-degree servo: It is actually equivalent to a stepless speed reduction motor, which can control speed and direction. There is no 0-360 degree angle control function. The control method is the same as the control signal of a general servo. It is a suitable power source for Wall-E modification (When the high level is 1ms~1.5ms, the servo rotates forward (the forward speed is fast at 1ms, the closer to 1.5ms, the slower, and the servo stops at 1.5ms), and when the high level is 1.5ms~2ms, the servo reverses (the servo stops at 1.5ms, the closer to 2ms, the faster the reverse speed, and reverses at a fast speed at 2ms)
