Swallows HDMX01 4K 60hz 6x2 HDMI Matrix 6 IN 2 OUT HDMI Splitter Switch 4x2 HDMI Matrix Audio Video Converter with EDID for PC TV Dual Monitor (4X2 Matrix),black

• 1. {Long distance transmission}:The product can enlarge the HDMI signal at the HDMI output to increase the transmission distance of the output signal, choose different resolution, transmit larger distance, 1080P can reach the transmission distance of 15 meters, 4K @ 30HZ transmission 10 meters, 4K @ 60HZ transmission 5 meters.
• 2. {High resolution}:Supports HDMI 2.0 and HDCP 2.2. With a resolution of up to 4K @ 60Hz (RGB / YUV 4: 4: 4) you can enjoy a fantastic visual feast.

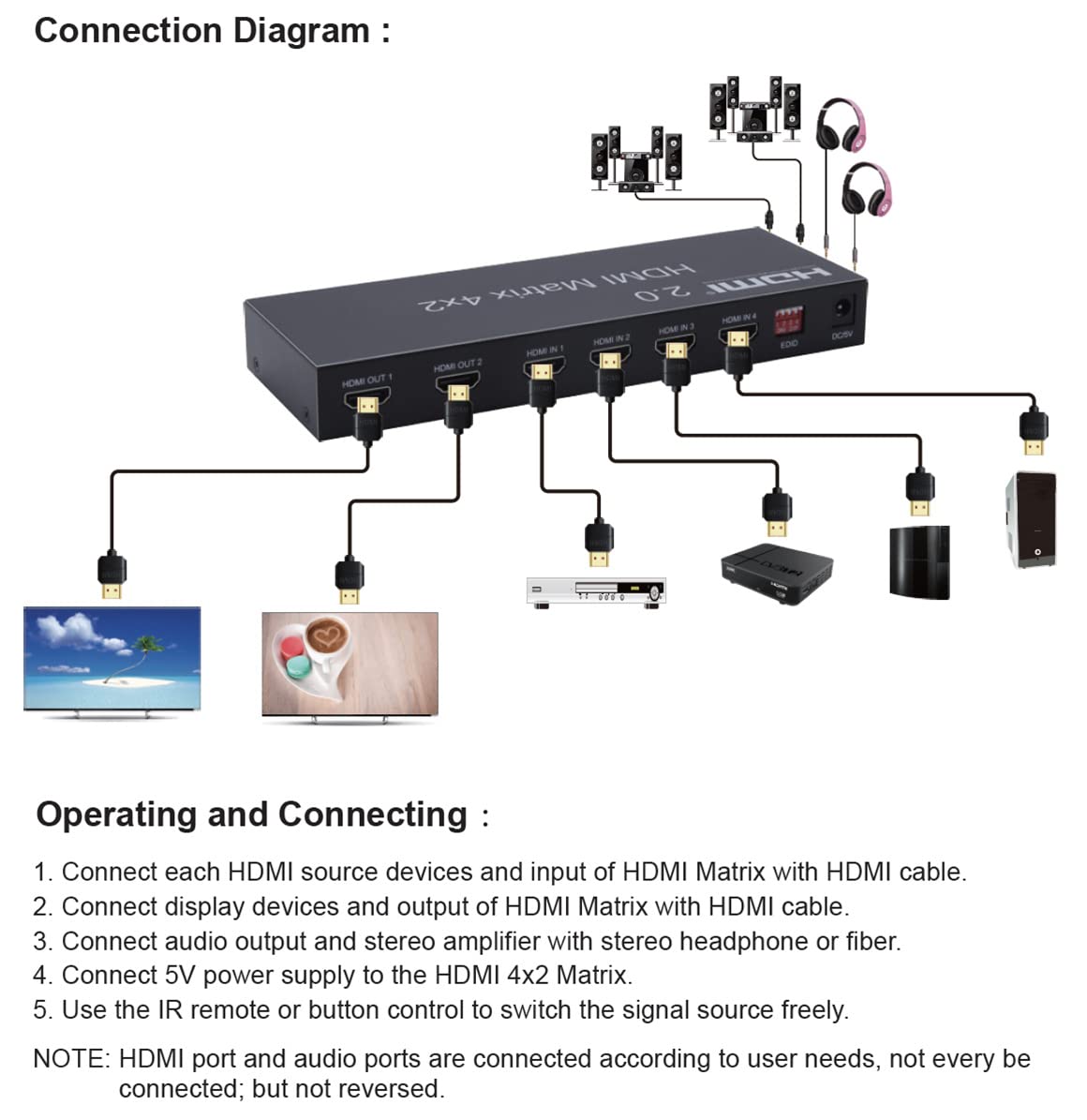

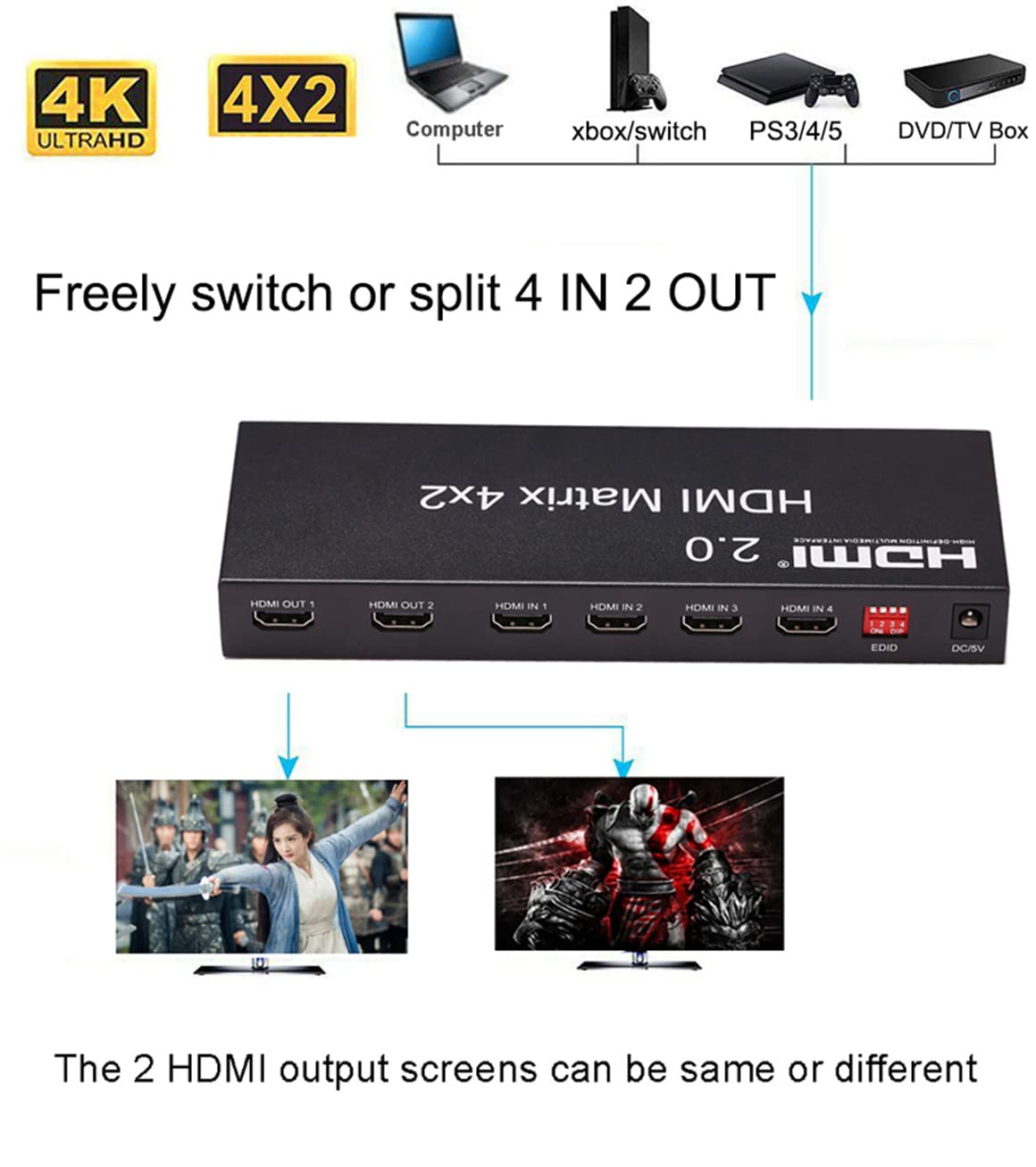

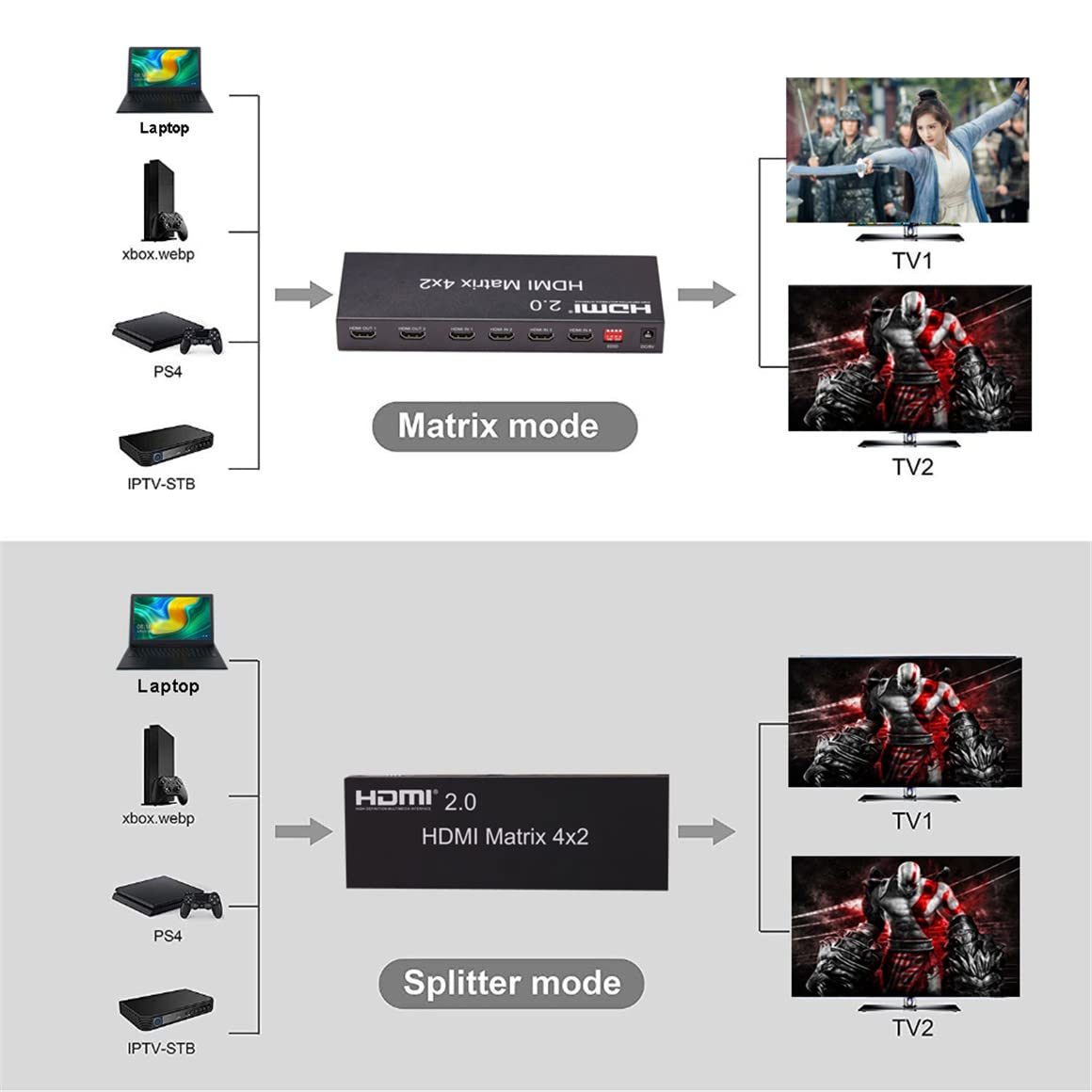

• 3. {Convenient and efficient}: Plug and play, convenient and fast.This 4X2-HDMI matrix can switch between 4 input source devices and distribute the signals on 2 displays (2 displays can show the same picture or different pictures) and on any output. The ports can independently with audio via the optical SPDIF or 3 , 5 mm audio jack are output.
• 4. {Widely used}:This 4X2 HDMI matrix is ??ideal for entertainment centers, retail and websites, HD TV set-top boxes, DVDs, projector systems, data center control, information distribution, conference rooms, schools and business training.
• 5.{Widely compatible}:4. Supports 4K (input) to 2K (output) (downscaler).

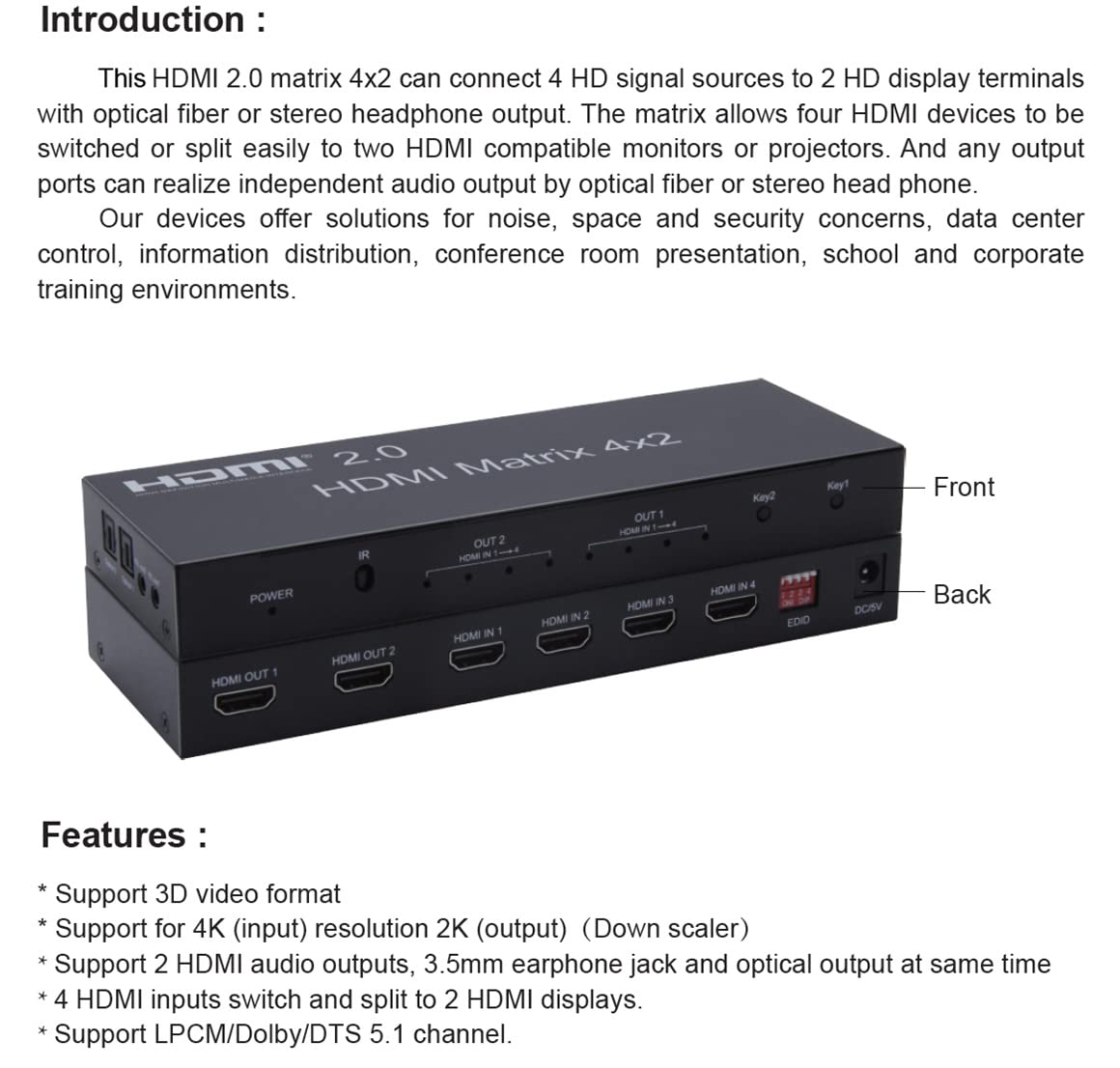

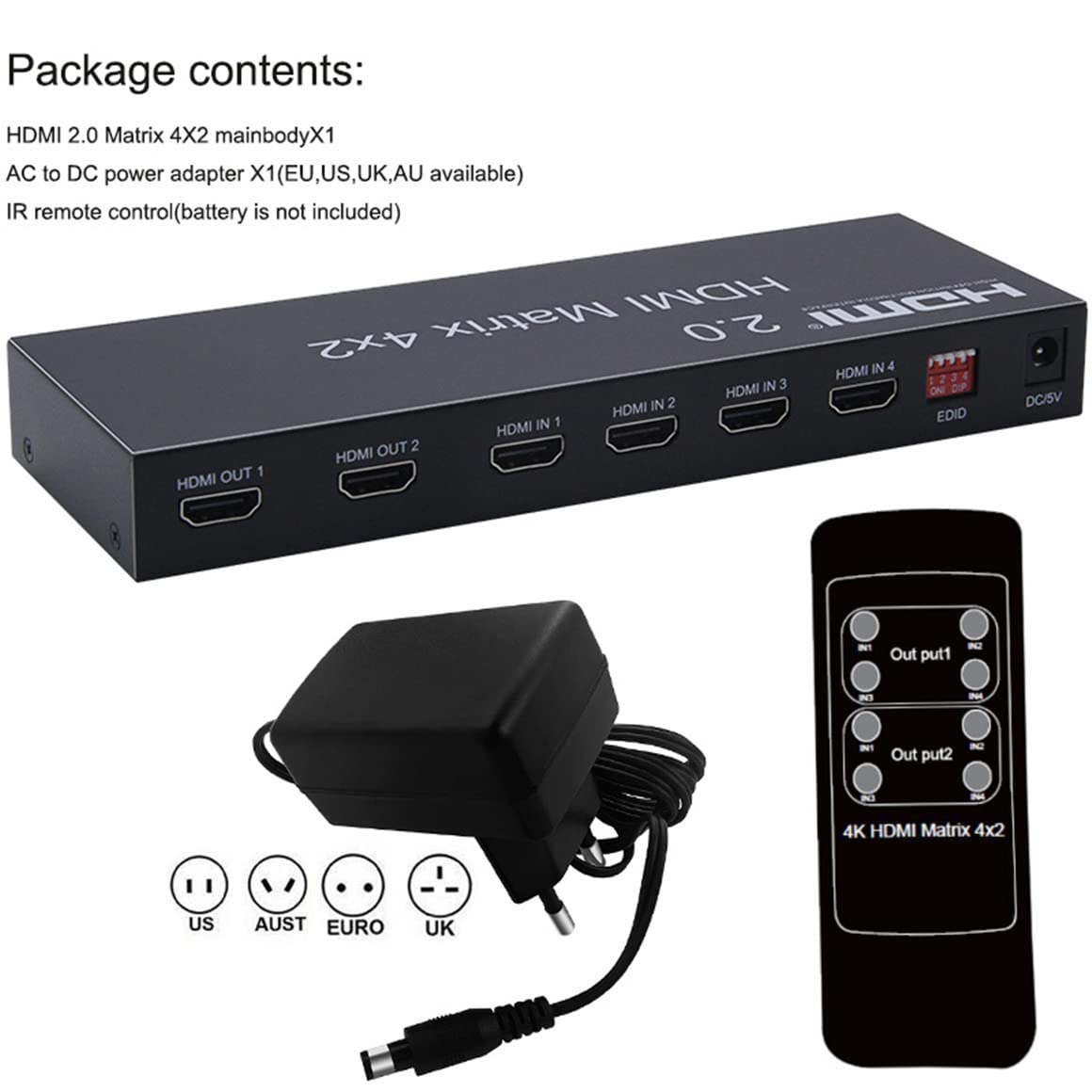

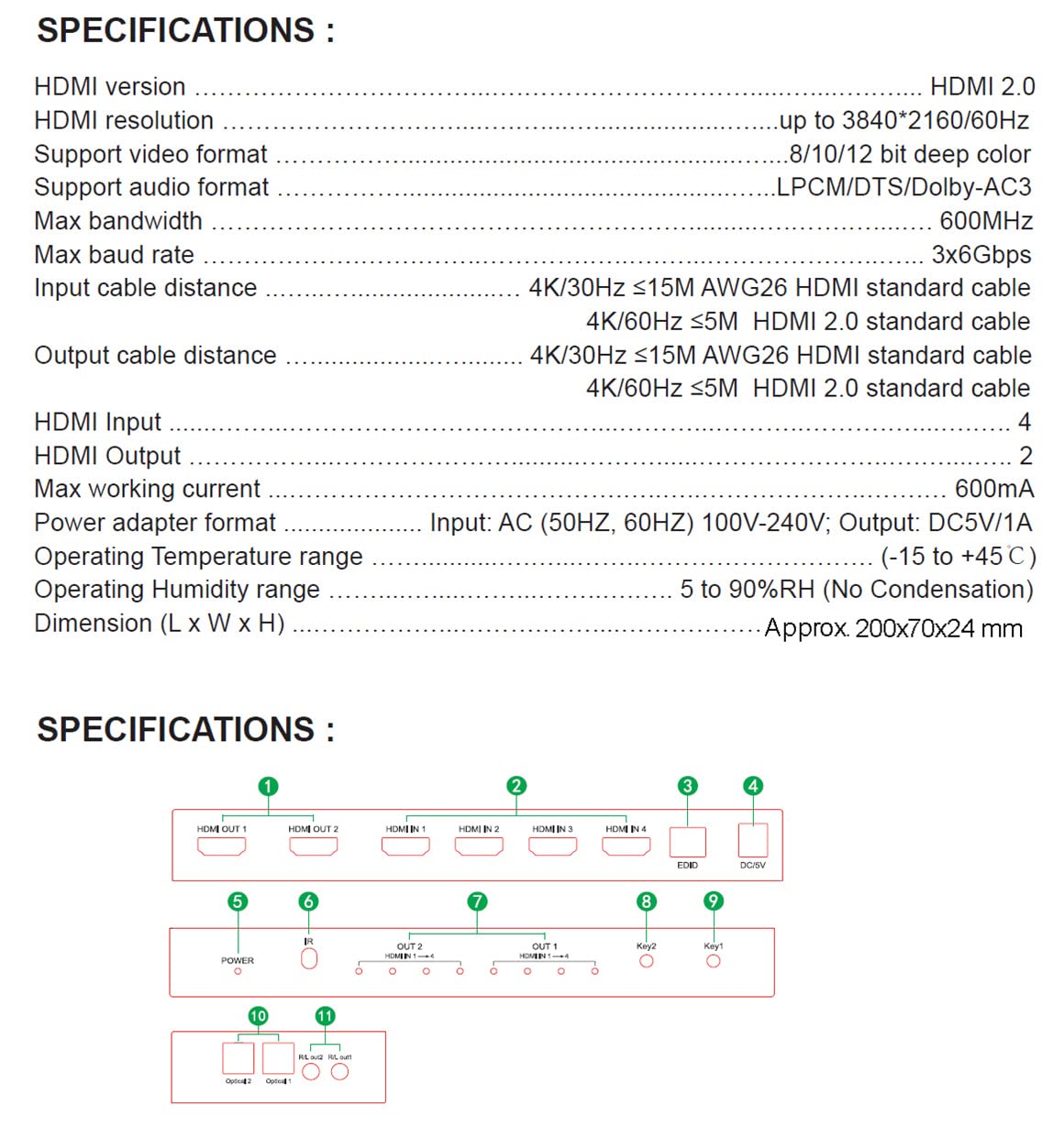

Descriptions: The HDMI 4X2 Matrix Audio Extractor can switch any one of the four HDMI Input signals to 2 HDMI outputs , plus it can do audio extract at the same time by one Toslink Audio Output port and one Headphone Audio Output port. The device can solve the compliance problem between the old AV receiver and the new HDR Source to let your AV equipment become convenient and easier use. HDMI version: HDMI2.0 (backward compatible) HDCP version: HDCP 2.2 (downward compatible) Resolution: up to 3840x2160 / 60Hz (RGB / YUV 4: 4: 4) (downward compatible) Support audio format: LPCM / DTS / Dolby-AC3 Support video format: 8/10/12 color depth Maximum bandwidth transmission: 600MHz Maximum transfer rate: 3 x 6 Gbps HDMI input: 4 HDMI output: 2 Audio interface: 2 optical SPDIF and 2 3.5 mm jack Length of the input cable: 1080 P ≤ 15 M, 4 k @ 30 Hz ≤ 10 MHDMI standard cable, 4 k @ 60 Hz ≤ 5 M AWG26-HDMI standard cable 2.0Length of the output cable: 1080 P ≤ 15 M, 4 k @ 30 Hz ≤ 10 MHDMI standard cable, 4 k @ 60 Hz ≤ 5 M AWG26-HDMI standard cable 2.0 Packaging: 1 x HDMI matrix 1 X remote control (without battery) 1 x English manual
