4K 3x3 Video Wall Controller, Video Wall Controller 4k 1x3 1x4 2x3 2x4 3x4 4x4 4x2 HDMI TV Video Wall Controller 9 Channel Multi Screen Splicer Processor with RS232

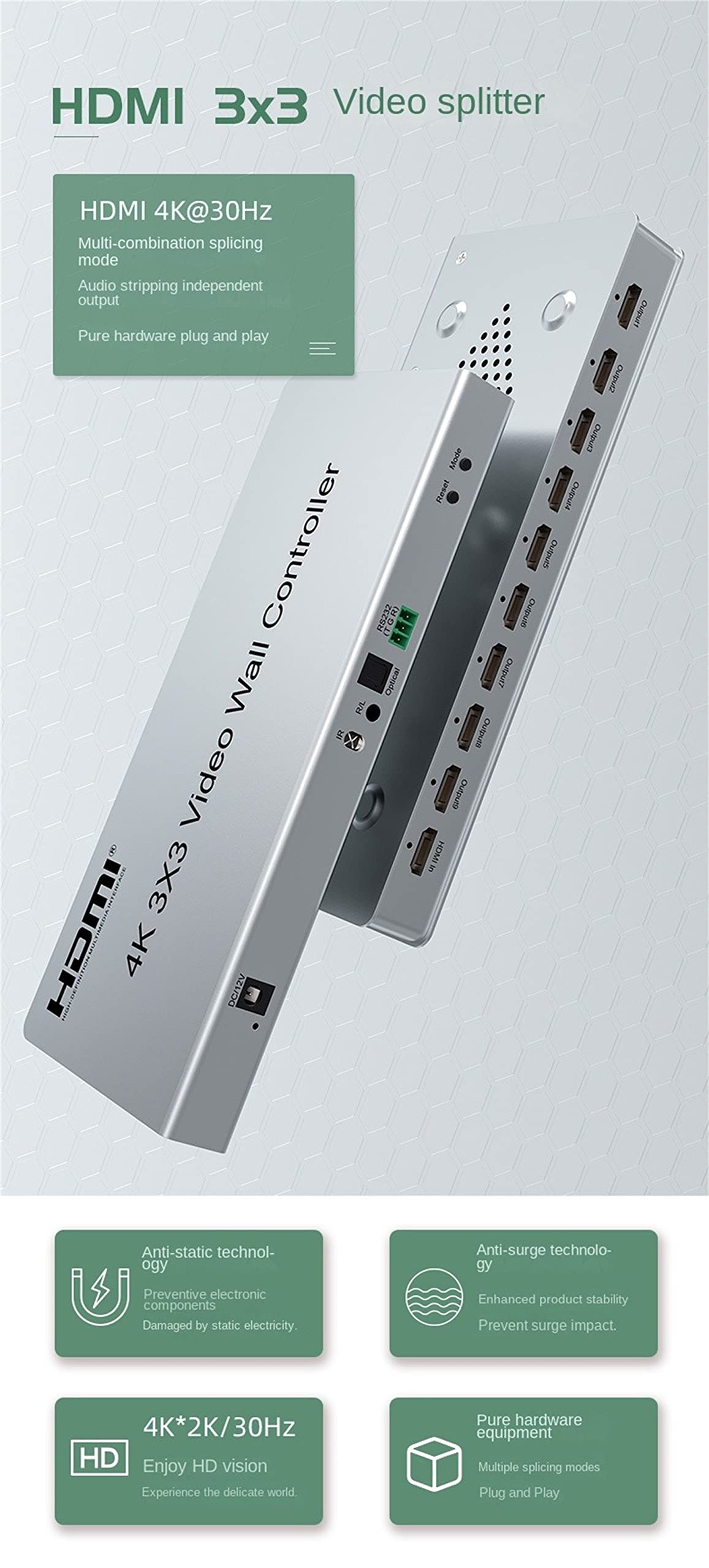

• A:HDMI 3X3 video splicer: HDMI 4K@30Hz, multi-combination splicing mode, audio stripping independent output, pure hardware, plug and play.
• B:Safety protection and high efficiency: Anti-static technology to prevent damage to electronic components caused by static electricity. Anti-surge technology to enhance product stability and prevent surge impact. 4K*2K/30Hz ,Enjoy a delicate world of HD visual experience. Pure hardware device, multiple splicing modes, plug and play.

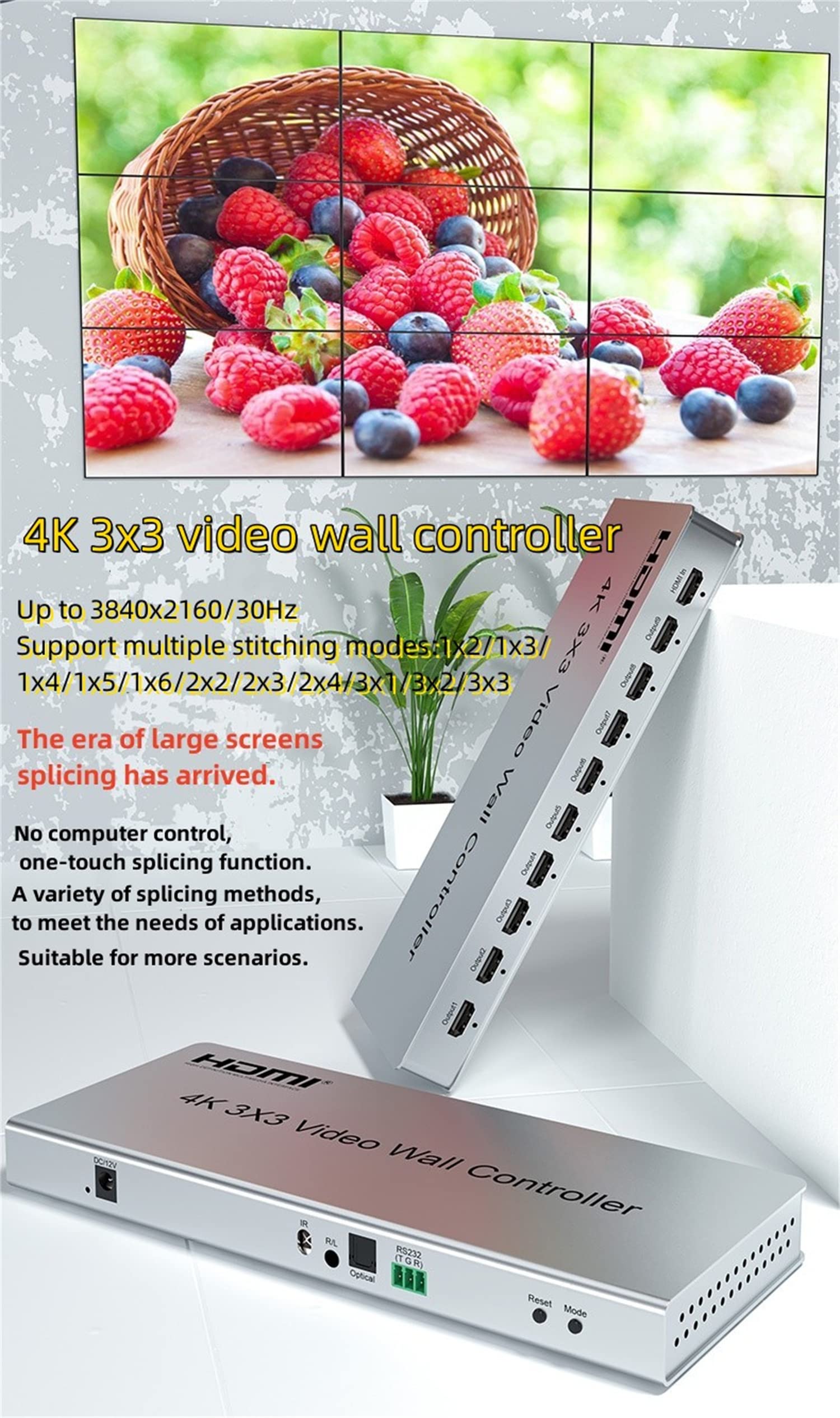

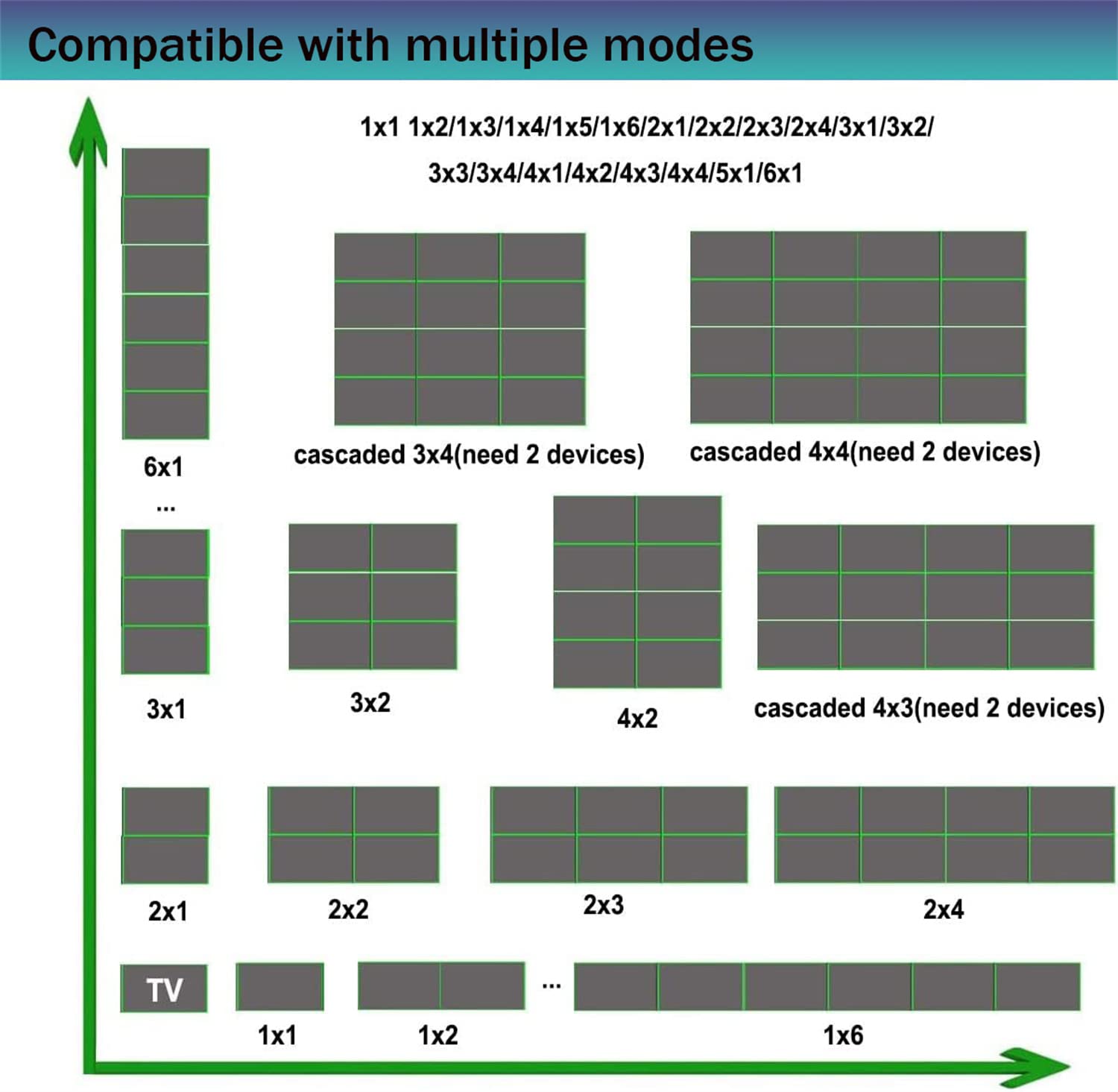

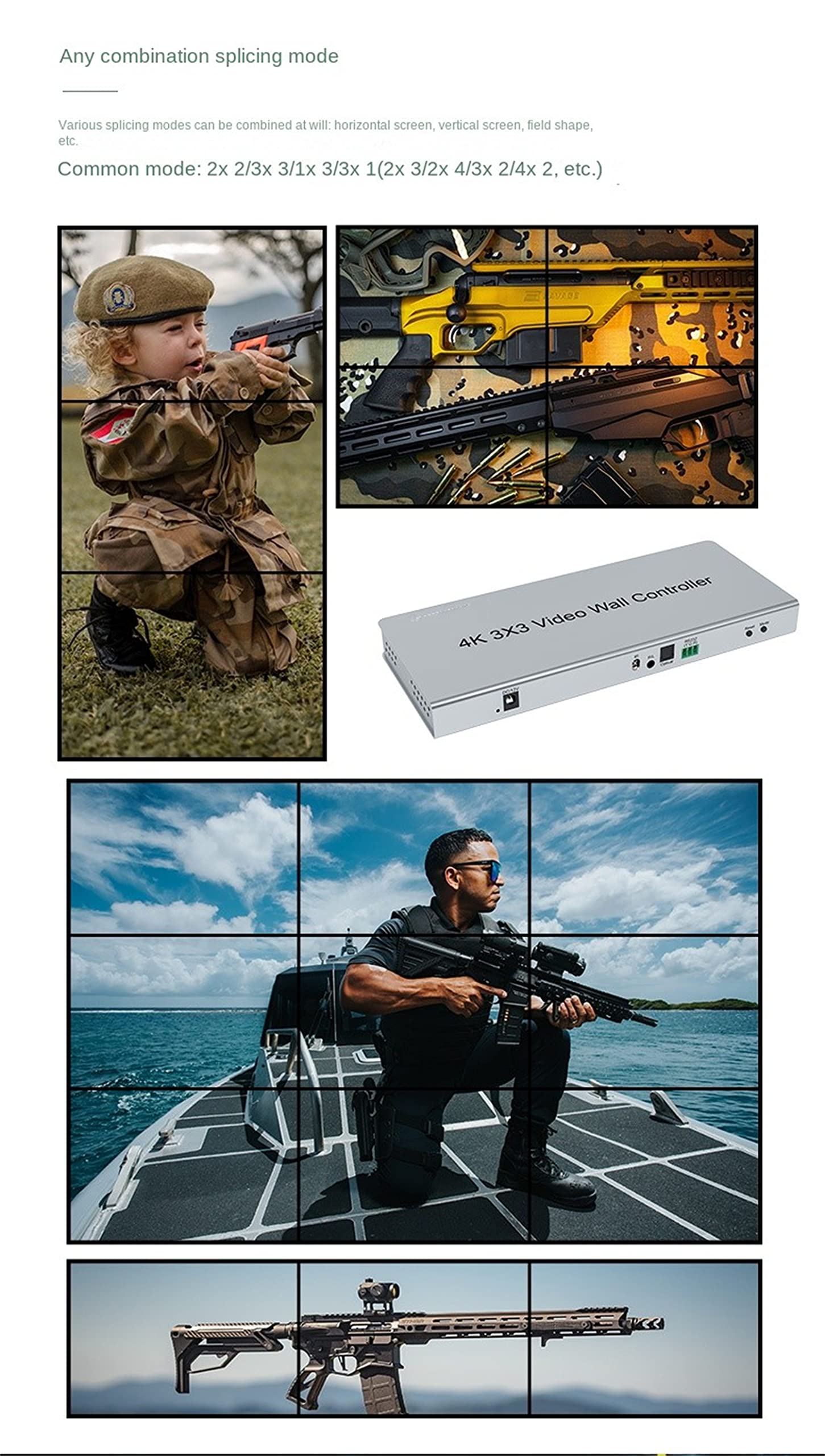

• C:Large screen era, one key splicing: no computer control, one key splicing function, a variety of splicing mode, to meet the application needs, applicable to more scenes. Any combination of splicing modes, you can combine a variety of modes: horizontal/vertical/field, etc., commonly used modes: 2X2/2X3/1X2/2X1, etc.

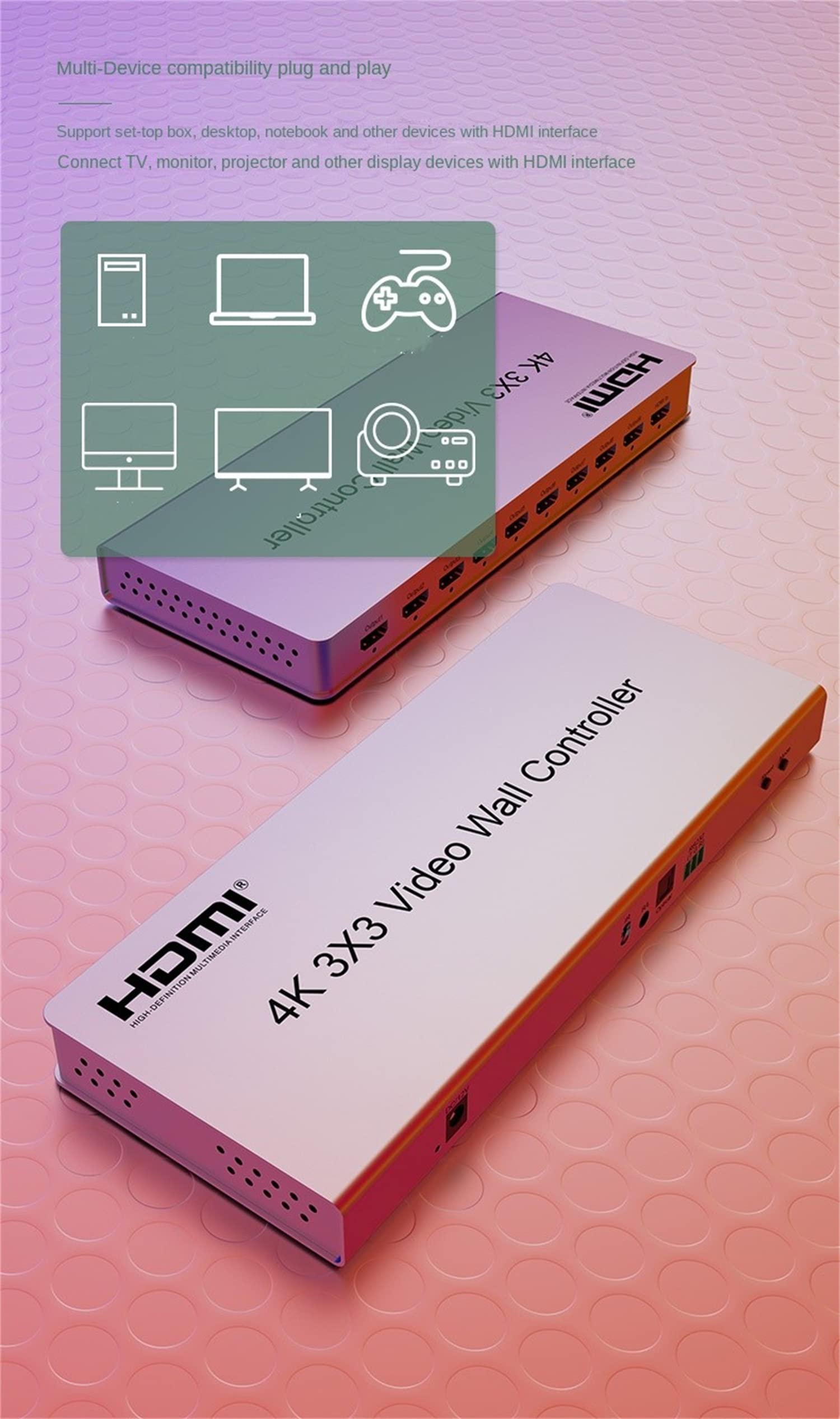

• D:Plug-and-play device compatibility: support for set-top boxes, desktops, laptops and other devices with HDMI interfaces to connect to TVs, monitors, projectors and other display devices with HDMI interfaces.

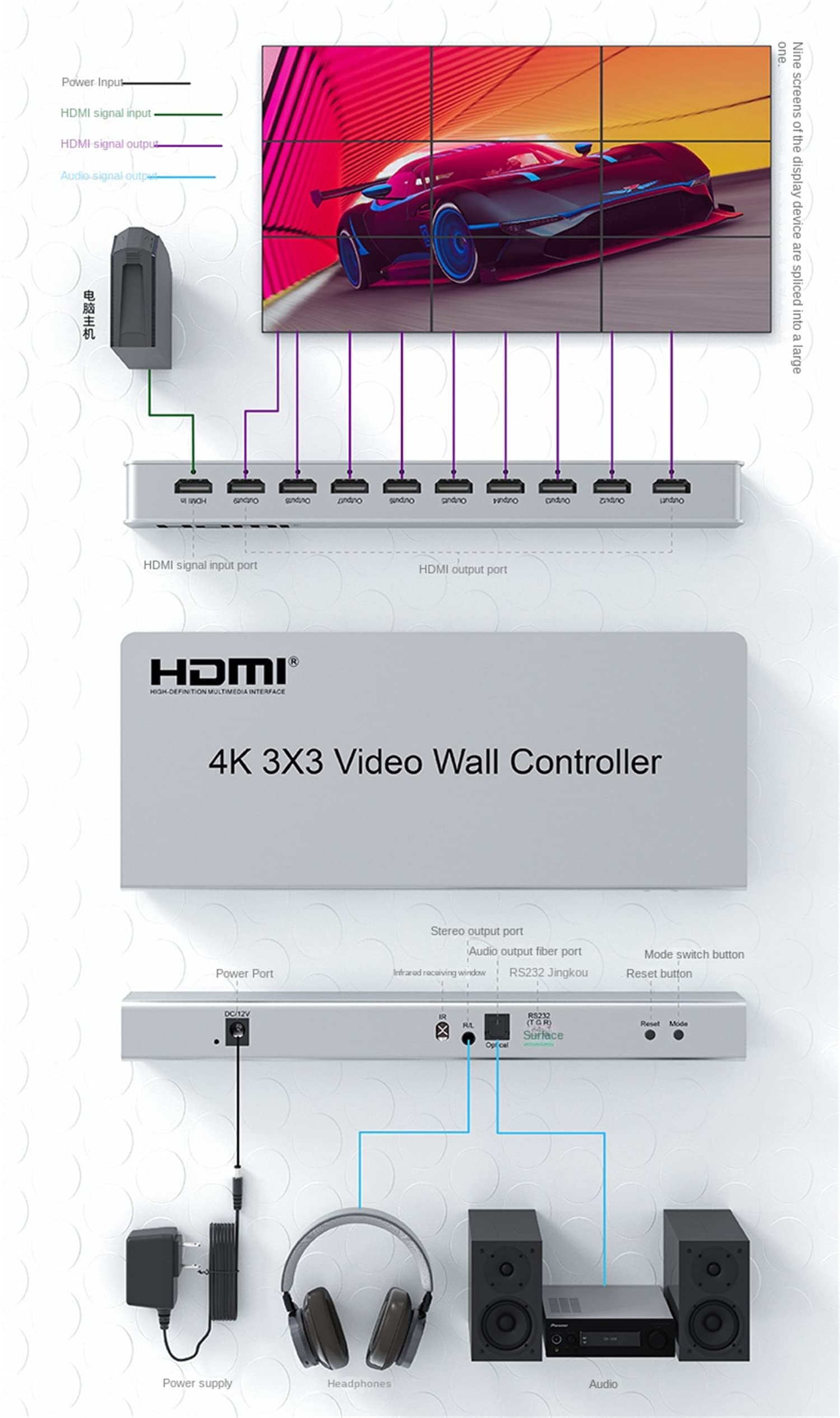

• E:Support audio separation, digital optical and analogue 3.5 headphone output; support infrared control.

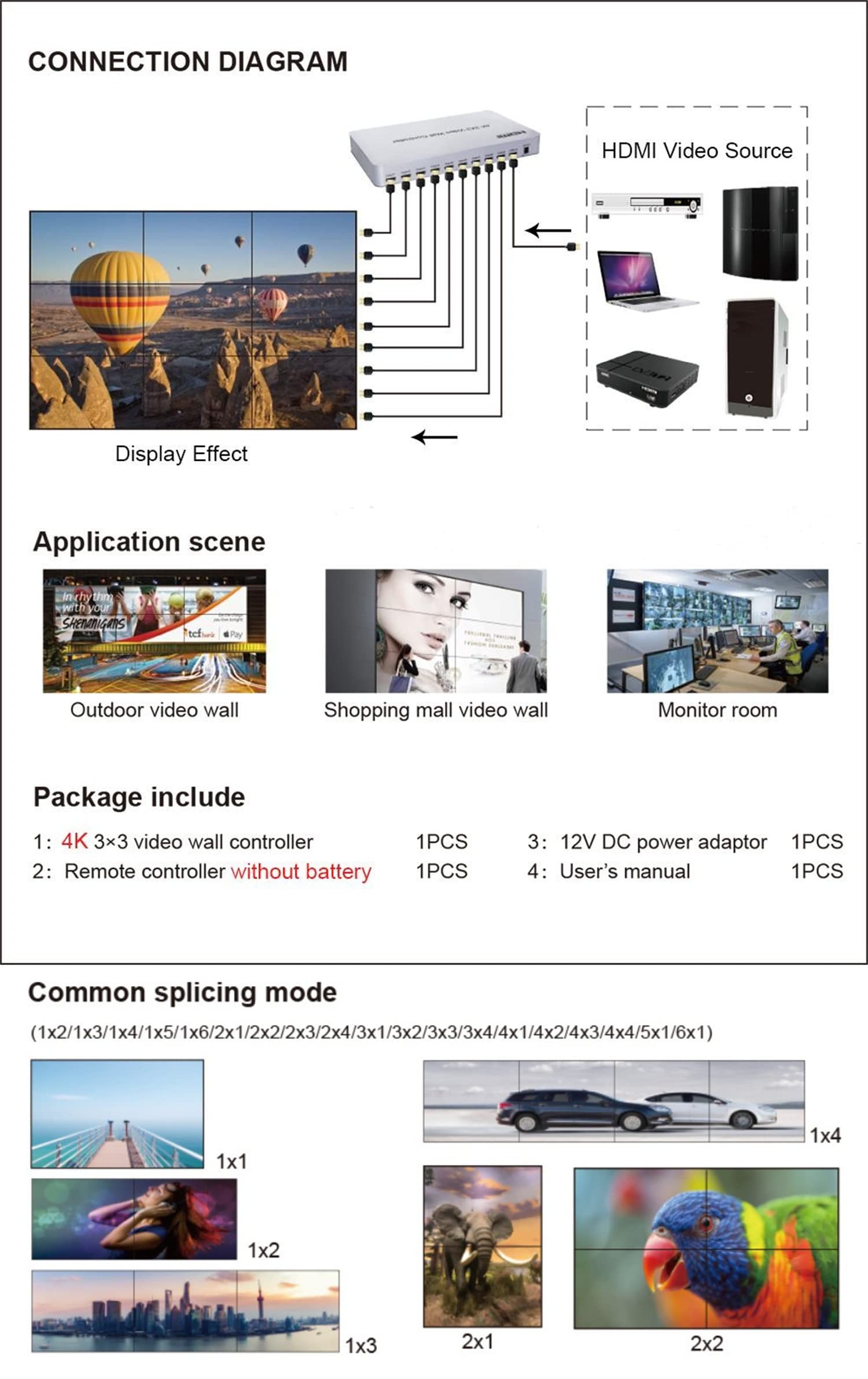

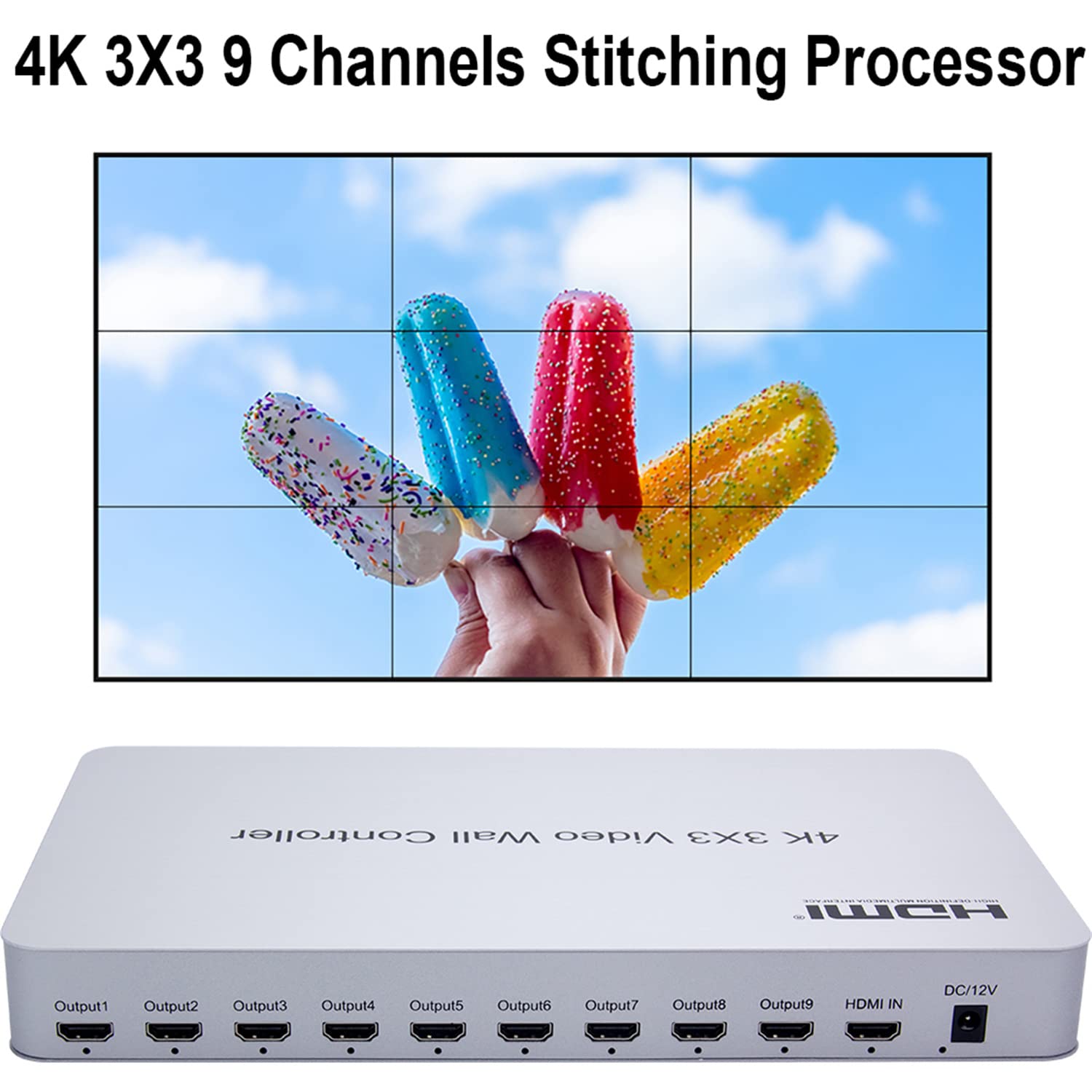

4K 3×3 Video Wall Controller Introduction: The 3x3 video wall controller , support 1-way HDMI input and 9-way HDMI outputs,the main function is to divide a complete HD image signal into 9 blocks and assign to 9 video display units(such as rear projection unit, LCD TV, etc.), complete with 9 HDMI high-definition video display units to form a large dynamic image screen Features: Support HDMI input; Support 9 HDMI outputs; Support multiple splicing modes, easy to operate, plug and play; Support 8/10/12 bit deep color; Support IR control HDMI resolution:the highest support 3840x2160/30Hz Support audio format:stereo Input cable length:≤8m AWG26 HDMI standard cable Output cable length:≤10M,AWG26 HDMI standard cable Package include: 1x4K 3×3 video wall controller 1xRemote control(without battery) 1x12V DC power adapter 1x manual
