4k @ 30HZ 3x3 Video Wall Controller 1 HDMI Input 9 HDMI Output Video Processor support 1x1,1x2,1x3,1x4,1x5,1x6,2x1,2x2,2x3,2x4. 3x1,3x2,3x3,4x1,4x2,5x1,6x1

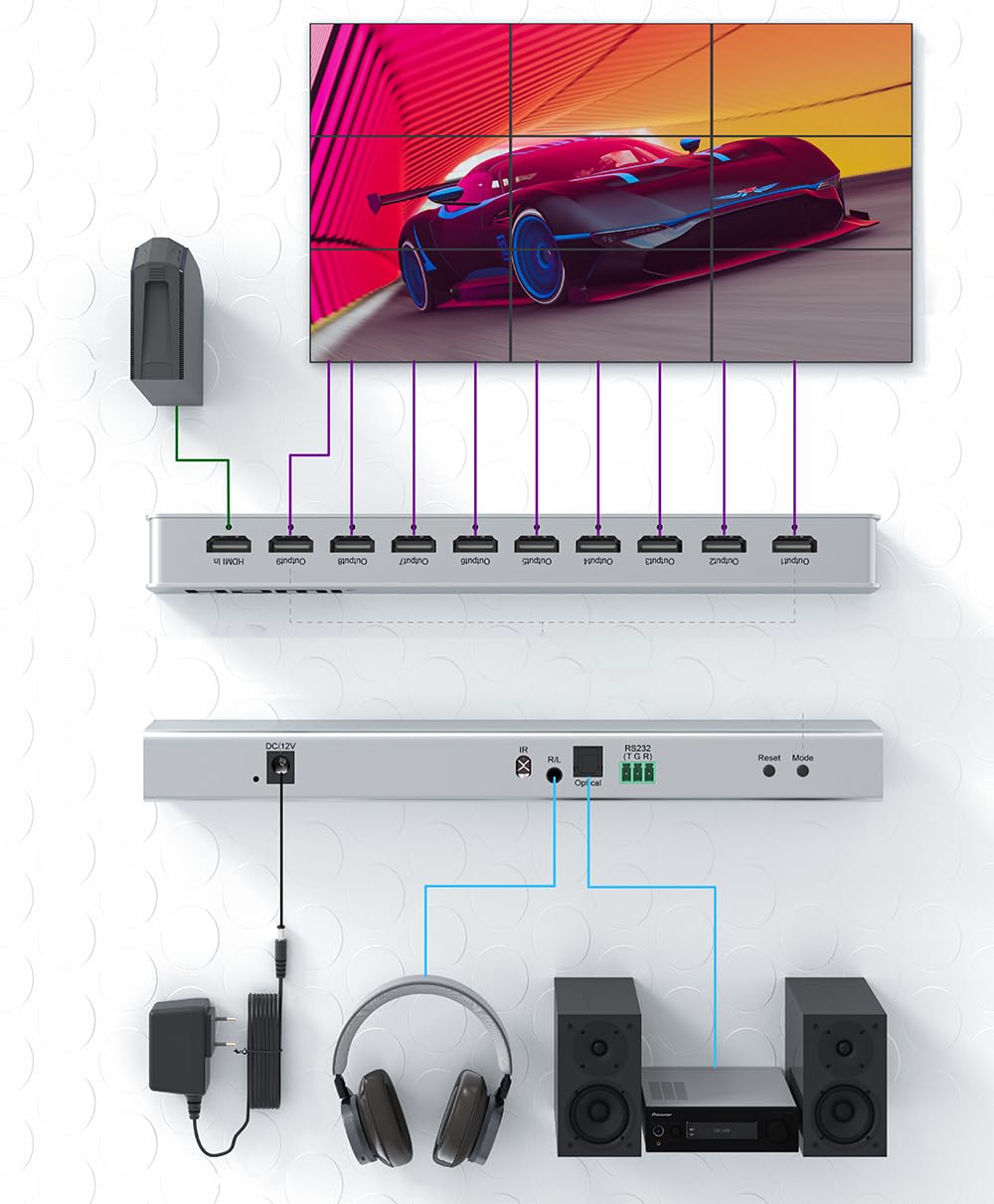

• 1. The 3x3 video wall controller , support 1-way HDMI input and 9-way HDMI outputs, the main function is to divide a complete HD image signal into 9 blocks and assign to 9 video display units(such as Rear projection unit, LCD TV, etc.), Complete with 9 HDMI high-definition video display units to form a large dynamic image screen.

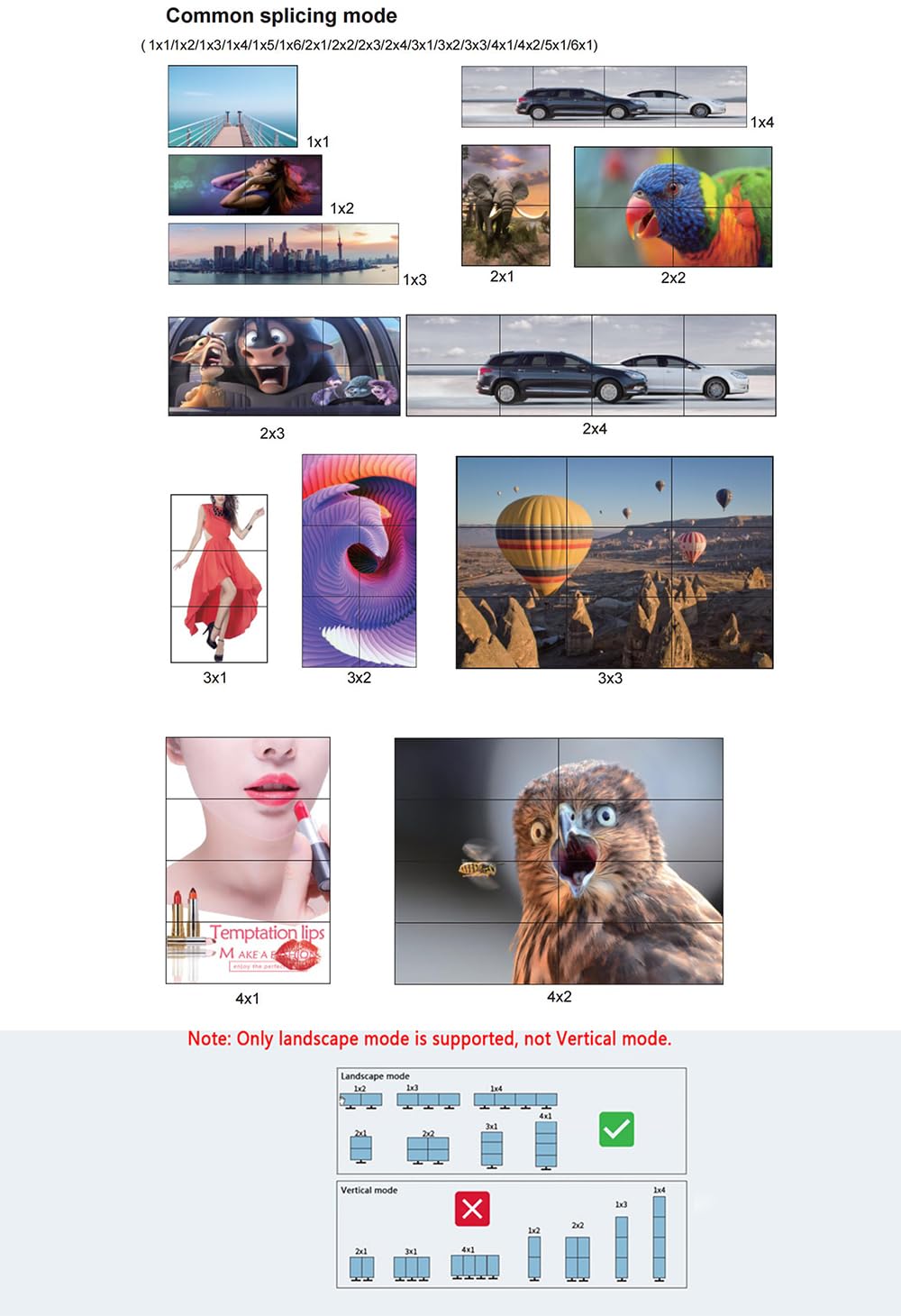

• 2. HDMI video wall controller splicing simple, 3X3 splicing mode can display 3840x2160/30HZ resolution (is the overall resolution of nine screens rather than a single screen resolution) of ultra-high definition images, but also supports 1x1,1x2,1x3,1x4,1x5,1x6,2x1,2x2,2x3,2x4. 3x1,3x2,3x3,4x1,4x2,5x1,6x1 stitching modes.
• .3.Support audio separation, digital optical and analogue 3.5 headphone output.
• 4. No other software setting is required, pure hardware equipment, simple setting.

Product parameters: (1) Support 1 channel HDMI input (2) Input support HDMI1.４, HDCP1.4 (3) Support 9 channels of HDMI output. (4) 3.5mm audio output port (5) Optical audio output port (6) Multiple splicing modes: 1x1,1x2,1x3,1x4,1x5,1x6,2x1,2x2,2x3,2x4. 3x1,3x2,3x3,4x1,4x2,5x1,6x1 (7) Input resolution: 1920x1080P 25/30/50/60HZ,3840x2160P 25/30HZ (8) Output resolution: 1920x1080P 25/30/50/60HZ (4K dynamic image large screen can only be completed in stitching mode) (9) Support 8/10/12 bit deep color; (10) Easy to operate, plug and play Package contents: 1 X 3X3 HDMI video wall controller 1 X IR remote control(battery is not included)
