4K 2X3 Video Wall Controller,Video Wall Controller 4k 2x3 2x2 2x1 1x2 3x2 HDMI Audio Extraction LCD TV 6 Screen Video Wall Stitching Processor TV Splicer Box

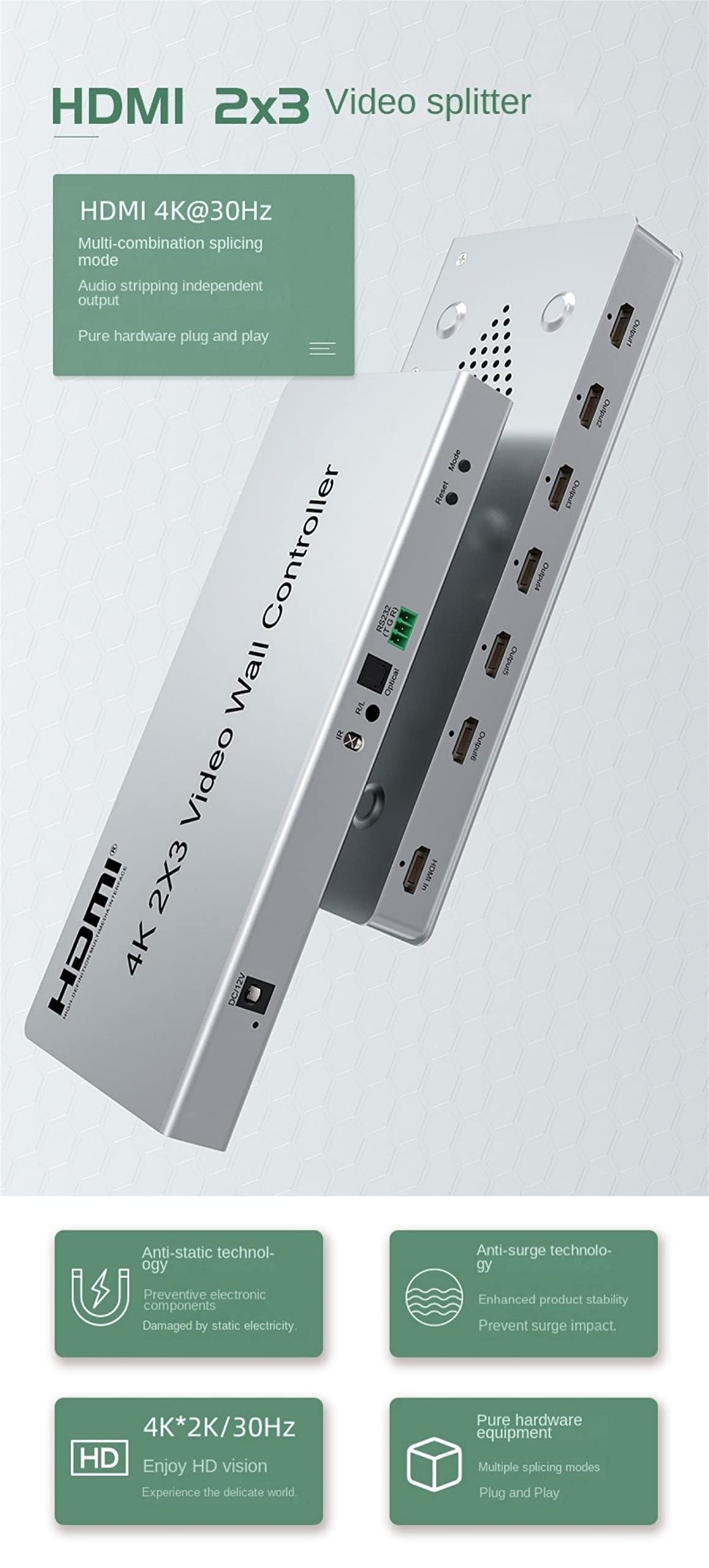

• A:HDMI 2X3 video splicer: HDMI 4K@30Hz, multi-combination splicing mode, audio stripping independent output, pure hardware, plug and play.
• B:Safety protection and high efficiency: Anti-static technology to prevent damage to electronic components caused by static electricity. Anti-surge technology to enhance product stability and prevent surge impact. 4K*2K/30Hz ,Enjoy a delicate world of HD visual experience. Pure hardware device, multiple splicing modes, plug and play.
• C:Large screen era, one key splicing: no computer control, one key splicing function, a variety of splicing mode, to meet the application needs, applicable to more scenes. Any combination of splicing modes, you can combine a variety of modes: horizontal/vertical/field, etc., commonly used modes: 2X2/2X3/1X2/2X1, etc.
• D:Plug-and-play device compatibility: support for set-top boxes, desktops, laptops and other devices with HDMI interfaces to connect to TVs, monitors, projectors and other display devices with HDMI interfaces.
• E:Support audio separation, digital optical and analogue 3.5 headphone output; support infrared control.

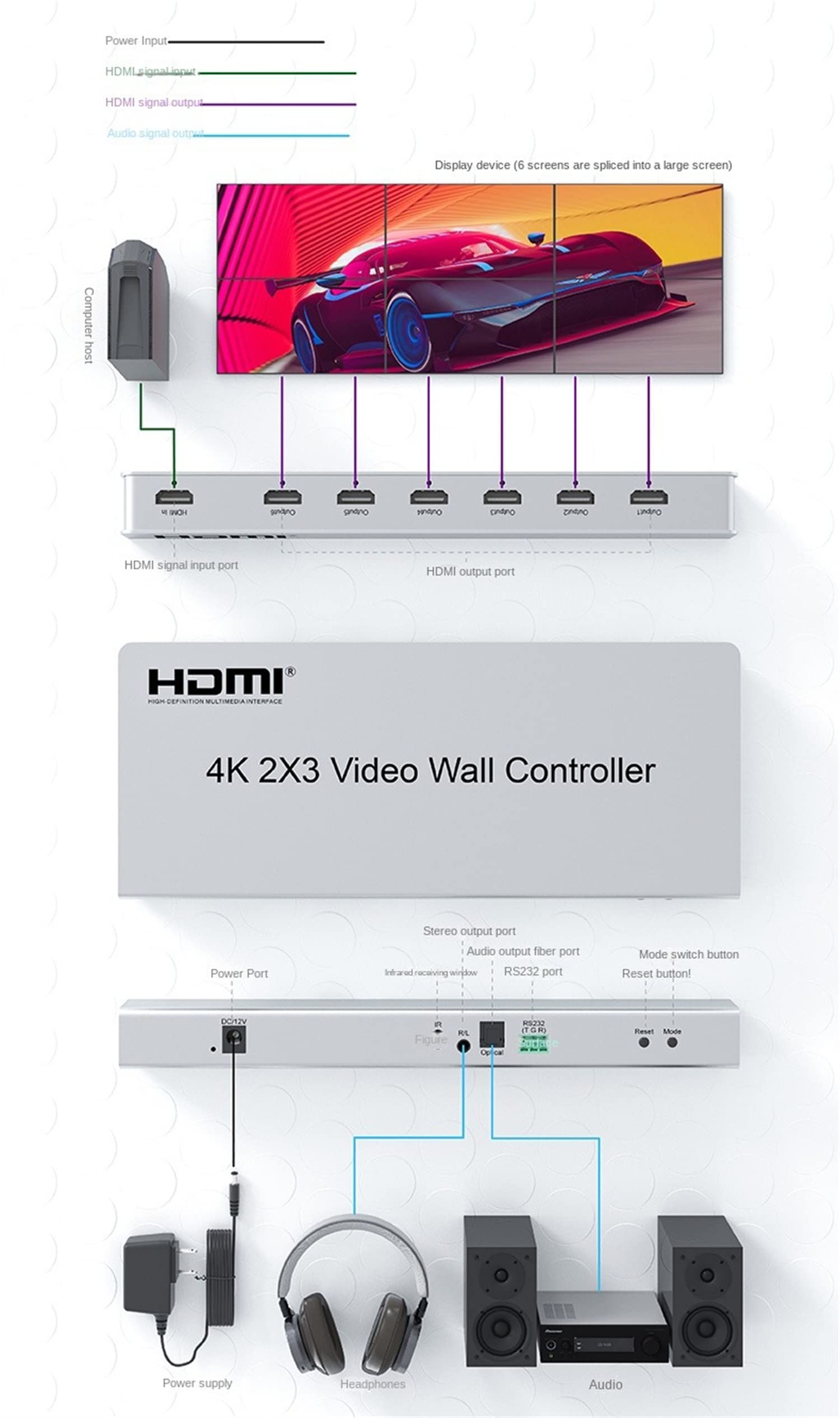

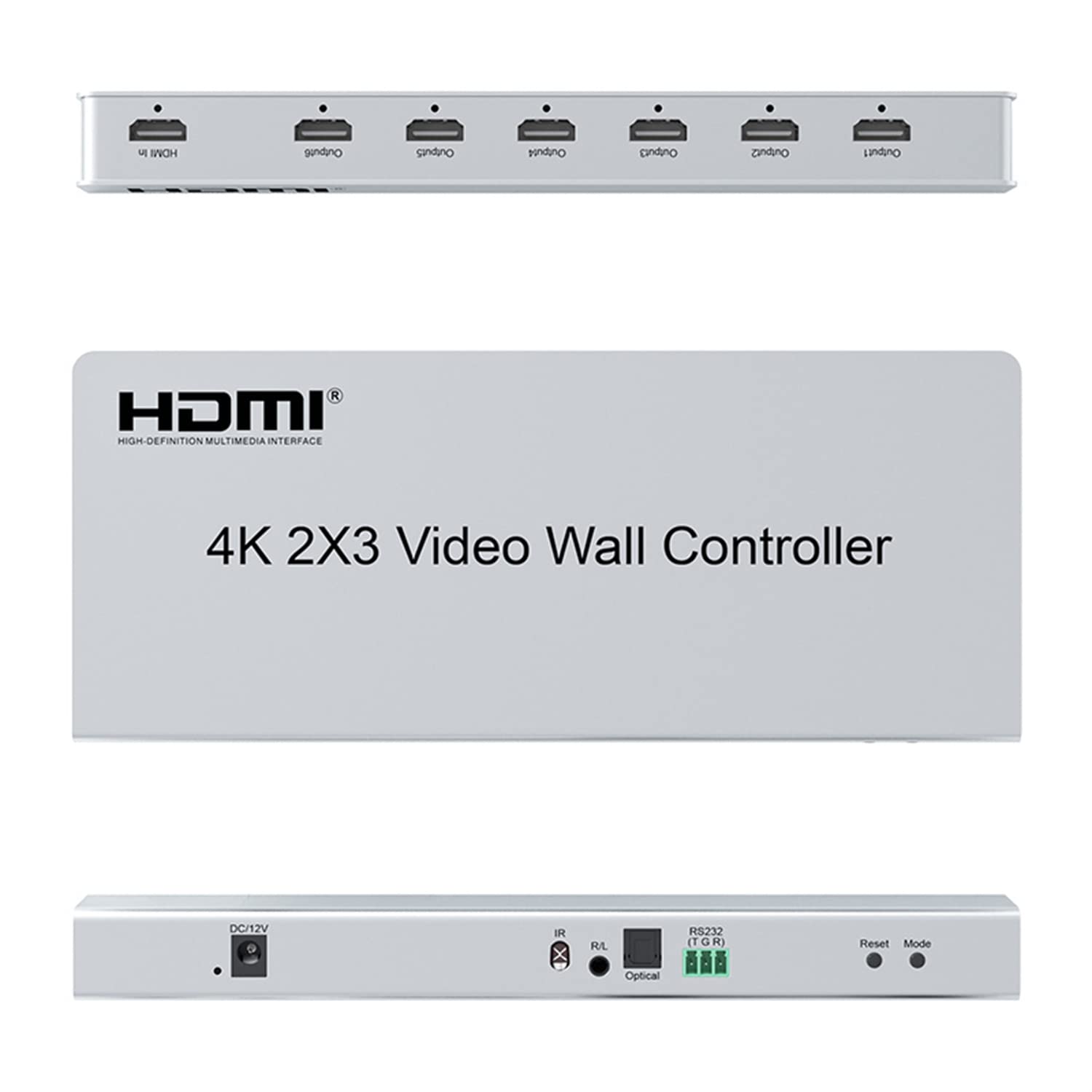

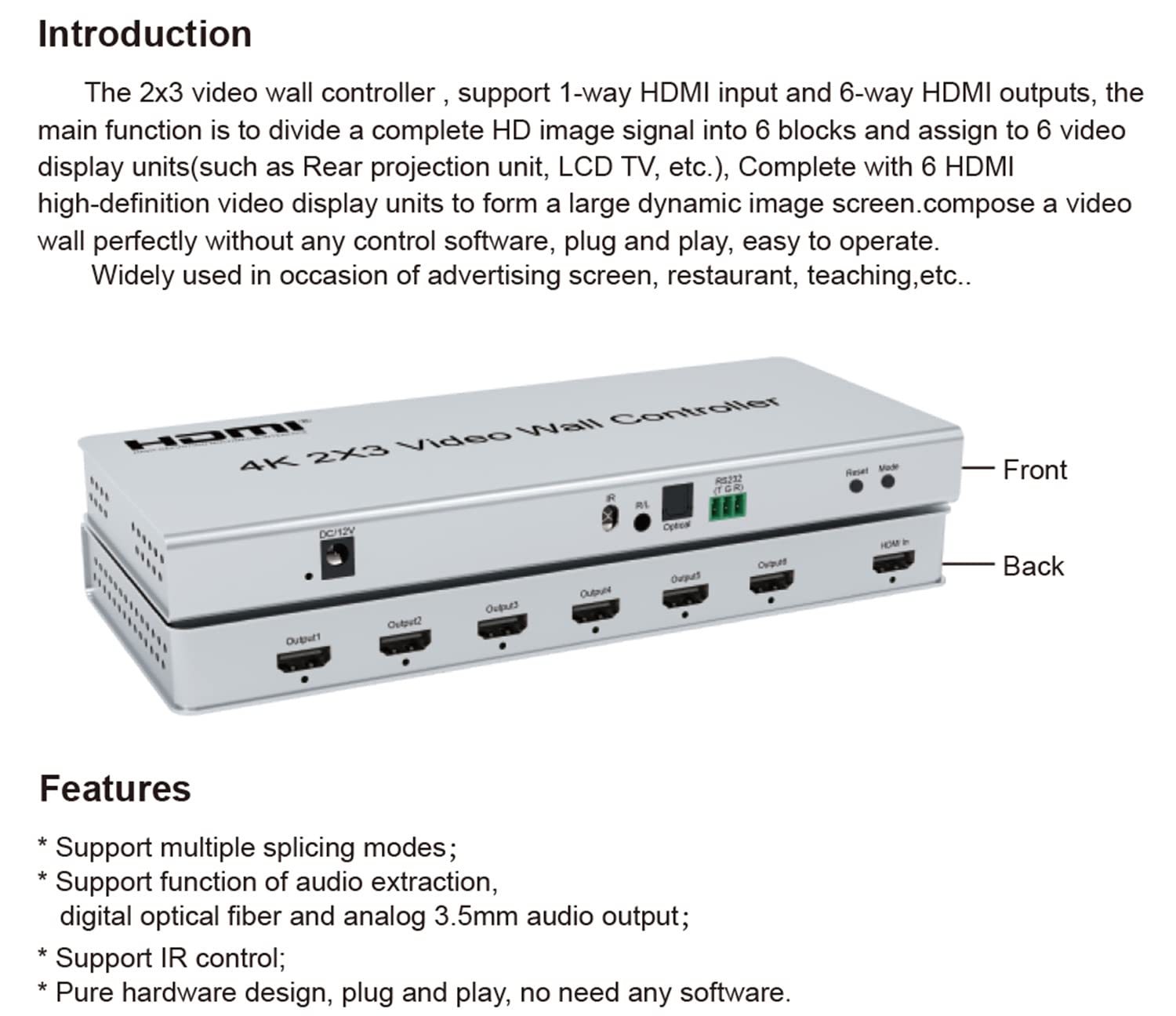

Introduction: The 2x3 video wall controller , support 1-way HDMI input and 6-way HDMI outputs, the main function is to divide a complete HD image signal into 6 blocks and assign to 6 video display units(such as Rear projection unit, LCD TV, etc.), Complete with 6 HDMI high-definition video display units to form a large dynamic image screen.compose a video wall perfectly without any control software, plug and play, easy to operate.Widely used in occasion of advertising screen, restaurant, teaching,etc.. Features: Support multiple splicing modes； Support function of audio extraction, digital optical fiber and analog 3.5mm audio output； Support IR control; Pure hardware design, plug and play, no need any software. Specifications: HDMI resolution:the highest support 3840x2160/30Hz Support audio format:stereo Input cable length:≤8m AWG26 HDMI standard cable Output cable length:≤10M,AWG26 HDMI standard cable Max working current:0.35A Power adapter specifications:input AC (50HZ, 60HZ) 100V-240V Output 12V DC/1A Package: 4K 2×3 video wall controller Remote controller (without battery) 12V DC power adapter Manual
