4G/3G/2G/GSM/GPRS/GNSS HAT for Raspberry Pi/Jetson Nano Based SIM7600G-H Support LTE CAT4 Global Position

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano; Breakout UART control pins, to connect with host boards like Arduino/STM32
• Supports dial-up, telephone call, SMS, MMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc.; Supports GPS, BeiDou, Glonass, LBS base station positioning;Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
• Onboard USB interface, to test AT Commands, get GPS positioning data, and so on;Onboard CP2102 USB to UART converter, for serial debugging;Onboard audio jack and audio decoder for making telephone call;Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
• SIM card slot, supports 1.8V/3V SIM card; TF card slot for storing data like files, messages, etc.;2x LED indicators, easy to monitor the working status; Baudrate: 300bps ~ 4Mbps (default: 115200bps);Autobauding baudrate: 9600bps ~ 115200bps;Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
• Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32),download: www.waveshare.com/wiki/SIM7600G-H_4G_HAT

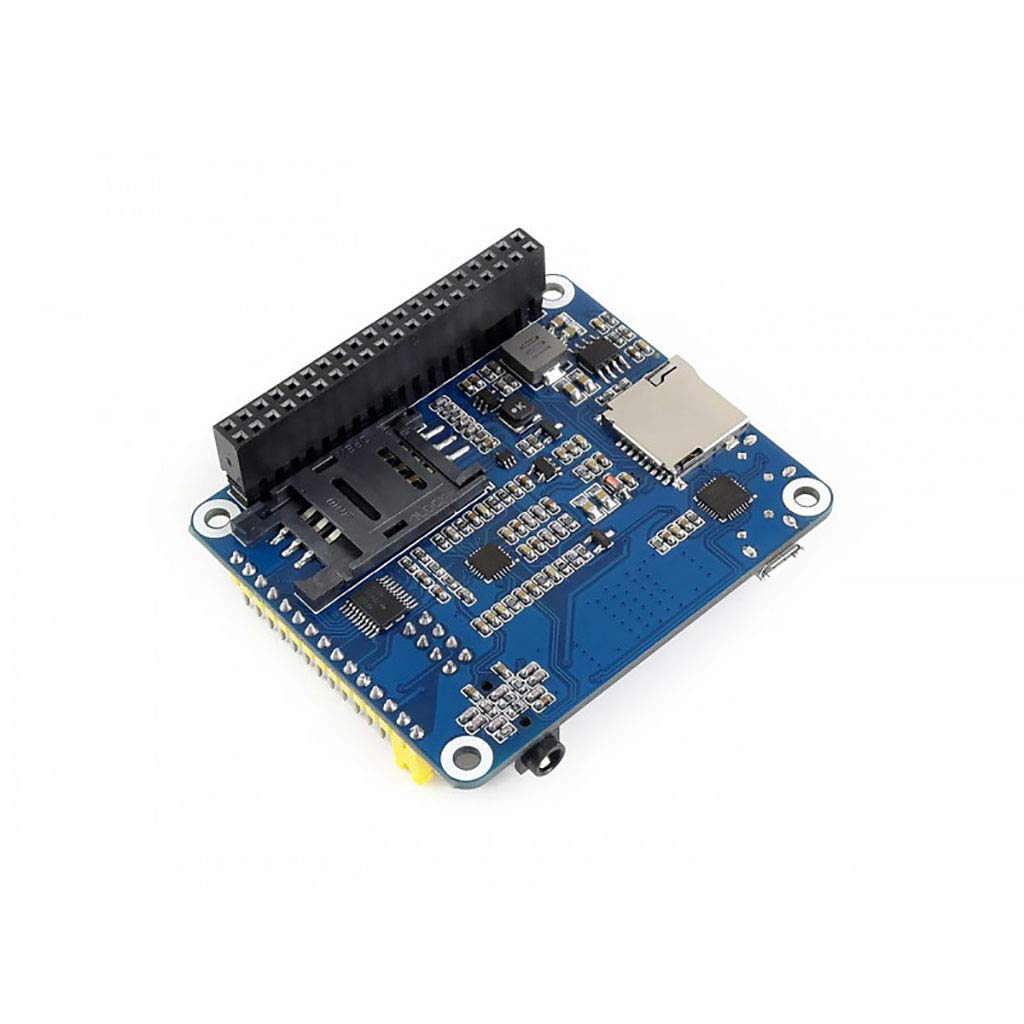

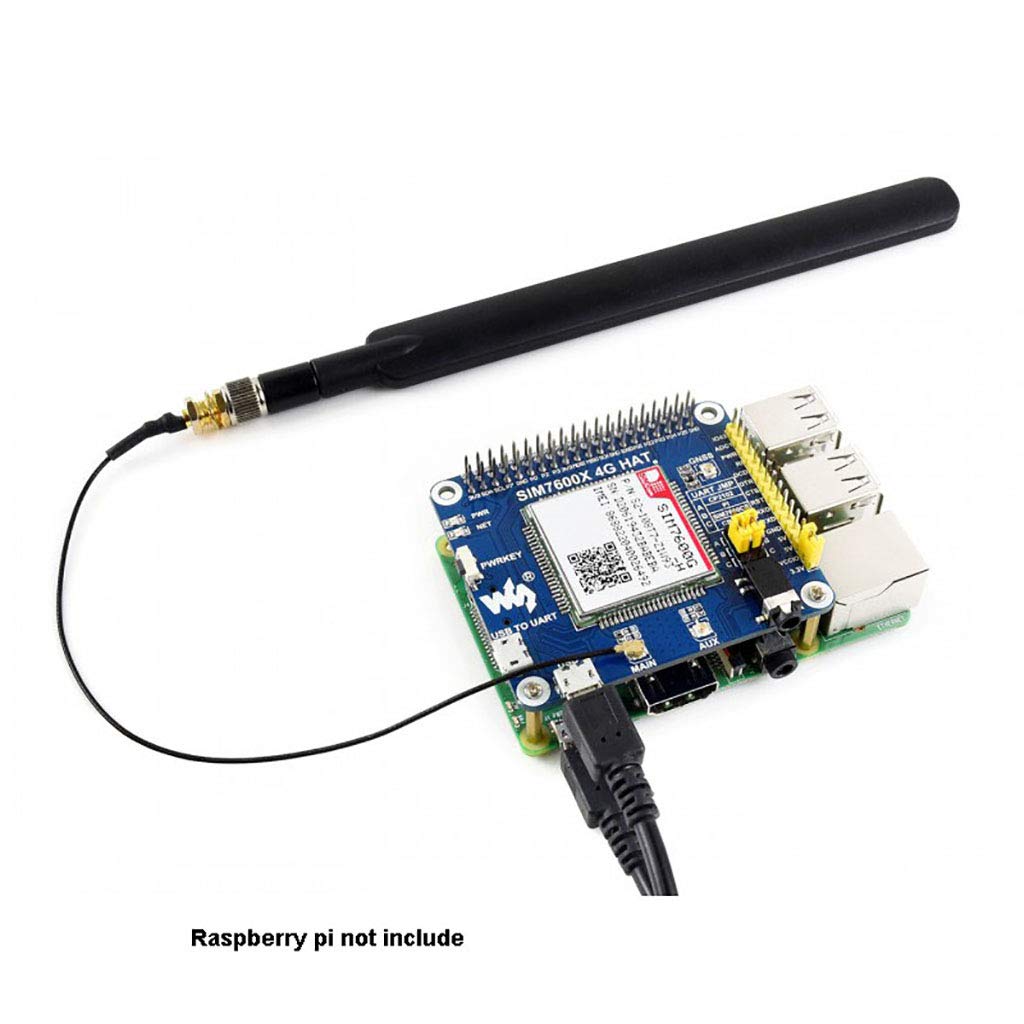

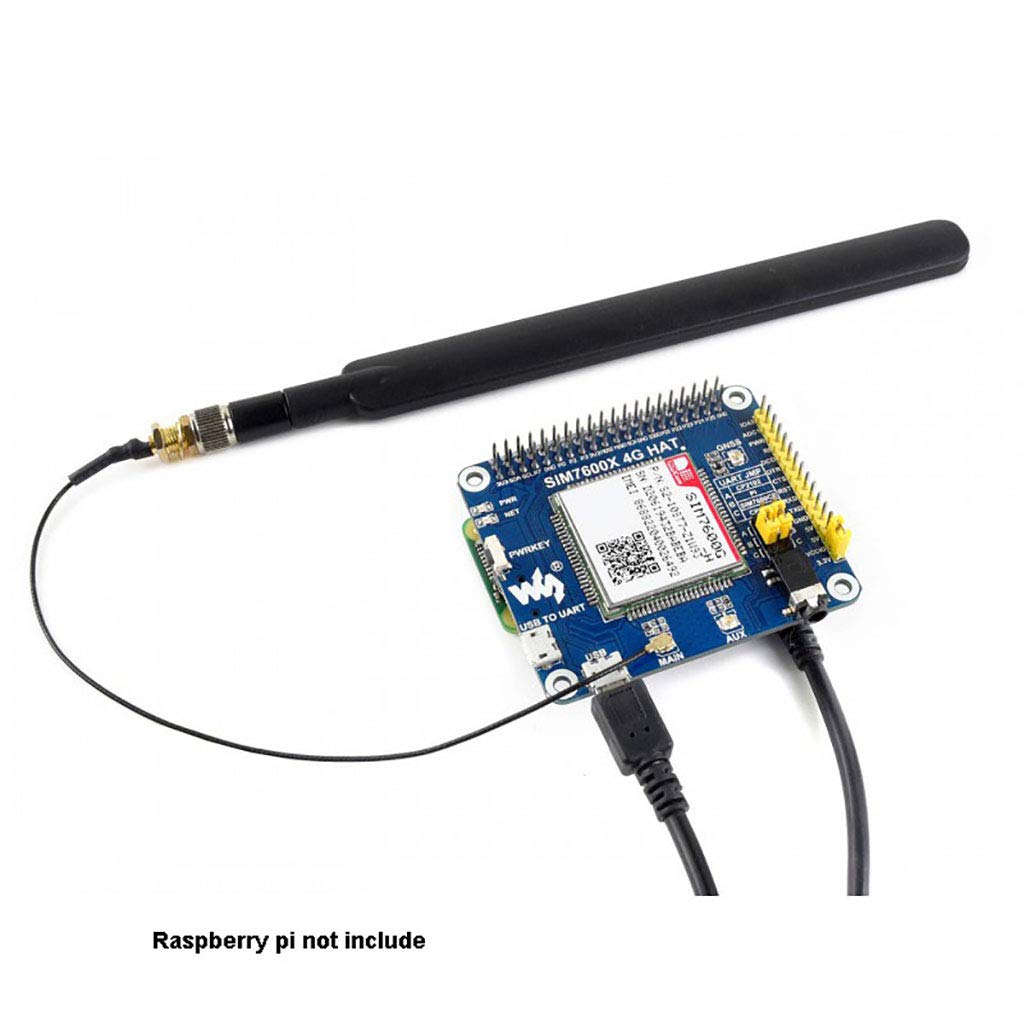

Description The SIM7600G-H 4G HAT is a 4G/3G/2G communication and GNSS positioning module, which supports LTE CAT4 up to 150Mbps for downlink data transfer. it is pretty low power consumption. You can connect this 4G module with computer to surf the Internet, or attach it onto Raspberry Pi to enable functions like 4G high speed connection, wireless communication, making telephone call, sending SMS, global positioning, etc. Description Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano Supports dial-up, telephone call, SMS, MMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc. Supports GPS, BeiDou, Glonass, LBS base station positioning Onboard USB interface, to test AT Commands, get GPS positioning data, and so on Onboard CP2102 USB to UART converter, for serial debugging Breakout UART control pins, to connect with host boards like Arduino/STM32 SIM card slot, supports 1.8V/3V SIM card TF card slot for storing data like files, messages, etc. Onboard audio jack and audio decoder for making telephone call 2x LED indicators, easy to monitor the working status Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper Baudrate: 300bps ~ 4Mbps (default: 115200bps) Autobauding baudrate: 9600bps ~ 115200bps Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set) Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32) PACKAGE CONTENT 1. SIM7600G-H 4G HAT x1 2. LTE Antenna x1 3. GPS External Antenna (B) x1 4. USB type A plug to micro plug cable x2 5. RPi screws pack (2pcs) x1
