CQRobot JST XH 2.54 mm Pitch 2-Pin/3-Pin/4-Pin Electronic Connector IC Male Plugs, Female Sockets Housing and T-Shaped Crimp Terminal Kit. 90 Sets/460 Pieces Wire-to-Board Adapter Cable Assembly.

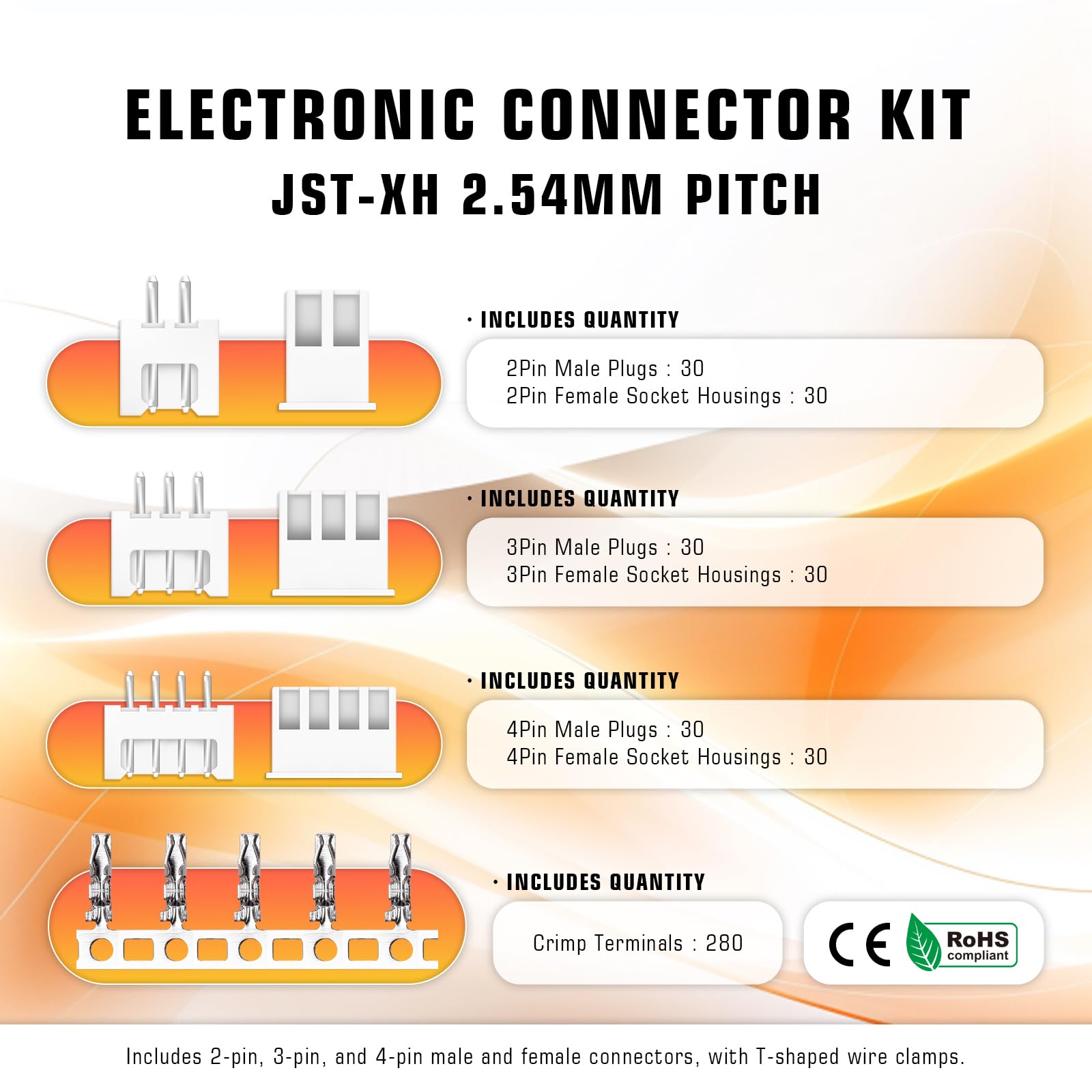

• JST-XH 2.54 mm pitch wire connection terminal IC male plug, 30 Pieces each for 2-pin, 3-pin, 4-pin, 90 pieces in total.

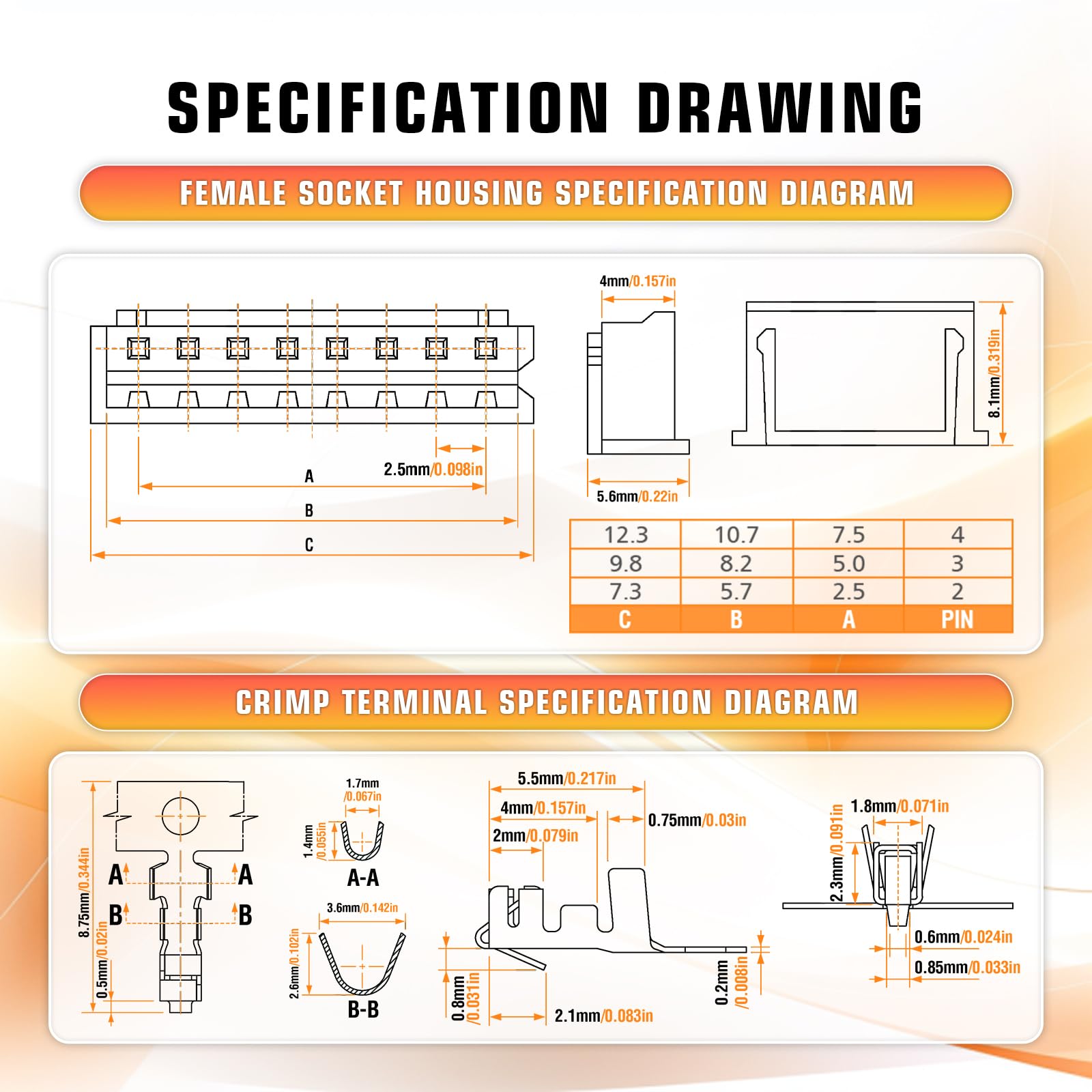

• 280 Pieces 2.54 mm pitch JST-XH T-shaped Crimp Terminal.
• JST-XH 2.54 mm pitch wire connection terminal IC female sockets housing, 30 pieces each for 2-pin, 3-pin, 4-pin, 90 pieces in total.

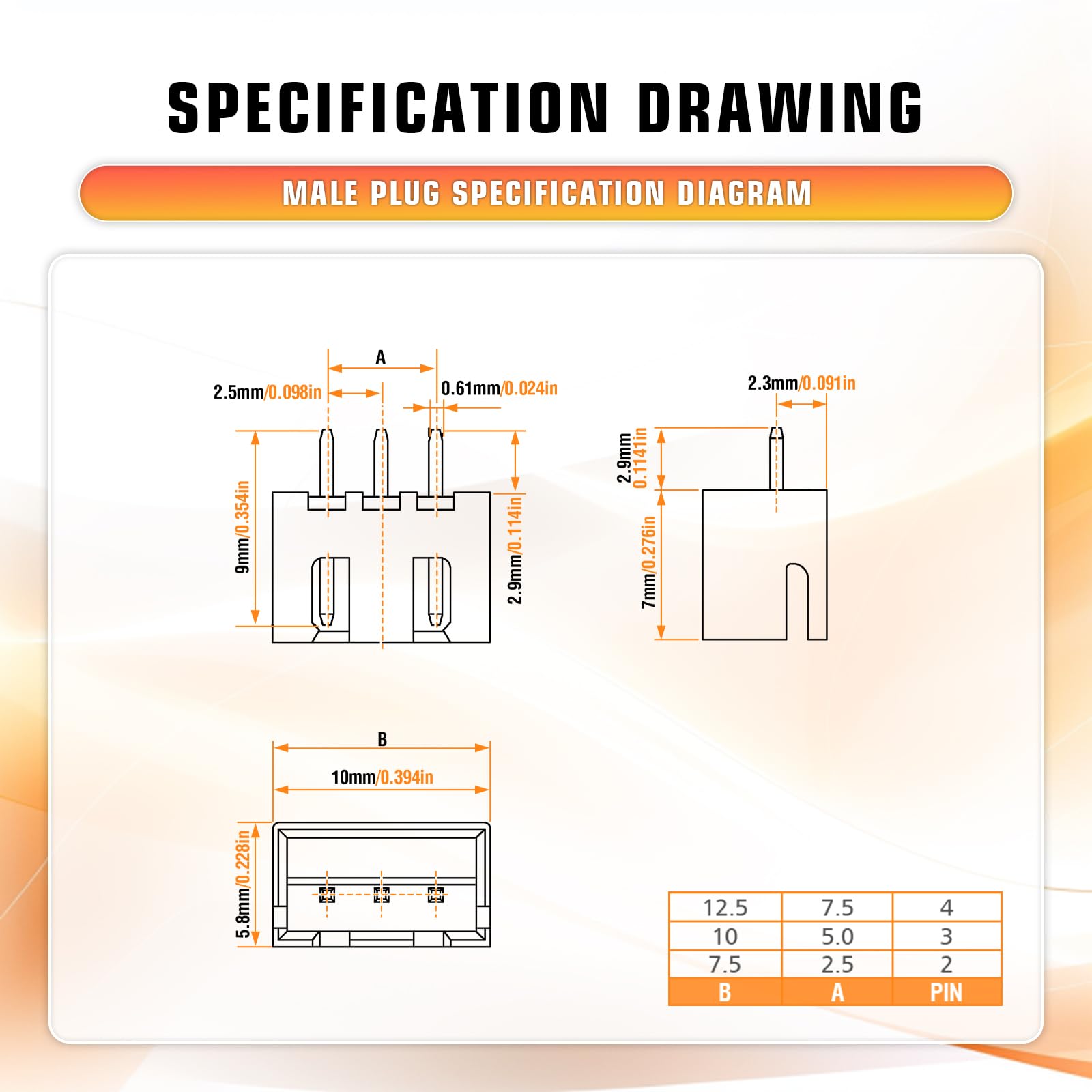

• JST 2.54 mm (0.1 inch) B2B / B3B / B4B-XH-K-S shrouded socket with through hole.
• 460 pieces / 90 sets JST-XH 2.54 mm pitch 2 pin / 3 pin / 4 pin JST wiring connecting IC male plugs, female sockets housing and T-shaped crimp terminal kit. PP plastic double sided comXHrtment XHrts box - 10 comXHrtments XHckage.

With the development of industrial electronic integrated circuits, there are various IC sockets and plug adapter connectors in electronic equipment. Currently, failures due to defective IC sockets and plug connectors account for more than 37% of all equipment failures. JST connector IC sockets and plugs play the role of conducting electricity and connecting signals in electronic equipment. IC sockets and plugs facilitate specialization, parts replacement, troubleshooting and quick assembly. Due to their stronger and more reliable characteristics, they are used in various devices. APPLICATION - Industrial Production - Electronic Integration - Computer Application - Medical Equipment SPECIFICATION - Model: JST XH 2 pin / 3 pin / 4 pin - Pitch: 2.54 mm (0.1 inch); - Current Rating: 3A AC/DC (AWG #22); - Voltage Rating: 250V AC/DC; - Temperature Range: -25 Degree Celsius to +85 Degree Celsius(including temperature rise in applying electrical current); - Contact Resistance: Initial value / 10 Milliohm max; After Environmental Testing / 20 Milliohm max; - Insulation Resistance: 1000 Megaohm above; - Withstanding Voltage: 1000V AC/one minute; - Applicable Wire: AWG#22 to AWG#30 - Applicable PCB thickness: 1.6mm. (0.06 inches) DISTRIBUTION LIST 1 * JST XH 2.54 mm Pitch 2-Pin/3-Pin/4-Pin JST Wiring Connecting IC Male Plugs, Female Sockets Housing and T-shaped Crimp Terminal Kit. (90 sets / 460 pieces)
