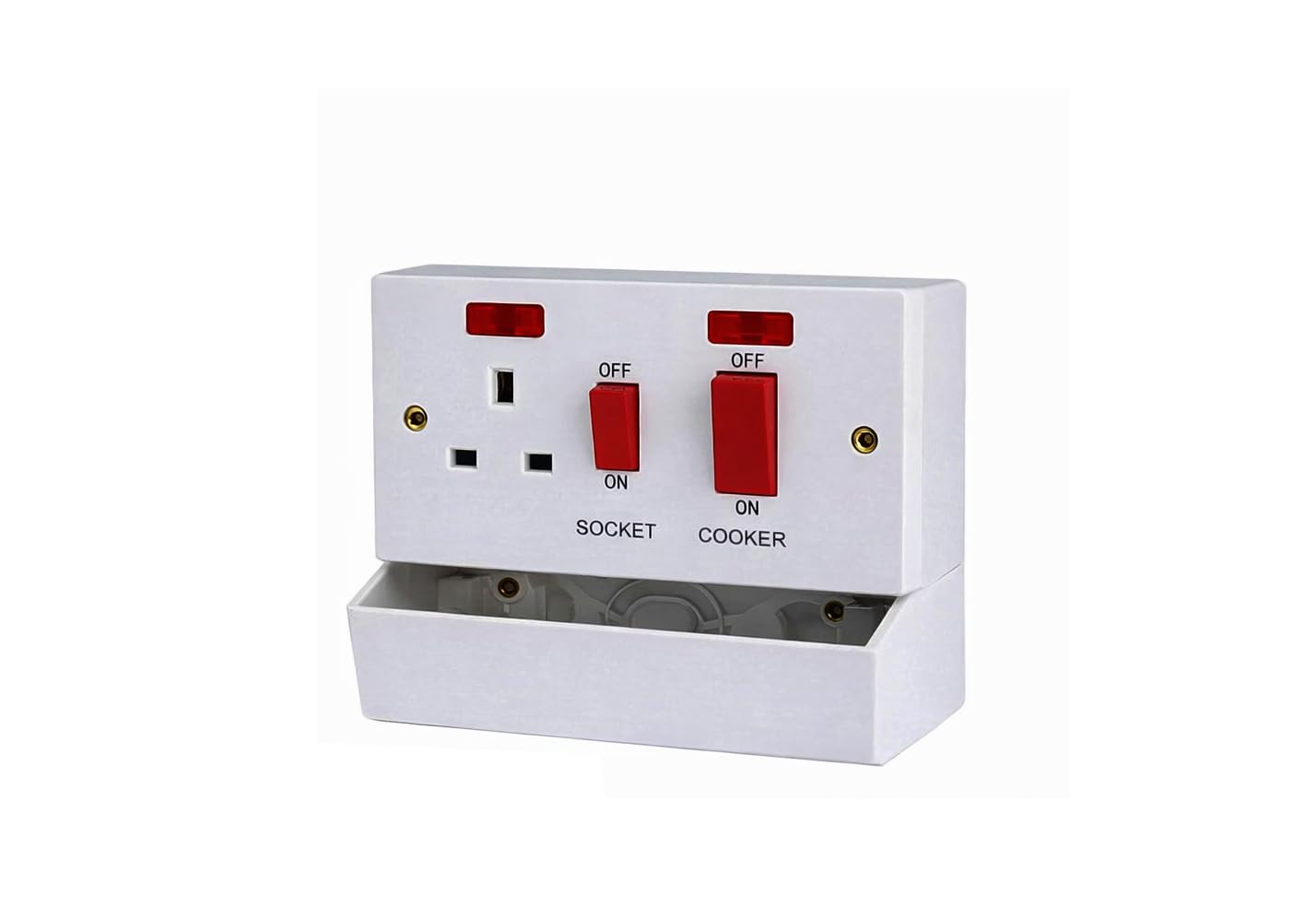

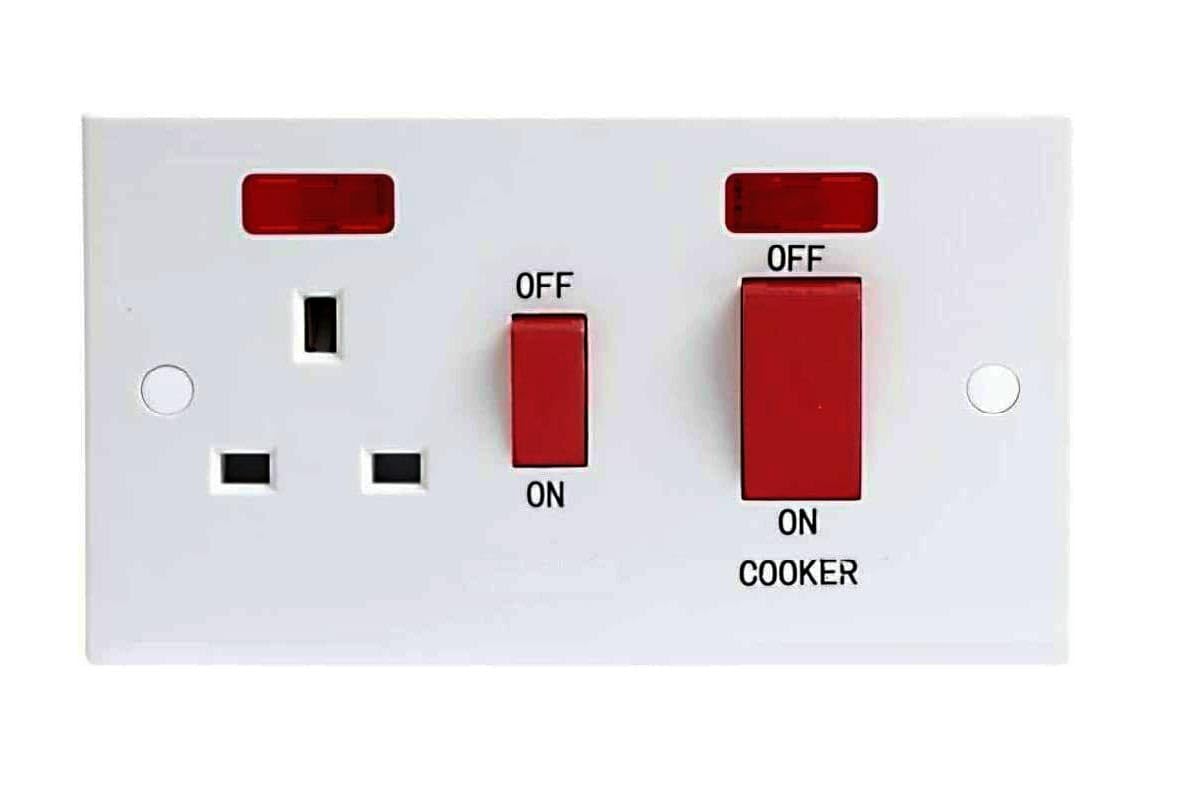

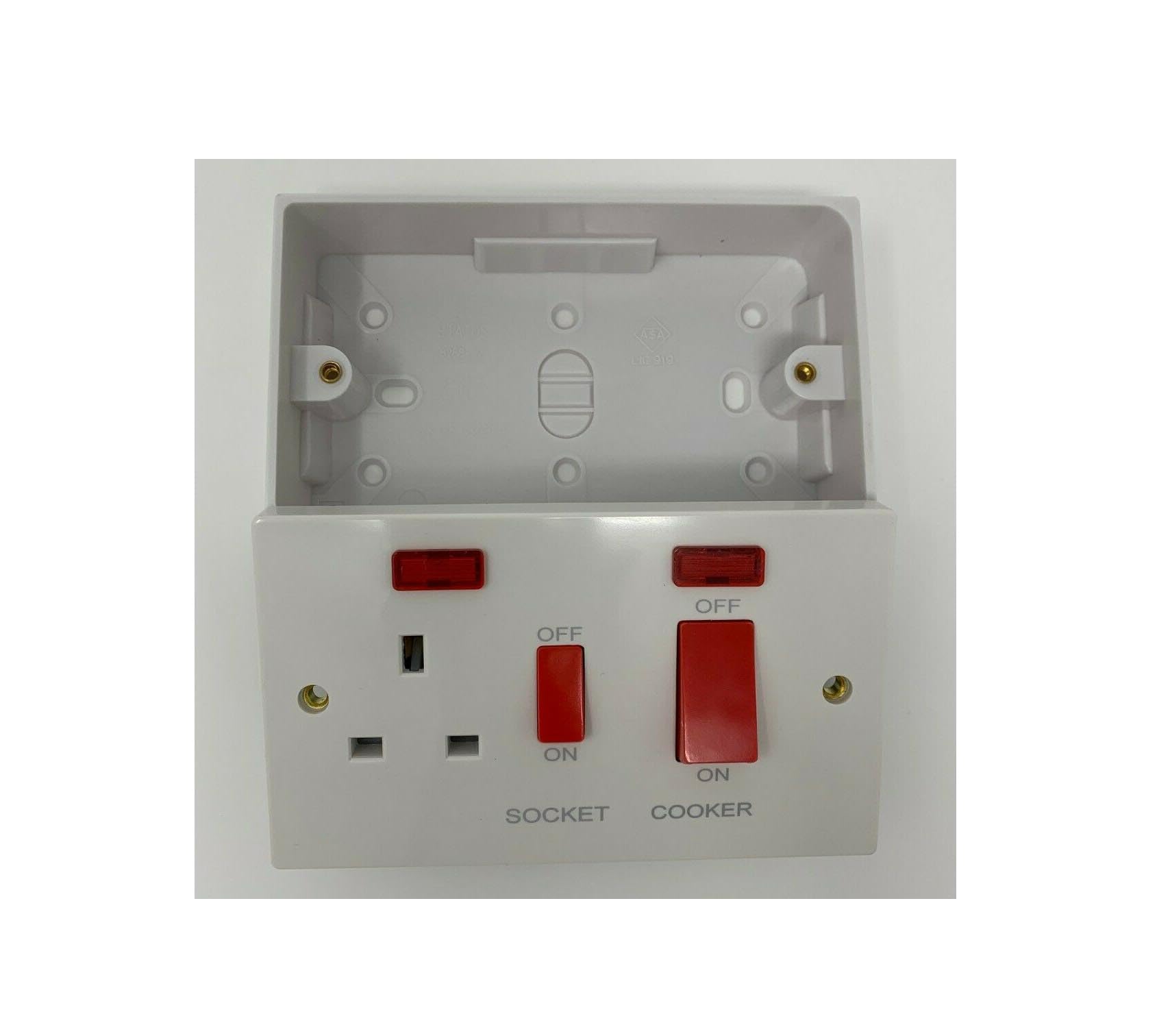

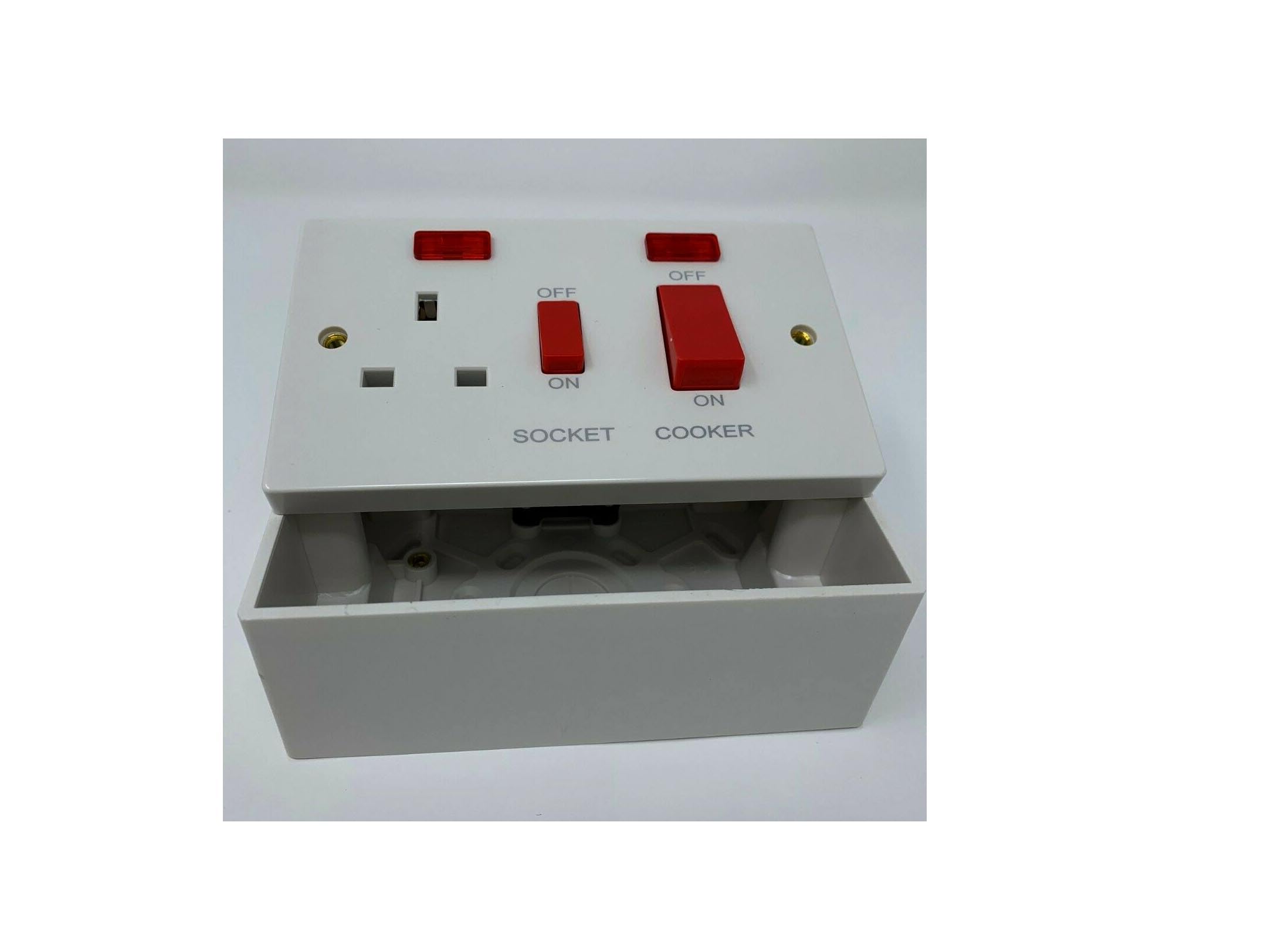

45 Amp Double-Pole Cooker Switch with Neon Indicator with 47 mm Back/Pattress Box

• Rated Current: 45 Amps Pole Configuration: Double-Pole (DP) — isolates both live and neutral
• Indicator: Integral neon (or LED) indicator lamp — lights when supply is on Contact Gap: Compliant with safety standards for cooker isolators

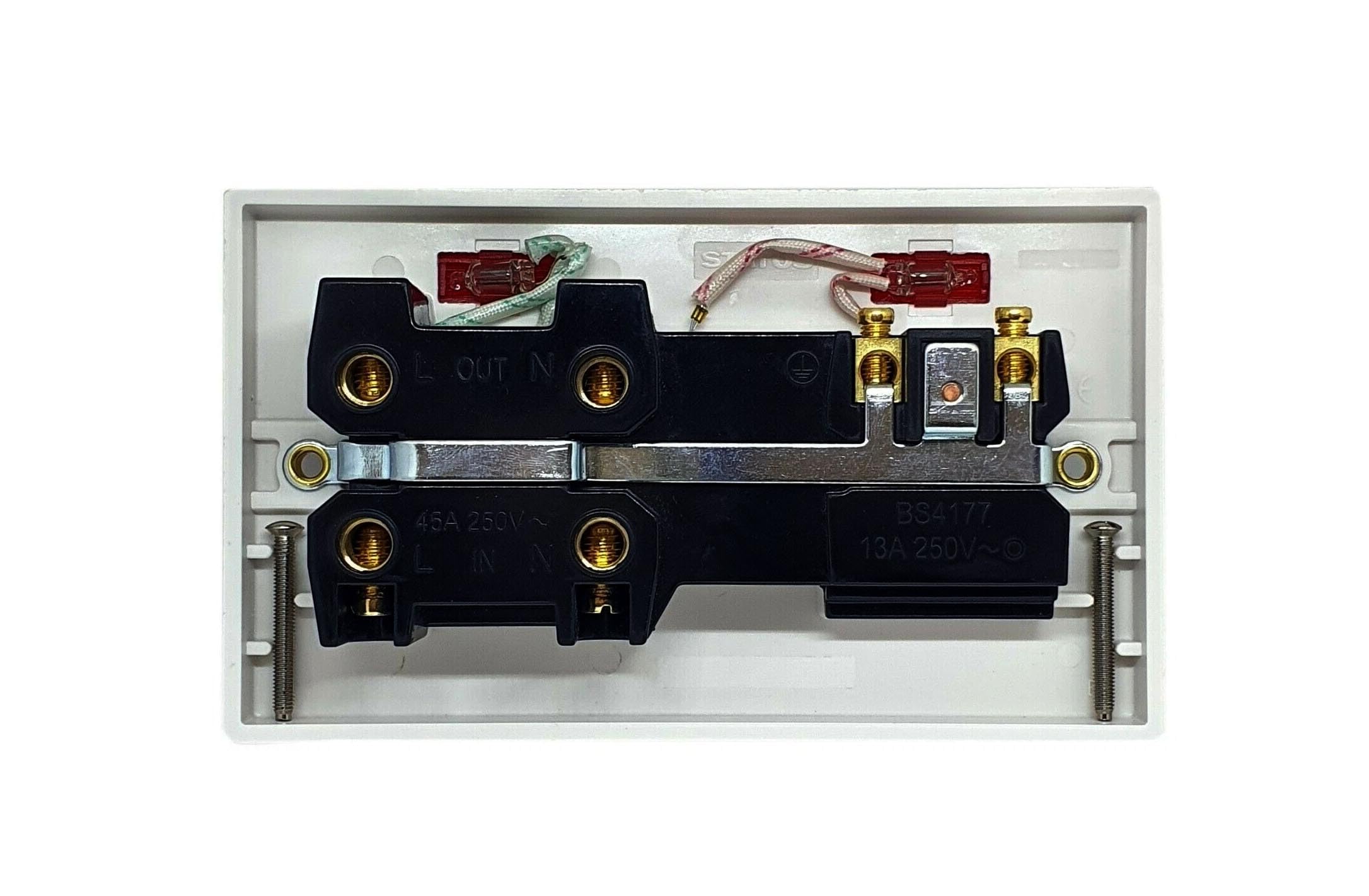

• Switch Mechanism: Sturdy rocker with positive click action Terminals: Large capacity, suitable for heavy copper conductor sizes
• Voltage Rating: 230 / 240 V AC (appropriate for domestic and light commercial installations) Material: High-quality flame-retardant plastic and durable metal contacts
• Mounting: Requires a flush back box of minimum 47 mm depth Ingress Protection: Typically IP2X (internal protection against access)

✅ 45 Amp Double-Pole Cooker Switch with Neon Indicator — Detailed Description Product Name: 45 A Double-Pole Cooker Switch with Integrated Neon Indicator Model: (Example) CSS46W / CC46W / NBS74 / NPC74 Series 🔌 Overview A heavy-duty 45 Amp double-pole cooker switch designed for isolating electric cookers, ovens, and high-load kitchen appliances. This switch provides a safe means of disconnecting electrical supply for maintenance and compliance with electrical safety regulations. The integrated neon indicator light clearly shows when the cooker circuit is live. ⭐ Key Features Rated Current: 45 Amps Pole Configuration: Double-Pole (DP) — isolates both live and neutral Indicator: Integral neon (or LED) indicator lamp — lights when supply is on Contact Gap: Compliant with safety standards for cooker isolators Switch Mechanism: Sturdy rocker with positive click action Terminals: Large capacity, suitable for heavy copper conductor sizes 🧰 Technical Specifications Voltage Rating: 230 / 240 V AC (appropriate for domestic and light commercial installations) Material: High-quality flame-retardant plastic and durable metal contacts Mounting: Requires a flush back box of minimum 47 mm depth Ingress Protection: Typically IP2X (internal protection against access) Finish Options: White polymer body with chrome/steel trim Brushed steel Polished chrome Black nickel or pewter finishes 🧱 47 mm Back/Pattress Box — Detailed Description Product Name: 47 mm Deep Flush Back Box for Cooker Switch Compatible With: 45 A cooker switches with neon indicator 🔌 Overview A standard flush mount back box designed to house a cooker switch mechanism securely within a wall. The 47 mm minimum internal depth ensures there is sufficient space for switch terminals and cable terminations, especially for heavy conductors used in cooker circuits. ⭐ Key Features Internal Depth: 47 mm (minimum) — compliant with UK/IEC guidelines for cooker isolators Type: Flush mount (recessed into wall finish) Material: Galvanized steel or high-impact thermoplastic Cable Entry: Multiple knockouts for conduit or mains cable entry Fixings: Integrated screw bosses for secure switch attachment 🧰 Technical Specifications Compatible Faceplates: 1-gang cooker isolator switch Suitable Cable Sizes: Up to heavy cross-section cooker conductors (e.g., 6 – 16 mm² or more) Mounting Standard: Compatible with standard UK wall stud spacing sizes Safety: Earth bonding tab (if metal box) for earth continuity 🧩 Installation Notes Recess the box into wall board or masonry at the desired switch location. Ensure minimum 47 mm depth is maintained for safe terminations. Run cooker supply cables through knockouts before securing the switch. Attach cooker switch with supplied screws — use gasket for sealed mount. 🛠 Why Both Are Needed The switch unit provides the functional isolation and visual indication for cooker electrical supply. The back/pattress box provides the mechanical enclosure and safe space for heavy cabling, preventing exposed wiring and meeting electrical code requirements.
