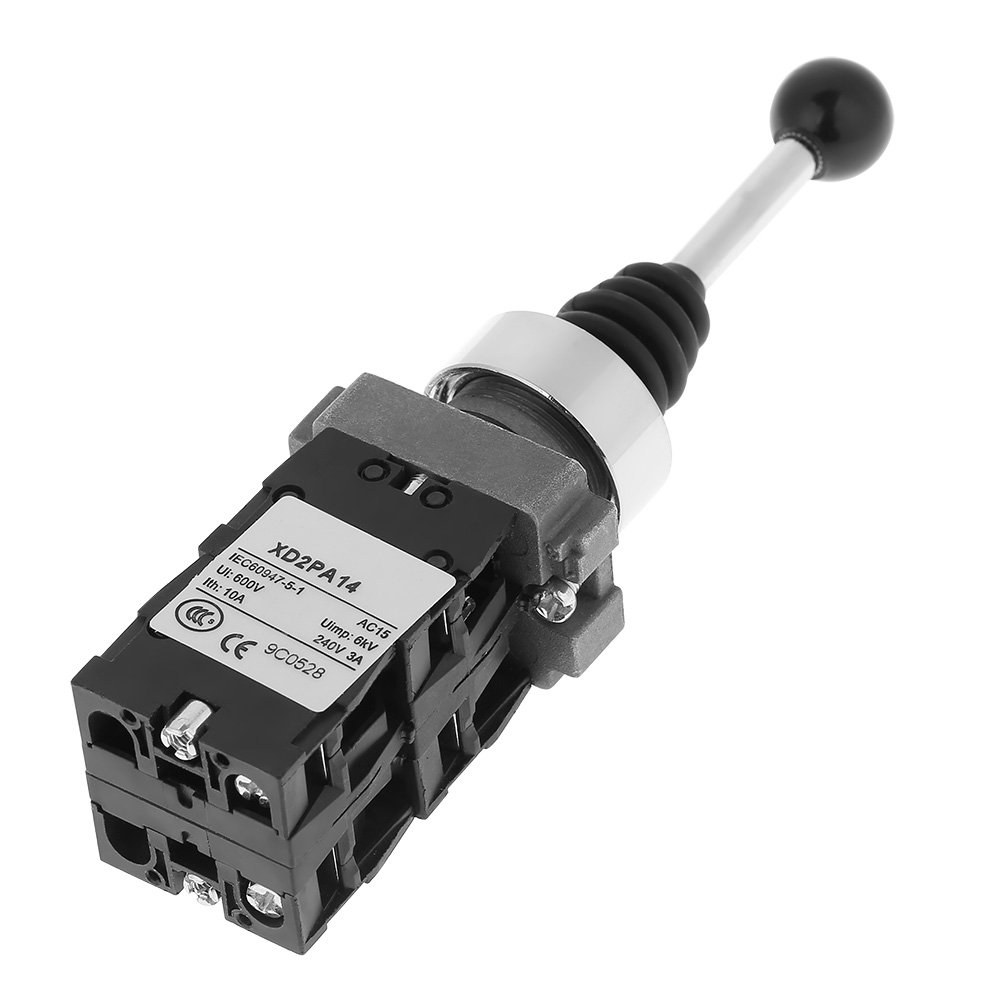

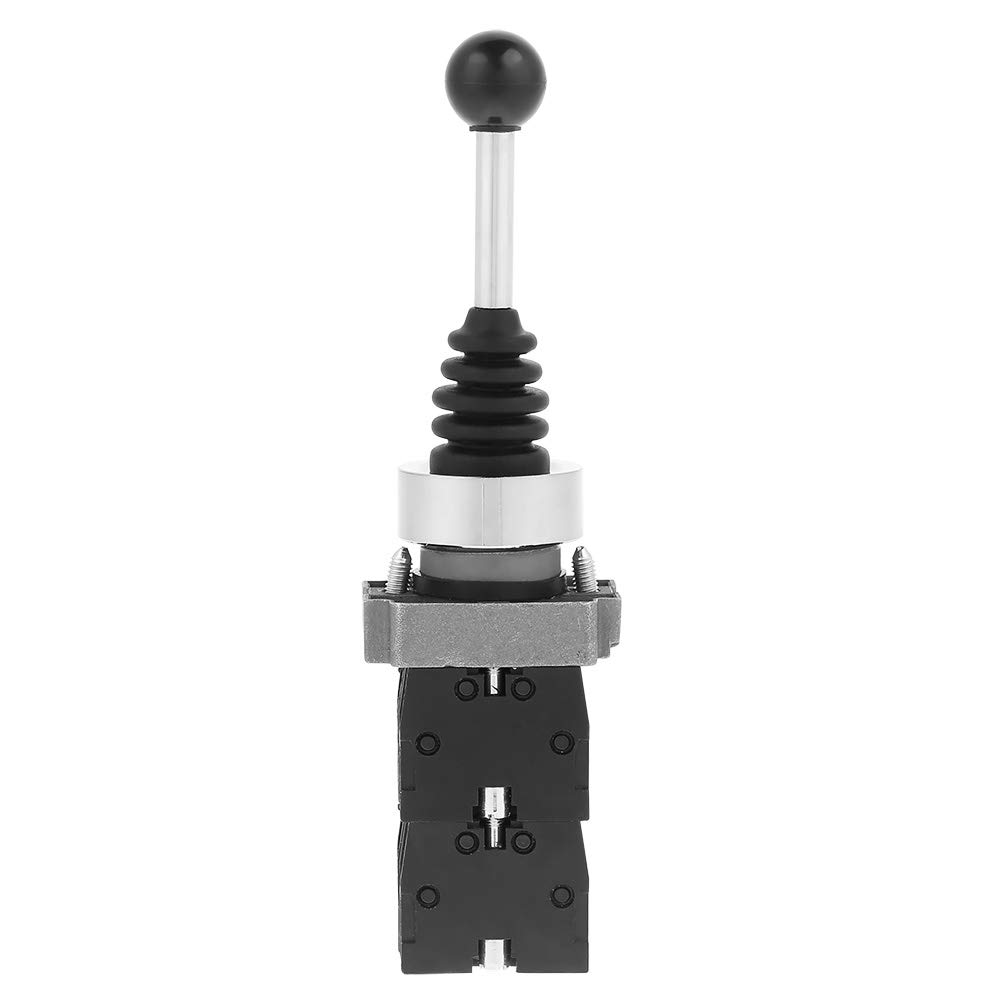

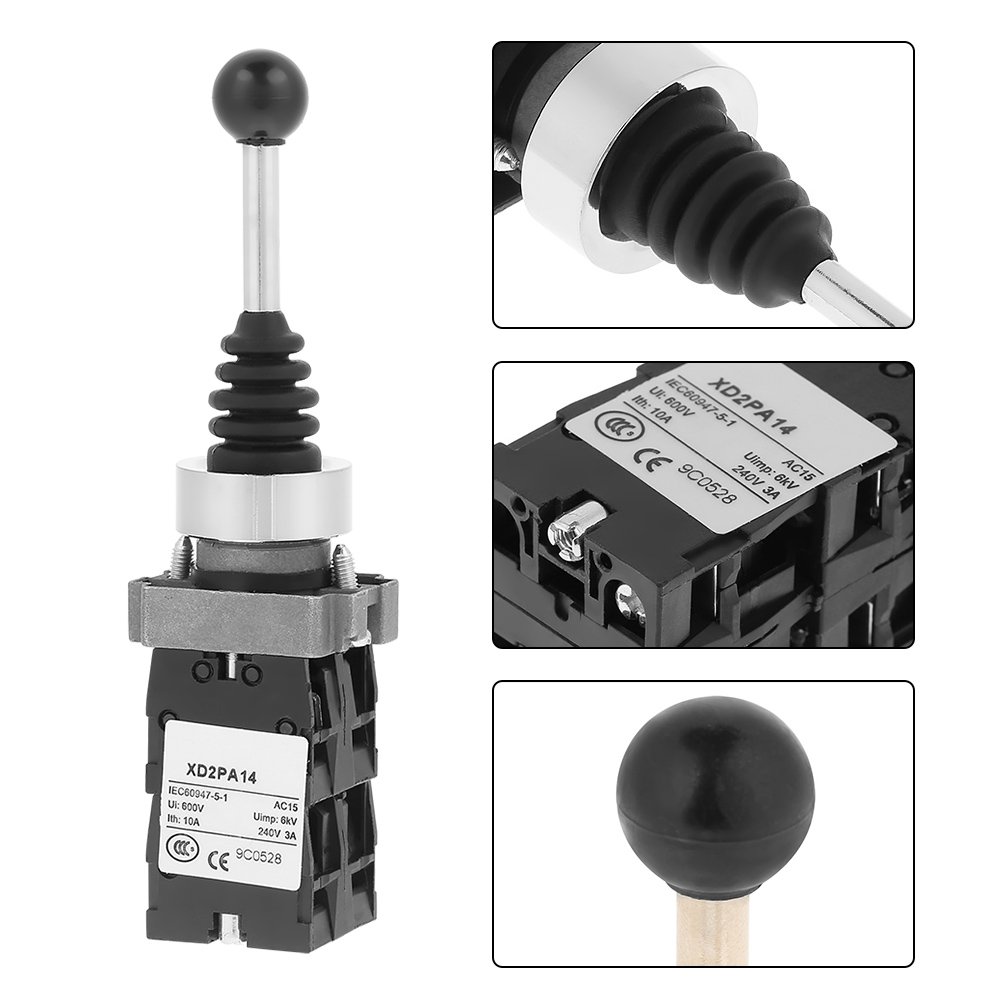

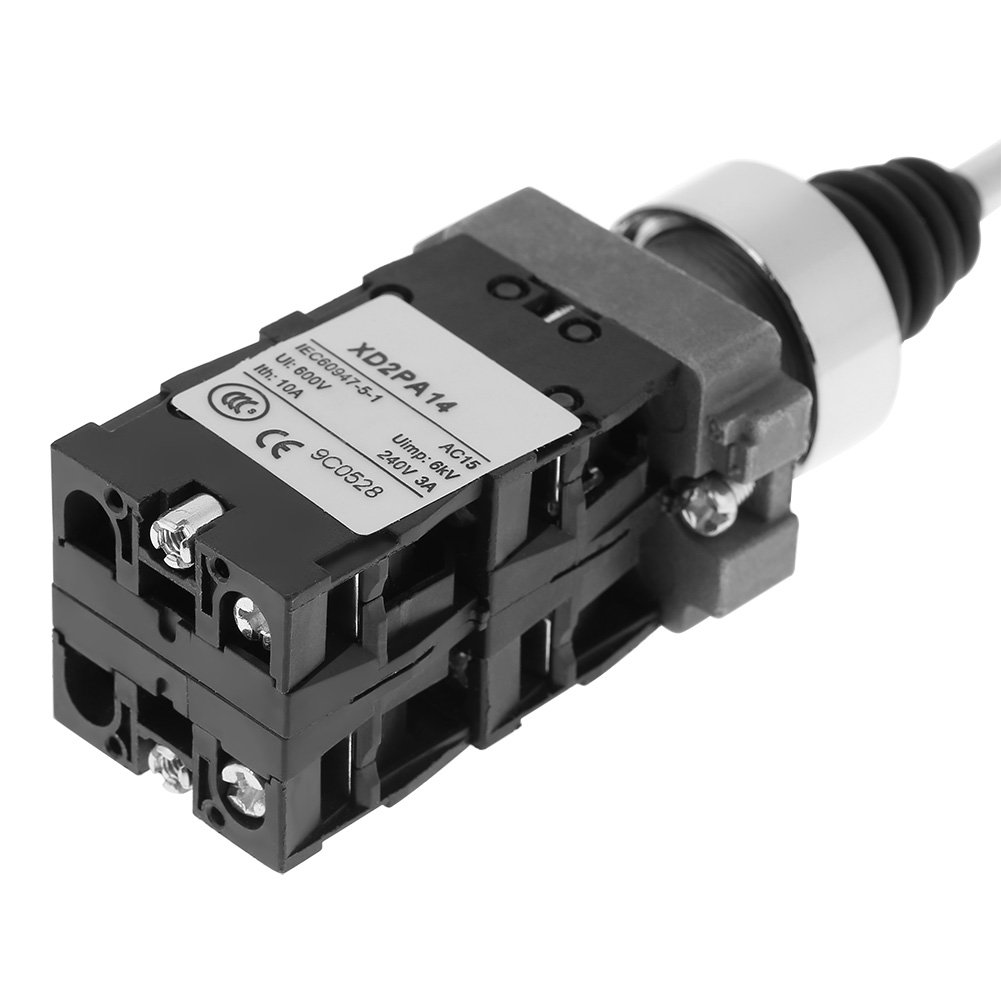

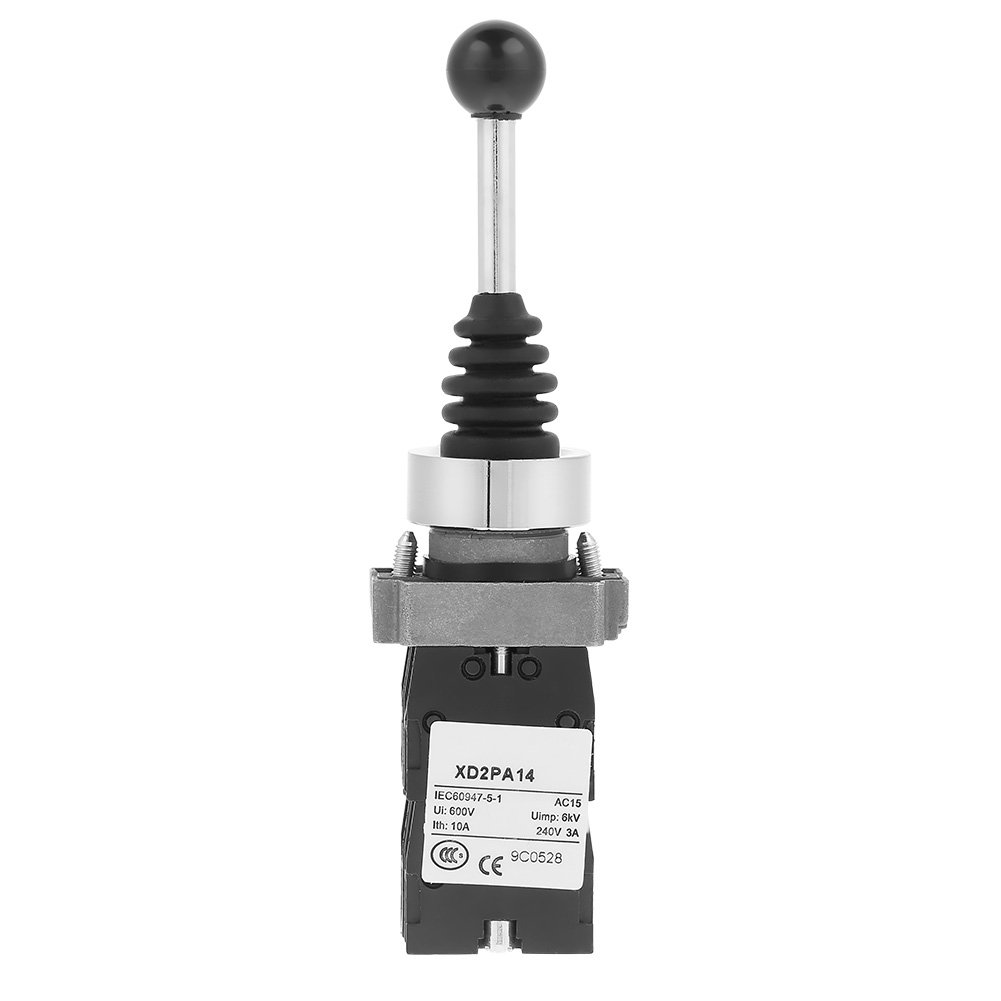

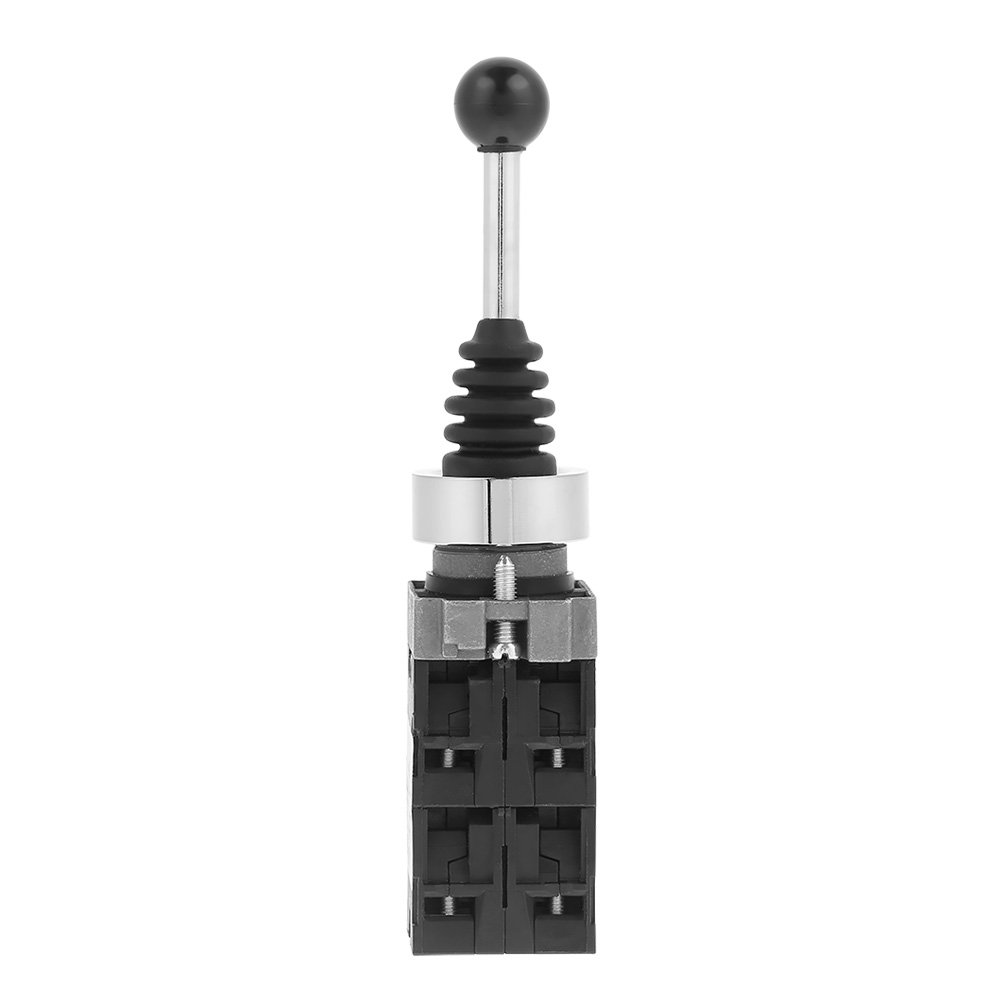

4-Position Switch,XD2PA14 4NO Locked Latching Joy Stick Joystick Switch

• 【Instructions】The joystick switch is a latching switch that has 4 normally open contacts
• and good performance】Made of high quality material, this switch is and has good performance

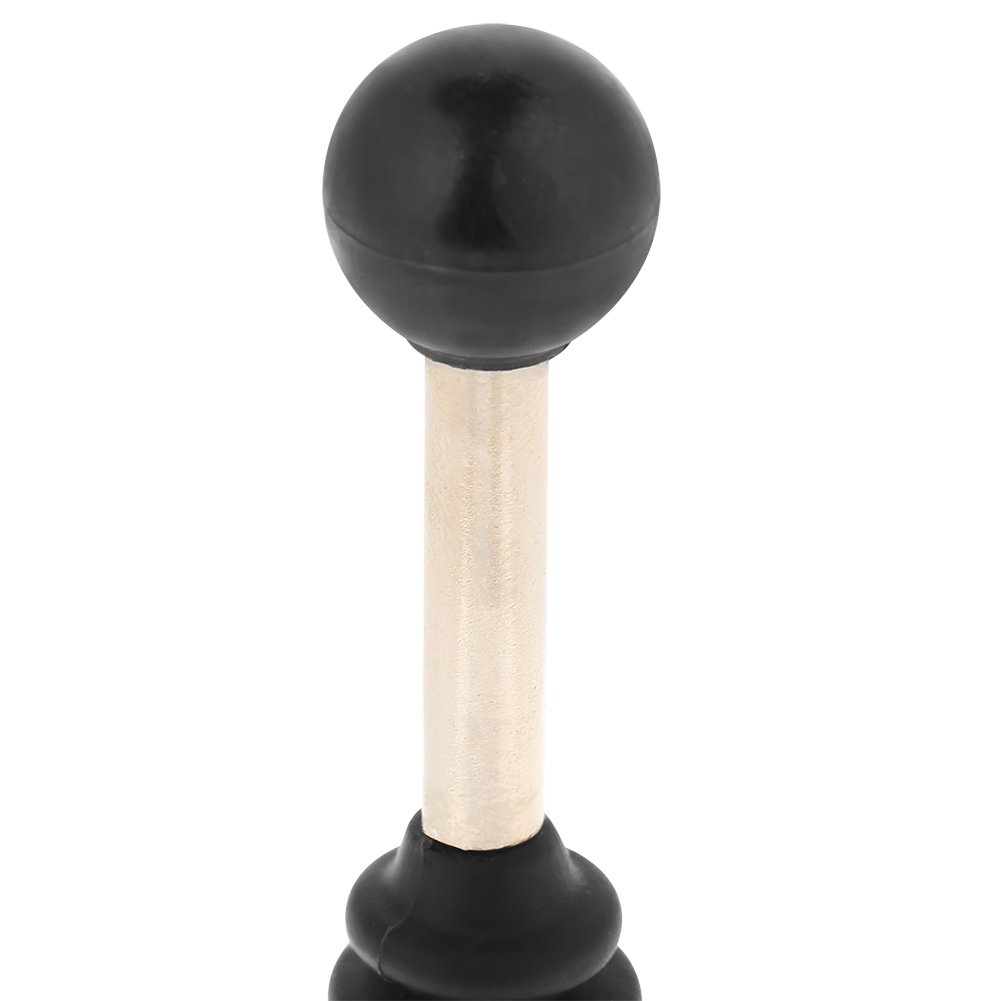

• 【Waterproof, oil proof, dustproof】Rubber sleeve cover on stick is resistant to water, oil and dust
• 【Widely used】Widely used for industrial control AC 50Hz and DC circuits
• 【Main use】It can control magnetic starter, contactor, relay and other electrical circuits

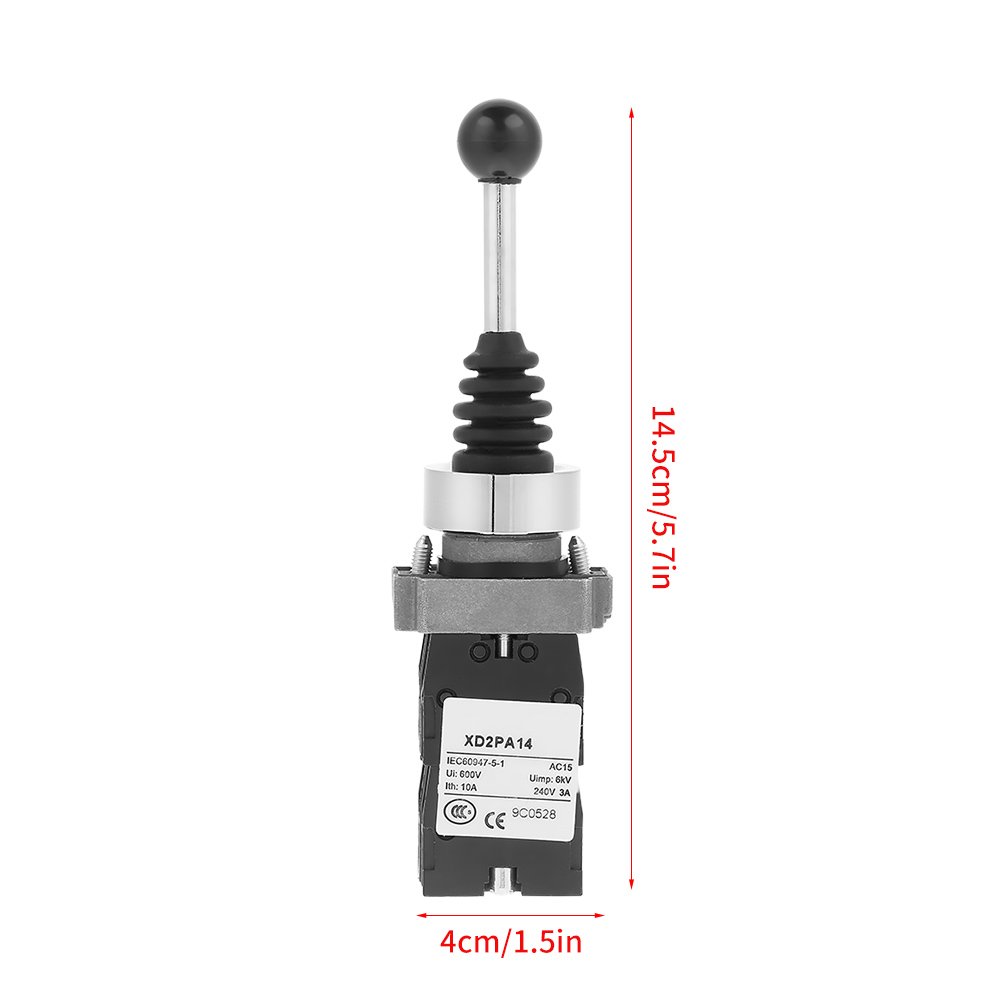

Specifications: Model: XD2PA14 Type: 4-position latching Contact: 4NO Rated Voltage: 0~380V AC (50Hz); 0~220V DC Mounting Hole Diameter: 22mm Rated Isolation Voltage(Ui): 660V Rated Impulse Withstand Voltage(Uimp): 6Kv Thermal Current Rating (Ith): 10A Operating Temperature: -25~+55℃ (no ice) Operating Humidity: 45~85%RH (no condensation) Contact Resistance: ≤50mΩ Isolation Resistance: ≥100Ω Maximum Withstand Voltage: 3000V, AC 50Hz Vibratility: 50Hz, amplitude is about 1mm Shock Resistance: >10m/s² (about 10G) Electrical Life: >3,000,000times Mechanical Life: 1,000, 000times Size: 14.5*4cm/5.7*1.6in IP Rating: IP40 Weight: 151g(approx.) Package Includes: 1 x Switch
