4 Position 4NO Spring Return Momentary Joy Stick Joystick Switch Replacement for HKAI-41Z04, Easy for Mounting and Operation, Industrial Switches

• 0
• 0
• 0
• 0
• 0

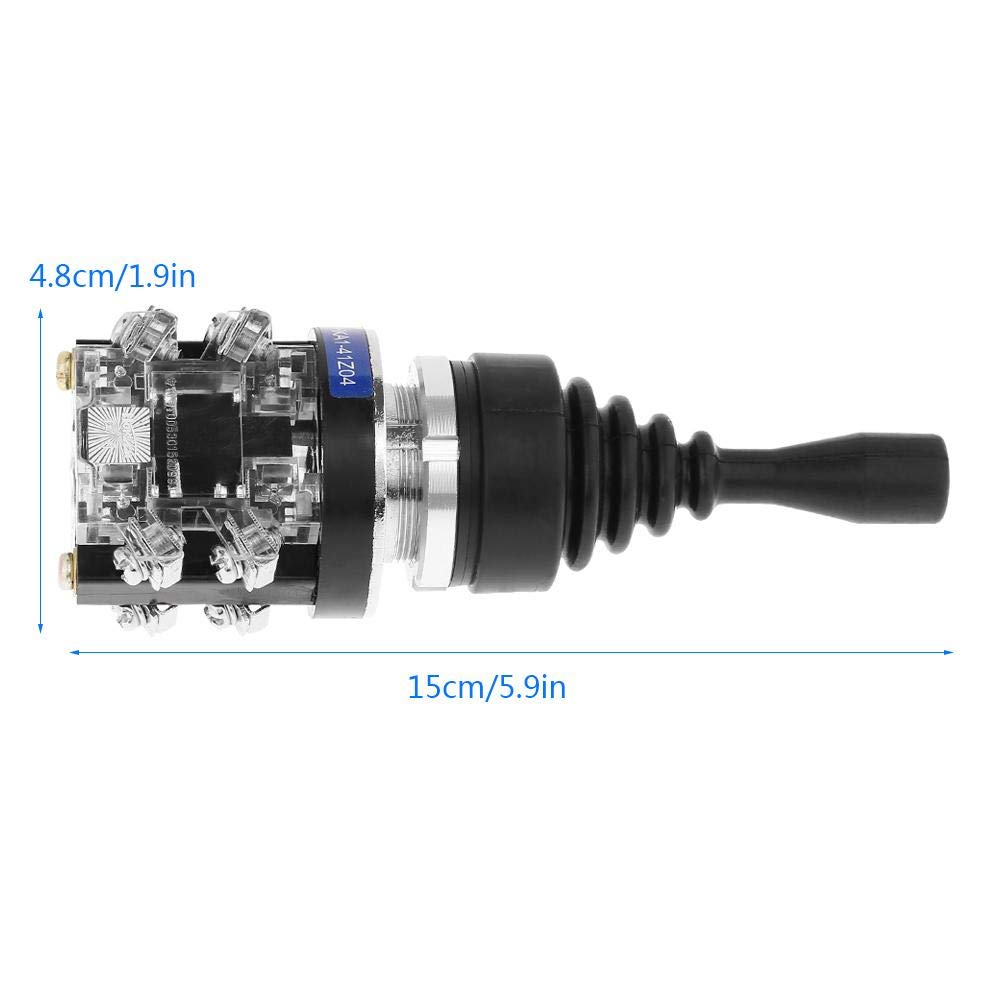

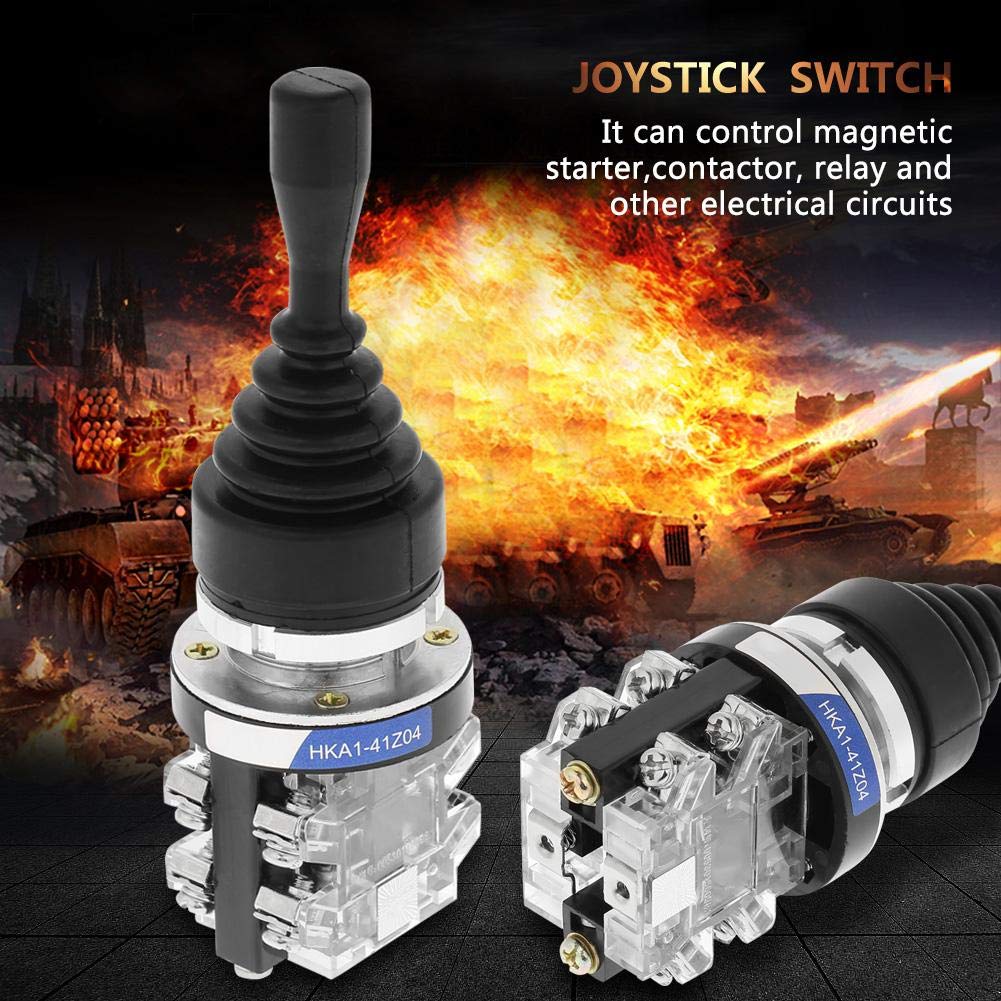

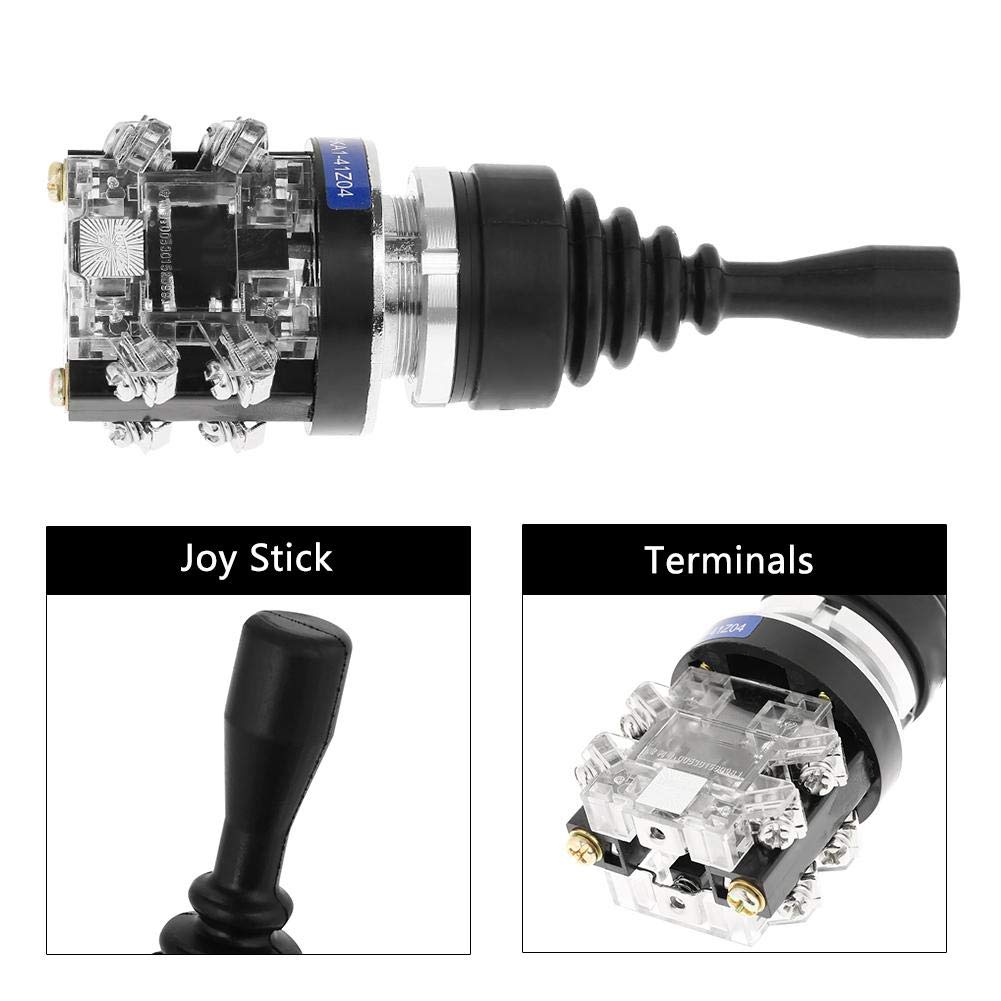

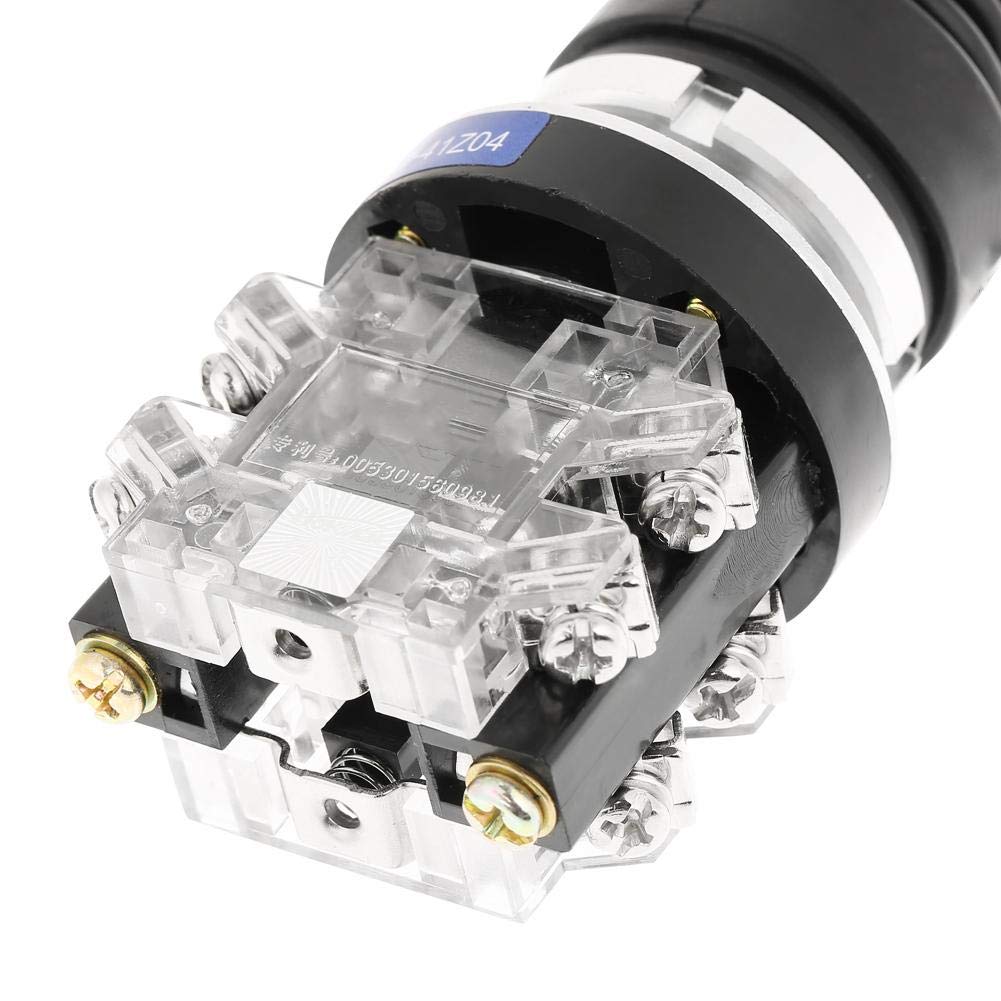

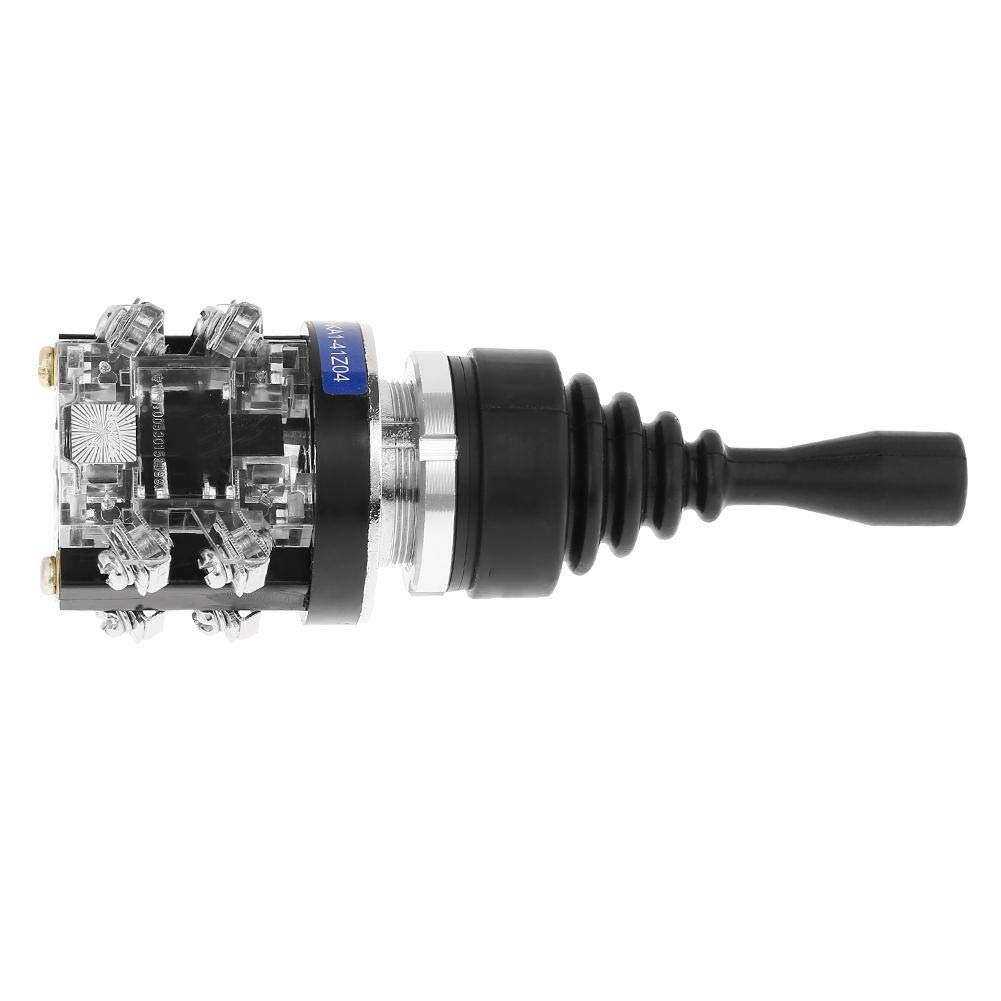

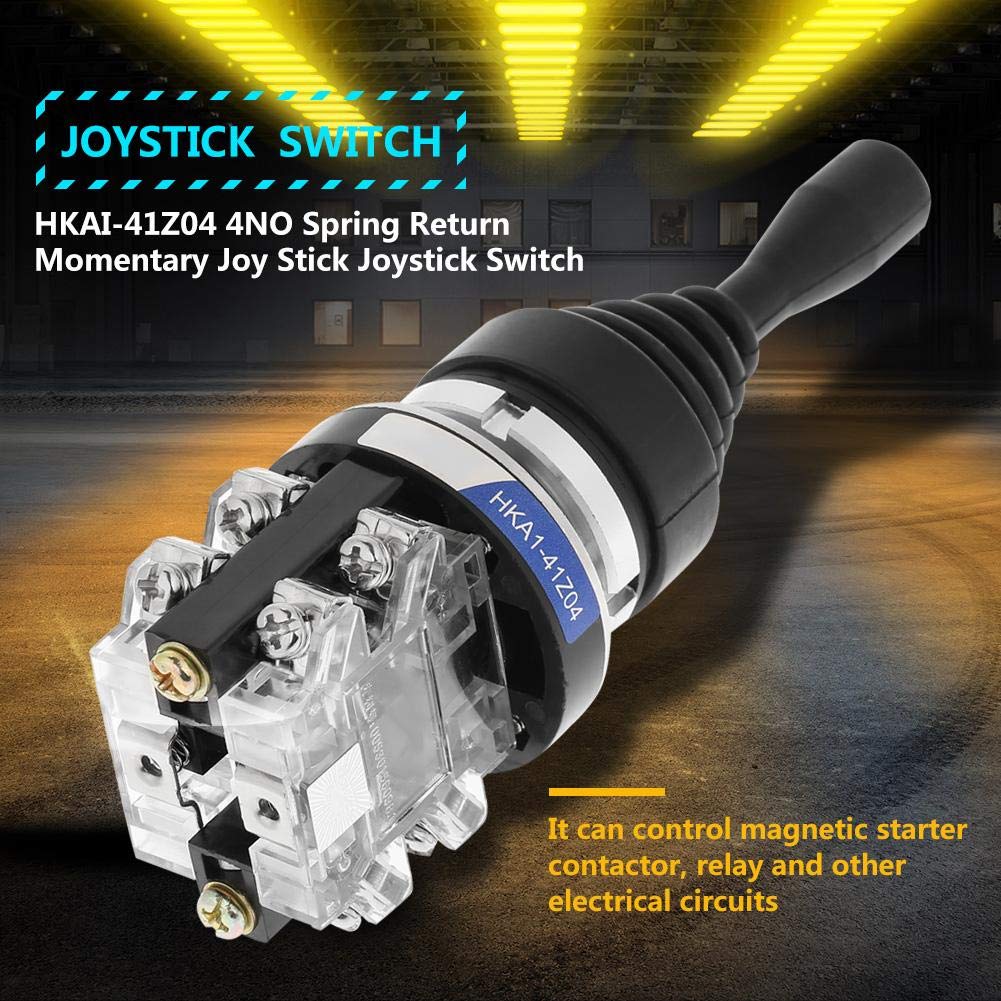

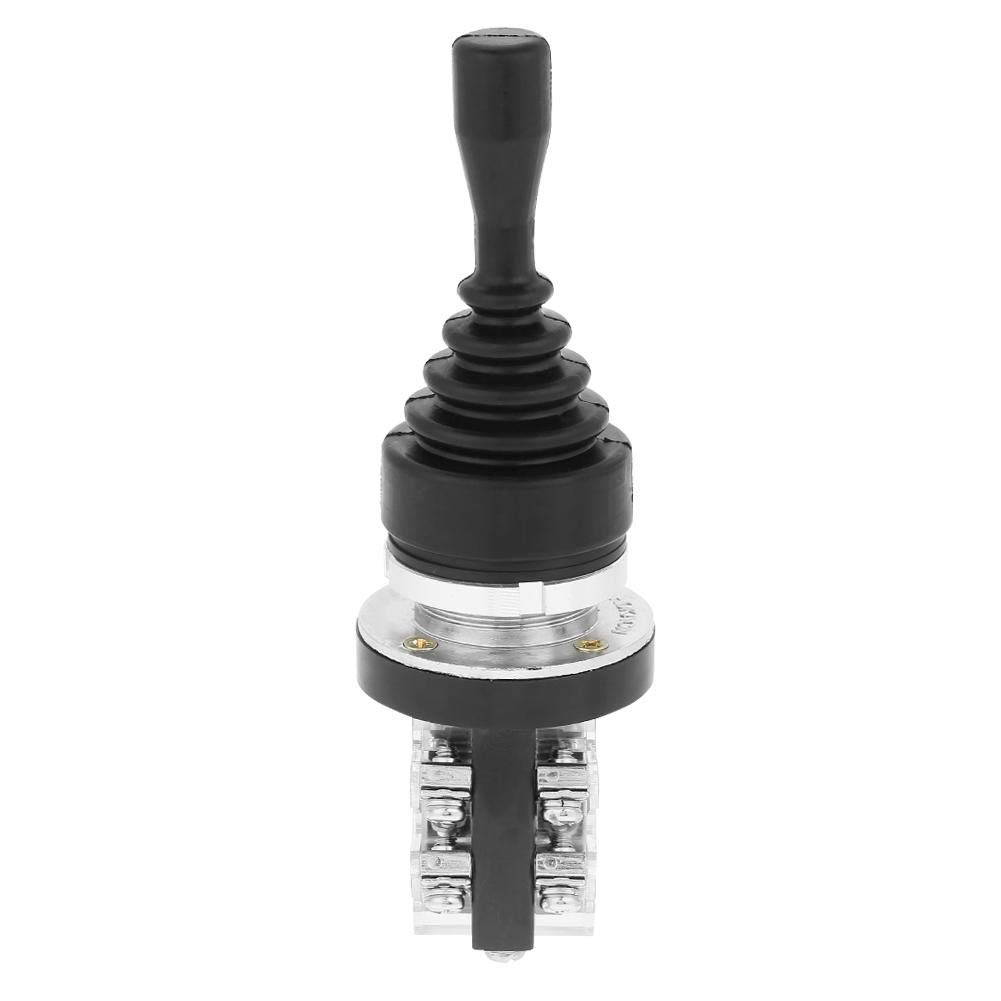

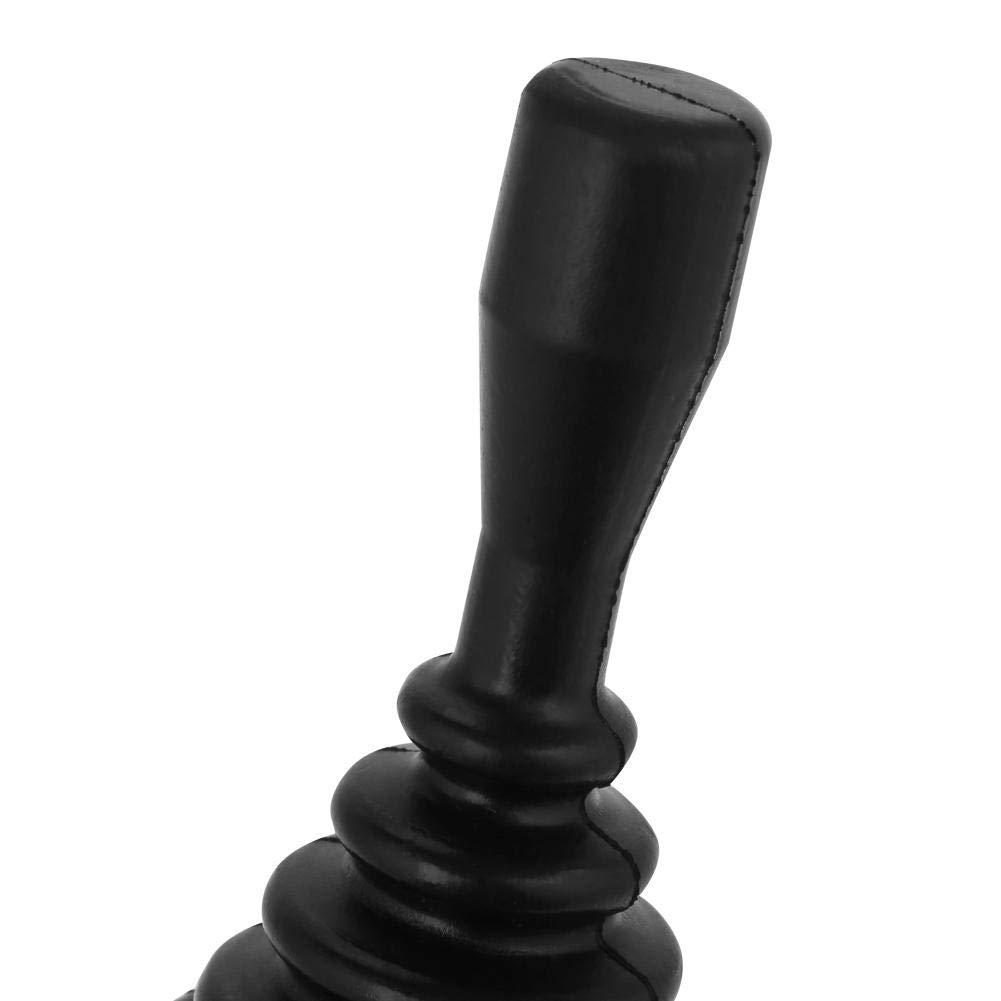

Descriptions: This momentary joystick switch is widely used for industrial control AC 50Hz and DC circuits.It can control magnetic starter, contactor, relay and other electrical circuits. Features: This momentary joystick switch is widely used for industrial control AC 50Hz and DC circuits. It can control magnetic starter, contactor, relay and other electrical circuits. The rubber sleeve has the characteristic of water resistance, oil resistance and dust resistance. The joystick switch is a momentary switch, 4NO type, so it has 4 normally open contacts. This spring return switch is easy for mounting and operation, with long serving life. Specifications: Model: HKAI-41Z04 Contact: 4 NO Rated voltage: 220V / 380V Rated current: 5A / 10A Assembly aperture: Dia. 30mm Electrical life: >500,000 times Mechanical life: > 500,000 times Standard operating environment: Ambient temperature: -25 ~ +55 degrees Celsius (no ice) Operating humidity: 45 ~ 85%RH (no condensation) Contact resistance: 50mΩ Insulation resistance: 100Ω Maximum withstand voltage: 3000V, AC 50Hz Vibration: 50 Hz, amplitude: Approx. 1mm Impact resistance: > 10m(about 10G) Protection grade: IP55 Overall size: 15 x 4.8cm /5.91 x 1.89inch Weight: 217g Package Includes: 1 x Momentary Joystick Switch
