4" Deep Well Borehole Submersible Pump Clean Water Stainless Steel 750W 60M Head

• 4'' (98 mm diameter) IBO SKM PERIPHERAL DEEP WELL PUMP 4" Deep Well Borehole Submersible Pump Clean Water Stainless Steel 750W 60M Head Deep well pump designed especially for owners of small houses, plots, gardens. Its constructions allows it to be used only for the clean water. The pump is designed for pumping clean, chemically non-aggressive water without solid impurities and abrasive particles from narrow boreholes, wells or tanks in households.

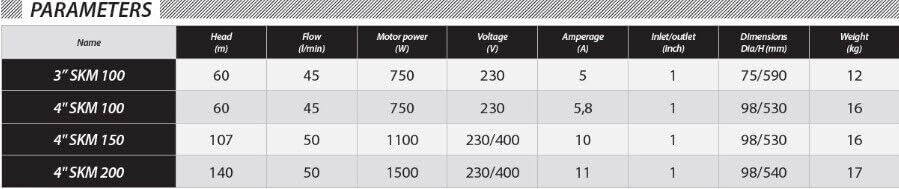

• Advantages of the IBO SKM pump: the 2850 rpm two-pole induction motor is made of stainless steel (inox), the motor is cooled by mineral oil, the motor bearings are self-lubricating, the mechanical seal is made of graphite The IBO SKM inox pump is equipped with a start-up condenser, which is installed directly in the pump motor. The hydraulic part of the SKM pumps is made of brass. Technical data: Motor Power: 750 W Head - 60 m Flow - 45 L/min / 2700 L/h Amperage - 5.8 A Inlet/Outlet - 1'' Diameter - 98 mm Height - 530 mm Weight - 16 kg Power supply -single-phase 230 V ~ /50Hz Power supply cord length - 15 m
• Operating conditions: Maximum liquid temperature 35°C Maximum ambient temperature 35°C Class B Insulation Operating mode - continuous Protection - IP68
• Materials: Housing: stainless steel AISI 304 Shaft and rotor: stainless steel AISI 304 Impeller: Brass Venturi tube: stainless steel Mechanical seal: Carbon-SIC/Sic Motor: mineral oil cooling Rotational speed of the electric motor: 2850 RPM
• Durable materials such as stainless steel and brass have been used in the production of pump impellers. Due to the capacitor built into the motor, the pump is ready for installation immediately after unpacking. The pump is supplied with thermal protection mounted in the motor winding. The pump is designed for minimum 4-inch wells. Power supply cord length - 15 meters.

4'' (98 mm diameter) IBO SKM PERIPHERAL DEEP WELL PUMP Deep well pump designed especially for owners of small houses, plots, gardens. Its constructions allows it to be used only for the clean water. The pump is designed for pumping clean, chemically non-aggressive water without solid impurities and abrasive particles from narrow boreholes, wells or tanks in households. Advantages of the IBO SKM pump: the 2850 rpm two-pole induction motor is made of stainless steel (inox), the motor is cooled by mineral oil, the motor bearings are self-lubricating, the mechanical seal is made of graphite The IBO SKM inox pump is equipped with a start-up condenser, which is installed directly in the pump motor. The hydraulic part of the SKM pumps is made of brass. Durable materials such as stainless steel and brass have been used in the production of pump impellers. Due to the capacitor built into the motor, the pump is ready for installation immediately after unpacking. The pump is supplied with thermal protection mounted in the motor winding. The pump is designed for minimum 4-inch wells. Power supply cord length - 15 meters. Technical data: Motor Power: 750 W Head - 60 m Flow - 45 L/min / 2700 L/h Amperage - 5.8 A Inlet/Outlet - 1'' Diameter - 98 mm Height - 530 mm Weight - 16 kg Power supply -single-phase 230 V ~ /50Hz Power supply cord length - 15 m Operating conditions: Maximum liquid temperature 35°C Maximum ambient temperature 35°C Class B Insulation Operating mode - continuous Protection - IP68 Materials: Housing: stainless steel AISI 304 Shaft and rotor: stainless steel AISI 304 Impeller: Brass Venturi tube: stainless steel Mechanical seal: Carbon-SIC/Sic Motor: mineral oil cooling Rotational speed of the electric motor: 2850 RPM
