4 Channel WiFi Momentary Inching Relay Self-Lock Switch Module,DIY WiFi Garage Door Controller (5-32V)

• Voice Control,works with Alexa Google Home Nest IFTTT, Link "eWeLink Smart Home Fan" capability. You can request Alexa or Google assistant to turn your devices on / off.Remote ON/OFF Your Lights Garage Door from anywhere by Phone

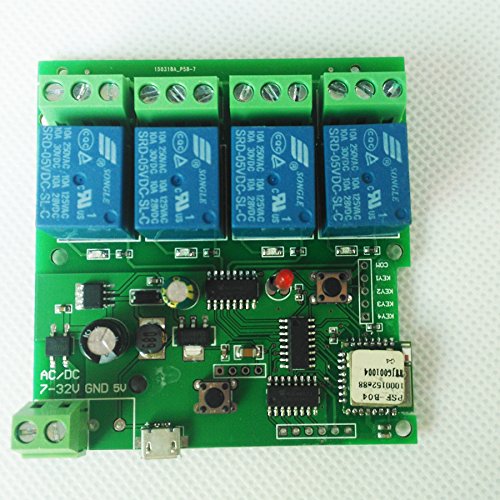

• 4CH 12V Clean Contact WIFI Switch,Control 4 electrical appliances Individually, with Lower Volage voltage 5-32V Input,asily to Power it with phone charger and micro usb cable.,potential-free contacts relay.Passive output. Dry contact,input voltage just power the relay,doesn't pass through the board,witout voltage at output.
• Easily Share Function,Share Control with Other eWelink Accounts,Invite Family to Enjoy Free Remote Contorl,Free app remote(Invitees need to download and login in their eWelink), Both Android and IOS can search ewelink and download, register and control your home appliances.diy smart home

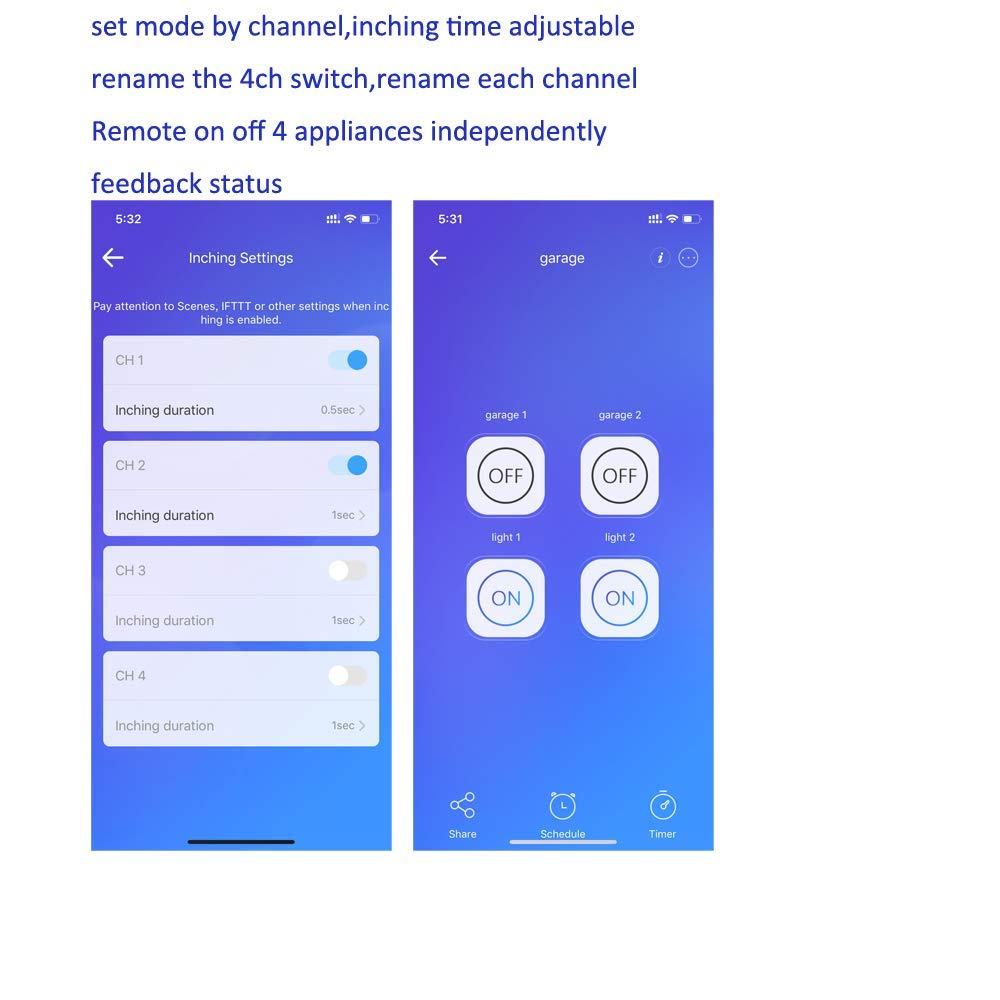

• Three working modes: Inching Self-locking Interlock. Ican be used for DIY Garage Door Opener and wifi remote motor linear actuator forward and reverse,works as RV light controller and other Home Appliance.You can set working mode by channel,set inching enable interlock, and rename each channel
• Timing and Status Real-time Monitor. Smart Scene: Trigger on/off by temperature, humidity or other environmental conditions,It supports 8 group timing function and Share Control with Family

4CH WIFI Smart Switch, DIY Smart Home By using the free eWelink App wireless control,Control your home appliances or electrical devices anytime and anywhere; WIFI control model, no need to program. No matter where you are, you only need to download a APP to connect the wifi and control the cloud. Features: Two working voltage: USB 5V and DC 7V-32V With signal instruction light and relay pull-on instruction light Power <1W, and quiescent current:80mA Cutover current<10A , Cutover voltage<250V 10A Relay Model Working Temperature: -40 to 70degree Working Humidity: 40% to 80% RH Function: 1. Default inching Function: Press the open relay by mobile phone, then cut off the pull-on immediately(default one second), it has the timing-share function at the same time. 2. Self-locking mode: Turn on/off 4 connected devices separately. 3. Interlock mode: Turn on one device every time, and turn off others at the same time. Feature: Independently control 4 devices: It is the new 4-channel design which can make you remotely turn on/off 4 home appliances independently Set 8 time schedules for automatic control: It can create 8 enabled single/repeat/ countdown timers to automatically turn on/off devices at the specified time. And the timers can run themselves even the network is unavailable Sync Status:Real-time devices status provided to App Voice control Wifi smart switch can work perfectly with Alexa-enabled devices like Echo/Tap/Dot, as well as Google home. Just with a simply voice command, Alexa or Google Assistant will work for you, turning on/off the connected devices at once. Control home appliances or electrical devices with your voice like this: “Alexa, turn on the light.” “Alexa, turn on Garage door.” “Hey Google, turn off the bedroom light.” “ Package included: 1 x 4CH WIFI Wireless Smart Home Relay Switch Module 1 x English Instruction
